OUCG8D-640M-ANTRKE Transmitter

AK-060749-A User’s manual (Function) The functions of KOS are as below. 1. Keyless operation function 1) Door entry function (unlock) By touching a door sensor on DR/AS door or pressing Unlock SW of a tail gate while bringing a FOB, KOS and FOB performs authentication by two-way communication and all doors are unlocked. 2) Door entry function (lock) By pressing Lock SW on DR/AS/Tail gate door while bringing a FOB, KOS and FOB performs authentication by two-way communication and all doors are locked 3) Engine start function By pressing IG Push SW on a key cylinder while bringing a FOB, KOS and FOB performs authentication by two-way communication and stereing handle lock is released. After that, engine start is permitted when rotating IG knob up to RUN position. 2. Keyless entry function By pressing Lock button on a FOB, all doors are locked. By pressing Unlock button, all doors are unlocked. 3. Remote control engine starter function By operating a remote control engine starter, an engine starts/stops. 4. Immobilizer function By performing authentication by two-way communication between a KOS and transponder when engin start is performed using a mechanical key with a transponder, unauthorized engine start like stealing is avoided. 5. TPMS function This can warn a driver by lighting or flashing a warning lamp when tire air pressure decrease is detected. ○FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules.. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Complies with RSS-GEN of Industry Canada” -1/1- -

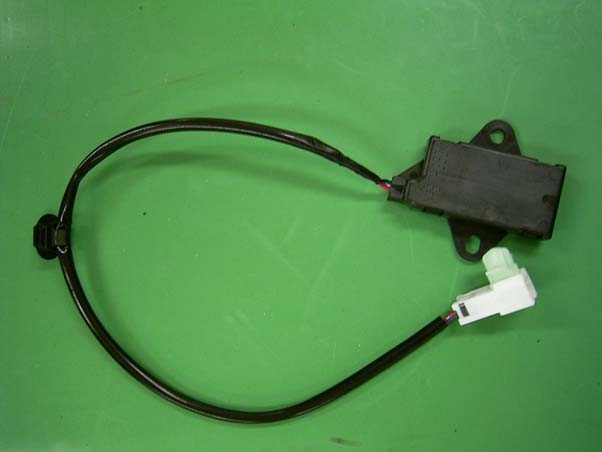

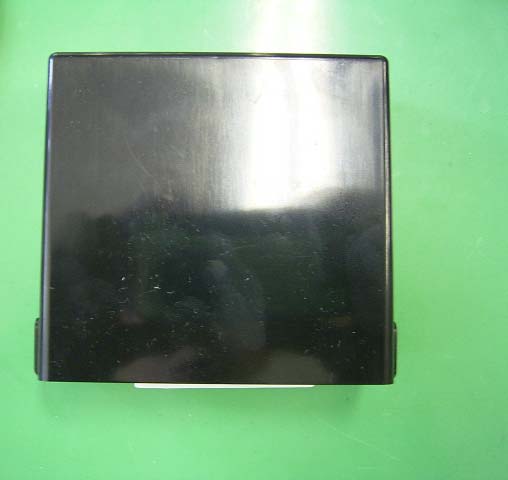

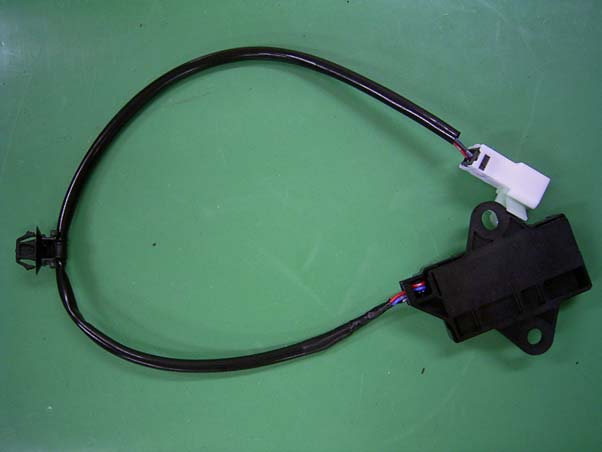

AK-060749-A 図7.4 プリント基板assy(背面図) Figure 8.13 G8D－640M－ANT appearance (front view) Figure 8.14 G8D－640M－ANT appearance (back view) -12/13- - AK-060749-A 8. Photographs Figure 8.1 G8D－640M－ECU appearance (front view) -4/13- - AK-060749-A Figure 8.2 G8D－640M－ECU appearance (back view) -5/13- -

Label Drawing and Location

AK-060749-A -13/13- - Figure 8.15 G8D－640M－ANT PCB assy (front view) Figure 8.16 G8D－640M－ANT PCB assy (back view) AK-060749-A Figure 8.3 G8D－640M－ECU PCB assy (front view) -6/13- - AK-060749-A Figure 8.4 G8D－640M－ECU PCB assy (back view) -7/13- -

Test report No. : 26GE0265-HO-B Page : 2 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.) ............................................................................................... 3 SECTION 3: Test specification, procedures & results......................................................................... 4 SECTION 4: Operation of E.U.T. during testing .................................................................................7 SECTION 5: Radiated emission (Fundamental and Spurious Emission and –26dB Bandwidth) .... 8 APPENDIX 1: Photographs of test setup .............................................................................................. 9 Radiated Emission ............................................................................................................................... 9 Worst Case Position (EUT: X-axis / Antenna: Y-axis) .................................................................. 10 APPENDIX 2: Test instruments .......................................................................................................... 11 APPENDIX 3: Data of EMI test........................................................................................................... 12 Radiated Emission below 30MHz (Fundamental).......................................................................... 12 Radiated Emission above 30MHz (Sprious Emission) ................................................................... 14 -26dB Bandwidth............................................................................................................................... 15 99% Occupied Bandwidth ................................................................................................................ 16 Test report No. : 26GE0265-HO-B Page : 3 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) SECTION 1: Client information Company Name : OMRON Corporation Address : 6368 Nenjozaka, Okusa, Komaki, Aichi, 485-0802 Japan Telephone Number : +81- 568-78-6394 Facsimile Number : +81- 568-78-7659 Contact Person : Harumi Itatsu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : ECU Model No. : G8D-640M-ECU Sample No. : KU0003 Country of Manufacture : Japan Rating : DC12V Receipt Date of Sample : April 3, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: G8D-640M-ECU (referred to as the EUT in this report) is the ECU. Equipment Type : Transmitter Frequency of Operation : 125kHz +/-0.1kHz Type of modulation : ASK Power Control : No ITU code : K1D Antenna Type : Ferrite Antenna Test report No. : 26GE0265-HO-B Page : 4 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.205 Restricted bands of operation: 2006 Section 15.209 Radiated emission limits, general requirements: 2006 FCC 15.31 (e) The EUT is a battery-operated device and test was performed with the full-charged battery. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is installed inside the vehicle. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 26GE0265-HO-B Page : 5 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) 3.2 Procedures and results No. Item Test Procedure Specification Remarks Deviation Worst margin *0) Results 1 Conducted Emission <FCC> ANSI C63.4:2003 7. AC powerline conducted emission measurements <IC> RSS-Gen 7.2.2 <FCC> Section 15.207 <IC> RSS-Gen 7.2.2 - N/A *1) N/A N/A 2 Electric Field Strength of Fundamental Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.6, 4.9 <FCC> Section 15.209 <IC> RSS-210 2.6, 2.7 Radiated N/A <PEAK> 48.9dB 125.10kHz,0deg. <AV> 30.4dB 125.10kHz,0deg Complied 3 Electric Field Strength of Spurious Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.7, 4.9 <FCC> Section 15.205, 15.209 <IC> RSS-210 2.6, 2.7 Radiated N/A 10.6dB 43.002MHz, Vertical, QP Complied 4 -26dB Bandwidth <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> - <FCC> Reference data <IC> - Radiated N/A N/A N/A Note: UL Apex’s EMI Work Procedures No.QPM05 and QPM15. *0) The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. *1) The test is not applicable since the EUT does not have AC Mains. *These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Addition to standards No. Item Test Procedure Specification Remarks DeviationWorst margin Results 1 99 ％ Occupied Band Width <IC>RSS-Gen 4.4.1 <IC>RSS-Gen 4.4.1 Radiated N/A N/A N/A Test report No. : 26GE0265-HO-B Page : 6 of 16 Issued date : June 1, 2006 FCC ID …

Text truncated - open the document above for the full version.

Test report No. : 26GE0265-HO-B Page : 11 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 2: Test instruments EMI test equipment Control No. Instrument Manufacturer Model No Test Item Calibration Date * Interval(month) MAEC-01 Anechoic Chamber TDK Semi Anechoic Chamber 10m RE / ME 2005/11/14 * 12 MBA-01 Biconical Antenna Schwarzbeck BBA9106 RE 2005/10/10 * 12 MLA-01 Logperiodic Antenna Schwarzbeck USLP9143 RE 2005/10/14 * 12 MOS-01 Digital Humidity Indicator N.T NT-1800 RE / ME 2004/11/25 * 24 MLPA-02 Loop Antenna Rohde & Schwarz HFH2-Z2 ME 2005/12/06 * 12 MCC-03 Coaxial Cable Fujikura/Suhner/A gilent/TSJ - ME 2005/12/18 * 12 MCC-31 coaxial cable ULApex - ME 2006/05/29 * 12 MPA-04 Pre Amplifier Agilent 8447D RE / ME 2006/05/27 * 12 MAT-06 Attenuator(6dB) Weinschel Corp 2 RE 2005/12/16 * 12 MTR-01 Test Receiver Rohde & Schwarz ESI40 RE / ME 2005/11/10 * 12 MCC-01 Coaxial Cable 0.1- 3000MHz Suhner/storm/Agil ent/TSJ - RE 2006/02/20 * 12 MSTW-14 EMI measurement program TSJ TEPTO-DV RE / ME - All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. Test Item: ME: Spurious emission (9k-30MHz) RE: Spurious emission (30M-1GHz) Test report No. : 26GE0265-HO-B Page : 12 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 3: Data of EMI test Radiated Emission below 30MHz (Fundamental) DATA OF MAGNETIC RADIATED EMISSION TEST UL Apex Co.,LTD. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2006/04/15 02:30:36 Applicant : OMRON Corporation Report No.:26GE0265-HO Kind of EUT: ECU Power:DC 12V (Car Battery) Model No. : G8D-640M-ECU Temp./Humi.:20deg.C / 44% Serial No.: KU0003 Operator:Norihisa Hashimoto Mode / Remarks : Transmitting LF(125kHz) LIMIT : FCC15C §15.209(a) / RSS-210 2.6, 2.7 , (10m) PK FCC15C §15.209(a) / RSS-210 2.6, 2.7 , (10m) AV CHART : WITH FACTOR ANT TYPE : LOOP CALCULATION : READING + ANT FACTOR + LOSS( CABLE + ATTEN.-AMP.) Page: Frequency[Hz] [dBuV/m]<< QP/AV/PEAK DATA >>90 deg :90 deg 45 deg :45 deg 0 deg :0 deg 30M .01M .02M .03M .05M .07M .1M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Freq. Reading DET Ant.Fac LossGainResultLimitMargin Antenna Table Comment Freq. Reading DET Ant.Fac LossGainResultLimitMargin Antenna Table Comment [MHz] [dBuV] DET [dB/m] [dB][dB][dBuV/m][dBuV/m][dB] Antenna [deg] Comment 0.1251062.3 PEAK 19.5 0.226.255.8104.748.90deg310X-axis 0.1251062.2 PEAK 19.5 0.226.255.7104.749.00deg280Y-axis 0.1251054.1 PEAK 19.5 0.226.247.6104.757.10deg40Z-axis 0.1251061.8 PEAK 19.5 0.226.255.3104.749.445deg280X-axis 0.1251053.0 PEAK 19.5 0.226.246.5104.758.290deg40X-axis 0.1251060.8 AV 19.5 0.226.254.384.730.40deg310X-axis 0.1251057.3 AV 19.5 0.226.250.884.733.945deg310X-axis 0.1251050.3 AV 19.5 0.226.243.884.740.990deg280X-axis 0.1251061.2 QP 19.5 0.226.254.7104.750.00deg310X-axis Test report No. : 26GE0265-HO-B Page : 13 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) Radiated Emission below 30MHz (Spurious Emission) DATA OF MAGNETIC RADIATED EMISSION TEST UL Apex Co.,LTD. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2006/04/15 02:30:36 Applicant : OMRON Corporation Report No.:26GE0265-HO Kind of EUT: ECU Power:DC 12V (Car Battery) Model No. : G8D-640M-ECU Temp./Humi.:20deg.C / 44% Serial No.: KU0003 Operator:Norihisa Hashimoto Mode / Remarks : Transmitting LF(125kHz)(Max-axis:X) LIMIT : FCC15C §15.209(a) / RSS-210 2.6, 2.7 , (10m) PK FCC15C §15.209(a) / RSS-210 2.6, 2.7 , (10m) AV CHART : WITH FACTOR ANT TYPE : LOOP CALCULATION : READING + ANT FACTOR + LOSS( CABLE + ATTEN.-AMP.) Page: Frequency[Hz] [dBuV/m]<< QP/AV/PEAK DATA >>90 deg :90 deg 45 deg :45 deg 0 deg :0 deg 30M .01M .02M .03M .05M .07M .1M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Freq. Reading DET Ant.Fac LossGainResultLimitMargin Antenna Table Comment Freq. Reading DET Ant.Fac LossGainResultLimitMargin Antenna Table Comment [MHz] [dBuV] DET [dB/m] [dB][dB][dBuV/m][dBuV/m][dB] Antenna [deg] Comment 0.2500043.9 PEAK 19.5 0.327.336.498.762.30deg310X-axis 0.2500032.6 AV 19.5 0.327.325.178.753.60deg310X-axis 0.3750045.2 PEAK 19.5 0.327.737.395.257.90deg200X-axis 0.3750035.1 AV 19.5 0.327.727.275.248.00deg200X-axis 0.5000036.3 QP 19.5 0.427.828.452.724.30deg310X-axis 0.6250035.0 QP 19.5 0.327.926.950.823.90deg310X-axis 0.7500034.1 QP 19.5 0.327.926.049.223.20deg310X-axis 0.8750033.6 QP 19.5 0.427.925.647.822.20deg310X-axis 1.0000033.1 QP 19.5 0.227.924.946.721.80deg310X-axis 1.1250033.2 QP 19.5 0.327.925.145.720.60deg310X-axis 1.2500032.9 QP 19.6 0.427.925.044.719.70deg310X-axis Test report No. : 26GE0265-HO-B Page : 14 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) Radiated Emission above 30MHz (Spurious Emission) DATA OF RADIATED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2006/04/15 04:26:49 Company : OMRON CorporationReport No.:26GE0265-HO Kind of EUT: ECU Power:DC12V(Car Battery) Model No. : G8D-640M-ECU Temp./Humi.:20deg.C. / 44% Serial No. : KU0003 Operator:Norihisa Hashimoto Mode / Remarks : Transmitting LF(125kHz) Max-axis(X) LIMIT : FCC15C § 15.209, 3m, below1GHz / RSS-210 2.6, 2.7 Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE：-30MHz LOOP,30-300MHz B…

Text truncated - open the document above for the full version.

Test report No. : 26GE0265-HO-B Page : 9 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Test report No. : 26GE0265-HO-B Page : 10 of 16 Issued date : June 1, 2006 FCC ID : OUCG8D-640M-ANT UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) Worst Case Position (EUT: X-axis / Antenna: Y-axis) X-axis Y-axis Z-axis
