OUCG8D-645MWireless Control Module

FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

AK-071682-A 8. Photographs Figure 8.1 appearance (front view) Figure 8.2 appearance (back view) -15/16- -

Label Drawing Model: G8D-645M

Label Location Model: G8D-645M

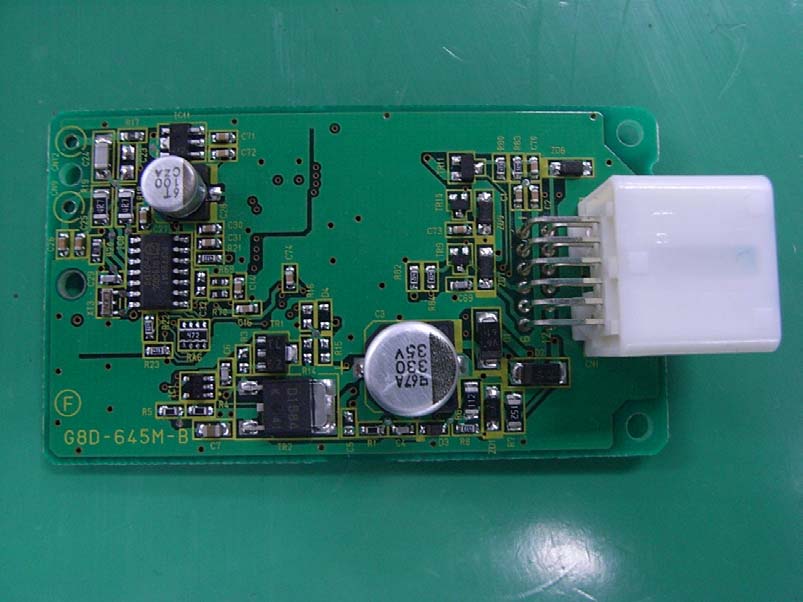

Internal Photo OMRON Corporation Wireless Control Module [Model: G8D-645M] FCC ID: OUCG8D-645M IC Number: 850G-G8D645M Front Back

Test report No. : 27LE0315-HO-A-R1 Page : 2 of 15 Issued date : August 27, 2007 Revised date : September 7, 2007 FCC ID : OUCG8D-645M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results ........................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................7 SECTION 5: Radiated emission (Fundamental and Spurious Emission and –26dB Bandwidth)... 8 APPENDIX 1: Photographs of test setup .............................................................................................. 9 Radiated Emission............................................................................................................................... 9 Worst Case Position (X-axis)............................................................................................................ 10 APPENDIX 2: Data of EMI test........................................................................................................... 11 Radiated Emission below 30MHz (Fundamental and Sprious Emission).................................... 11 Radiated Emission above 30MHz (Sprious Emission) ................................................................... 12 -26dB Bandwidth............................................................................................................................... 13 99% Occupied Bandwidth................................................................................................................ 14 APPENDIX 3: Test instruments .......................................................................................................... 15 Test report No. : 27LE0315-HO-A-R1 Page : 3 of 15 Issued date : August 27, 2007 Revised date : September 7, 2007 FCC ID : OUCG8D-645M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Client information Company Name : OMRON Corporation Address : 6368 Nenjozaka Okusa Komaki-City Aichi-Pref., 485-0802 Japan Telephone Number : +81-568-78-6392 Facsimile Number : +81-568-78-6179 Contact Person : Masashi Matsuda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Control Module Model No. : G8D-645M Sample No. : 9000 Country of Manufacture : Japan Rating : DC12V Receipt Date of Sample : August 3, 2007 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: G8D-645M (referred to as the EUT in this report) is the Wireless Control Module. Clock Frequency : 8MHz Equipment Type : Transceiver [Transmitter] Frequency of Operation : 125kHz Type of Modulation : ASK Power Control : No Antenna Type : Keycoil antenna Operating Voltage (inner) : DC5.0V [Receiver] Receiving Frequency : 125kHz Operating Voltage (inner) : DC5.0V Test report No. : 27LE0315-HO-A-R1 Page : 4 of 15 Issued date : August 27, 2007 Revised date : September 7, 2007 FCC ID : OUCG8D-645M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2007 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted Emission Section 15.209 Radiated emission limits, general requirements FCC 15.31 (e) The power supply of the EUT is transformed to DC5.0V and the stable voltage DC5.0V is constantly provided to Radio part. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 27LE0315-HO-A-R1 Page : 5 of 15 Issued date : August 27, 2007 Revised date : September 7, 2007 FCC ID : OUCG8D-645M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.2 Procedures and results No. Item Test Procedure Specification Remarks Deviation Worst margin *0) Results 1 Conducted Emission <FCC> ANSI C63.4:2003 7. AC powerline conducted emission measurements <IC> RSS-Gen 7.2.2 <FCC> Section 15.207 <IC> RSS-Gen 7.2.2 - N/A *1) N/A N/A 2 Electric Field Strength of Fundamental Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.8, 4.11 <FCC> Section 15.209 <IC> RSS-210 2.6, 2.7 Radiated N/A 32.6dB 125.07kHz 0 deg. AV Complied 3 Electric Field Strength of Spurious Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.9, 4.11 <FCC> Section 15.209 <IC> RSS-210 2.6, 2.7 Radiated N/A 16.3dB 73.545MHz, Vert., QP Complied 4 -26dB Bandwidth <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> - <FCC> Reference data <IC> - Radiated N/A N/A N/A Note: UL Japan, Inc.’s EMI Work Procedures No.QPM05 and QPM15. *0) The test result is round off to one or two decimal place, so some differences might be observed. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. *These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Addition to standards No. Item Test Procedure Specification Remarks Deviation W…

Text truncated - open the document above for the full version.

Test report No. : 27LE0315-HO-A-R1 Page : 11 of 15 Issued date : August 27, 2007 Revised date : September 7, 2007 FCC ID : OUCG8D-645M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission below 30MHz (Fundamental and Sprious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2007/08/08 Company : OMRON CorporationReport No.:27LE0315-HO Kind of EUT : Wireless Control ModulePower:DC 12V Model No.: G8D-645M Temp./ Humi.:25deg.C / 61% Serial No.: 9000 Operator:Takahiro Hatakeda Mode / Remarks : Transceiver 125kHz X-axis LIMIT : FCC15.209(a) 3m, 9-90kHz:PK, 110-490kHz:PK, other:QP FCC15.209(a) 3m, 9-90kHz:AV, 110-490kHz:AV, other:QP CHART : WITH FACTOR , ANT TYPE : LOOP , Except for the data below : adequate margin data below the limits. CALCULATION : READING + ANT FACTOR + LOSS( CABLE + ATTEN.-AMP.) Fre quency[Hz] [dBuV/m]<< QP/AV/PEAK DATA >>90 deg :90 deg 45 deg :45 deg 0 deg :0 deg 30M .01M .02M .03M .05M .07M .1M.2M.3M.5M.7M1M2M3M5M7M10M 20M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 _ Freq . _ Reading _ DET _ Ant . Fac _ Loss _ Gain _ Result _ Limit _ Margin _ Antenna _ Table _ Comment _ Freq . _ Reading _ DET _ Ant . Fac _ Loss _ Gain _ Result _ Limit _ Margin _ Antenna _ Table _ Comment _ [ MHz ] _ [ dBuV ] _ DET _ [ dB / m ] _ [dB] _ [dB] _ [dBuV/m] _ [dBuV/m] _ [dB] _ Antenna _ [deg] _ Comment _ 0 . 12507 _ 91 . 5 _ PEAK _ 19 . 9 _ 0.2 _ 32.3 _ 79.3 _ 125.6 _ 46.3 _ 90deg _ 128 _ PK,BW200Hz _ 0 . 12507 _ 94 . 6 _ PEAK _ 19 . 9 _ 0.2 _ 32.3 _ 82.4 _ 125.6 _ 43.2 _ 45deg _ 175 _ PK,BW200Hz _ 0 . 12507 _ 96 . 4 _ PEAK _ 19 . 9 _ 0.2 _ 32.3 _ 84.2 _ 125.6 _ 41.4 _ 0deg _ 207 _ PK,BW200Hz Worst _ 0 . 12507 _ 80 . 2 _ AV _ 19 . 9 _ 0.2 _ 32.3 _ 68.0 _ 105.7 _ 37.7 _ 90deg _ 128 _ AV,BW200Hz _ 0 . 12507 _ 83 . 5 _ AV _ 19 . 9 _ 0.2 _ 32.3 _ 71.3 _ 105.7 _ 34.4 _ 45deg _ 175 _ AV,BW200Hz _ 0 . 12507 _ 85 . 3 _ AV _ 19 . 9 _ 0.2 _ 32.3 _ 73.1 _ 105.7 _ 32.6 _ 0deg _ 207 _ AV,BW200Hz Worst _ 0 . 25011 _ 52 . 7 _ PEAK _ 19 . 8 _ 0.2 _ 32.3 _ 40.4 _ 119.6 _ 79.2 _ 0deg _ 206 _ PK,BW9kHz _ 0 . 25011 _ 40 . 7 _ AV _ 19 . 8 _ 0.2 _ 32.3 _ 28.4 _ 99.6 _ 71.2 _ 0deg _ 206 _ AV,BW9kHz _ 0 . 37516 _ 60 . 4 _ PEAK _ 19 . 7 _ 0.2 _ 32.3 _ 48.0 _ 116.1 _ 68.1 _ 0deg _ 200 _ PK,BW9kHz _ 0 . 37516 _ 48 . 7 _ AV _ 19 . 7 _ 0.2 _ 32.3 _ 36.3 _ 96.1 _ 59.8 _ 0deg _ 200 _ AV,BW9kHz _ 0 . 50020 _ 38 . 7 _ QP _ 19 . 7 _ 0.2 _ 32.2 _ 26.4 _ 73.6 _ 47.2 _ 0deg _ 203 _ QP,BW9kHz _ 0 . 62530 _ 45 . 7 _ QP _ 19 . 7 _ 0.2 _ 32.2 _ 33.4 _ 71.7 _ 38.3 _ 0deg _ 210 _ QP,BW9kHz _ 0 . 75029 _ 37 . 7 _ QP _ 19 . 6 _ 0.2 _ 32.2 _ 25.3 _ 70.1 _ 44.8 _ 0deg _ 208 _ QP,BW9kHz _ 0 . 87535 _ 41 . 8 _ QP _ 19 . 6 _ 0.2 _ 32.2 _ 29.4 _ 68.7 _ 39.3 _ 0deg _ 194 _ QP,BW9kHz _ 1 . 00044 _ 37 . 5 _ QP _ 19 . 6 _ 0.3 _ 32.2 _ 25.2 _ 67.6 _ 42.4 _ 0deg _ 200 _ QP,BW9kHz _ 1 . 12545 _ 39 . 7 _ QP _ 19 . 6 _ 0.3 _ 32.2 _ 27.4 _ 66.5 _ 39.1 _ 0deg _ 220 _ QP,BW9kHz _ 1 . 25074 _ 37 . 1 _ QP _ 19 . 6 _ 0.3 _ 32.2 _ 24.8 _ 65.6 _ 40.8 _ 0deg _ 207 _ QP,BW9kHz _ 8 . 00000 _ 35 . 4 _ QP _ 19 . 9 _ 0.6 _ 32.2 _ 23.7 _ 69.5 _ 45.8 _ 0deg _ 359 _ QP,BW9kHz Test report No. : 27LE0315-HO-A-R1 Page : 12 of 15 Issued date : August 27, 2007 Revised date : September 7, 2007 FCC ID : OUCG8D-645M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission above 30MHz (Sprious Emission) DATA OF RADIATED EMISSION TEST UL Japan Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2007/08/09 Company : OMRON CorporationReport No.:27LE0315-HO Kind of EUT : Wireless Control ModulePower:DC 12V Model No.: G8D-645M Temp./Humi.:25deg.C. / 61% Serial No.: 9000 Operator:Takahiro Hatakeda Mode / Remarks : Transceiver 125kHz X-axis LIMIT : FCC15.209 3m, below 1GHz:QP, above 1GHz:PK All other spurious emissions were less than 20dB for the limit. CHART:WITH FACTOR ANT TYPE：-30MHz LOOP,30-300MHz BICONICAL,300MHz-1000MHz LOGPERIODIC,1000MHz- HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Fre quency[Hz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 30M 1G 50M 70M 100M200M300M500M700M 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading _ DET _ Antenna _ Loss& _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Frequency _ Reading _ DET _ Factor _ Gain _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ [ MHz] _ [ dBuV ] _ DET _ [ dB /m] _ [dB] _ [dBuV/m] _ [Deg] _ [cm] _ Polar. _ [dBuV/m] _ [dB] _ 32.032 _ 24 . 5 _ QP _ 18.4 _ -25.0 _ 17.9 _ 241 _ 100 _ Vert. _ 40.0 _ 22.1 _ 32.160 _ 22 . 2 _ QP _ 18.3 _ -25.0 _ 15.5 _ 359 _ 400 _ Hori. _ 40.0 _ 24.5 _ 73.545 _ 40 . 8 _ QP _ 7.1 _ -24.2 _ 23.7 _ 195 _ 100 _ Vert. _ 40.0 _ 16.3 _ 73.795 _ 30 . 0 _ QP _ 7.1 _ -24.2 _ 12.9 _ 359 _ 400 _ Hori. _ 40.0 _ 27.1 _ 151.939 _ 29 . 7 _ QP _ 15.2 _ -23.4 _ 21.5 _ 288 _ 100 _ Vert. _ 43.5 _ 22.0 _ 151.955 _ 29 . 4 _ QP _ 15.2 _ -23.4 _ 21.2 _ 295 _ 271 _ Hori. _ 43.5 _ 22.3 _ 191.894 _ 23 . 0 _ QP _ 16.6 _ -22.9 _ 16.7 _ 205 _ 100 _ Vert. _ 43.5 _ 26.8 _ 191.957 _ 24 . 1 _ QP _ 16.6 _ -22.9 _ 17.8 _ 355 _ 188 _ Hori. _ 43.5 _ 25.7 _ 368.042 _ 28 . 1 _ QP _ 16.4 _ -21.6 _ 22.9 _ 185 _ 100 _ Hori. _ 46.0 _ 23.1 _ 368.044 _ 23 . 8 _ QP _ 16.4 _ -21.6 _ 18.6 _ 257 _ 100 _ Vert. _ 46.0 _ 27.4 _ 890.110 _ 21 . 5 _ QP _ 21.7 _ -18.0 _ 25.2 _ 321 _ 100 _ Vert. _ 46.0 _ 20.8 _ 892.210 _ 21 . 5 _ QP _ 21.7 _ -17.9 _ 25.3 _ 349 _ 100 _ Hori. _ 46.0 _ 20.7 Test report No. : 27LE0315-HO-A-R1 Page : 13 of 15 Issued date : August 27, 2007 Revised date : September 7, 2007 FCC ID : OUCG8D-645M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -26dB Bandwidth UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber COMPANY : OMRON CorporationREPORT NO :…

Text truncated - open the document above for the full version.

Test report No. : 27LE0315-HO-A-R1 Page : 9 of 15 Issued date : August 27, 2007 Revised date : September 7, 2007 FCC ID : OUCG8D-645M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Test report No. : 27LE0315-HO-A-R1 Page : 10 of 15 Issued date : August 27, 2007 Revised date : September 7, 2007 FCC ID : OUCG8D-645M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (X-axis) X-axis Y-axis Z-axis
