OUCG8D-694H-BReceiver, Keyless Entry System for vehicle

- 4 - 2. User’s manual REMOTE TRANSMITTER You can lock and unlock your vehicle with the remote transmitter. You don’t have to operate the receiver directly. The receiver is installed inside the vehicle and receives the signal from the remote transmitter automatically. LOCK When you push the LOCK button, all the doors will lock. You cannot lock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch. UNLOCK When you push the UNLOCK button , all the doors will unlock. You cannot unlock any of the doors with the remote transmitter if the key is in the ignition switch. POP UP To open the boot , push the BOOT RELEASE button for approximately one second. The boot will not open if the key is in the ignition switch. CALL Call mode allows you to remotely sound your vehicle’s horn to attract attention. To activate this mode , press and hold the CALL button for about one seconds. Your vehicle’s horn will beep for about 30 seconds. To cancel CALL mode before 30 seconds , press any button on the remote transmitter. You can also turn the ignition switch is in ON. LOCK button UNLOCK button CALL button BOOT RELEASE button BOOT RELEASE button - 5 - FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’ authority to operate the equipment. This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

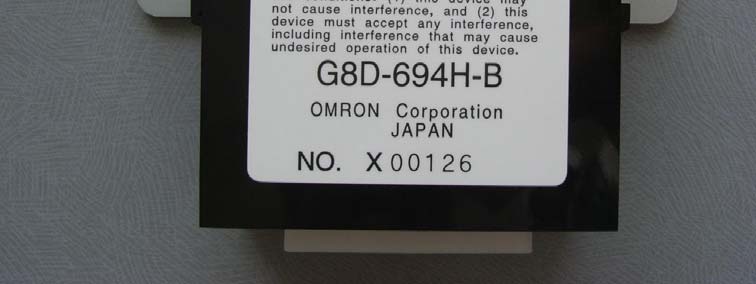

External Photo Receiver, Keyless Entry System for vehicle [Model: G8D-694H-B] Front Back External Photo Receiver, Keyless Entry System for vehicle [Model: G8D-694H-B] Side View1 Side View2

Internal Photo Receiver, Keyless Entry System for vehicle [Model: G8D-694H-B] Front Front Internal Photo Receiver, Keyless Entry System for vehicle [Model: G8D-694H-B] Front Internal Photo Receiver, Keyless Entry System for vehicle [Model: G8D-694H-B] Back

Test report No. : 31CE0028-HO-01-C-R1 Page : 2 of 12 Issued date : November 9, 2010 Revised date : November 26, 2010 FCC ID : OUCG8D-694H-B UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information .......................................................................................3 SECTION 2: Equipment under test (E.U.T.) .........................................................................3 SECTION 3: Test specification, procedures & results ..........................................................4 SECTION 4: Operation of E.U.T. during testing ..................................................................6 SECTION 5: Radiated Emission .............................................................................................7 APPENDIX 1: Photographs of test setup................................................................................8 Radiated Emission ......................................................................................................................... 8 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) ....................................................... 9 APPENDIX 2: Data of EMI test ............................................................................................10 Radiated Emission ....................................................................................................................... 10 APPENDIX 3: Test instruments ............................................................................................12 Test report No. : 31CE0028-HO-01-C-R1 Page : 3 of 12 Issued date : November 9, 2010 Revised date : November 26, 2010 FCC ID : OUCG8D-694H-B UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Omron Corporation Address : 6368 Nenjozaka Okusa Komaki-City Aichi-Pref., 485-0802 JAPAN Telephone Number : +81-568-78-6159 Facsimile Number : +81-568-78-7659 Contact Person : Masashi Matsuda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Receiver, Keyless Entry System for vehicle Model No. : G8D-694H-B Serial No. : Refer to Clause 4.2 Rating : DC 12.0V (Car Battery) Receipt Date of Sample : October 14, 2010 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Keyless Entry System for vehicle controls locking and unlocking of doors and a trunk of the vehicle. This system consists of the transmitter and the receiver. The transmitter a device that tranasmits the radio signal when the button is pressed. The reciver is, installed into the vehicle, recieves the signal from the transmitter and controls locking and unlocking of doors and a trunk according received signal. Radio Specification Radio Type : Receiver Equipment Type : Super Heterodyne Frequency of Operation : 313.85MHz Modulation : FSK Power Supply (radio part input) : DC 5.0V Antenna type : Internal Antenna FCC15.111(b) The receiving antenna (of this EUT) is installed inside the EUT and cannot be removed (permanently attached). Therefore, Radiated emission test was performed. Test report No. : 31CE0028-HO-01-C-R1 Page : 4 of 12 Issued date : November 9, 2010 Revised date : November 26, 2010 FCC ID : OUCG8D-694H-B UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2010, final revised on October 13, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits DeviationWorst margin Result Conducted emission FCC: ANSI C63.4: 2003 7. AC powerline conducted emission measurements Receiver N/A N/A *1) Complied IC: RSS-Gen 7.2.2 Radiated emission FCC: ANSI C63.4: 2003 8. Radiated emission measurements Receiver N/A 21.0dB 39.245MHz Vertical, QP Complied IC: RSS-Gen 4.10 *Note: UL Japan, Inc’s EMI Work Procedure QPM05. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. 3.3 Addition to standard No addition, exclusion nor deviation has been made from the standard. 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Test room (semi- anechoic chamber) Radiated emission (3m*)(+dB) (1m*)(+dB) (0.5m*)(+dB) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 1GHz -10GHz 10GHz -18GHz 18GHz -26.5GHz 26.5GHz -40GHz No.1 2.9dB 4.8dB 5.0dB 3.9dB 4.3dB 4.5dB 4.3dB No.2 3.5dB 4.8dB 5.1dB 4.0dB 4.2dB 4.4dB 4.2dB No.3 3.8dB 4.6dB 4.7dB 4.0dB 4.2dB 4.5dB 4.2dB No.4 3.5dB 4.4dB 4.9dB 4.0dB 4.2dB 4.6dB 4.2dB *3m/1m/0.5m = Measurement distance Radiated emission test(3m) The data listed in this test report has enough margin, more than the site margin. Test report No. : 31CE0028-HO-01-C-R1 Page : 5 of 12 Issued date : November 9, 2010 Revised date : November 26, 2010 FCC ID : OUCG8D-694H-B UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Test Location UL Japan, Inc. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber 313583 2973C-1 19.2 x 11.2 x 7.7m 7.0 x 6.0m No.1 Power source room No.2 semi-anechoic cha…

Text truncated - open the document above for the full version.

Test report No. : 31CE0028-HO-01-C-R1 Page : 10 of 12 Issued date : November 9, 2010 Revised date : November 26, 2010 FCC ID : OUCG8D-694H-B UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/10/14 Company: OMRON Automotive Electronics Co. LtdReport No.:31CE0028-HO-01 Kind of EUT : Keyless Entry System for vehiclePower:DC 3V(CR2025) Model No.: G8D-649H-B Temp./Humi.:23deg.C / 52% Serial No. : X 00126 Engineer:Motoya Imura Mode / Remarks : Rx 313.85MHz Worst(Hor:X / Ver:X) LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:AV Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m] << QP DATA >> Horizontal Vertical Horizontal Vertical 30 1000 50 70 100200300500700 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading _ DET _ Antenna _ Loss& _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ Frequency _ Reading _ DET _ Factor _ Gain _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ [ MHz] _ [ dBuV ] _ DET _ [ dB/m] _ [dB] _ [dBuV/m] _ [Deg] _ [cm] _ Polar. _ [dBuV/m] _ [dB] _ Comment _ 39.245 _ 28 . 9 _ QP _ 15.0 _ -24.9 _ 19.0 _ 133 _ 100 _ Vert. _ 40.0 _ 21 . 0 _ 39.245 _ 22 . 7 _ QP _ 15.0 _ -24.9 _ 12.8 _ 357 _ 206 _ Hori. _ 40.0 _ 27 . 2 _ 78.491 _ 25 . 7 _ QP _ 6.5 _ -24.4 _ 7.8 _ 138 _ 100 _ Vert. _ 40.0 _ 32 . 2 _ 79.494 _ 22 . 4 _ QP _ 6.5 _ -24.4 _ 4.5 _ 0 _ 300 _ Hori. _ 40.0 _ 35 . 5 _ 117.736 _ 22 . 1 _ QP _ 13.0 _ -23.8 _ 11.3 _ 0 _ 300 _ Hori. _ 43.5 _ 32 . 2 _ 117.736 _ 22 . 7 _ QP _ 13.0 _ -23.8 _ 11.9 _ 105 _ 110 _ Vert. _ 43.5 _ 31 . 6 _ 303.150 _ 21 . 9 _ QP _ 16.0 _ -22.2 _ 15.7 _ 0 _ 100 _ Hori. _ 46.0 _ 30 . 3 _ 303.150 _ 21 . 9 _ QP _ 16.0 _ -22.2 _ 15.7 _ 0 _ 100 _ Vert. _ 46.0 _ 30 . 3 _ 313.850 _ 22 . 0 _ QP _ 16.2 _ -22.1 _ 16.1 _ 0 _ 100 _ Hori. _ 46.0 _ 29 . 9 _ 313.850 _ 22 . 0 _ QP _ 16.2 _ -22.1 _ 16.1 _ 0 _ 100 _ Vert. _ 46.0 _ 29 . 9 _ 324.550 _ 22 . 1 _ QP _ 16.4 _ -22.1 _ 16.4 _ 0 _ 100 _ Hori. _ 46.0 _ 29 . 6 _ 324.550 _ 22 . 1 _ QP _ 16.4 _ -22.1 _ 16.4 _ 0 _ 100 _ Vert. _ 46.0 _ 29 . 6 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 31CE0028-HO-01-C-R1 Page : 11 of 12 Issued date : November 9, 2010 Revised date : November 26, 2010 FCC ID : OUCG8D-694H-B UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/10/14 Company: OMRON Automotive Electronics Co. LtdReport No.:31CE0028-HO-01 Kind of EUT : Keyless Entry System for vehiclePower:DC 3V(CR2025) Model No. : G8D-649H-B Temp./Humi.:23deg.C / 52% Serial No. : X 00126 Engineer:Motoya Imura Mode / Remarks : Rx 313.85MHz Worst(Hor:X / Ver:X) LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:AV CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m] << AV/PEAK DATA >> Horizontal Vertical Horizontal Vertical 1000 2000 0 10 20 30 40 50 60 70 80 90 _ Frequency _ Reading _ DET _ Antenna _ Loss& _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ Frequency _ Reading _ DET _ Factor _ Gain _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ [ MHz] _ [ dBuV ] _ DET _ [dB/m] _ [dB] _ [dBuV/m] _ [Deg] _ [cm] _ Polar. _ [dBuV/m] _ [dB] _ Comment _ 1569. 800 _ 44 . 5 _ PK _ 26.0 _ -30.7 _ 39.8 _ 0 _ 100 _ Hori. _ 73.9 _ 34. 1 _ 1569. 800 _ 32 . 8 _ AV _ 26.0 _ -30.7 _ 28.1 _ 0 _ 100 _ Hori. _ 53.9 _ 25. 8 _ 1569. 800 _ 44 . 5 _ PK _ 26.0 _ -30.7 _ 39.8 _ 0 _ 100 _ Vert. _ 73.9 _ 34. 1 _ 1569. 800 _ 32 . 8 _ AV _ 26.0 _ -30.7 _ 28.1 _ 0 _ 100 _ Vert. _ 53.9 _ 25. 8 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 31CE0028-HO-01-C-R1 Page : 12 of 12 Issued date : November 9, 2010 Revised date : November 26, 2010 FCC ID : OUCG8D-694H-B UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Test instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-04 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-10005 RE 2010/02/02 * 12 MOS-15 Thermo-Hygrometer Custom CTH-180 - RE 2010/02/09 * 12 MJM-07 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measurement program TSJ TEPTO-DV - RE - MSA-03 Spectrum Analyzer Agilent E4448A MY44020357 RE 2009/11/20 * 12 MTR-07 Test Receiver Rohde & Schwarz ESCI 100635 RE 2009/10/23 * 12 MBA-05 Biconical Antenna Schwarzbeck BBA9106 1302 RE 2010/03/22 * 12 MLA-08 Logperiodic Antenna Schwarzbeck UKLP9140-A N/A RE 2010/01/23 * 12 MCC-50 Coaxial cable UL Japan - - RE 2010/03/18 * 12 MAT-51 Attenuator(6dB) Weinschel 2 AS3557 RE 2010/01/20 * 12 MPA-14 Pre Amplifier SONOMA INSTRUMENT 310 260833 RE 2010/03/05 * 12 MSA-05 Spectrum Analyzer Advantest R3273 160400285 RE 2009/12/15 * 12 MHA-21 Horn Antenna 1- 18GHz Schwarzbeck BBHA9120D 9120D-557 RE 2010/08/08 * 12 MCC-57 Microwave Cable Suhner SUCOFLEX104246769(1m) / 292411(5m) RE 2009/11/17 * 12 MPA-12 MicroWave System Amplifier Agilent 83017A MY39500780 RE 2010/03/16 * 12 The expiration date of the calibration is the end of the expired month. Al…

Text truncated - open the document above for the full version.

Test report No. : 31CE0028-HO-01-C-R1 Page : 8 of 12 Issued date : November 9, 2010 Revised date : November 26, 2010 FCC ID : OUCG8D-694H-B UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 31CE0028-HO-01-C-R1 Page : 9 of 12 Issued date : November 9, 2010 Revised date : November 26, 2010 FCC ID : OUCG8D-694H-B UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
