OUCG8D841MKOSKeyless Operation System

3. User’s manual (Provisional) The functions of KOS are as below. 1. Keyless operation function 1) Door entry function (unlock) KOS and FOB perform authentication by two-way communication to unlock all doors when a door sensor on Driver/ Passenger door is touched (or a Request switch is pressed), or Unlock switch on a Tailgate is operated while carrying a FOB. 2) Door entry function (lock) KOS and FOB perform authentication by two-way communication to lock all doors when a request switch on Driver/ Passenger/ Tailgate door is pressed while carrying a FOB. 3) Engine start function KOS and FOB perform authentication by two-way communication to release steering wheel lock and start the engine when a push switch for engine start is pressed while carrying a FOB and pressing the clutch pedal (or brake pedal in case of automatic car). 2. Keyless entry function All doors are locked when lock button on FOB is pressed, and all doors are unlocked when unlock button on FOB is pressed. 3. Remote control engine starter function The engine starts/ stops when a remote control engine starter is operated. 4. Immobilizer function In case that FOB battery is out (or low battery), the engine is started by inserting FOB (transponder) into FOB-BOX. Unauthorized engine starting like stealing is prevented by two-way communication between KOS and FOB (transponder). FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device." -4/24- -

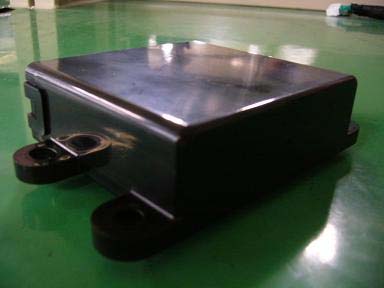

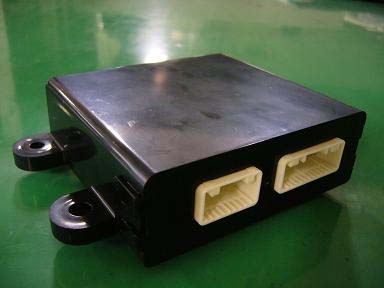

8. Photographs Figure 8.1 G8D-841M-ECU-D appearance (front view) Figure 8.2 G8D-841M-ECU-D appearance (back view) -19/24- - Figure 8.5 C8Z-F116M appearance (front view) Figure 8.6 C8Z-F116M appearance (back view) -21/24- - Figure 8.7 G8D-841M-ANT appearance (front view) Figure 8.8 G8D-841M-ANT appearance (back view) -22/24- -

9. Label and labeling location Figure 9.1 La bels Fi gure 9.2 G8D-841M-ECU-D appearance -23/24- -

Internal Photo ECU Front Rear Internal Photo LF ANT Front Rear Internal Photo FOB BOX Front Rear

Test report No. : 29KE0168-HO-01-A-R1 Page : 2 of 33 Issued date : February 1, 2010 Revised date : March 31, 2010 FCC ID : OUCG8D841MKOS UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ..................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results ........................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................9 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ........................................ 11 SECTION 6: -26dB Bandwidth............................................................................................................ 13 SECTION 7: 99% Occupied Bandwidth.............................................................................................13 APPENDIX 1: Photographs of test setup ............................................................................................ 14 Radiated Emission............................................................................................................................. 14 Worst Case Position .......................................................................................................................... 18 APPENDIX 2: Data of EMI test........................................................................................................... 22 Radiated Emission below 30MHz (Fundamental and Spurious Emission) ................................. 22 -26dB Bandwidth and 99% Occupied Bandwidth ......................................................................... 30 APPENDIX 3: Test instruments .......................................................................................................... 33 Test report No. : 29KE0168-HO-01-A-R1 Page : 3 of 33 Issued date : February 1, 2010 Revised date : March 31, 2010 FCC ID : OUCG8D841MKOS UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : OMRON Corporation Address : 6368 NEJOZAKA OKUSA KOMAKI AICHI, 485-0802 JAPAN Telephone Number : +81-568-78-6159 Facsimile Number : +81-568-78-7659 Contact Person : Masashi Matsuda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Keyless operation system Model No. : G8D-841M-ECU-D Serial No. : See Clause 4.2 Receipt Date of Sample : January 20, 2010 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: G8D-841M-ECU-D is the Keyless operation system (hereafter referred to as KOS). KOS consists of ECU, LF ANT, and FOB BOX. ECU has the same model name, G8D-841M-ECU-D as KOS. Keyless operation system is a system to lock/unlock (door entry function) a door /trunk by pressing Lock/Unlock SW on each door with holding the registered keyless operation key (hereafter referred to as FOB) and start up an engine (engine starter function) without using an existing mechanical key. These operations can be done without pulling FOB from a pocket or bag. The keyless entry function to lock/unlock doors by pressing a button on FOB, immobilizer function for antitheft and remote engine starter function to start up/stop an engine by pressing a button of a separate transmitter (remote control engine starter) are installed. General Specification Operating Voltage : DC8 to 16V Operating Temperature : -40 deg. C. to +85 deg. C KOS has the following radio functions: Immobilizer system and Smart System (LF Transmitting/RF Receiving). Immobilizer system function Equipment Type : Transceiver Frequency of Operation : 125kHz Type of Modulation : BPLM Mode of Operation : Simplex Antenna Type : Coil Antenna Method of Frequency Generation : Ceramic Resonator (8MHz) Operating Voltage (inner) : DC5V (The stable voltage: DC5V is provided to RF part regardless of input voltage fluctuation (Car Battery).) Test report No. : 29KE0168-HO-01-A-R1 Page : 4 of 33 Issued date : February 1, 2010 Revised date : March 31, 2010 FCC ID : OUCG8D841MKOS UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Smart System: LF Transmitting function Equipment Type : Transmitter Frequency of Operation : 125kHz Type of Modulation : ASK Mode of Operation : Simplex Antenna Type : Ferrite Antenna Method of Frequency Generation : Crystal (8MHz) and CPU timer Operating Voltage (inner) : DC8V (The stable voltage: DC8V is provided to RF part regardless of input voltage fluctuation (Car Battery).) *KOS has 5 or 6 LF antennas depending on the vehicles on which the EUT is mounted, and all the antennas are same in specification. ECU controls the power for each antenna. Smart System: RF Receiving function Type of Receiver : Super Heterodyne Receiving Frequency : 315MHz Oscillator Frequency : 10.178125MHz (Crystal) Local Oscillator Frequency : 325.7MHz(10.178125MHz*32) Intermediate Frequency : 10.7MHz Antenna Type : S type Antenna Method of Frequency Generation : Crystal Operating Voltage (inner) : DC5V (The stable voltage: DC5V is provided to RF part regardless of input voltage fluctuation (Car Battery).) Test report No. : 29KE0168-HO-01-A-R1 Page : 5 of 33 Issued date : February 1, 2010 Revised date : March 31, 2010 FCC ID : OUCG8D841MKOS UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimi…

Text truncated - open the document above for the full version.

Test report No. : 29KE0168-HO-01-A-R1 Page : 22 of 33 Issued date : February 1, 2010 Revised date : March 31, 2010 FCC ID : OUCG8D841MKOS UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission below 30MHz (Fundamental and Spurious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2010/01/21 Company : OMRON Corporation Report No. : 29KE0168-HO-01 Kind of EUT : Keyless Operation System Power : DC12V Model No. : G8D-841M-ECU-D/G8D-841M-ANT-A Temp./ Humi. : 22deg.C. / 31% Serial No. : 1/1-244 Engineer : Takumi Shimada Mode / Remarks : LF Transmitting 125kHz, Max Antenna / Worst axis : X-axis LIMIT : FCC15.209(a) 3m, 9-90kHz:PK, 110-490kHz:PK, other:QP FCC15.209(a) 3m, 9-90kHz:AV, 110-490kHz:AV, other:QP CHART: WITH FACTOR , ANT TYPE: LOOP , Except for the data below : adequate margin data below the limits. CALCULATION : RESULT[dBuV] = READING[dBuV] + ANT FACTOR[dB] + LOSS[dB]( CABLE + ATTEN.- AMP.) Frequency[Hz] [dBuV/m]<< QP/AV/PEAK DATA >> 45 deg:B 0 deg:A 30M.01M.02M.03M.05M.07M.1M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Freq.Reading DET Ant.FacLossGainResultLimitMarginAntenna Table Comment Freq.Reading DET Ant.FacLossGainResultLimitMarginAntenna Table Comment [MHz][dBuV] DET [dB/m][dB][dB][dBuV/m][dBuV/m][dB][deg] [deg] Comment 0.1250098.8PEAK19.96.032.192.6125.633.00A359X-axis 0.1250092.0AV19.96.032.185.8105.719.90A359X-axis 0.1250089.1PEAK19.96.032.182.9125.642.70A252Y-axis 0.1250082.3AV19.96.032.176.1105.729.60A252Y-axis 0.1250098.7PEAK19.96.032.192.5125.633.10A270Z-axis 0.1250091.9AV19.96.032.185.7105.720.00A270Z-axis 0.1250089.2PEAK19.96.032.183.0125.642.60B192X-axis Hor 0.1250082.4AV19.96.032.176.2105.729.50B192X-axis Hor 0.1250090.0PEAK19.96.032.183.8125.641.80B236Y-axis Hor 0.1250083.2AV19.96.032.177.0105.728.70B236Y-axis Hor 0.1250089.2PEAK19.96.032.183.0125.642.60B270Z-axis Hor 0.1250082.3AV19.96.032.176.1105.729.60B270Z-axis Hor 0.2500063.7PEAK19.76.132.157.4119.662.20A190X-axis 0.2500050.5AV19.76.132.144.299.655.40A190X-axis 0.3750064.1PEAK19.76.132.157.8116.158.30A180X-axis 0.3750051.7AV19.76.132.145.496.150.70A180X-axis 0.5000042.9QP19.66.132.136.573.637.10A359X-axis 0.6250053.4QP19.66.232.147.171.724.60A359X-axis 0.7500038.9QP19.66.232.132.670.137.50A359X-axis 0.8750046.6QP19.66.232.140.368.728.40A359X-axis 1.0000036.0QP19.66.232.129.767.637.90A359X-axis 1.1250042.0QP19.66.232.135.766.530.80A359X-axis 1.2500034.5QP19.66.232.128.265.637.40A359X-axis Test report No. : 29KE0168-HO-01-A-R1 Page : 23 of 33 Issued date : February 1, 2010 Revised date : March 31, 2010 FCC ID : OUCG8D841MKOS UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission above 30MHz (Fundamental and Spurious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2010/01/21 Company : OMRON Corporation Report No. : 29KE0168-HO-01 Kind of EUT : Keyless Operation System Power : DC12V Model No. : G8D-841M-ECU-D/G8D-841M-ANT-A Temp./Humi. : 20deg.C. / 46% Serial No. : 1/1-244 Engineer : Kazufumi Nakai Mode / Remarks : LF Transmitting 125kHz, Max Antenna / Antenna:X, ECU:X LIMIT : FCC15.209 3m, below 1GHz:QP, above 1GHz:PK Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[Hz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 30M1G50M70M100M200M300M500M700M 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 30.00036.6QP17.1-34.419.30100Hori.40.020.7Noise Floor 30.00036.6QP17.1-34.419.30100Vert.40.020.7Noise Floor 118.24439.0QP12.6-32.718.98265Hori.43.524.6 118.24635.9QP12.6-32.715.8354100Vert.43.527.7 200.00035.7QP16.7-31.620.80100Hori.43.522.7Noise Floor 200.00035.7QP16.7-31.620.80100Vert.43.522.7Noise Floor 400.00035.2QP15.9-29.921.20100Hori.46.024.8Noise Floor 400.00035.2QP15.9-29.921.20100Vert.46.024.8Noise Floor 600.00035.3QP18.9-28.725.50100Hori.46.020.5Noise Floor 600.00035.3QP18.9-28.725.50100Vert.46.020.5Noise Floor 800.00035.1QP22.0-27.429.70100Hori.46.016.3Noise Floor 800.00035.1QP22.0-27.429.70100Vert.46.016.3Noise Floor Test report No. : 29KE0168-HO-01-A-R1 Page : 24 of 33 Issued date : February 1, 2010 Revised date : March 31, 2010 FCC ID : OUCG8D841MKOS UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission below 30MHz (Fundamental and Spurious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2010/01/21 Company : OMRON CorporationReport No.:29KE0168-HO-01 Kind of EUT : Keyless Operation SystemPower:DC12V Model No. : G8D-841M-ECU-D/G8D-841M-ANT-BTemp./ Humi.:22deg.C. / 31% Serial No. : 1/1-248 Engineer:Takumi Shimada Mode / Remarks: LF Transmitting 125kHz, Min Antenna / Worst axis : X-axis LIMIT : FCC15.209(a) 3m, 9-90kHz:PK, 110-490kHz:PK, other:QP FCC15.209(a) 3m, 9-90kHz:AV, 110-490kHz:AV, other:QP CHART: WITH FACTOR , ANT TYPE: LOOP , Except for the data below : adequate margin data below the limits. CALCULATION : RESULT[dBuV] = READING[dBuV] + ANT FACTOR[dB] + LOSS[dB]( CABLE + ATTEN.- AMP.) Frequency[Hz] [dBuV/m] << QP/AV/PEAK DATA >>:B 0 deg :A 30M .01M .02M.03M .05M .07M .1M.2M.3M.5M.7M1M2M3M5M7M 10M 20M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 _ Freq . _ Reading _ DET _ Ant . Fac _ Loss _ Gain _ Result _ Limit …
