-4/15-- 3. User’s manual (provisionary) [1] Keyless entry function - Lock function All doors and tail gate can be locked by pressing T/M lock button. - Unlock function All doors and tail gate can be unlocked by pressing T/M unlock button. [2] Engine start function with Remote engine starter Engine start/stop are possible by operating a remote control engine starter [3] Immobilizer function Engine start permission/prohibition controls are possible by turning ignition ON after inserting a mechanical key with a transponder into a key cylinder. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device."

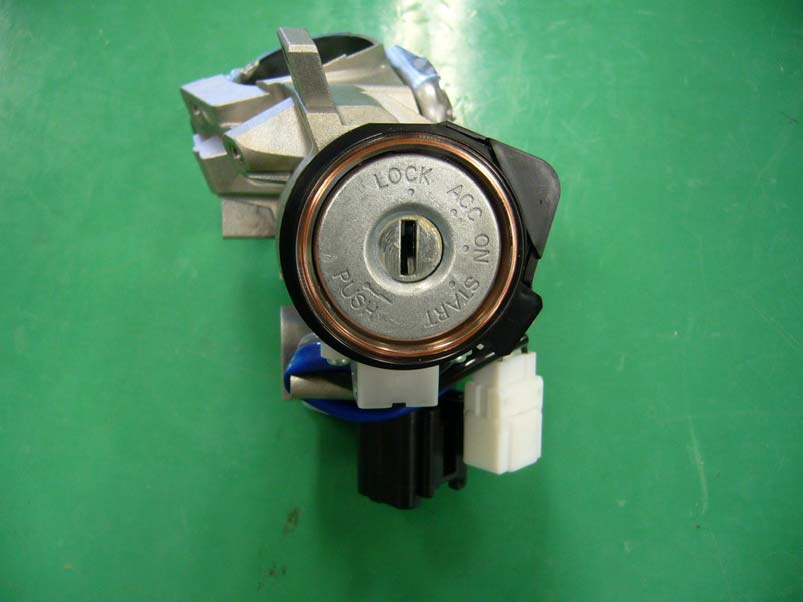

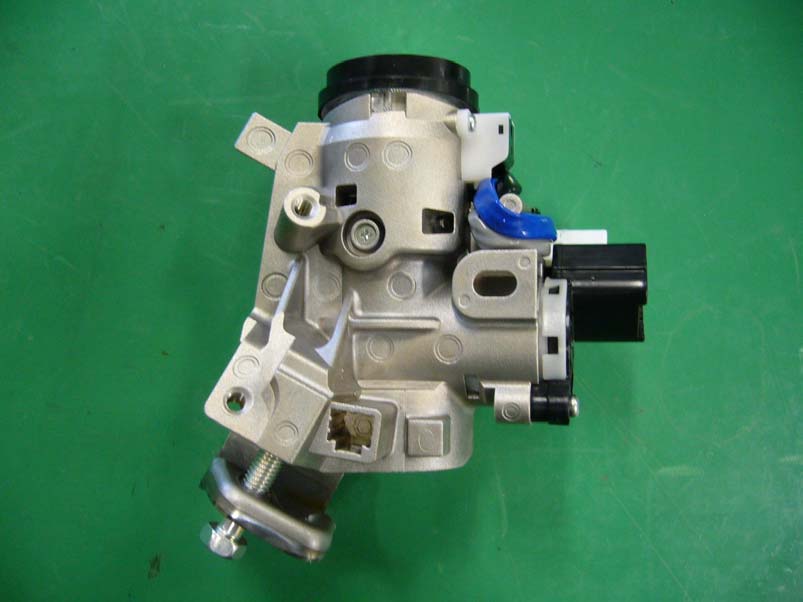

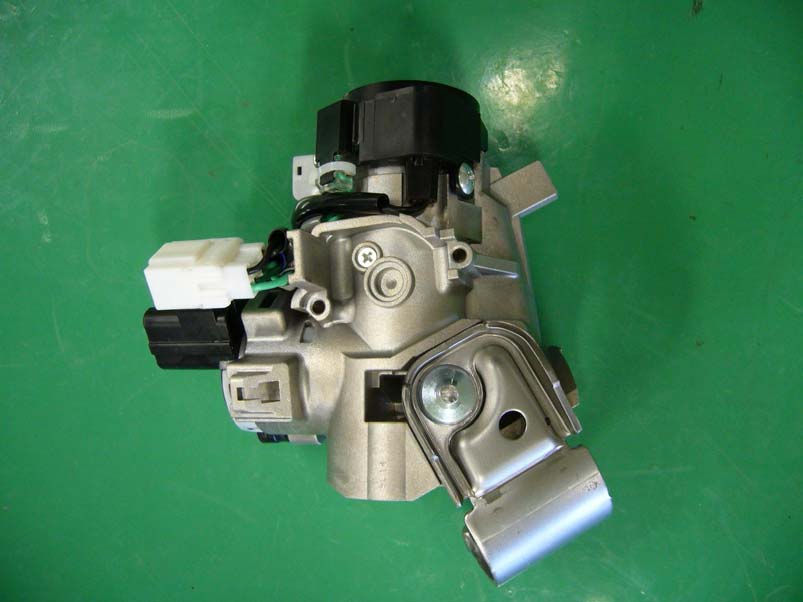

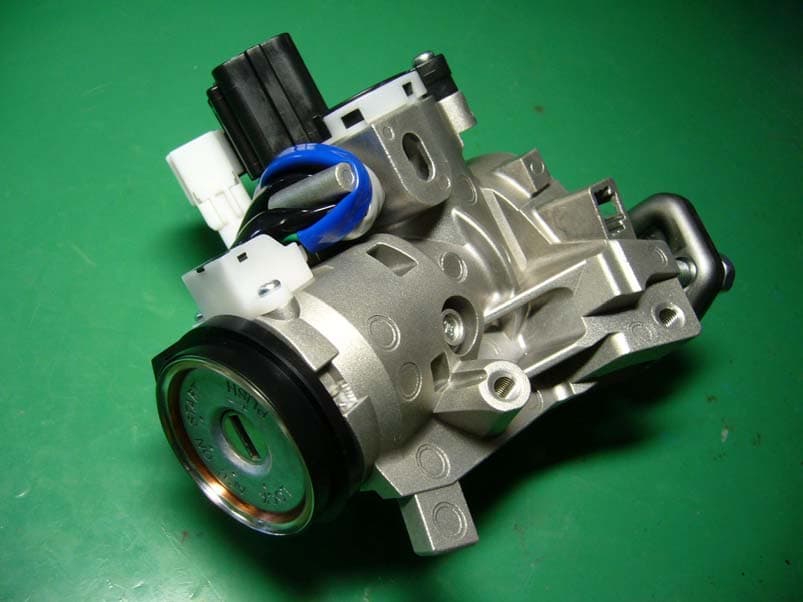

-12/15-- 8. Photographs Figure 8.1 appearance (front view) Figure 8.2 appearance (back view) Antenna Top Bottom Antenna Left Right Antenna

-14/15-- 9. Label and labeling location Figure 9.1 La bels Fi gure 9.2 G8D-841M-WCM-N appearance

Internal Photo OMRON CORPORATION Wireless Control Module [Model: G8D-841M-WCM-N] Front Back Internal Photo OMRON CORPORATION Wireless Control Module [Model: G8D-841M-WCM-N] Top right Bottom right Internal Photo OMRON CORPORATION Wireless Control Module [Model: G8D-841M-WCM-N] Top left Bottom left

Test report No. : 29KE0169-HO-01-A-R1 Page : 2 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ..................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results ........................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................8 SECTION 5: Radiated emission (Fundamental and Spurious Emission) .......................................... 9 Figure 1: Direction of the Loop Antenna ........................................................................................10 SECTION 7: -26dB Bandwidth............................................................................................................ 11 SECTION 8: 99% Occupied Bandwidth.............................................................................................11 APPENDIX 1: Photographs of test setup ............................................................................................ 12 Radiated Emission............................................................................................................................. 12 Worst Case Position .......................................................................................................................... 13 Radiated Emission (RF Receiving) .................................................................................................. 15 APPENDIX 2: Data of EMI test........................................................................................................... 16 Radiated Emission below 30MHz (Fundamental and Spurious Emission) ................................. 16 Radiated Emission above 30MHz (Spurious Emission)................................................................. 17 Radiated Emission (RF Receiving) .................................................................................................. 18 -26dB Bandwidth and 99% Occupied Bandwidth ......................................................................... 20 APPENDIX 3: Test instruments .......................................................................................................... 21 Test report No. : 29KE0169-HO-01-A-R1 Page : 3 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : OMRON Corporation Address : 6368 NEJOZAKA OKUSA KOMAKI AICHI, 485-0802 JAPAN Telephone Number : +81-568-78-6159 Facsimile Number : +81-568-78-7659 Contact Person : Masashi Matsuda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless control module Model No. : G8D-841M-WCM-N Serial No. : See Clause 4.2 Receipt Date of Sample : February 18, 2010 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: G8D-841M-WCM-N, (referred to as the EUT in this report), is the Wireless control module. The clock frequency of EUT is 16MHz(CPU) or 8MHz or 10.178125MHz. Feature of EUT : Lock and unlock doors (gate/trunk) by receiving RF signal output by the operation of the registered transmitter (remote transmitter, hereafter referred to as T/M). Immobilizer function for antitheft and remote engine starter function to start up/stop an engine by pressing a button of a separate transmitter (remote control engine starter) is also installed. Operating Voltage (Inner) : DC5.0V* *The stable voltage (DC5.0V) is provided to RF part regardless of input voltage fluctuation (Car Battery). Immobilizer part (LF Transmitting part) Equipment Type : Transceiver Frequency of Operation : 125kHz Type of Modulation : BPLM Antenna Type : Coil Antenna Method of Frequency Generation : Ceramic Resonator (125kHz =8MHz /64) UHF part (RF Receiving part) Equipment Type : Receiver Type of Receiver : Super Heterodyne Receiving Frequency : 315MHz Oscillator Frequency : 10.178125MHz (Crystal) Local Oscillator Frequency : 325.7MHz (10.178125MHz * 32) Intermediate Frequency : 10.7MHz Antenna Type : S type Antenna (Built-in) Method of Frequency Generation : Crystal Test report No. : 29KE0169-HO-01-A-R1 Page : 4 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart B: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : FCC Part15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements *The revision on January 22, 2010 does not affect the test specification applied to the EUT. FCC 15.31(e) The EUT provides the stable voltage (DC5V) constantly to RF part regardless of input voltage. Therefore, the EUT complies with the requirement. FCC15.111(b ) The receiving antenna (of Wireless control module) is installed inside the Wireless control module and …

Text truncated - open the document above for the full version.

Test report No. : 29KE0169-HO-01-A-R1 Page : 16 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission below 30MHz (Fundamental and Spurious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2010/02/18 Company : OMRON CorporationReport No.:29KE0169-HO-01 Kind of EUT: Wireless Control ModulePower:DC 12V Model No. : G8D-841M-WCM-N Temp./ Humi.:20deg.C / 30% Serial No.: 001 Engineer:Katsunori Okai Mode / Remarks : LF Transmitting 125kHz, / Worst-axis WCM:X-axis, Immobilizer ANT:Y-axis LIMIT : FCC15.209(a) 3m, 9-90kHz:PK, 110-490kHz:PK, other:QP FCC15.209(a) 3m, 9-90kHz:AV, 110-490kHz:AV, other:QP CHART: WITH FACTOR , ANT TYPE: LOOP , Except for the data below : adequate margin data below the limits. CALCULATION : RESULT[dBuV] = READING[dBuV] + ANT FACTOR[dB] + LOSS[dB]( CABLE + ATTEN.- AMP.) Frequency[Hz] [dBuV/m]<< QP/AV/PEAK DATA >>45 deg :B 0 deg :A 30M .01M .02M .03M .05M .07M .1M.2M.3M.5M.7M1M2M3M5M7M10M 20M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 _ Freq . _ Reading _ DET _ Ant . Fac _ Loss _ Gain _ Result _ Limit _ Margin _ Antenna _ _ Table _ Comment _ Freq . _ Reading _ DET _ Ant . Fac _ Loss _ Gain _ Result _ Limit _ Margin _ Antenna _ _ Table _ Comment _ [ MHz ] _ [dBuV ] _ DET _ [ dB / m ] _ [dB] _ [dB] _ [dBuV/m] _ [dBuV/m] _ [dB] _ [deg] _ _ [deg] _ Comment _ 0 . 12512 _ 94 . 2 _ PEAK _ 20 . 0 _ 0.2 _ 32.1 _ 82.3 _ 125.6 _ 43.3 _ 0 _ A _ 10 _ 0 . 12512 _ 92 . 8 _ AV _ 20 . 0 _ 0.2 _ 32.1 _ 80.9 _ 105.7 _ 24.8 _ 0 _ A _ 10 _ 0 . 12512 _ 85 . 1 _ PEAK _ 20 . 0 _ 0.2 _ 32.1 _ 73.2 _ 125.6 _ 52.4 _ 0 _ B _ 5 _ Horizontal _ 0 . 12512 _ 83 . 6 _ AV _ 20 . 0 _ 0.2 _ 32.1 _ 71.7 _ 105.7 _ 34.0 _ 0 _ B _ 5 _ Horizontal _ 0 . 25233 _ 45 . 8 _ PEAK _ 19 . 9 _ 0.2 _ 32.1 _ 33.8 _ 119.5 _ 85.7 _ 0 _ A _ 4 _ 0 . 25233 _ 43 . 1 _ AV _ 19 . 9 _ 0.2 _ 32.1 _ 31.1 _ 99.6 _ 68.5 _ 0 _ A _ 4 _ 0 . 37534 _ 58 . 1 _ PEAK _ 19 . 8 _ 0.2 _ 32.1 _ 46.0 _ 116.1 _ 70.1 _ 0 _ A _ 3 _ 0 . 37534 _ 56 . 5 _ AV _ 19 . 8 _ 0.2 _ 32.1 _ 44.4 _ 96.1 _ 51.7 _ 0 _ A _ 3 _ 0 . 50000 _ 38 . 1 _ QP _ 19 . 8 _ 0.2 _ 32.1 _ 26.0 _ 73.6 _ 47.6 _ 0 _ A _ 10 _ 0 . 62556 _ 48 . 6 _ QP _ 19 . 8 _ 0.3 _ 32.1 _ 36.6 _ 71.7 _ 35.1 _ 0 _ A _ 10 _ 0 . 75000 _ 37 . 1 _ QP _ 19 . 8 _ 0.3 _ 32.1 _ 25.1 _ 70.1 _ 45.0 _ 0 _ A _ 10 _ 0 . 87576 _ 44 . 1 _ QP _ 19 . 8 _ 0.3 _ 32.1 _ 32.1 _ 68.7 _ 36.6 _ 0 _ A _ 10 _ 1 . 00000 _ 36 . 7 _ QP _ 19 . 8 _ 0.3 _ 32.1 _ 24.7 _ 67.6 _ 42.9 _ 0 _ A _ 10 _ 1 . 12599 _ 41 . 6 _ QP _ 19 . 8 _ 0.3 _ 32.1 _ 29.6 _ 66.5 _ 36.9 _ 0 _ A _ 10 _ 1 . 25000 _ 36 . 6 _ QP _ 19 . 8 _ 0.3 _ 32.1 _ 24.6 _ 65.6 _ 41.0 _ 0 _ A _ 10 _ 28 . 52483 _ 52 . 8 _ QP _ 19 . 0 _ 1.6 _ 32.2 _ 41.2 _ 69.5 _ 28.3 _ 90 _ A _ 334 *The test result is rounded off to one or two decimal places, so some differences might be observed. Continuous Transmitting 125kHz, / Worst-axis WCM: X-axis, Immobilizer ANT: Y-axis Test report No. : 29KE0169-HO-01-A-R1 Page : 17 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission above 30MHz (Spurious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2010/02/18 Company : OMRON CorporationReport No.:29KE0169-HO-01 Kind of EUT: Wireless Control ModulePower:DC12V Model No. : G8D-841M-WCM-N Temp./Humi.:20deg.C / 30% Serial No.: 001 Engineer:Katsunori Okai Mode / Remarks : LF Transmitting 125kHz, / Worst-axis Hor:X-axis, Ver:X-axis LIMIT : FCC15.209 3m, below 1GHz:QP, above 1GHz:PK All other spurious emissions were less than 20dB for the limit. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m] << QP DATA >> Horizontal Vertical Horizontal Vertical 30 1000 50 70 100200300500700 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading _ DET _ Antenna _ Loss& _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Frequency _ Reading _ DET _ Factor _ Gain _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ [ MHz ] _ [ dBuV ] _ DET _ [ dB / m] _ [dB] _ [dBuV/m] _ [Deg] _ [cm] _ Polar. _ [dBuV/m] _ [dB] _ 30 . 022 _ 23 . 3 _ QP _ 18.2 _ -22.0 _ 19.5 _ 0 _ 300 _ Hori. _ 40.0 _ 20.5 _ 30 . 028 _ 34 . 6 _ QP _ 18.2 _ -22.0 _ 30.8 _ 324 _ 100 _ Vert. _ 40.0 _ 9.2 _ 48 . 006 _ 22 . 3 _ QP _ 12.0 _ -21.8 _ 12.5 _ 0 _ 300 _ Hori. _ 40.0 _ 27.5 _ 48 . 011 _ 34 . 2 _ QP _ 12.0 _ -21.8 _ 24.4 _ 68 _ 100 _ Vert. _ 40.0 _ 15.6 _ 50 . 862 _ 32 . 8 _ QP _ 11.1 _ -21.7 _ 22.2 _ 43 _ 100 _ Vert. _ 40.0 _ 17.8 _ 50 . 865 _ 22 . 3 _ QP _ 11.1 _ -21.7 _ 11.7 _ 0 _ 300 _ Hori. _ 40.0 _ 28.3 _ 125 . 003 _ 21 . 7 _ QP _ 14.0 _ -20.7 _ 15.0 _ 0 _ 300 _ Hori. _ 43.5 _ 28.5 _ 125 . 005 _ 22 . 1 _ QP _ 14.0 _ -20.7 _ 15.4 _ 0 _ 100 _ Vert. _ 43.5 _ 28.1 _ 500 . 003 _ 21 . 6 _ QP _ 18.4 _ -19.0 _ 21.0 _ 0 _ 100 _ Hori. _ 46.0 _ 25.0 _ 500 . 018 _ 21 . 6 _ QP _ 18.4 _ -19.0 _ 21.0 _ 0 _ 100 _ Vert. _ 46.0 _ 25.0 _ 750 . 021 _ 21 . 2 _ QP _ 21.8 _ -17.6 _ 25.4 _ 0 _ 100 _ Hori. _ 46.0 _ 20.6 _ 750 . 023 _ 21 . 2 _ QP _ 21.8 _ -17.6 _ 25.4 _ 0 _ 100 _ Vert. _ 46.0 _ 20.6 *The test result is rounded off to one or two decimal places, so some differences might be observed. Continuous Transmitting 125kHz, / Worst-axis Hor: X-axis,Ver: X-axis Test report No. : 29KE0169-HO-01-A-R1 Page : 18 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (RF Receiving) D…

Text truncated - open the document above for the full version.

Test report No. : 29KE0169-HO-01-A-R1 Page : 12 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission (Continuous Transmitting) Photo 1 Photo 2 Test report No. : 29KE0169-HO-01-A-R1 Page : 13 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Below 30MHz EUT: X-axis, Immobilizer ANT + Key Cylinder: Y-axis Above 30MHz Horizontal: X-axis / Vertical: X-axis Wireless control module (EUT) Immobilizer ANT + Key Cylinder X-axis X-axis Y-axis Y-axis Z-axis Z-axis Test report No. : 29KE0169-HO-01-A-R1 Page : 14 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position With key Without key (Worst) Test report No. : 29KE0169-HO-01-A-R1 Page : 15 of 21 Issued date : February 26, 2010 Revised date : March 29, 2010 FCC ID : OUCG8D841MWCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (RF Receiving) Photo 1 Photo 2
