OUCGHW-H001FOB ASSY BIDIRECTIONAL R/C

Climate SW ANT MODULE FOB 3 4 CONFIGURATION Main specifications After sales service 5 GHW-H001 MODEL: S/No.X******* FCC ID:OUCGHW-H00 1 -001 Part names Product label CN2 connector CN1 connector (antenna connector) How to use FCC WARNING OMRON Automotive Electronics Co. Ltd. 6368 nenjyozaka, Okusa, Komaki, Aichi 485-0802 JAPAN Tel: +81 568 78 6392 URL: http://www.oae.omron.co.jp Transmission frequency 926.85 MHz Output power 50 mV/m (3m) Antenna Internal loading antenna Switches Power on/off, Charge setting, Climate setting Link state acknowledgment Buzzer and LCD Battery Lithium battery (CR2032 x 2) Operation temp. range -10 C to + 70C Dimensions 83.8 x 32 x 18.4 mm (Not incl. protrusion) Weight 35 g Transmission frequency 926.85 MHz Output power 50 mV/m (3m) Power supply 5 V Current consumption 1.5 mA Antenna Printed dipole antenna Operation temp. range -30 C to + 85 C Dimensions 52 x 25 x 52 mm Weight 35 g For after sales service, contact : Any changes or modifications not expressly approved by the party responsible for product compliance could void the user's authority to operate the equipment. This device complied with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause any interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Pressing the power switch for more than 0.5 seconds turn the power of the fob on (with a buzzer sound) and the fob starts transmitting a request signal to obtain vehicle information. If a response signal from the vehicle is properly received, the vehicle information will be displayed on the LCD with a buzzer sound. Turning the power of the fob on You can remotely start/stop charging with the fob. Pressing the charge switch while vehicle information is displayed on the LCD starts transmitting the setting information. *Pressing the power switch while vehicle information is displayed on the LCD shows the in-vehicle temperature. Once the setting is done and a response from the vehicle is properly received, a charging icon will be displayed (or disappeared for charging stop) on the LCD with a buzzer sound. Start/stop charging Turning the power of the fob off Turning the the air conditioner on/off Pressing the power switch for more than 0.5 seconds turn the power of the fob off. Also no button operation for more than 30 seconds automatically turns the power off. You can remotely turn the air conditioner on/off with the fob. Pressing the climate switch while vehicle information is displayed on the LCD starts transmitting the setting information. *Pressing the power switch while vehicle information is displayed on the LCD shows the in-vehicle temperature. Once the setting is done and a response from the vehicle is properly received, a climate icon will be displayed (or disappeared for air conditioning off ) on the LCD with a buzzer sound. LCD Charge SW Certification label Power SW Battery cover FOB ANTENNA MODULE 1 2

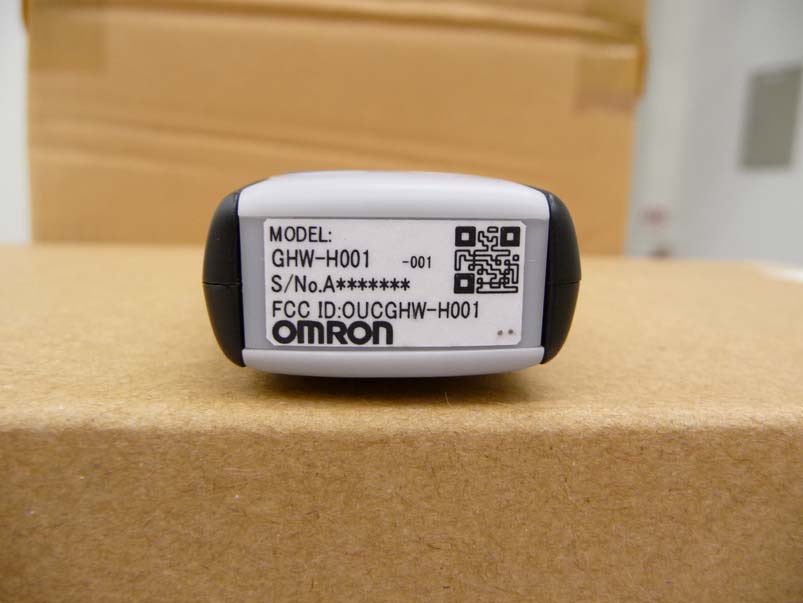

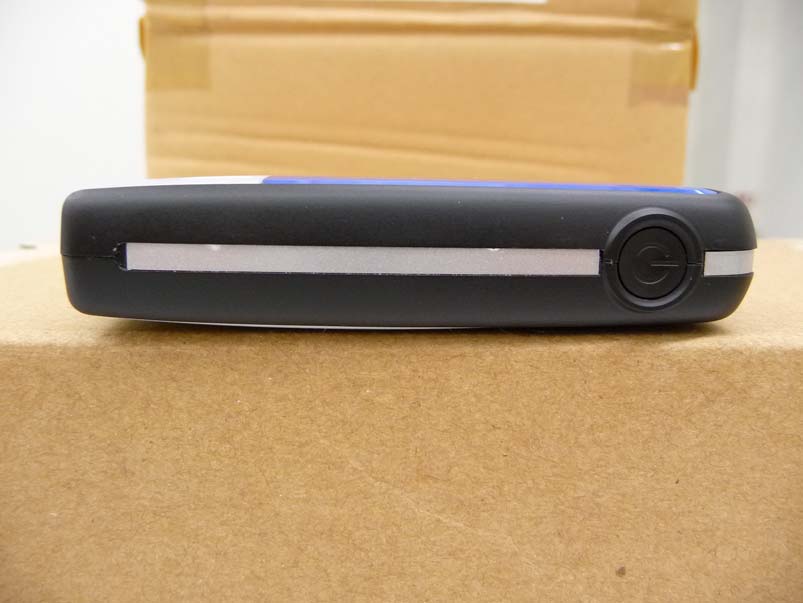

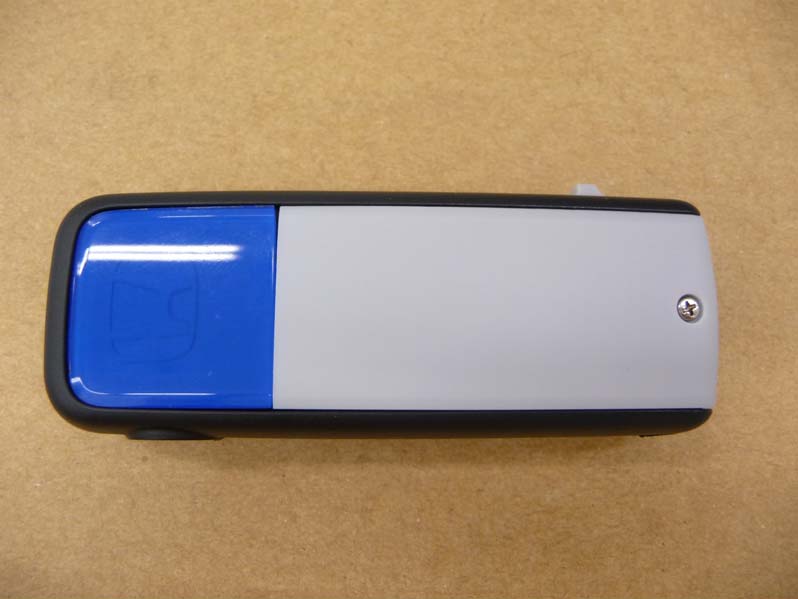

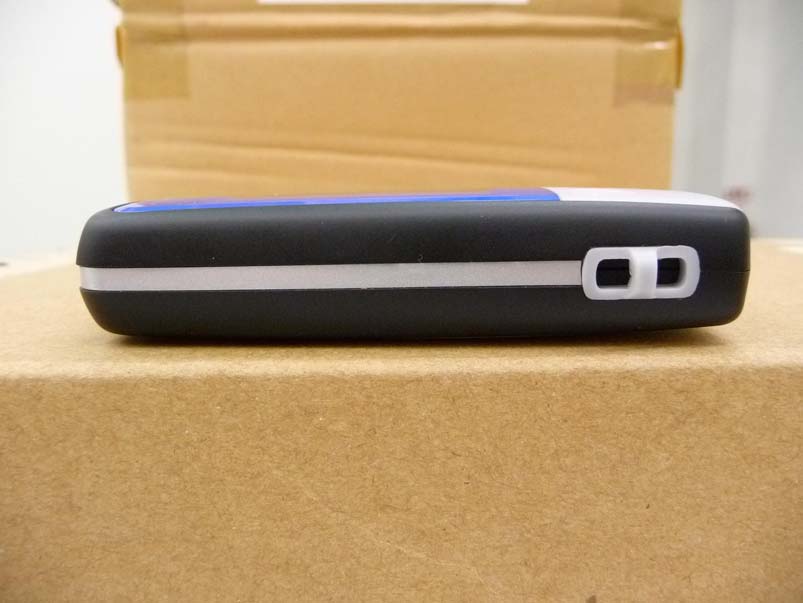

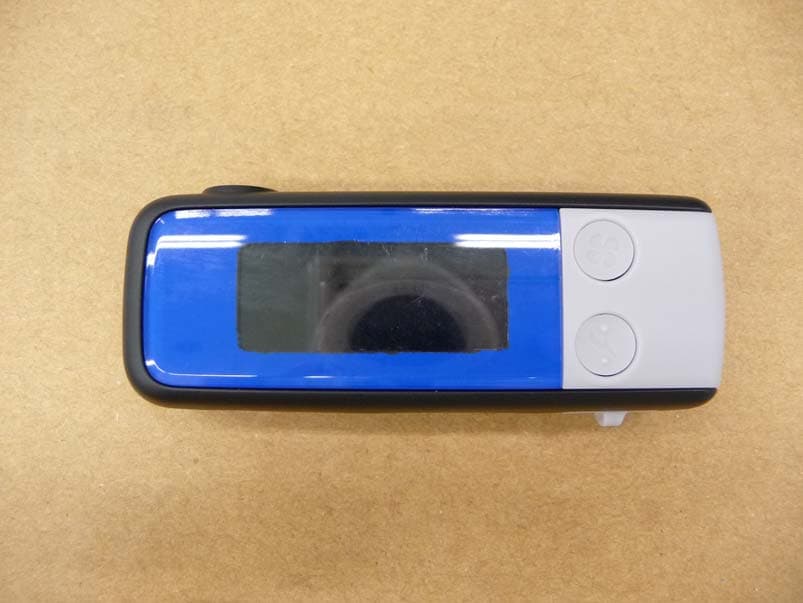

External Photo [Model: GHW-H001] Front Rear External Photo [Model: GHW-H001] Top Bottom External Photo [Model: GHW-H001] Right Left

2:1 Katayama.K SERIAL LABEL T070B01D18 2011.08.31 001YYBF0000 英 文 字 固 定 技適、認証番号詳細 技適申請 TELECが指定する記号番号 TELECが指定する記号番号 固 定 数 字 数 字 連 番 ( ) ( ) 認証申請 英 文 字 固 定 0000000 001YY□ 注記 1.材料：銀マット(リンテック製 MP50ACギンケシ)裏面接着剤付とする。 2.全ての印刷後に表面つや消しラミネート(リンテック製 PETSマット25)処理のこと。 3.色指示 ベース色：シルバー 文字色、ライン：黒 4.文字書体は指示による。 5.本製品はRoHS対応のこと。 6.IMDS若しくはJAMAシートを弊社企業/組織ID:61643(CIRCUITDESIGN,INC)に 入力すること、入力不可の場合はデータシートを提出すること。 7.8桁シリアルNo.は X0000000～の連番とする。 000001～ の連番 0=量産 1=スペア 仕様 X=US Y=JP Katayama.K 部番 SPEC. シリアルNo. ***** GHW-H001-001 X0000001～ 20.5 10.1 4 - R 0 . 3 GHW-H001 MODEL: S/No.X******* FCC ID:OUCGHW-H001 □5 QRコード (シリアルNo.8桁表記のこと) -001 A仕様 GHW-H001 S/No.Y******* 001YYBF0000 MODEL: R -002 B仕様 部番 SPEC. シリアルNo. ***** GHW-H001-002 Y0000001～ 1 2 3 4 5 x x x A B C 5 4 3 2 1 ABC MARK DATEMEMO CH. AP. COMMERCIAL TOLERANCE SCALE MATERIAL FINISHEDCHECK DRAWN DESIGN APPROV. NAME CODE NO. DATE DRAWING NO. ± ± ± ～ ～ ～ △ △ △ D SPEC. 部品名=NAME（図面名）+SPEC.（仕様） ～ ± △ x WR. 00.1 AB

体積:42.2cm 3 31.841 36.902 83.774 18.4 GHW-H001 MODEL: S/No.X******* FCC ID:OUCGHW-H001 -001 特殊ネジ 4ヶ所 仕 様 備 考 A アメリカ向け GHW-H001-001 ABC E G D 42 ACDEF 1 2345 F G 15 B SCALEMATERIALFINISHED DRAWNDESIGNCHECKAPPROV. NAME CODE NO. DATE DRAWING NO. 3 F SPEC. 部品名=NAME（図面名）+SPEC.（仕様） xxx MEMO CH. AP. DATE MARK COMMERCIAL TOLERANCE ±±± ～～～ △△△ ～ ± △ x WR. 外観図 1:1 Katayama.K Katayama.K 2011.08.26 T070B01A01

Internal Photo [Model: GHW-H001] Front Rear

REPORT NO: 32AE0249-SH-B-R1 DATE: September 28, 2011 FCC ID: OUCGHW-H001 Page 19 of 21 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. 9. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP REPORT NO: 32AE0249-SH-B-R1 DATE: September 28, 2011 FCC ID: OUCGHW-H001 Page 20 of 21 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS PHOTO Y-AXIS PHOTO REPORT NO: 32AE0249-SH-B-R1 DATE: September 28, 2011 FCC ID: OUCGHW-H001 Page 21 of 21 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. END OF REPORT Z-AXIS PHOTO
