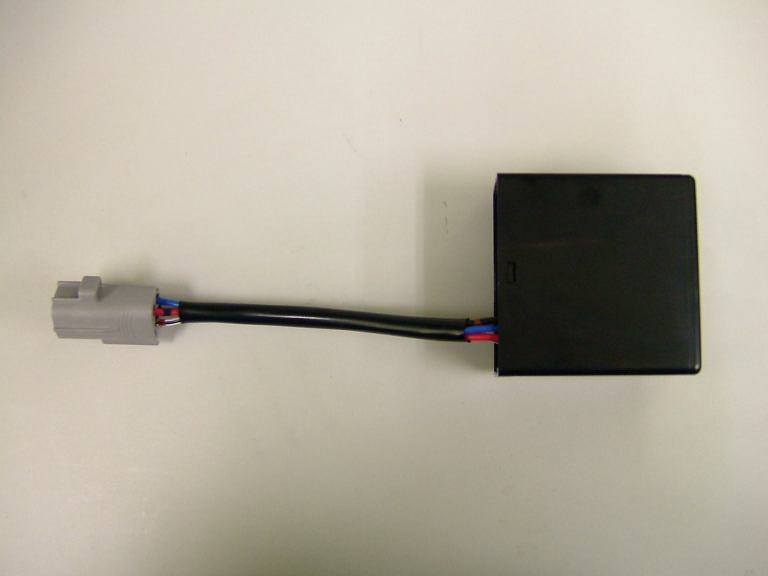

OUCWK30-ARX-07Wireless Remote Receiver

2. User’s manual (provisionally) REMOTE TRANSMITTER UP After you push POWER button, when you continue pushing the UP button, continue transmitting UP code from the transmitter. The target to control continues moving up. DOWN After you push POWER button, when you continue pushing the DOWN button, continue transmitting DOWN code from the transmitter. The target to control continues moving down. . - 2 -

3. Block diagram This is the block diagram concerning to the receiver. 8BIT CPU RECEIVING MODULE EEPROM POWER SOURCE(5V) data DRIVING CIRCUIT Signal of vehicle status input output 12V / 24V (car battery) LIFT UP MOTOR Figure 3.1 block diagram of the receiver - 3 -

PROPOSED FCC ID LABEL AND LOCATION OMRON CORPORATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: OUCWK30-ARX-07 FCC ID LABEL LOCATION

4. Specification 4.1 CPU Type 68HC805P18 (8bit) Manufacturer: Motorola ROM 8K bytes RAM 192 bytes EEPROM 128 bytes Clock frequency 4.19MHz Clock frequency generation Crystal resonator Package 28pin SOP 4.2 RF block Local clock frequency 324.55MHz Frequency generation Crystal resonator Modulation Single Superheterodyne Bandwidth 200KHz Carrier Detect Sensitivity 30 dBuVemf 4.3 Others Dimension 70mm 71.6 mm32.5 mm Weight 21 g Battery Car Battery (DC 12/24V) Operation Voltage DC 12V, 7mA / DC24V,9mA Operation temperature -30 ~ +70 - 4 -

1. Constitution of the Wireless Remote Controller The wireless remote controller is a system that it controls up or down in a target by remote controller. (For example, it controls up or down a seat for vehicle.) This system consists of two components. The TRANSMITTER is a device that continues transmitting the signal when the button is continued pressing. The transmission signal consists of several synchronous codes, unique identification code, and function code. The RECEIVER is fixed in side of target to control. It works intermittently to reduce the battery exhaustion. When the receiver detects the synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the receiver decides which operation will be performed. The user can select the following operations by pressing the button of the transmitter. OPERATION ACTION Up Up the target Down Down the target Transmitter f = 313.85MHz - 1 -

6. PCB 6.1 Circuit diagram Figure 6.1 Circuit diagram - 6 -

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, FAX (03) 3416-9691 JQA APPLICATION NO.: 400-30696 Issue Date : December 18, 2003 Page 1 of 24 EMI TEST REPORT JQA APPLICATION NO. : 400-30696 Model No. : WK30-ARX-07 Type of Equipment : Wireless Remote Controller Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : OUCWK30-ARX-07 Applicant : OMRON Corporation Address : 6368 Nenjo-zaka, Okusa Komaki-city, Aichi 485-0802, Japan Manufacturer : OMRON Corporation. Address : 6368 Nenjo-zaka, Okusa Komaki-city, Aichi 485-0802, Japan Received date of EUT : December 15, 2003 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and Communication Research Laboratory (CRL) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-30696 FCC ID : OUCWK30-ARX-07 Model No. :WK30-ARX-07 Issue Date :December 18, 2003 Standard :CFR 47 FCC Rules Part 15 Page 2 of 24 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 7 1.4 EUT Modifications / Deviation from Standard 8 1.5 Test results / Uncertainty 9 1.6 Summary 10 1.7 Test Configuration / Operation of EUT 11 1.8 EUT Arrangement (Drawings) 12 1.9 Preliminary Test and Test-setup (Drawings) 13 – 16 1.10 EUT Arrangement (Photographs) 17 - 18 2 Test Data 2.1 AC Power Line Conducted Emission N/A 2.2 Radiated Emission (Electric Field) 19 – 20 2.3 Antenna Conducted Power N/A 3 Appendix Test instruments List 21 – 24 C O P Y JQA Application No. :400-30696 FCC ID : OUCWK30-ARX-07 Model No. :WK30-ARX-07 Issue Date :December 18, 2003 Standard :CFR 47 FCC Rules Part 15 Page 3 of 24 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and B All other receivers subject to part 15 Test procedure : AC power line conducted emission, radiated emission and antenna conducted power tests were performed according to the procedures in ANSI C63.4-2001. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2004) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Wireless Remote Controller (Receiver, Single Superheterodyne) 2) Product Type : Pre-Production 3) Category : All other receivers subject to part 15 4) EUT Authorization : Certification 5) FCC ID : OUCWK30-ARX-07 6) Trade Name : OMRON 7) Model No. : WK30-ARX-07 8) Tuning Frequency Range : 313.85 MHz 9) Highest Frequency Used in the EUT : 324.55 MHz 10) Serial No. : None 11) Date of Manufacture : None 12) Power Rating : 12 VDC 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-30696 FCC ID : OUCWK30-ARX-07 Model No. :WK30-ARX-07 Issue Date :December 18, 2003 Standard :CFR 47 FCC Rules Part 15 Page 4 of 24 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver Spectrum Analyzer Cable AMN(for EUT) AMN(for Peripheral) Termination C O P Y JQA Application No. :400-30696 FCC ID : OUCWK30-ARX-07 Model No. :WK30-ARX-07 Issue Date :December 18, 2003 Standard :CFR 47 FCC Rules Part 15 Page 5 of 24 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2003 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR05 Antenna AN06, AN08 Cable CA01 RF Amplifier N/A C O P Y JQA Application No. :400-30696 FCC ID : OUCWK30-ARX-07 Model No. :WK30-ARX-07 Issue Date :December 18, 2003 Standard :CFR 47 FCC Rules Part 15 Page 6 of 24 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the Radiated Emission(Above 1000 MHz) - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - No. 2 site (3 meters) - No. 3 site (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :N/A 2) Interval :N/A Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver Spectrum Analyzer Cable Antenna RF Amplifier C O P Y JQA Application No. :400-30696 FCC ID : OUCWK30-ARX-07 Model No. :WK30-ARX-07 Issue Date :December 18, 2003 Standard :CFR 47 FCC Rules Part 15 Page 7 of 24 JAPAN QUALITY ASSURANCE ORGANIZA…

Text truncated - open the document above for the full version.

JQA Application No. :400-30696 FCC ID : OUCWK30-ARX-07 Model No. :WK30-ARX-07 Issue Date :December 18, 2003 Standard :CFR 47 FCC Rules Part 15 Page 17 of 24 JAPAN QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission C O P Y JQA Application No. :400-30696 FCC ID : OUCWK30-ARX-07 Model No. :WK30-ARX-07 Issue Date :December 18, 2003 Standard :CFR 47 FCC Rules Part 15 Page 18 of 24 JAPAN QUALITY ASSURANCE ORGANIZATION C O P Y
