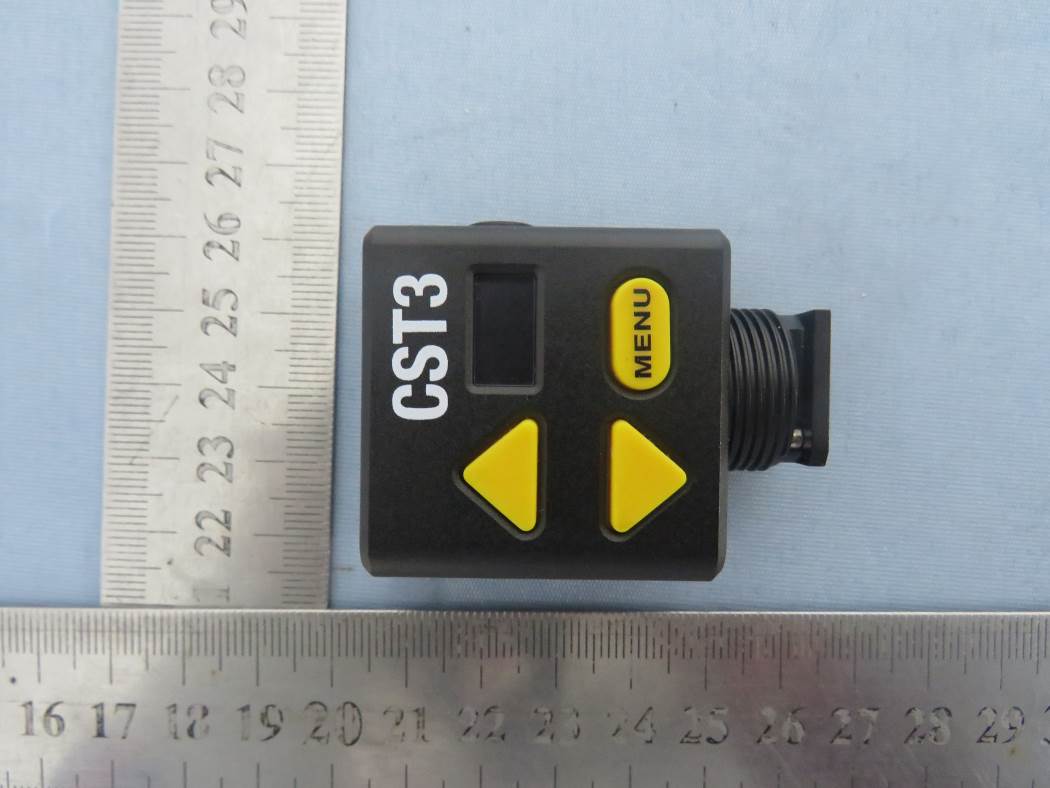

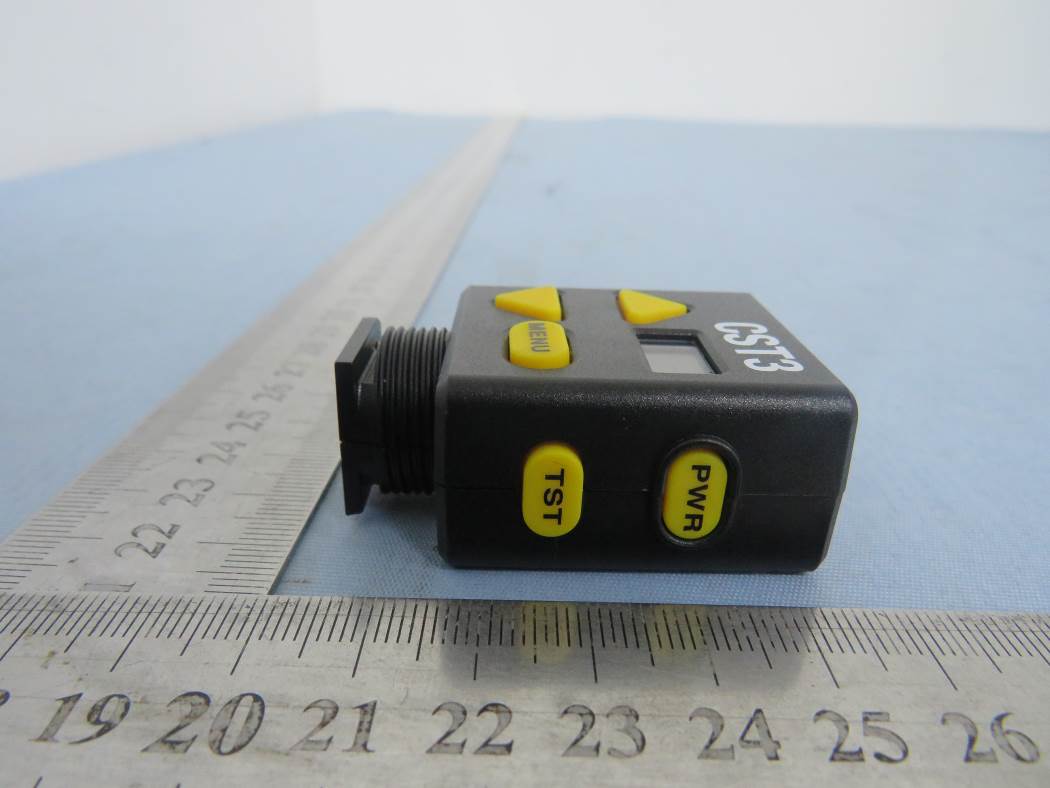

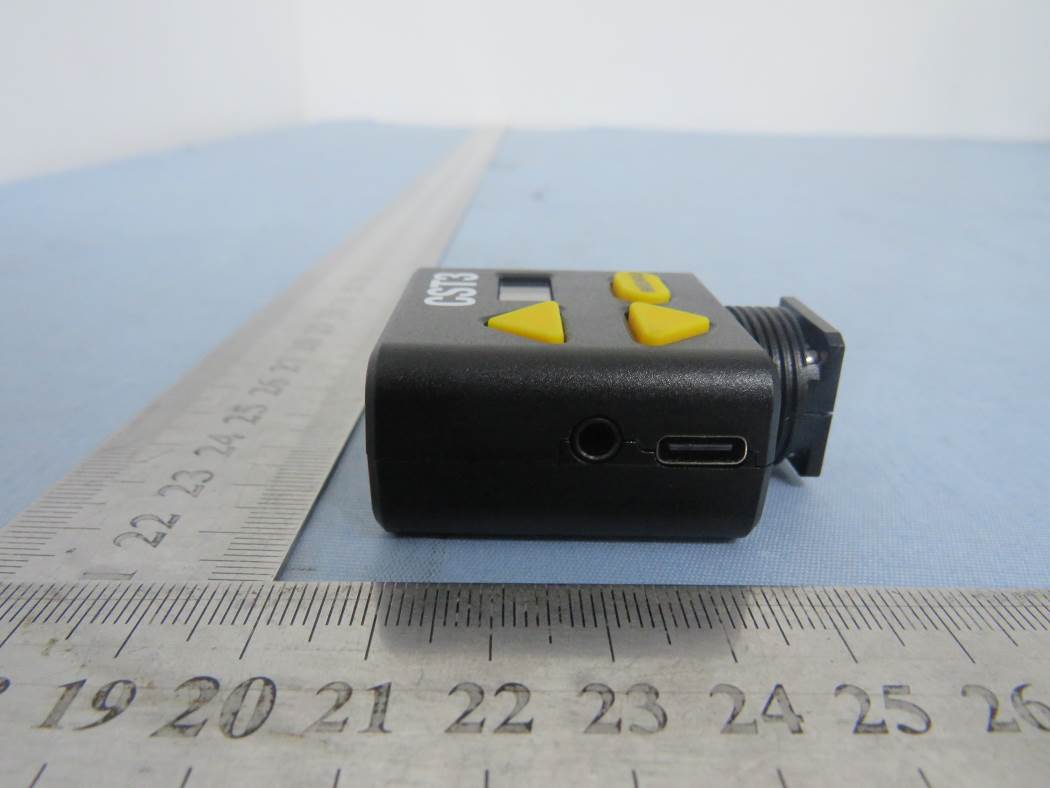

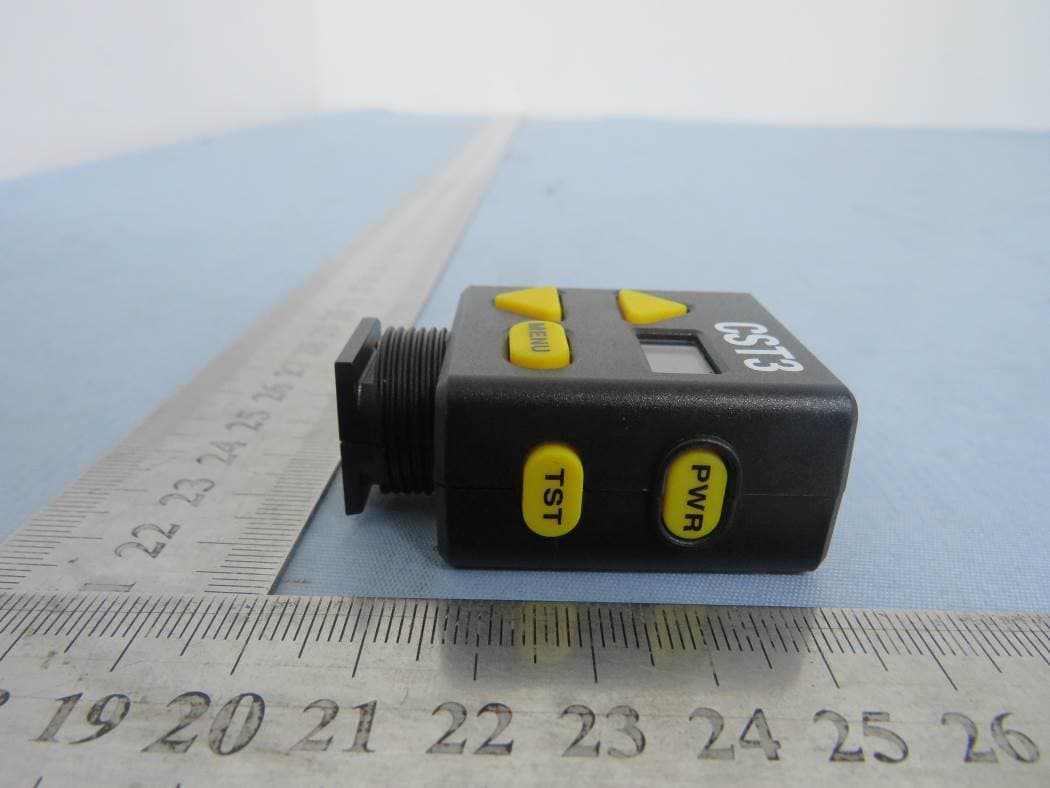

Scan QR Code or visit us at https://www.paulcbuff.com/CyberSync- Trigger-Transmitter-3.html for more info on how to use your new CyberSync Transmitter! WHAT’S IN THE BOX?! MEET YOUR NEW BEST FRIEND Buttons, Screens, and Ports 1) Power to turn your remote on and off 2) Test to fi re a test fl ash 3) Menu to access frequency, display brightness, and your transmitter’s sleep timer 4) Two arrow buttons adjust currently displayed setting Frequency & Battery Life Sleep Timer Screen Brightness Test Flash There are two ports on the CST3. A USB-C charging port*, as well as a 3.5mm sync jack *USB-C to USB-A cable included in box FCC ID: OUECST3 FCC INFORMATION NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guaran- tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement The device can be used in portable exposure condition without restriction. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
