Consultation with SebaKMT 1 User Manual Noise Level and Frequency Logger Sebalog N3 1 (08/2011) - ENG Mess- und Ortungstechnik Measuring and Locating Technologies Elektrizitätsnetze Power Networks Kommunikationsnetze Communication Networks Rohrleitungsnetze Water Networks Abwassernetze Sewer Systems Leitungsortung Line Locating Consultation with SebaKMT 2 Consultation with SebaKMT 3 Consultation with SebaKMT The present system manual has been designed as an operating guide and for reference. It is meant to answer your questions and solve your problems in as fast and easy a way as possible. Please start with referring to this manual should any trouble occur. In doing so, make use of the table of contents and read the relevant paragraph with great attention. Furthermore, check all terminals and connections of the instruments involved. Should any question remain unanswered, please contact: Seba Dynatronic Mess- und Ortungstechnik GmbH Hagenuk KMT Kabelmesstechnik GmbH Dr.-Herbert-Iann-Str. 6 D - 96148 Baunach Phone: +49 / 9544 / 68 – 0 Fax: +49 / 9544 / 22 73 Röderaue 41 D - 01471 Radeburg / Dresden Phone: +49 / 35208 / 84 – 0 Fax: +49 / 35208 / 84 249 E-Mail: [email protected] http://www.sebakmt.com  SebaKMT All rights reserved. No part of this handbook may be copied by photographic or other means unless SebaKMT have before-hand declared their consent in writing. The content of this handbook is subject to change without notice. SebaKMT cannot be made liable for technical or printing errors or shortcomings of this handbook. SebaKMT also disclaim all responsibility for damage resulting directly or indirectly from the delivery, supply, or use of this matter. Terms of Warranty 4 Terms of Warranty SebaKMT accept responsibility for a claim under warranty brought forward by a customer for a product sold by SebaKMT under the terms stated below. SebaKMT warrant that at the time of delivery SebaKMT products are free from manufacturing or material defects which might considerably reduce their value or usability. This warranty does not apply to faults in the software supplied. During the period of warranty, SebaKMT agree to repair faulty parts or replace them with new parts or parts as new (with the same usability and life as new parts) according to their choice. SebaKMT reject all further claims under warranty, in particular those from consequential damage. Each component and product replaced in accordance with this warranty becomes the property of SebaKMT. All warranty claims versus SebaKMT are hereby limited to a period of 12 months from the date of delivery. Each component supplied by SebaKMT within the context of warranty will also be covered by this warranty for the remaining period of time but for 90 days at least. Each measure to remedy a claim under warranty shall exclusively be carried out by SebaKMT or an authorized service station. To register a claim under the provisions of this warranty, the customer has to complain about the defect, in case of an immediately detectable fault within 10 days from the date of delivery. This warranty does not apply to any fault or damage caused by exposing a product to conditions not in accordance with this specification, by storing, transporting, or using it improperly, or having it serviced or installed by a workshop not authorized by SebaKMT. All responsibility is disclaimed for damage due to wear, will of God, or connection to foreign components. For damage resulting from a violation of their duty to repair or re-supply items, SebaKMT can be made liable only in case of severe negligence or intention. Any liability for slight negligence is disclaimed. Contents 5 Contents Consultation with SebaKMT ........................................................................................... 3 Terms of Warranty ........................................................................................................... 4 Contents ........................................................................................................................... 5 1 Technical description ...................................................................................... 7 1.1 Technical data .................................................................................................... 9 1.2 Scope of delivery and accessories ................................................................... 12 1.3 Optional accessories ........................................................................................ 12 2 Important and common terms ...................................................................... 13 3 The loggers ..................................................................................................... 15 3.1 Function ............................................................................................................ 15 3.2 Design .............................................................................................................. 16 3.3 Switching on and off ......................................................................................... 17 3.4 Memory............................................................................................................. 17 3.5 Power supply .................................................................................................... 17 4 The Commander ............................................................................................. 18 4.1 Function ............................................................................................................ 18 4.2 Device design ................................................................................................... 19 4.3 Design of the user interface ............................................................................. 20 4.4 Basics of operation ........................................................................................... 21 4.5 User mode ...........................................…

Text truncated - open the document above for the full version.

Working in Easy mode 41 5.5 Evaluating the measured data You can use the Commander to view the measured data read out from a logger and to analyse it in greater detail. 5.5.1 Calling up the measured values To call up the measured data of a logger, proceed as follows: Step Description 1 In the main menu, select the Display logger data button. Result: The loggers in the workgroup are listed in the next view. 2 Call up the data of the highlighted logger using the View button or select another logger in the list. Result: The logger’s measured data is shown (see page 42). Working in Easy mode 42 5.5.2 Displaying the measured values The measured data from the loggers are shown as a bar diagram on the screen. Element Description Identification number and comment of the displayed logger Diagram Each bar represents a single noise recording. X-axis ... course of measurement over time Y-axis ... noise level in dB The colour of the bar shows the approximate frequency of the noise. Blue Yellow 0 Hz 2,500 Hz The point where the two green lines intersect marks the quietest recording in the displayed measurement, the so-called “leak value”. Leak value (lowest value to be displayed) The leak value refers to the quietest recording in the displayed measuring period. The values of this recording are shown in the three fields directly under the diagram: Left-hand field ... ESA value of the recording Centre field ... Noise level in dB for the quietest measurement Right-hand field ... Frequency of the noise in Hz Buttons to access individual functions (see below) View 4 3 2 1 1 2 3 4 4 Working in Easy mode 43 There are the following functions for analyzing the displayed data: Button Description Scroll You can use this function to view in the diagram the measurement results of the other loggers in the group. To do so, apply the button and turn the selector knob to select a logger. Apply the button again to confirm your selection. Move Cursor You can use this function to move the vertical green line in the diagram from one bar to the next. The values of the particular noise measurement (volume, frequency, ESA) and the time of the recording are shown. To do so, apply the button and turn the selector knob. Apply the button again to end the function. Details This function opens a new window on the screen. It shows the configuration data of the particular logger at the time of the measurement. You can use the Scroll button to view the configuration data of the other loggers in the group. Use the OK button to return to the measured data display. Mode You can use this function to change the measurement unit on the Y-axis in the diagram. Standard view ... The Y-axis shows the volume of the noises. Each bar in the diagram represents a single recording. ESA view ... The Y-axis shows the ESA value. Each bar represents the quietest recording of a measuring day. Functions Working in Professional mode 44 6 Working in Professional mode 6.1 Starting up the Commander 6.1.1 Switching on the Commander Use the I/O button to switch on the Commander. The Professional mode start image appears on the screen: If the symbol is shown at the bottom in the middle of the screen, the Commander is not in Professional mode but Easy mode instead. To switch to Professional mode, open the system settings menu. Beginning at the start screen, follow the
symbols and, in the first line of the menu, select the “Professional mode” setting from the list. The screen might not be displaying the correct language. The language can be changed in the system settings. Beginning at the start screen, follow the

symbols and select your language from the list. 6.1.2 Checking the system settings Before a measuring session, check that the Commander’s system settings are up-to- date and correct (see page 25). The date and time settings in particular must be correct. 6.1.3 Registering loggers in the Commander and specifying the workgroup The loggers to be used for an impending measurement must be registered and combined in a group (see page 23) in the Commander. To specify the workgroup (see page 14), select the symbol in the main menu bar, open the Group Management menu and select a group in the list of registered logger groups (marked with an X). However, a lot of menus in Professional mode also have a drop-down list at the very top of the screen. It can be used to access a group list directly and select a workgroup. Switching on Changing the user mode Changing the language Main menu bar Firmware version, System date, Identification number of the Commander Workgroup Working in Professional mode 45 6.2 Managing the loggers All loggers to be used for a measurement must be registered in the Commander beforehand. Only registered loggers can be programmed and read. Registration is performed either by manually inputting the logger ID or by automatic wireless detection. The registered loggers are combined in groups. 6.2.1 Managing logger groups in the Commander All loggers registered in the Commander must be assigned to a group. The Commander can only communicate with one of the logger groups created, the so called “workgroup” (see page 14). Logger groups can be created, deleted, copied and renamed directly on the Commander. Select the symbol in the main menu, and the Group Management button in the next view, to go to the menu for managing logger groups. All the registered logger groups are listed. The workgroup is marked with an X in the view. To turn another logger group into the workgroup, select the list and then a group. To create a completely new logger group in the Commander, proceed as follows: Step Description 1 Select the Add button. Result: A new view opens. 2 Select the group mode (see page 13) for the new group and confirm with OK. After the group is created, the group mode can no longer be changed. All loggers in a group must belong to the same group mode as the group itself (e.g. a “Lift&Shift” group may only contain “Lift&Shift” loggers). Result: A ne…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: 31.10.2012 Subject: Confidentiality Request for: FCC ID: OV8-LOGGSM3 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Seba Dynatronic Mess- und Ortungstechnik GmbH has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Manager Certification Thomas Ring (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

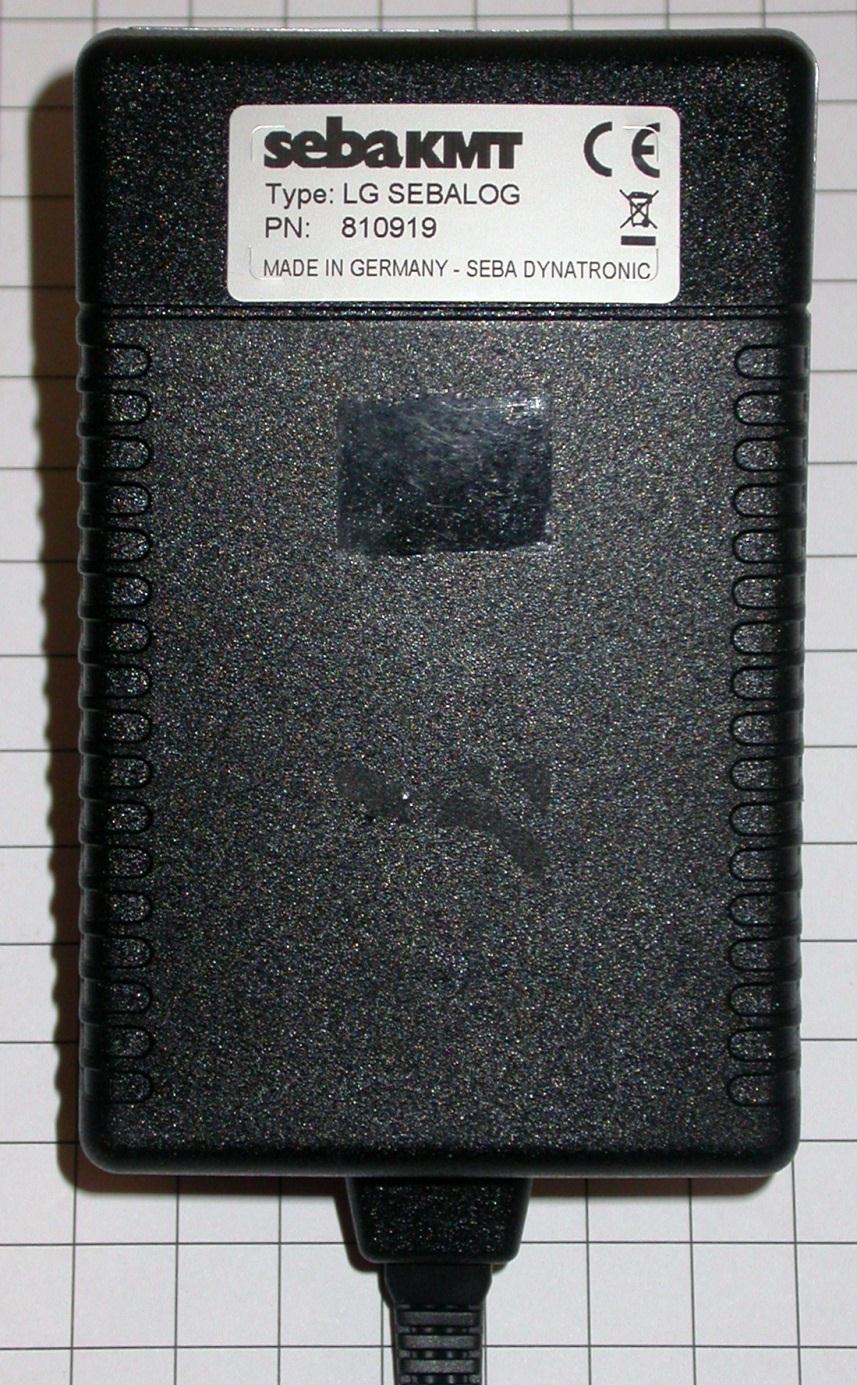

FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 35 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Test setup overview with additional AC/DC power supply FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 36 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Top view FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 37 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Bottom view FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 38 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Left view (Label for European market) FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 39 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Right view FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 40 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Front view FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 41 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Rear view FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 42 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Antennas (up = GSM; down = F socket antenna for 913.02 MHz) Antenna connectors (left side = F socket antenna for 913.02 MHz; right side = SMA socket antenna for GSM) FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 43 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Top view – AC/DC adapter Bottom view – AC/DC adapter FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 44 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Side view – AC/DC adapter Top view – DC plug Front view – DC plug

Declaration for SIM345 Dear customer, Thank you very much for choosing wireless modules of SIMCom. We： Shanghai SIMCom Wireless Solutions Ltd. Of SIM Technology building No.633, Jinzhong Road Changning District Shanghai，China 200335 Hereby we confirm to correct the spelling mismatch for our product SIM345 between the FCC certification (FCC Identifier: UDV0606020080117, Date of Grant: 02/15/2008) and the printed label on the modem (FCC ID: UDV‐0606020080117) for future production lots. The new label will then show the FCC ID: UDV0606020080117, according to the certification document. Name: Yongsheng Li Signature Title: Deputy General Manager Department: Module R&D team Shanghai SIMCom Wireless Solution Ltd. 2012‐11‐16

FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 45 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 7.2 Internal photos of the EUT Open casing Label view – battery pack FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 46 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 PCB top view FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 47 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 PCB bottom view FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 48 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Top view – RF module FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 49 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Bottom view – RF module FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 50 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Top view – GSM module Bottom view – GSM module FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 51 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Bottom view (without shielding) – GSM module

FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 1 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 EMI − T E S T R E P O R T - FCC Part 90.217 - Test Report No. : T35704-00-05KJ 30 October 2012 ______________________________________________________________________________________________ Date of issue Type / Model Name : LOG GSM-3-M Product Description : Interface between the logger network and control centre Applicant : Seba Dynatronic Mess- und Ortungstechnik GmbH Address : Dr.-Herbert-Iann-Str. 6 96148 BAUNACH, GERMANY Manufacturer : Seba Dynatronic Mess- und Ortungstechnik GmbH Address : Dr.-Herbert-Iann-Str. 6 96148 BAUNACH, GERMANY Licence holder : Seba Dynatronic Mess- und Ortungstechnik GmbH Address : Dr.-Herbert-Iann-Str. 6 96148 BAUNACH, GERMANY Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 2 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 Contents 1 T E S T S T A N D A R D S 3 1.1 Test result summary 3 2 G e n e r a l r e m a r k s 4 2.1 Final assessment 4 3 E Q U I P M E N T U N D E R T E S T 5 3.1 Power supply system utilised 5 3.2 Short description of the equipment under test (EUT) 5 4 T E S T E N V I R O N M E N T 6 4.1 Address of the test laboratory 6 4.2 Environmental conditions 6 4.3 Statement of the measurement uncertainty 6 4.4 Measurement protocol for FCC 6 5 T E S T C O N D I T I O N S A N D R E S U L T S 7 5.1 Conducted emissions 7 5.2 Maximum output power radiated 13 5.3 Spurious emissions radiated (electric field) 16 5.4 Modulation characteristics 19 5.5 Occupied bandwidth 22 5.6 Frequency stability 25 5.7 Receiver spurious emissions, radiated 28 5.8 Maximum permissible exposure (MPE) 31 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 33 7 P h o t o d o c u m e n t a t i o n 34 7.1 External photos of the EUT 34 7.2 Internal photos of the EUT 45 FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 3 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC 47 CFR Part 2: 2011 Frequency allocations and radio treaty matters; General rules and regulations FCC 47 CFR Part 15: 2011 Radio frequency devices FCC 47 CFR Part 90: 2011 Private land mobile radio services ANSI/TIA-603-C: 2004 Land Mobile FM or PM-Communications Equipment - Measurement and Performance Standards ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. OET Bulletin 65: Edition 97-01, August 1997 Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. KDB 412172 D01: 2010 Determining ERP and EIRP KDB 447498 D01: 2009 RF Exposure Procedures and Equipment Authorization Policies 1.1 Test result summary Wireless repeater using digital modulation: Operating in the frequency band from 902 MHz to 928 MHz: Description FCC Rule Part Test Procedure Result AC power line conducted emissions 15.107(a) ANSI C63.4:2003 passed Maximum output power 90.217 ANSI/TIA-603-C-2004 passed Spurious emissions radiated 90.217(a) ANSI/TIA-603-C-2004 passed Modulation characteristics 90.217(a) ANSI/TIA-603-C-2004 passed Occupied bandwith General ANSI/TIA-603-C-2004 passed Frequency stability 90.213(a)(b) ANSI/TIA-603-C-2004 passed Receiver spurious emissions 15.109 ANSI C63.4:2003 passed Co-location, Co-transmission 1.1310 OET Bulletin 65 passed FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 4 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 2 G e n e r a l r e m a r k s Items Description Power supply - internal - external 7.2 V DC (2x Lithium battery) 110-240 V AC; 50-60 HZ; 700 mA; 12 V DC Type of modulation FSK Operating frequency 913.02 MHz Frequency band 902 MHz to 928 MHz Data rate 9.6 kBd Channel spacing - Number of channels 1 Antenna type RF module GSM External External Antenna connector RF module GSM F SMA Antenna gain RF module GSM 2.1 dBi Dipole antenna (lambda ¼ antenna) 2.1 dBi Dipole antenna (lambda ¼ antenna) Lowest internal frequency 32.768 kHz Highest internal frequency 25.0 MHz The system consists of a certificated GSM module with FCC ID: UDV0606020080117. 2.1 Final assessment The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 30. November 2011 Testing concluded on : 05. June 2012 Checked by: Tested by: Klaus Gegenfurtner Dipl. Ing.(FH) Manager: Radio Group Josef Knab Radio Senior Expert FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 5 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 3 E Q U I P M E N T U N D E R T E S T 3.1 Power supply system utilised Internal Power supply voltage : 7.2 V DC (2x Lithium battery) AC/DC Adapter supply voltage : V nom = 12.0 V V min = 10.2 V V max = 13.8 V Max. current: TX mode 96 mA RX mode 27 mA 3.2 Short description of the equipment under test (EUT) LOG GSM-3-M is a permanently mounted device that is used for data collection and transmission. The incoming data contains measurement values, sent by noise level loggers that are used for leak detection on water pipes. LOG GSM-3-M receives data via 913 MHz short range radio either directly from the noise level loggers or from repeate…

Text truncated - open the document above for the full version.

FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 7 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 5 T E S T C O N D I T I O N S A N D R E S U L T S 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded Room S2 5.1.2 Photo documentation of the test set-up FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 13 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 5.2 Maximum output power radiated For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS 1 Test distance: 10 m 5.2.2 Photo documentation of the test set-up FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 16 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 5.3 Spurious emissions radiated (electric field) For test instruments and accessories used see section 6 Part SER 2, SER 3. 5.3.1 Description of the test location Test location: OATS 1 Test distance: 10 m Test location: Anechoic chamber 2 Test distance: 3 m 5.3.2 Photo documentation of the test set-up FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 19 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 5.4 Modulation characteristics For test instruments and accessories used see section 6 Part MB. 5.4.1 Description of the test location Test location: METROLOGY 5.4.2 Photo documentation of the test set-up FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 22 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 5.5 Occupied bandwidth For test instruments and accessories used see section 6 Part MB. 5.5.1 Description of the test location Test location: METROLOGY 5.5.2 Photo documentation of the test set-up FCC: OV8-LOGGSM3 mikes-testingpartners gmbh File No. T35704-00-05KJ, page 25 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 25.8.2011 5.6 Frequency stability For test instruments and accessories used see section 6 Part MB. 5.6.1 Description of the test location Test location: METROLOGY 5.6.2 Photo documentation of the test set-up
