OVA1152Water Conditioner Remote Transceiver

Part No. 7291393 (Rev. _ 11/10/06) How to operate your EcoWater Systems Water Conditioner EcoWater Systems Conditioner with Remote (ECR) EcoWater Systems Conditioner with Remote (ECR) SERIES 3500 & 3502 EcoWater Systems P.O. Box 64420, St. Paul MN 55164-0420 OWNER’S MANUAL PRINTED IN USA PRELIMINARY 2 SAFETY GUIDES Follow the installation instructions carefully. Failure to install the EcoWater Systems conditioner properly voids the warranty. Before you begin installation, read this entire manual. Then, obtain all the materials and tools you will need to make the installation. Check local plumbing and electrical codes.The installation must conform to them. Use only lead-free solder and fluxfor all sweat-solder connections, as required by state and federal codes. Use care when handling the EcoWater Systems condi- tioner. Do not turn upside down, drop, or set on sharp protrusions. Do not locate the EcoWater Systems conditioner where freezing temperatures occur. Do not attempt to treat water over 120°F. Freezing, or hot water damage voids the warranty. Avoid installing in direct sunlight. Excessive sun heat may cause distortion or other damage to non-metallic parts. The EcoWater Systems conditioner requires a minimum water flow of 3 gallons per minute at the inlet. Maximum allowable inlet water pressure is 125 psi. If daytime pressure is over 80 psi, nighttime pressure may exceed the maximum. Use a pressure reducing valve if necessary (Adding a pressure reducing valve may reduce the flow). The EcoWater Systems conditioner works on 24 volt-60 hz electrical power only.Be sure to use the included transformer and plug it into a nominal 120V, 60 Hz household outlet that is grounded and properly pro- tected by an over current device such as a circuit break- er or fuse. If transformer is replaced, use only the authorized service, Class II, 24V, 10 VA transformer. This system is not intended to be used for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. If conditioner is being used to remove barium and/or radium 226 and 228, please verify performance by con- tacting 612-607-1700, ext. 6470 for testing treated water supply or check the water testing section of your local phone directory. European Directive 2002/96/EC requires all electrical and electronic equipment to be disposed of according to Waste Electrical and Electronic Equipment (WEEE) require- ments. This directive or similar laws are in place nationally and can vary from region to region. Please refer to your state and local laws for proper disposal of the equipment. ECOWATER SYSTEMS Safety Guides NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to Part 15 of the FCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio fre- quency energy and, if not installed and used in accor- dance with the instructions may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particu- lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connect- ed.
Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by EcoWater Systems could void the user’s authority to operate the equipment. This device complies with Industry CanadaStandard RSS-310. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired oper- ation of the device. Ce dispositif est conforme avec la norme CNR-310 d’Industrie Canada. Le fonctionnement du dispositif est sujet aux deux conditions suivantes: (1) le disposi- tif ne doit pas causer de brouillage, et (2) le dispositif doit accepter tous brouillages, incluant tous brouillages qui peut nuire au bon fonctionnement du dispositif. 3 ECOWATER SYSTEMS Warranty LIMITED WARRANTY EcoWater Systems, Inc. Advantage Warranty Series ECR & ERR 3000 Water System Congratulations! You have just purchased the highest quality water conditioning product on the market. To register your warranty, complete the enclosed Warranty Registration Card and mail it within 30 days of purchase. To whom is this warranty extended? EcoWater Systems, Inc. warrants its products to the original owner and guarantees that the products will be free from defects in materials and workmanship from the orig- inal date of installation. How does my warranty work? If, during the respective warranty period, a part proves, after inspection by EcoWater, to be defective, EcoWater will, at its sole option repair or replace that part at no charge, other than normal shipping, installation or service charges. What is covered by the warranty? EcoWater Systems, Inc. guarantees that, for the LIFETIME of the original owner, the SALT TANK and the MINERAL TANK will not rust, corrode, leak, burst, or in any other manner fail to perform their proper func- tions and that, for a period of TEN YEARS, the VALVE BODY will be free of defects in materials and workmanship and will perform its proper function and that, for a period of FIVE YEARS, the ELECTRONIC FACEPLATE and ALL OTHER PARTS, including the REMOTE MONITOR will be free of defects in materials and workmanship and will perform their normal functions. Only on models designated as ERR on the rating decal, is the resin b…

Text truncated - open the document above for the full version.

EcoW ater System s LLC EWS 3500 Series Water Conditioner with Rem o te Block Diagram Transceiver ( 10M Hz) Controller ( 32. 768KHz, 10M Hz) Softener Rem o te Monitor Transceiver ( 32. 768KHz, 10M Hz) Transform e r 24 V, 50/60 Hz 12/ 15/ 20 0 6

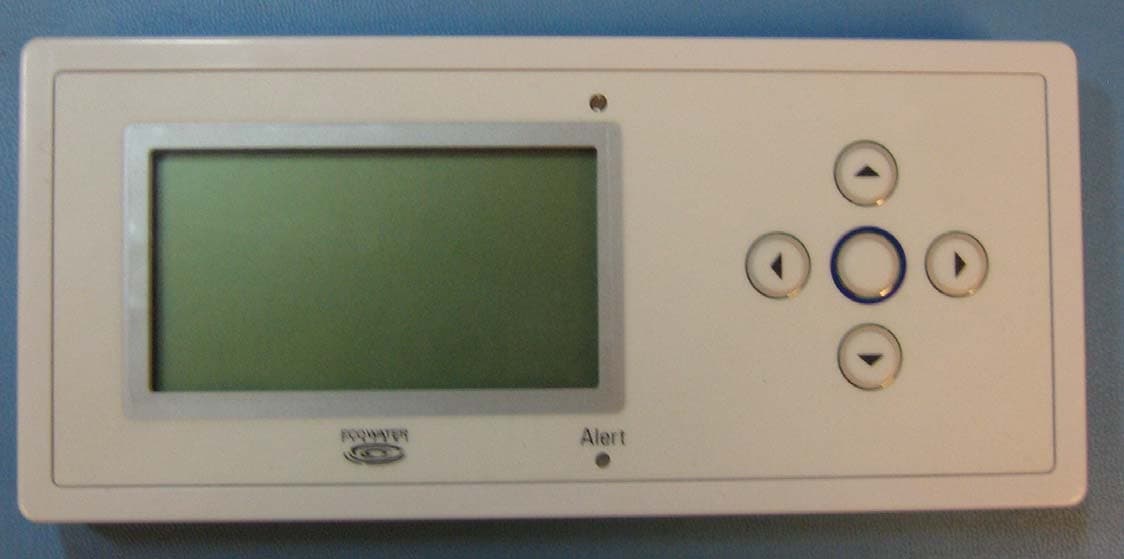

External view

Label Position.doc EcoWater Systems LLC Rem o te Trans c ei ver Model no. 7281152 Label Position.doc Page 1 of 2 Label Position.doc Label Position.doc Page 2 of 2

EcoWater Systems LLC Remote Transceiver Model no. 7281152 Top view Bottom view internal pictures remote.doc Page 1 of 2 Attached view internal pictures remote.doc Page 2 of 2

TEST REPORT Report Number: 3107498MIN-001R Project Number: 3107498 December 8, 2006 Evaluation of the 7281152 Remote Monitor FCC ID: OVA1152 to FCC Part 2 FCC Part 15, Subpart C, Section 15.249 For Ecowater Systems, Inc. Test Performed by: Test Authorized by: Intertek 7250 Hudson Blvd. Suite 100 Oakdale, MN 55128 Ecowater Systems, Inc. 1890 Woodlane Drive Woodbury, MN 55125 Prepared by: Date:December 8, 2006 Uri Spector Approved by: Date:December 8, 2006 Norman Shpilsher Intertek 7250 Hudson Boulevard, Suite 100, Oakdale, MN 51228 Telephone 651-730-1188, Fax 651-730-1282 Home Page www.intertek.com CONTENTS 1.0 GENERAL DESCRIPTION....................................................................................................... 1 1.1 Related Submittals Grants................................................................................................................ 1 1.2 Product Description ......................................................................................................................... 1 1.3 Test Methodology ............................................................................................................................ 1 1.4 Test Facility ..................................................................................................................................... 1 2.0 SYSTEM TEST CONFIGURATION ....................................................................................... 2 2.1 Justification ...................................................................................................................................... 2 2.2 EUT Setup........................................................................................................................................ 2 2.3 EUT Exercising Software ................................................................................................................ 2 2.4 Special Accessories.......................................................................................................................... 2 2.5 Equipment Modification .................................................................................................................. 2 2.6 Support Equipment List and Description.........................................................................................2 2.7 Test Configuration Block Diagrams ................................................................................................ 3 3.0 TEST RESULTS ........................................................................................................................... 4 3.1 Field Strength of Fundamental and Harmonics Emissions, FCC 15.249(a)(b), 15.205 .................. 5 3.2 Out of Band Spurious Emissions ..................................................................................................... 7 3.3 Bandwidth of Emissions .................................................................................................................. 8 3.4 Radiated Emissions, FCC 15.109, Class B .................................................................................... 16 3.5 Test Procedure ............................................................................................................................... 20 3.6 Field Strength Calculation ............................................................................................................. 21 4.0 TEST EQUIPMENT .................................................................................................................. 22 FCC ID: OVA1152 Report No. 3107498MIN-001R Page 1 of 22 1.0 GENERAL DESCRIPTION 1.1 Related Submittals Grants This is single application of the 7281152 Remote Monitor for Certification under FCC Part 15, Subpart C. There are no other simultaneous applications. The Receiver portion will be verified under Declaration of Conformity. 1.2 Product Description The 7281152 Remote Monitor is a RF receiver-transmitter operating from 909.12MHz to 920.12MHz. The intended use of the 7281152 Remote Monitor is to generate and transmit a RF signal upon receiving the RF signal from other source. The 7281152 Remote Monitor is powered at 4.5VDC from AA internal battery. Antenna Description: Integral antenna on to the RF Board inside the unit Sample Submitted: November 14, 2006 Test Work Started: November 14, 2006 Test Work Completed: December 8, 2006 1.3 Test Methodology Emission measurements were performed according to the procedures in ANSI C63.4-2003. All field strength radiated emissions measurements were performed in the semi-anechoic chamber, and for each scan, the procedure for maximizing emissions in Appendices D and E were followed. All field strength radiated tests were performed at an antenna to EUT distance of 3 meters, unless stated otherwise in the "Justification Section" of this Application. 1.4 Test Facility The test site facility used to collect the radiated and conducted measurement data is located at 7250 Hudson Blvd., Suite 100, Oakdale, Minnesota. This test facility has been fully described in a report dated on December 2005 submitted to FCC. Please reference the site registration number: 90706, dated December 6, 2005. FCC ID: OVA1152 Report No. 3107498MIN-001R Page 2 of 22 2.0 SYSTEM TEST CONFIGURATION 2.1 Justification Conducted Emissions was not performed as the EUT is battery operated. 2.2 EUT Setup For simplicity of testing, the transmitter was wired to transmit continuously for spurious emissions testing. Testing was performed with new batteries. 2.3 EUT Exercising Software N/A 2.4 Special Accessories There are no special accessories necessary for compliance of these products. Cables N/A 2.5 Equipment Modification No modifications were installed during the testing. 2.6 Support Equipment List and Description HP 6813B AC Power Source/Analyzer s/n: 3524A00552 Rohde & Schwarz SMT 03, Signal Generator, s/n DE12157 used to activate the Receiver for FCC 15.109 Radiated Emissions testing. FCC I…

Text truncated - open the document above for the full version.

Radiated Emissions Test Configuration Radiated Emissions Test Configuration
