Undersink REVERSE OSMOSIS DRINKING WATER SYSTEM ERO-375 HERO-375
Safety Guides
Installation
Operation
Maintenance
Repair Parts EcoWater Systems LLC P.O. Box 64420 St. Paul, MN 55164 TEL (651) 739-53307300493 (Rev. A 12/3/07) System tested and certified by NSF International against NSF/ANSI Standard 58. See performance data sheet for details. 2 TABLE OF CONTENTS WARRANTY INFORMATION Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety Guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 What the Drinking Water System Will Do. . . . . . . . . . . 5 Components of the System. . . . . . . . . . . . . . . . . . . . . . . . 5 Checks to Make Before Installing . . . . . . . . . . . . . . . . . . 5 Installing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14 Feed Water Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Reject Water Drain Fitting . . . . . . . . . . . . . . . . . . . . . . . 6 Installing Faucet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Installing RO Assembly & Storage Tank. . . . . . . . . . . 8 Tubing Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Connect Water Supply, Storage Tank & Drain Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Sanitizing / Pressure Testing / Purging . . . . . . . . . . . 11 Installing Hydrolink™RO Module. . . . . . . . . . . . . . 12 Installing (or Replacing) Batteries . . . . . . . . . . . . . . . 12 Connecting Hydrolink™ RO Module to Remote . . 13 How the Hydrolink™ RO Module Works. . . . . . . . . . 14 Status Screen on the Remote . . . . . . . . . . . . . . . . . . . . . 14 Status LED on the Hydrolink™ RO Module. . . . . . . . 15 Checking RF Signal Strength . . . . . . . . . . . . . . . . . . . . . 15 Changing the Remote Display . . . . . . . . . . . . . . . . . 16-17 How the RO System Works . . . . . . . . . . . . . . . . . . . . . . 18 Replacing the Filters & RO Membrane. . . . . . . . . . . . . 19 Care of Your Reverse Osmosis System . . . . . . . . . . 19-22 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 System Schematic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Installation of Optional Fittings. . . . . . . . . . . . . . . . . . . 24 Remote Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27 LIMITED WARRANTY 1, 3, 5 and 10 YEAR EcoWater Systems LLC, guarantees to the original owner that:for a period of ten (10) years from from the date of pur- chase, the RO holding tank will be free from defects in material and workmanship. All other parts of the drinking water system will be guaranteed for a period of five (5) years from defects in material and workmanship. The electronic faucet will be guaranteed for three (3) years from defects in material and workmanship. The reverse osmosis membrane will be guaranteed for one (1) year from defects in material and workmanship. The prefilters and postfilter, which are expendable, are not covered under this warranty. This warranty does not include normal shipping, installation or serv- ice charges. Any defective part, as described above, which fails within the ten, five, three or one year period from date of purchase will be repaired or replaced, F.O.B. our plant, St. Paul, MN. The sole obligation of EcoWater Systems LLC, under these guarantees, is to replace or repair the component or part which proves to be defective, within the specified time period, and EcoWater is not liable for consequential or inciden- tal damages due to misuse, alteration, neglect, freezing or a force of nature. All implied warranties, including any implied warranty of merchantability or of fitness for a particular purpose, are disclaimed to the extent they extend beyond the above periods. No dealer, agent, representative, or other person is authorized to extend or expand these guarantees. Some states do not allow limitations on how long an implied warranty lasts or exclusions or limitations of incidental or consequential damage, so the limitations and exclusions in this warranty may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. 3 SAFETY GUIDES
Read all steps, guides and rules carefully before installing and using the Drinking Water System. Follow all steps exact- ly to correctly install.
BE SURE TO FOLLOW APPLICABLE STATE AND LOCAL PLUMBING AND SANITATION CODES when installing the Drinking Water System. Massachusetts plumbing code 248 CMR shall be adhered to. Please consult your licensed plumber. Using a qualified installer is recommended.
The Drinking Water System works on water pressures of 40 psi minimum, to 100 psi maximum (see the table on Page 4). If house water pressure is over the maximum, install a pressure reducing valve in the water supply line to the Drinking Water System.
This system is acceptable for treatment of influent concen- trations of no more than 27 mg/L nitrate and 3 mg/L nitrite measured as N and is certified for nitrate/nitrite reduction only for water supplies with a pressure of 280 kPa (40 psig) or greater. This system is supplied with a nitrate/nitrite test kit. Product water should be monitored periodically according to the instructions provided with the test kit.
DO NOT install the Drinking Water System outside, or in extreme hot or cold temperatures. Temperature of the water supply to the Drinking Water System must be between 40°F (minimum) and 100°F (maximum), see the table on Page 4. DO NOT INSTALL ON HOT WATER.
Read the other limits (pH, water hardness, etc.), Page 4, and be sure the water supply conforms.
Do not use with water that is microbiologically unsafe or of unknown quality without adequa…

Text truncated - open the document above for the full version.

EcoWater Systems LLC 1/7/2008 Reverse Osmosis Water Filter with Remote Monitor Block Diagram Remote Monitor Transceiver RO Water Filter Electronic Monitor HydroLink Transceiver Module Faucet LED Indicato r

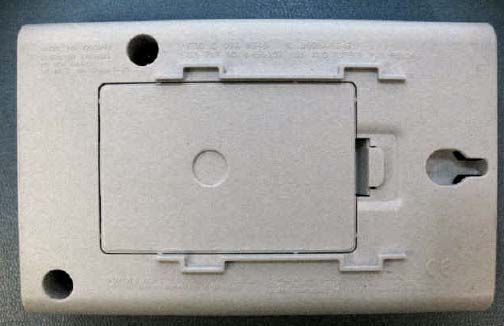

EXTERNAL PHOTOS Back EXTERNAL PHOTOS Front
