OVIBTV001X PRO PEDESTAL ROCKER

Need Help? Email: [email protected] Phone: 866-969-2603 www.xrockernation.com IMPORTANT: You mus t keep your original retail receipt as proof of purchase. 2 Thank you for purchasing this X Rocker gaming chair. You are now close to enhancing your favourite games with glorious audio! To get started, please assemble the chair using the assembly instructions on the separate leaflet and then follow the instructions in this manual to get rocking! Table of contents 3 Box contents and control panel overview 4 Wired Connection guide: TV (All consoles) 5 Connect by controller (PS4 systems only) 6 Bluetooth connection guide: (Mobile phones/tablet devices) 7 Troubleshooting tips 8 Health and safety information 9 Power supply safety information Welcome to X Rocker! 3 Control panel overview B1 - 3m RCA to RCA Audio cable B2 - 1m 3.5mm to 3.5mm Audio cable B3 - RCA female to female adapters B4 - 15cm RCA to 3.5mm audio cable B5 – 15cm 3.5mm to 3.5mm audio cable B6 – Power Supply Cable + + ++ + + 9.84ft/3m 3.28ft/1m 0.492ft/0.15m 0.492ft/0.15m B B1 B3 B5B6 B4 B2 4 1. Connect B1 Cable to X Rocker control panel RCA INPUT sockets 2. Connect B3 RCA adapters to other end of B1 RCA cable 3. Connect B5 RCA cable to B3 Adapter. 4. Connect B5 3.5mm end into the headphone socket of your Television 5. Once connected to your TV, increase volume to 50% of the maximum for the best sound level.** *N.B: If your TV does not feature a headphone socket then you may need to purchase an additional TOSlink adapter to get connected directly to a console for audio. **Depending on your TV you may need to Increase the headphone volume separately in the TV sound settings. Wired connection guide: TV (All consoles) TV/Mobile/Tablet B4 5 Connect by controller: (PS4 systems only) 1. Connect the B2 cable to the bottom of the PS4 controller via the headset socket. 2. Connect the other end of the B2 cable to the chair via the green port. 3. With the PS4 turned on and in the main menu, press and hold the black PS button until the quick menu appears. 4. In this menu select [Adjust sound and devices] 5. Then select [output to headphones] 6. Change the setting from [Chat Only] to [All audio] 7. Make sure the volume in the previous menu is set to the maximum. B2 6 Step 1: Switch the X Rocker X-Pro’s wireless switch to the Bluetooth position. Step 2: On the Audio output device go into its Bluetooth settings, turn Bluetooth on if it is not on already and search for XROCKER. Upon finding this, select the XROCKER option. If a passcode is required the four digit code will be ‘0000’. Bluetooth connection guide: (Mobile phones/tablet devices) 7 6 TROUBLE SHOOTING - Unable to connect to game console - Make sure the band is on “ ” position, Make sure the volume of X Rocker and the volume of mobile music device is set to a comfortable listening level. Make sure you are within range of the X Rocker and your mobile music device is connected via Bluetooth technology with the X Rocker. Make sure that therez is no wired line that insert in your device before using bluetooth. 5. Most game consoles are shipped from the manufacturers with an Audio/Video RCA cable. The A/V RCA cable has three RCA plugs: a video plug (yellow) and two audio plugs (red and white). If your gaming console came with an A/V RCA cable. please follow the instructions supplied by the manufacturer for setting it up and connecting it to the TV. Please note that you must leave the red and white audio jacks on the A/V cable UNCONNECTED. Once the console is properly connected to your TV, plesse follow the diagram in the illustrated X Rocker Set-up guide to connect the gaming console to the X Rocker. If your gaming console was shipped with a coaxial cable, instead of an A/V RCA cable, you must follow an alternate set-up procedure (coaxial cable is the same type of cable that is used to connect a VCR to a TV). You will quickly recognize if your gaming console uses this type of cable. It connects the gaming console directly to the television and carries both the audio and video signal over a single cable. If your gaming console uses a coaxial cable, you CAN NOT connect it directly to the X Rocker . Instead, you must 1. Check to ensure that the power adapter is properly connected to the power jack. When properly connected,the indicator light on the control panel should light up when the power switch is turned on. If the indicator light does not light up, try to use another power outlet in your home. 2. Make sure the power unit is turned on and indicator light on the control panel is lit. If it is not, please press the power switch on the control panel. 3. When you use wire mode, make sure the band is on “AUX” position. 4. When you use Bluetooth mode: - Unable to hear any sound from the X Rocker - Use an intermediary A/V device (such as a TV,VCR, DVD, TiVO, etc) a. Connect your gaming console to the intermediary A/V device via the coaxial cable. b. Connect the X Rocker to the’Audio Out’jack on the intermediary A/V device. c. Follow diagram 2 in the X Rocker set-up guide to connect the X Rocker to the intermediary A/V device and finalize the setup. If your gaming console is attached to an HD TV with an HDMI cable. You will need to connect the chair using either the audio out jacks on the back of the TV or by plugging into the headphone jack on the front of the TV. For service assistance, product information, or to locate a dealer nearest you please call or write to: Ace Casual Furniture 671 CRESTLAND ST. LEWISBURG,TN 37091 UNITED STATES TEL:866 969 2603 [email protected] Once you have successfully completed 1.-4. please review the X Rocker illustrated set-up guide. Double check all audio connections. Finally, check that the volume on the hand remote is turned to an audible level on both the TV and the chair. If you have completed 1-5 and still do not hear sound, try connecting another audio source (CD player, television, VCR or game console) and go through the steps again. Still not workin…

Text truncated - open the document above for the full version.

DAKANG HOLDING CO., LTD Date: 14 May, 2019 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: OVIBTV001 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch and Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with DAKANG HOLDING CO., LTD. This authorization is valid until further written notice from the applicant. Name (Printed): Guofei Yuan Title: Manager Signature: On behalf of Company: DAKANG HOLDING CO., LTD

DAKANG HOLDING CO., LTD To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: DAKANG HOLDING CO., LTD Anji Economic Development Zone Huzhou, 313300 Zhejiang Province, China Regarding: Confidentiality Request regarding application for FCC ID: OVIBTV001 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Name (Printed): Guofei Yuan Title: Manager Signature: On behalf of Company: DAKANG HOLDING CO., LTD

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name DAKANG HOLDING CO., LTD Address Anji Economic Development Zone, Huzhou, Zhejiang Province, 313300, China Grantee Code OVI FCC ID OVIBTV001 Authorized Contact Name Guofei Yuan Contact Email +865725338022 Contact Phone [email protected] I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

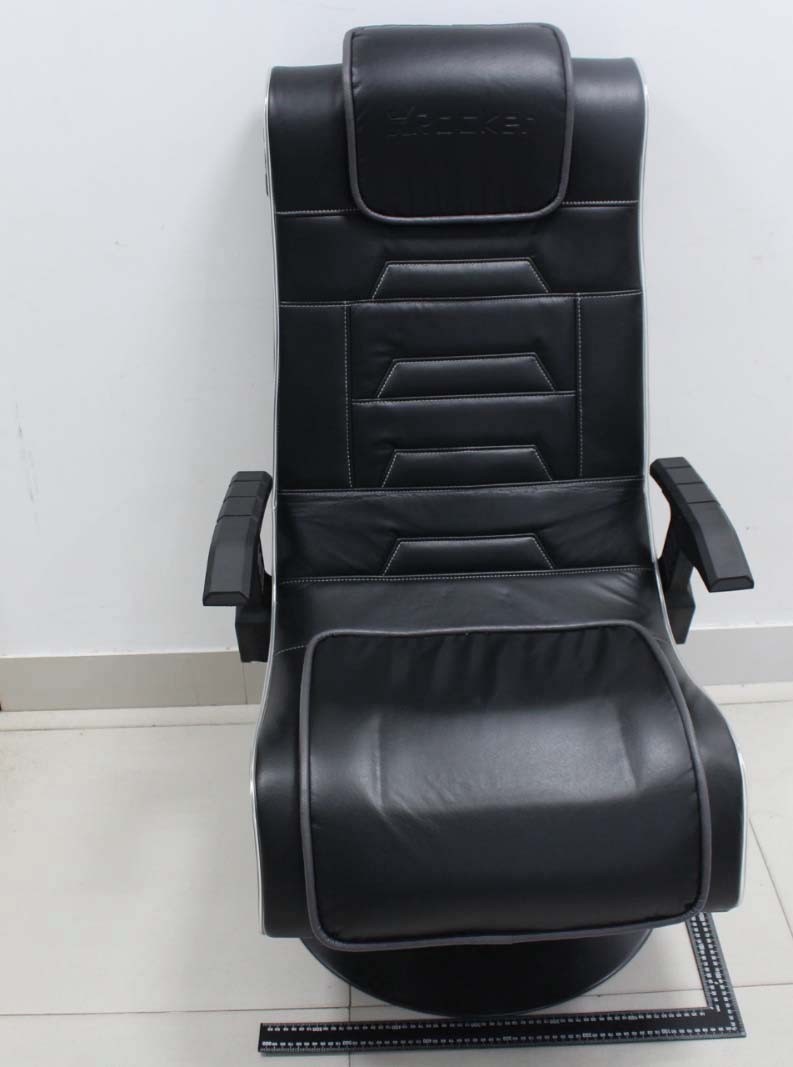

+^ZKXTGR6NUZU

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. X PRO PEDESTAL ROCKER Model No.: TL21BT FCC ID: OVIBTV001 7.7X8cm YDY -692

濜瀁瀇濸瀅瀁濴濿澳濣濻瀂瀇瀂澳 澳 澳 澳

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM190501268102 Page: 1 of 11 FCC ID: OVIBTV001 Kobe Jian EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: GZEM1905012681CR Applicant: Dakang Holding Co.,Ltd Address of Applicant: NO.695 Kangshan Road, Dipu Street, Anji County, Zhejiang Province, China Manufacturer: Dakang Holding Co.,Ltd Address of Manufacturer: NO.695 Kangshan Road, Dipu Street, Anji County, Zhejiang Province, China Factory: Dakang Holding Co.,Ltd Address of Factory: NO.695 Kangshan Road, Dipu Street, Anji County, Zhejiang Province, China Equipment Under Test (EUT): EUT Name: X PRO PEDESTAL ROCKER Model No.: TL21BT Trade Mark: X Rocker Standard(s) : 47 CFR Part 1.1307, Part 2.1093, KDB 447498 Date of Receipt: 2019-05-10 Date of Test: 2019-05-27 to 2019-06-26 Date of Issue: 2019-08-12 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268102 Page: 2 of 11 Revision Record Version Chapter Date Modifier Remark 01 2019-08-12 Original Authorized for issue by: Tested By 2019-05-27 to 2019-06-26 Curry_Wu /Project Engineer Date Checked By 2019-08-12 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268102 Page: 3 of 11 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, Part 2.1093, KDB 447498 CFR 47 Part 2.1093 CFR 47 Part 2.1093 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268102 Page: 4 of 11 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 5 4.1 Details of E.U.T. ..................................................................................................................................... 5 4.2 Description of Support Units .................................................................................................................. 5 4.3 Measurement Uncertainty ...................................................................................................................... 6 4.4 Test Location ......................................................................................................................................... 6 4.5 Test Facility ............................................................................................................................................ 7 4.6 Deviation from Standards ...................................................................................................................... 8 4.7 Abnormalities from Standard Conditions ............................................................................................... 8 5 Equipment List .............................................................................................................................................. 9 6 Radio Spectrum Technical Requirement ................................................................................................. 10 6.1 RF Exposure ........................................................................................................................................ 10 6.1.1 Test Requirement: ........................................................................................................................... 10 6.1.2 Conclusion ....................................................................................................................................... 10 7 Photographs ............................................................................................................................................... 11 7.1 EUT Constructional Details .................................................................................................................. 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268102 Page: 5 of 11 4 General Information 4.1 Details of E.U.T. Power Supply: DC 9V powered by AC/DC adapter as below: Model No.: BI18-090200-AdU Input: AC 100-240V 50/60Hz 0.8A Output: DC 9V 2A Test Voltage: AC 120V, 60 Hz Cable: For chair: DC input ports; Input ports; Output ports; Earphone ports; USB out ports (DC 5V, 1A); For AC/DC adapter: AC plug; DC output cables (unshielded, 1.8m) Antenna Gain 0dBi Antenna Type PCB antenna Channel Spacing 1MHz Modulation Type GFSK, π/4DQPSK Number of Channels 79 Operation Frequency 2402MHz to 2480MHz Spectrum Spread Technology Frequency Hopping Spread Spectrum(FHSS) 4.2 Description of Support Units De…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM190501268101 Page: 1 of 81 FCC ID: OVIBTV001 Kobe Jian EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: GZEM1905012681CR Applicant: Dakang Holding Co.,Ltd Address of Applicant: NO.695 Kangshan Road, Dipu Street, Anji County, Zhejiang Province, China Manufacturer: Dakang Holding Co.,Ltd Address of Manufacturer: NO.695 Kangshan Road, Dipu Street, Anji County, Zhejiang Province, China Factory: Dakang Holding Co.,Ltd Address of Factory: NO.695 Kangshan Road, Dipu Street, Anji County, Zhejiang Province, China Equipment Under Test (EUT): FCC ID: OVIBTV001 EUT Name: X PRO PEDESTAL ROCKER Model No.: TL21BT Trade Mark: X Rocker Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2019-05-10 Date of Test: 2019-05-27 to 2019-06-26 Date of Issue: 2019-08-12 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 2 of 81 Revision Record Version Chapter Date Modifier Remark 01 2019-08-12 Original Authorized for issue by: Tested By 2019-05-27 to 2019-06-26 Curry_Wu /Project Engineer Date Checked By 2019-08-12 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 3 of 81 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 4 of 81 3 Contents Page 1 Cover Page ................................................................................................................................................ 1 2 Test Summary .......................................................................................................................................... 3 3 Contents ................................................................................................................................................... 4 4 General Information ................................................................................................................................. 6 4.1 Details of E.U.T. ................................................................................................................................. 6 4.2 Description of Support Units .............................................................................................................. 6 4.3 Measurement Uncertainty .................................................................................................................. 7 4.4 Test Location ..................................................................................................................................... 7 4.5 Test Facility........................................................................................................................................ 8 4.6 Deviation from Standards................................................................................................................... 9 4.7 Abnormalities from Standard Conditions ............................................................................................ 9 5 Equipment List ....................................................................................................................................... 10 6 Radio Spectrum Technical Requirement .........…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 41 of 81 Mode:b; Polarization:Horizontal; Modulation:GFSK; ; Channel:Low SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 42 of 81 Mode:b; Polarization:Vertical; Modulation:GFSK; ; Channel:Low SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 43 of 81 Mode:b; Polarization:Vertical; Modulation:GFSK; ; Channel:Low SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 44 of 81 Mode:b; Polarization:Horizontal; Modulation:GFSK; ; Channel:middle SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 45 of 81 Mode:b; Polarization:Vertical; Modulation:GFSK; ; Channel:middle SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 46 of 81 Mode:b; Polarization:Horizontal; Modulation:GFSK; ; Channel:High SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 47 of 81 Mode:b; Polarization:Vertical; Modulation:GFSK; ; Channel:High SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 48 of 81 8 Appendix 8.1 Appendix 15.247 1.20 dB Bandwidth Test Mode Test Channel OBW[MHz] EBW[MHz] Limit[MHz] Verdict DH5 2402 0.84185 0.9151 --- PASS DH5 2441 0.84219 0.8587 --- PASS DH5 2480 0.84289 0.9160 --- PASS 2DH5 2402 1.1627 1.222 --- PASS 2DH5 2441 1.1633 1.225 --- PASS 2DH5 2480 1.1654 1.225 --- PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 49 of 81 TEST PLOT 20 dB Bandwidth_DH5_2402 20 dB Bandwidth_DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 50 of 81 20 dB Bandwidth_DH5_2480 20 dB Bandwidth_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 51 of 81 20 dB Bandwidth_2DH5_2441 20 dB Bandwidth_2DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 52 of 81 2.Conducted Peak Output Power Test Mode Test Channel Power[dBm] Limit[dBm] Verdict DH5 2402 1.784 21 PASS DH5 2441 1.491 21 PASS DH5 2480 0.119 21 PASS 2DH5 2402 2.792 21 PASS 2DH5 2441 2.54 21 PASS 2DH5 2480 1.181 21 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 53 of 81 TEST PLOT Conducted Peak Output Power_DH5_2402 Conducted Peak Output Power_DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 54 of 81 Conducted Peak Output Power_DH5_2480 Conducted Peak Output Power_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 55 of 81 Conducted Peak Output Power_2DH5_2441 Conducted Peak Output Power_2DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 56 of 81 3.Carrier Frequency Separation Test Mode Test Channel Result[MHz] Limit[MHz] Verdict DH5 2402 0.818 0.61 PASS DH5 2441 1.169 0.57 PASS DH5 2480 0.954 0.61 PASS TEST PLOT Carrier Frequency Separation_DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 57 of 81 Carrier Frequency Separation_DH5_2441 Carrier Frequency Separation_DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 58 of 81 4.Dwell Time Test Mode Test Channel Burst Width[ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit[s] Verdict DH5 2402 2.91 70 0.20 0.4 PASS DH5 2441 2.91 120 0.35 0.4 PASS DH5 2480 2.91 100 0.29 0.4 PASS 2DH5 2402 2.92 120 0.35 0.4 PASS 2DH5 2441 2.92 100 0.29 0.4 PASS 2DH5 2480 2.92 130 0.38 0.4 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 59 of 81 TEST PLOT Dwell Time_DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 60 of 81 Dwell Time_DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 61 of 81 Dwell Time_DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 62 of 81 Dwell Time_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 63 of 81 Dwell Time_2DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 64 of 81 Dwell Time_2DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 65 of 81 5.Hopping Channel Number Test Mode Test Channel Number of Hopping Channel[N] Limit[N] Verdict DH5 All hopping channels 79 >=15 PASS 2DH5 79 >=15 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 66 of 81 TEST PLOT Hopping Channel Number_DH5 Hopping Channel Number_2DH5 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 67 of 81 6.Band-edge for RF Conducted Emissions Test Mode Test Channel Hopping Carrier Power[dBm] Max. Spurious Level [dBm] Limit[dBm] Verdict DH5 2402 On 1.646 -45.585 -18.35 PASS DH5 2402 Off 1.598 -46.396 -18.4 PASS DH5 2480 On 0.696 -45.883 -19.3 PASS DH5 2480 Off 0.042 -45.656 -19.96 PASS 2DH5 2402 On 1.599 -46.160 -18.4 PASS 2DH5 2402 Off 1.730 -46.380 -18.27 PASS 2DH5 2480 On 0.859 -47.441 -19.14 PASS 2DH5 2480 Off 0.010 -45.921 -19.99 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM190501268101 Page: 68 of 81 TEST PLOT Band-edge for RF Conducted Emissions_DH5_2402_Hopping On Band-edge for RF Conducted Emissions_DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report …

Text truncated - open the document above for the full version.

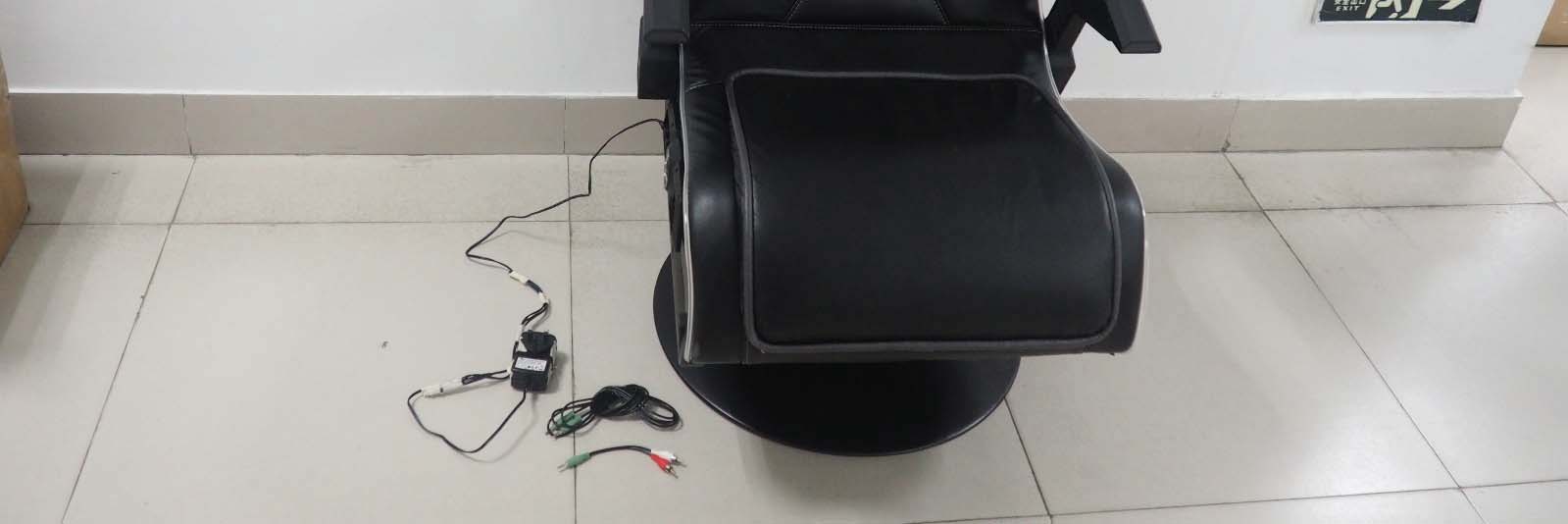

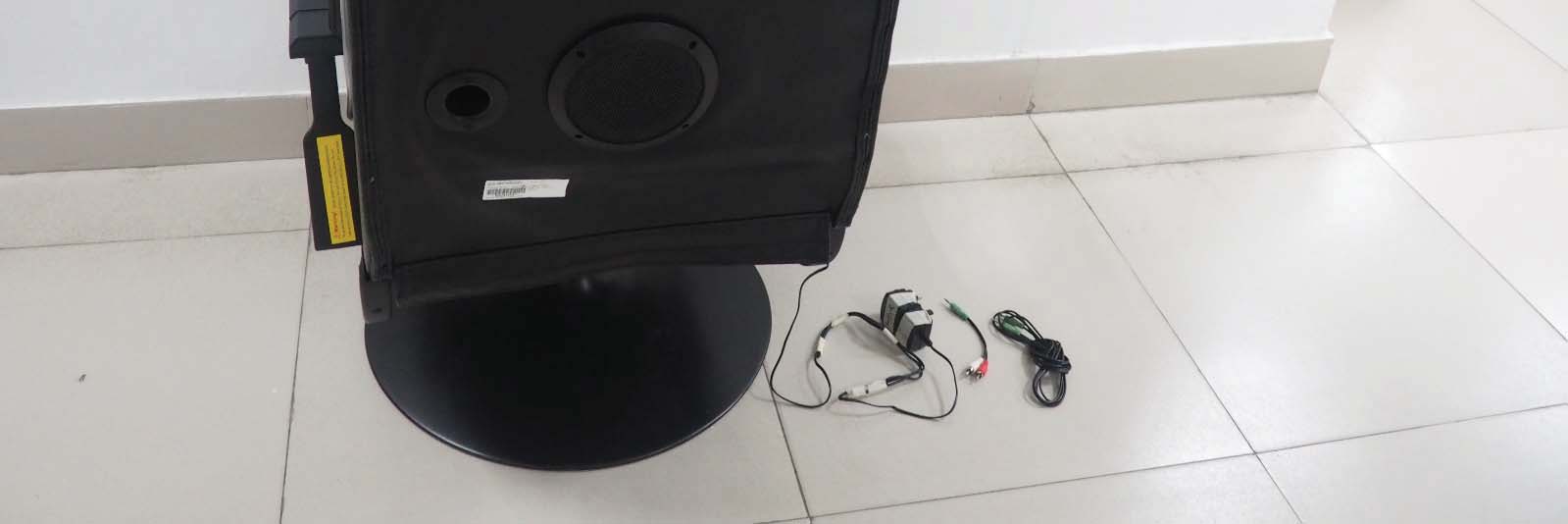

Test Setup photo 1.1 RF Conducted Test Setup 1.2 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup 1.3 Radiated Emissions which fall in the restricted bands Test Setup …

Text truncated - open the document above for the full version.
