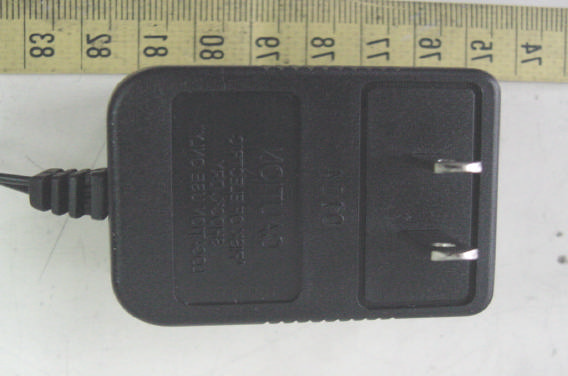

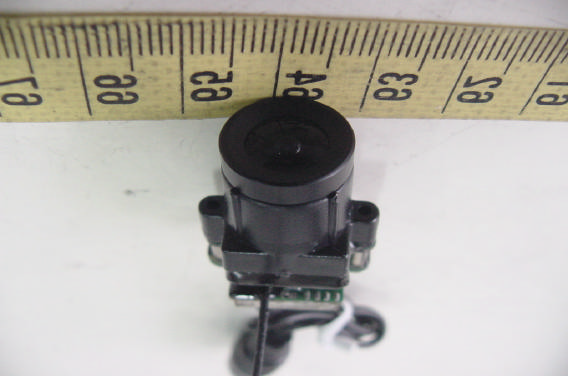

ETC Report No. : ET93R-03-042 FCC ID.: OVRALM-2451 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No. : ET93R-03-042 FCC ID.: OVRALM-2451 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : ET93R-03-042 FCC ID.: OVRALM-2451 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Adaptor Rear View of Adaptor

FCC ID label 1) Size: 1.2 cm x 1.2 cm 2) : THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING ISNTERFERENCE THAT MAY CAUSE UNDESRIED OPERATION. ALM-2451 Power: DC4.8 – 7.2V Frequency: Made In Taiwan FCC ID: OVRALM-2451

ETC Report No. : ET93R-03-042 FCC ID.: OVRALM-2451 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No. : ET93R-03-042 FCC ID.: OVRALM-2451 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : ET93R-03-042 FCC ID.: OVRALM-2451 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of Adaptor’s PCB Solder View of Adaptor’s PCB

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 2.4GHz Wireless Mini Camera System MODEL : ALM-2451G&P FCC ID. : OVRALM-2451 for APPLICANT : Aliveal Enterprises Co., Ltd. ADDRESS : 4F, No.121, Chung Yang Road, Hsin-Tien, Taipei 231, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET93R-03-042 ETC Report No. : ET93R-03-042 FCC ID. : OVRALM-2451 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : Aliveal Enterprises Co., Ltd. 4F, No.121, Chung Yang Road, Hsin-Tien, Taipei 231, Taiwan, R.O.C. Manufacturer : Aliveal Enterprises Co., Ltd. 4F, No.121, Chung Yang Road, Hsin-Tien, Taipei 231, Taiwan, R.O.C. Description of EUT : a) Type of EUT : 2.4GHz Wireless Mini Camera System b) Trade Name : ALM c) Model No. : ALM-2451G&P d) Power Supply : Adaptor: I/P:AC120VAC, 60Hz, 2.9W; O/P: 4.5V DC, 300mA e) Working Frequency : 2400MHz~2483.5MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2002) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Mar. 24, 2004 Test Engineer : ( Falcon Shi ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET93R-03-042 FCC ID. : OVRALM-2451 Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION........................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device.................................................................................................................1 1.3 Test Methodology...........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE........................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation.........................................................................................................5 2.4 Labeling Requirement......................................................................................................................5 2.5 User Information.............................................................................................................................6 3. SYSTEM TEST CONFIGURATION............................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System..............................................................................................................7 4 RADIATED EMISSION MEASUREMENT...............................................................................8 4.1 Applicable Standard........................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument....................................................................................................................10 4.4 Radiated Emission Data.................................................................................................................11 4.4.1 RF Portion..............................................................................................................................11 4.4.2 Other Emission........................................................................................................................12 4.5 Field Strength Calculation..............................................................................................................12 4.6 Photos of Radiation Measuring Setup............................................................................................13 5 CONDUCTED EMISSION MEASUREMENT.........................................................................14 5.1 Standard Applicable......................................................................................................................14 5.2 Measurement Procedure...............................................................................................................14 5.3 Conducted Emission Data.............................................................................................................15 5.4 Result Data Calculation.................................................................................................................15 5.5 Conducted Measurement Equipment.............................................................................................16 5.6 Photos of Conduction Measuring Setup.........................................................................................17 6 ANTENNA REQUIREMENT.............…

Text truncated - open the document above for the full version.

ETC Report No. : ET93R-03-042 FCC ID.: OVRALM-2451 Rev. No 2.0 Photos of Radiation Measuring Setup ETC Report No. : ET93R-03-042 FCC ID.: OVRALM-2451 Rev. No 2.0 Photos of Conduction Measuring Setup
