ALM-2471 2.4 GHz Wireless Video/Mic. Mini. Camera TX + Receiver Include: 1pc Video/Mic. camera TX, 1pc Receiver, 2pcs Adapter, 1pc A/V Cable, 1pc 9V battery snap, and accessory pack The ALM-2471 include a wireless video/Mic. super mini camera transmitter and a receiver unit. The mini camera transmitter features super miniature size, video/Mic. performance, omni-directional antenna, and operates on 5 – 12vdc. The receiver features built-in directional antenna and outstanding A/V reception quality. This system permits the wireless transmission of Video/Mic. signal over a mini. distance of 300 meters in line-of-sight. NOTE: Best results are achieved where there is clear “line of sight” between the camera transmitter and the receiver. Try to avoid obstacles such as trees, walls, cars, trucks and buildings. Transmitting over water and in the rain will reduce performance. Interference from certain electronic equipment or the moving human body can also effect the range obtainable. For best reception, position the antennas of the transmitter and receiver 4.5 to 6 feet (1.5 to 2m) above the ground. Please test all devices before final installation because the transmission quality can often be improved by moving the components slightly. Turn off the camera transmitter and receiver if the system is not in use. Do not touch the antennas when the system is switched on. Do not place the receiver behind a monitor. INSTALLATION: 1) The Mini camera TX features omni-directional antenna which is most effective when used in the UPRIGHT position. 2) Connect both the mini. camera transmitter and the receiver to their respective power supplies. 3) Connect the receiver to the equipment you wish to transmit to [monitor, TV, VCR, ...etc.] 4) After connecting both the mini camera TX and the RX to their respective power supplies, obtain the best picture by adjusting the position of the mini camera TX and the receiver unit to suit. Try slightly different locations of either unit for optimum results. * (Direct the antenna of the receiver towards the antenna of the transmitter. The integrated antenna inside the case of the receiver is located at the opposite end of the connectors. FEATURES: Mini Video/Mic. Camera Transmitter: 1) Miniature size for a wide range of applications. 2) Low power operating DC5 - 12V 3) Low power consumption of 80mA 4) Very steady and truly video/Mic. performance. 5) Outstanding transmitting range of 100M in L-O-S. 6) FCC and EC-R&TTE approved. ) ) ) ) ) ) CCTV Monitor VCR or DVR TELEVISION Computer (Converter card is requested) IMPORTANT: 1) Avoid “Oily” locations. 2) Don’t place above or near a heat source which may cause the equipment to overheat. 3) Microwave ovens can cause interference and diminish the quality of the signal if the mini TX or receiver is located close by. 4) Beware of humid locations. Water droplets or spray may damage the units. If condensation does occur, do not use until the equipment has dried out. 5) Do not use in temperatures exceeding 55 degC. 6) Never paint or attach metallic labels and sticker of any kind. 7) Do not use two transmitters and receivers operating at the same time in the same area. This will result in picture and sound interference. SPECIFICATIONS: Mini Video/Mic. Camera Transmitter: 1) Frequency: One channels in 2.4 GHz frequency band 2) RF output power: FCC compliant 3) Transmitter range: 100 meters in L-O-S 4) Modulation: FM 5) Operating power: DC5V – 12V 6) Power consumption: 80mA 7) Built-in Mic.: High sensitive Mic. 8) Antenna: Omni-directional integrated antenna 9) Size: 22.5 x 26.5 x 18mm 10) Temperature: -10 to +55 degC Color CMOS Camera: 10) Pixels: 365K (PAL), 250K(NTSC) 11) Auto Electronic Exposure: 1/60 – 1/15000 sec. 12) Automatic Exposure/Gain/White balance 13) Mini. Illumination: <3 [email protected] 14) Optional Lens: (ALM-2471G) Board Lens: F/2.0mm, f=5.6mm/View angle: 64 degree / Dia.: 6.5mm (ALM-2471P) Pinhole Lens: F/5.0mm, f=5.5mm/View angle: 69 degree / Dia.: 6.5mm Receiver: 1) Frequency: Four channels in 2.4 GHz frequency band 2) Video input/output: 1Vp-p/75 ohm 3) Audio input/output: 0.8V/600 ohm 4) Antenna: 60 degree directional antenna 5) Audio bandwidth: 50 –17000 Hz 6) Operating power: DC12V 7) Power consumption: 180mA 8) Size: 150x88x40mm TROUBLE SHOTTING: 1) Poor picture and sound: Realign antennas, slightly adjust the position of the Mini Camera TX or receiver. 2) Line only-no picture: Check to confirm there is no microwave oven or other wireless equipment operating close by. 3) Picture ghosting: Check for interference caused by obstacles such as trees, buildings and shrubs, etc. Select new transmitter and /or receiver site. 4) No picture: Check the receiver to confirm it is turned “ON” and make sure the A/V connection of the RX is not plugged the wrong way around. Notice: The changes or modifications not expressly approved by the party responsible for compliance Could void the user’s authority to operate the equipment. Important Note: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void User’s authority to operate the device. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE, MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNESRIED OPERATION. ALM-2472 2.4 GHz Wireless Super Mini. Camera Transmitter + Receiver Include: 1pc Video mini camera TX, 1pc Receiver, 2pcs Adapter, 1pc A/V Cable, 1pc 9V battery snap, and accessory pack The ALM-2472 include a wireless super mini camera transmitter and a receiver unit. The mini camera transmitter features super miniature size, omni-directional antenna, and operates on 5 – 12vdc. The receiver features built-in directional antenna and outstanding A/V reception quali…

Text truncated - open the document above for the full version.

Federal Communications Commission FCC ID: OVRALM-2471 Dear Sir: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN to Act on our behalf in all matters relating to application for “Model: ALM-2471 and ALM-2472 FCC ID: OVRALM-2471 authorization, including the signing of all documents relating to These matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant (e.g. corporation), no party To the applicant is subject to a denial of federal benefits, that includes FCC benefits, Pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a Definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By: By: Kathy Chen (Signature) (Printed) Title : Products Manager Applicant : Aliveal Enterprises Co., Ltd. Address : 4F, No.121, Chung Yang Road, Hsin-Tien, Taipei 231, Taiwan, R.O.C. Tel : 886-2-22184580 Fax: 886-2-22181180 Date : Dec. 12 th 2002 ALIVEAL ENTERPRISES CO., LTD. Tel: 886-2-22184580 4Fl., No.121, Chung-Yang Road, Hsin-Tien, Taipei 231, Taiwan, ROC Fax:886-2-22181180 E-mail: [email protected] (Designer . Manufacturer of 2.4 GHz Wireless A/V Products) Federal Communications Commission FCC ID: OVRALM-2471 Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. By: By: Kathy Chen (Signature) (Printed) Title : Products Manager Applicant : Aliveal Enterprises Co., Ltd. Address : 4F, No.121, Chung Yang Road, Hsin-Tien, Taipei 231, Taiwan, R.O.C. Tel : 886-2-22184580 Fax: 886-2-22181180 Date : Dec. 12 th 2002 ALIVEAL ENTERPRISES CO., LTD. Tel: 886-2-22184580 4Fl., No.121, Chung-Yang Road, Hsin-Tien, Taipei 231, Taiwan, ROC Fax:886-2-22181180 E-mail: [email protected] (Designer . Manufacturer of 2.4 GHz Wireless A/V Products)

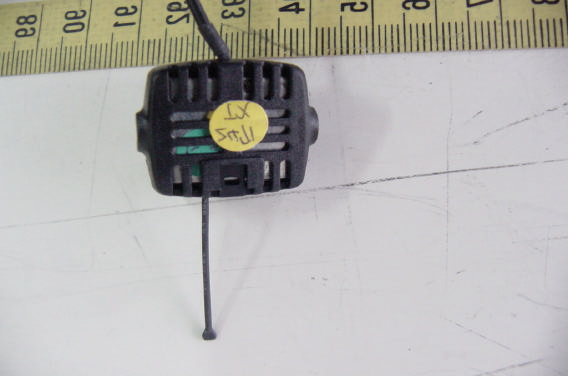

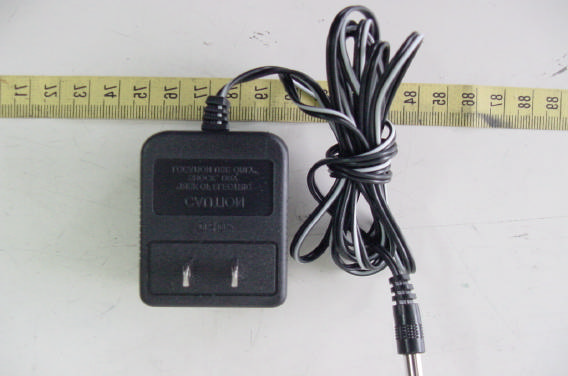

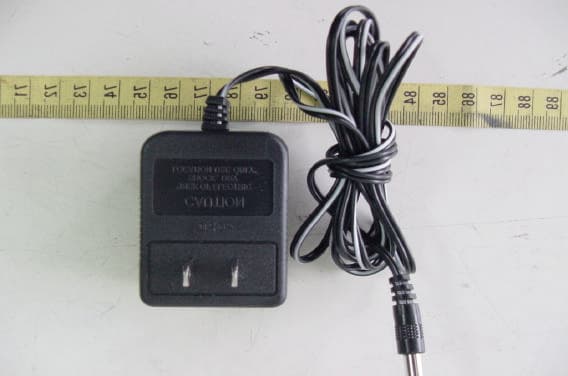

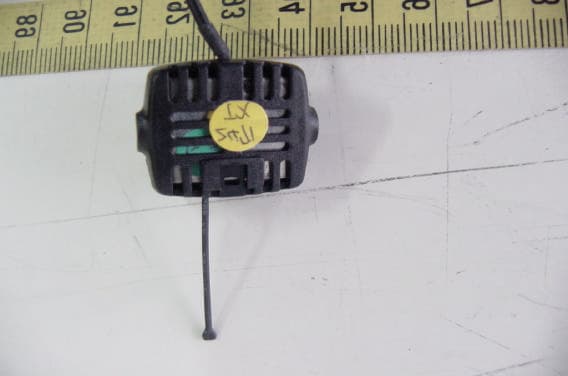

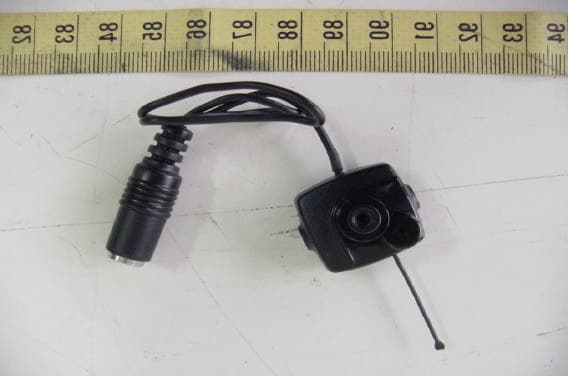

ETC Report No. : ET91R-09-102 FCC ID.: OVRALM-2471 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Total View of EUT Rear View of EUT ETC Report No. : ET91R-09-102 FCC ID.: OVRALM-2471 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Adapter Rear View of Adapter

2.4 GHz Wireless Video/Mic. Mini. Camera 12mm 3mm ALM-2471 FCC ID:OVRALM-2471 TOP VIEW 12mm 3mm ALM-2472 FCC ID:OVRALM-2471 TOP VIEW The following statement will be placed in the user’s manual: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY CAUSE UNDESRIED OPERATION.

ETC Report No. : ET91R-09-102 FCC ID.: OVRALM-2471 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No. : ET91R-09-102 FCC ID.: OVRALM-2471 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : ET91R-09-102 FCC ID.: OVRALM-2471 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of Adapter Component View of Adapter’s PCB ETC Report No. : ET91R-09-102 FCC ID.: OVRALM-2471 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Solder View of Adapter’s PCB

The ALM-2471 include a wireless video/Mic. super mini camera transmitter and a receiver unit. The mini camera transmitter features super miniature size, video/Mic. performance, omni-directional antenna, and operates on 5 – 12vdc. The receiver features built-in directional antenna and outstanding A/V reception quality. This system permits the wireless transmission of Video/Mic. signal over a mini. distance of 300 meters in line-of-sight. The ALM-2472 include a wireless super mini camera transmitter and a receiver unit. The mini camera transmitter features super miniature size, omni-directional antenna, and operates on 5 – 12vdc. The receiver features built-in directional antenna and outstanding A/V reception quality. This system permits the wireless transmission of A/V signal over a mini. distance of 300meters in line-of-sight.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 2.4 GHz Wireless Video/Mic. Mini. Camera MODEL : ALM-2471 FCC ID. : OVRALM-2471 for APPLICANT : ALIVEAL ENTERPRISES CO., LTD. ADDRESS : 4F, No. 121, Chung Yang Road, Hsin-Tien, Taipei, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, (02)26023052 Fax:(02)26010910 Report Number : ET91R-09-102 ETC Report No. : ET91R-09-102 FCC ID. : OVRALM-2471 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : ALIVEAL ENTERPRISES CO., LTD. 4F, No. 121, Chung Yang Road, Hsin-Tien, Taipei, Taiwan, R.O.C. Manufacturer : ALIVEAL ENTERPRISES CO., LTD. 4F, No. 121, Chung Yang Road, Hsin-Tien, Taipei, Taiwan, R.O.C. Description of EUT : a) Type of EUT : 2.4 GHZ Wireless Video/Mic. Mini. Camera b) Trade Name : ALM c) Model No. : ALM-2471 d) Data also apply : ALM-2472 e) Power Supply : AC 120Vac 60Hz 2.8W O/P:4.5Vdc 300mA f) Working Frequency : 2400MHz~2483.5MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Jan. 15, 2003 Test Engineer : ( Tien Lu Liau ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-09-102 FCC ID. : OVRALM-2471 Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description...................................................................................................................1 1.2 Characteristics of Device..........................................................................................................1 1.3 Test Methodology......................................................................................................................1 1.4 Test Facility................................................................................................................................1 2 PROVISIONS APPLICABLE.......................................................................................................2 2.1 Definition....................................................................................................................................2 2.2 Requirement for Compliance....................................................................................................3 2.3 Restricted Bands of Operation..................................................................................................5 2.4 Labeling Requirement................................................................................................................5 2.5 User Information........................................................................................................................6 3. SYSTEM TEST CONFIGURATION...........................................................................................7 3.1 Justification................................................................................................................................7 3.2 Devices for Tested System........................................................................................................7 4 RADIATED EMISSION MEASUREMENT..............................................................................8 4.1 Applicable Standard....................................................................................................................8 4.2 Measurement Procedure...........................................................................................................8 4.3 Measuring Instrument..............................................................................................................10 4.4 Radiated Emission Data...........................................................................................................11 4.5 Field Strength Calculation.......................................................................................................12 4.6 Photos of Radiation Measuring Setup....................................................................................13 5 CONDUCTED EMISSION MEASUREMENT........................................................................14 5.1 Standard Applicable..................................................................................................................14 5.2 Measurement Procedure.........................................................................................................14 5.3 Conducted Emission Data.......................................................................................................15 5.4 Result Data Calculation...........................................................................................................15 5.5 Conducted Measurement Equipment......................................................................................16 5.6 Photos of Conduction Measuring Setup................................................................................17 6 ANTENNA REQUIREMENT....................................................................................................18 6.1 Standard Applicable..................................................................................................................18 6.2 Antenna Construction..............................................................................................................18 7 BAND EDGES MEASUREMENT.................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET91R-09-102 FCC ID.: OVRALM-2471 Rev. No 2.0 Photos of Radiation Measuring Setup ETC Report No. : ET91R-09-102 FCC ID.: OVRALM-2471 Rev. No 2.0 Photos of Conduction Measuring Setup
