OVVBS004GMRS/FRS COMBINATION

Document Number ENG_TEL_A002 Bonso Group Rev # 00 Title : BS004 APPROVAL DOCUMENTS Application : FCC APPROVAL Release Date : 12 May 2005 Page 27 of 39 INSTRUCTION MANUAL Document Number ENG_TEL_A002 Bonso Group Rev # 00 Title : BS004 APPROVAL DOCUMENTS Application : FCC APPROVAL Release Date : 12 May 2005 Page 28 of 39 Owner’s Manual For Model BS004 FRS/GMRS Radio FEATURES 22 Channels 38 CTCSS Tone Codes LCD Backlighting Squelch Tail Clearance Paging/Call Scan VOX Roger Beep Baby monitor Monitor Dual Watch Priority Channel Appointment Manner Mode Low Battery Indicator Use and Care 1. Do not use alcohol or cleaning solutions to clean the radio. 2. Do not immerse the radio in water. 3. Use a soft damp cloth to clean the radio 4. Dry the radio with dry lint-free cloth should it get wet. 5. Turn off the radio and remove the batteries during long-term storage. Introduction The BS004 represents the state-of-the-art in high-tech engineering. Designed for Family Radio Service operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. The BS004 is designed for reliable and trouble-free performance. Document Number ENG_TEL_A002 Bonso Group Rev # 00 Title : BS004 APPROVAL DOCUMENTS Application : FCC APPROVAL Release Date : 12 May 2005 Page 29 of 39 Control Buttons & Indicators LCD Display Speaker Use to : - Backlight ON - Monitor ON Use to : - Talk on the Radio - Send a Call Tone - Save a setting Use to : - Scan for active channels - Lock the keypad Microphone Use to : - Turn On/Off the Radio - Enter/Exit the menu Use to : - Increase the volume - Scroll through the menu Use to : - Decrease the volume - Scroll through the menu Low Battery Indicator Key Pad Lock Icon Transmit (TX) Icon Receive (RX) Icon Channel Indicator Manner mode Icon CTCSS Tone Code Indicator Dual Watch Icon VOX Icon TX Power H/L Document Number ENG_TEL_A002 Bonso Group Rev # 00 Title : BS004 APPROVAL DOCUMENTS Application : FCC APPROVAL Release Date : 12 May 2005 Page 30 of 39 Installing Batteries The BS004 radio operates with either 4 AAA Alkaline Batteries or optional NiMH battery. The belt clip should be removed to ease installation or removal. To install the batteries: 1. With the back of the radio facing you, remove the Battery Cover by sliding it down from the unit. 2. Insert 4 AAA batteries observing the polarity as shown, or install the optional battery. Installing the batteries incorrectly will prevent the unit from operating or can damage the unit. 3. Return the Battery Cover by sliding it up from the unit. Note: Batteries are not included. Charging the batteries (Optional NiMH battery Only) The BS004 is equipped to allow using a rechargeable NiMH battery, which can be recharged by a Adaptor (not included). Batteries must be charged when the low battery icon flashes on the display. Note : 1. Only use batteries indicated in the manual. 2. Do not attempt to charge Alkaline batteries or any battery pack other than the one indicated in the manual. This may cause leakage and damage the unit. 3. For long term storage of the radio, turn the unit OFF and remove the batteries from the radio. Operation Power On/Off : 1. Press the button for more than 2 second to turn the radio on. 2. Press the button for over 2 seconds to turn the radio off. Volume : 1. Press the button to increase the volume. 2. Press the button to decrease the volume during normal operation. Document Number ENG_TEL_A002 Bonso Group Rev # 00 Title : BS004 APPROVAL DOCUMENTS Application : FCC APPROVAL Release Date : 12 May 2005 Page 31 of 39 Talking and Listening : To communicate, all radios in your group must be set at the same channel. 1. For maximum clarity, hold the radio 2 to 3 inches from your mouth. 2. Press and hold PTT button and speak in a normal voice into the microphone. The TX icon will appear continuously on the LCD Display when transmitting. 3. To receive messages, release the PTT button. The RX icon will appear on the display when your radio is receiving a transmission. Call Tone : The BS004 can transmit a call tone for a fixed length of time. To send a call tone, press the PTT twice rapidly. The TX icon will appear during transmitting a call tone and tone can be heard on the speaker for confirmation. : The BS-004 is able to selection of call sound . To selection the call sound ; 1. Press the button repeatedly until the “ CA ” appears on the display. 2. Press the and buttons to selection the call sound. An “1” , “2” or “3” will appear on the display during setting. 3. To exit the Menu, press PTT button SCAN : The BS004 can scan all of the 22 channels to observe for any activity. To enter the scan mode ; 1. Press the button for one second. 2. Press the button again to exit the scan mode. Your radio will rapidly scan each of the 22 channels and stop on any active channel. When you press the PTT button to transmit on an active channel, the scanning function will stop. To resume scanning, press and hold the button for one second . Keypad Lock : To avoid accidentally changing the radio operation ; Press the button for 2 seconds. The icon will appear on the display. When the is on the menu function the and button will be disabled. When locked, you will be able to turn the radio off and on, monitor, transmit/receive, and send a call tone. To unlock, press the for 2 seconds. User Interface To access the advanced features of the BS-004, your radio has the following menu functions: Mode CTCSS Off,1~38 Channel 1~22 Document Number ENG_TEL_A002 Bonso Group Rev # 00 Title : BS004 APPROVAL DOCUMENTS Application : FCC APPROVAL Release Date : 12 May 2005 Page 32 of 39 Note : The unit will automatically go to normal mode after 10 seconds of no button activity during menu setting. Channel Selection : The BS004 has 22 channels available. To change channels: 1. Press the button until the current…

Text truncated - open the document above for the full version.

BONSO ELECTRONICS LTD. A Member of BONSO GROUP Unit 1106-1110, 11/F., Star House, 3 Salisbury Road, Tsimshatsui, Kowloon, Hong Kong. Tel : (852) 2605 5822 Fax : (852) 2691 1724 E-mail : [email protected] Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : OVVBS004 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules. We hereby request confidential treatment of information accompanying this application as outlined below ; Block Diagram Schematic Diagram(s) Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, BONSO ELECTRONICS LTD. Director R/D & Engineering / Harry J. Lee

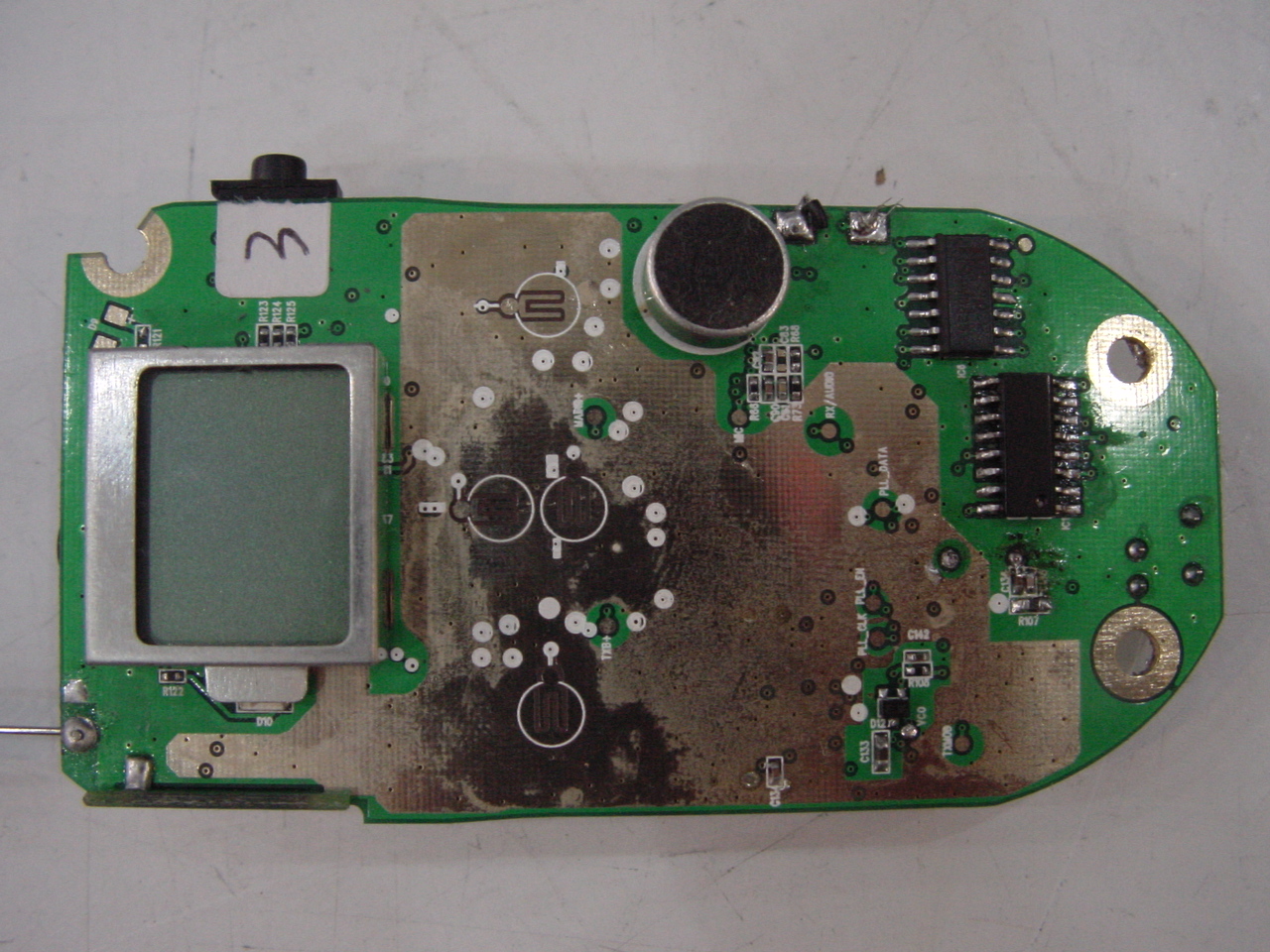

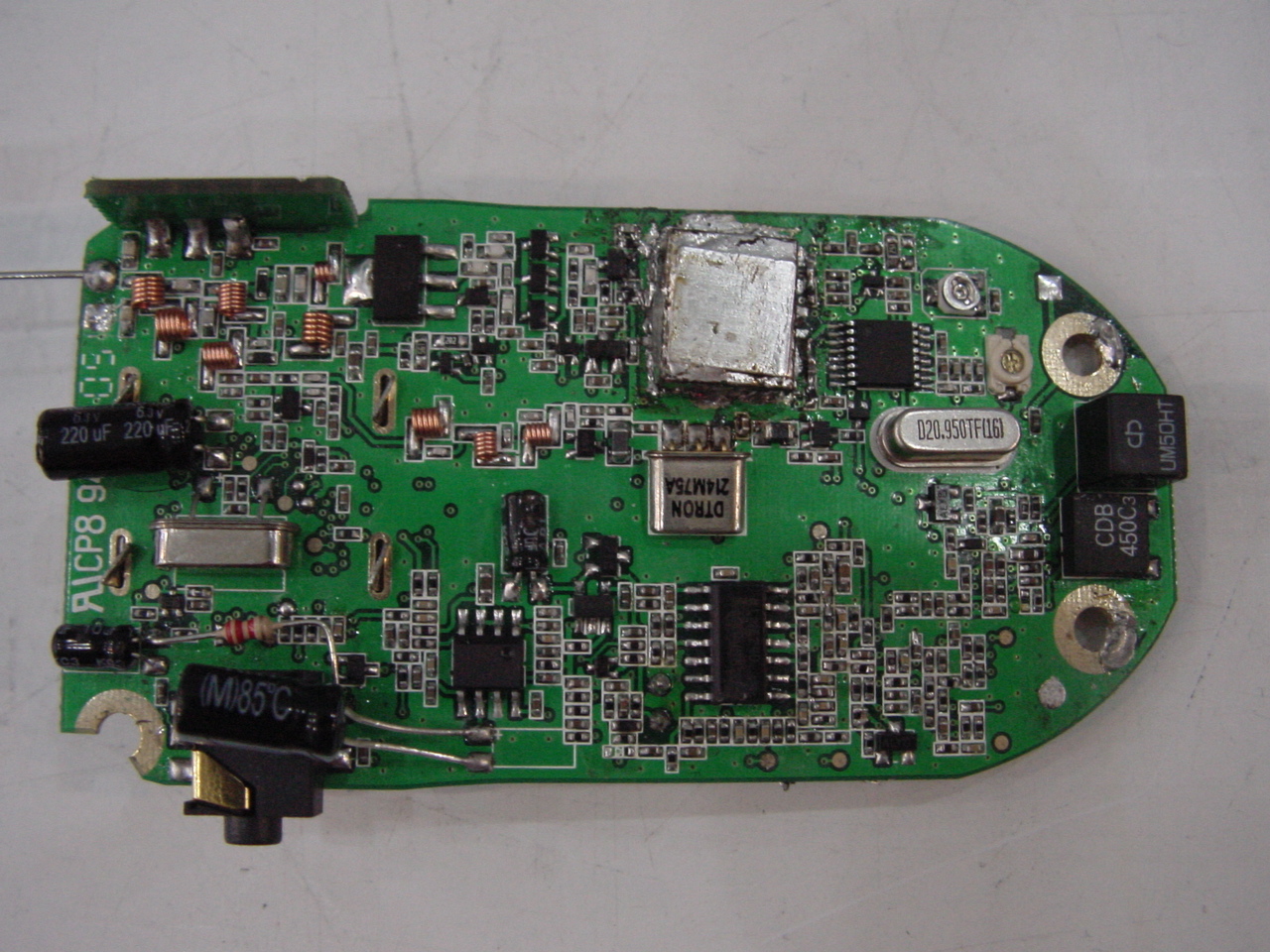

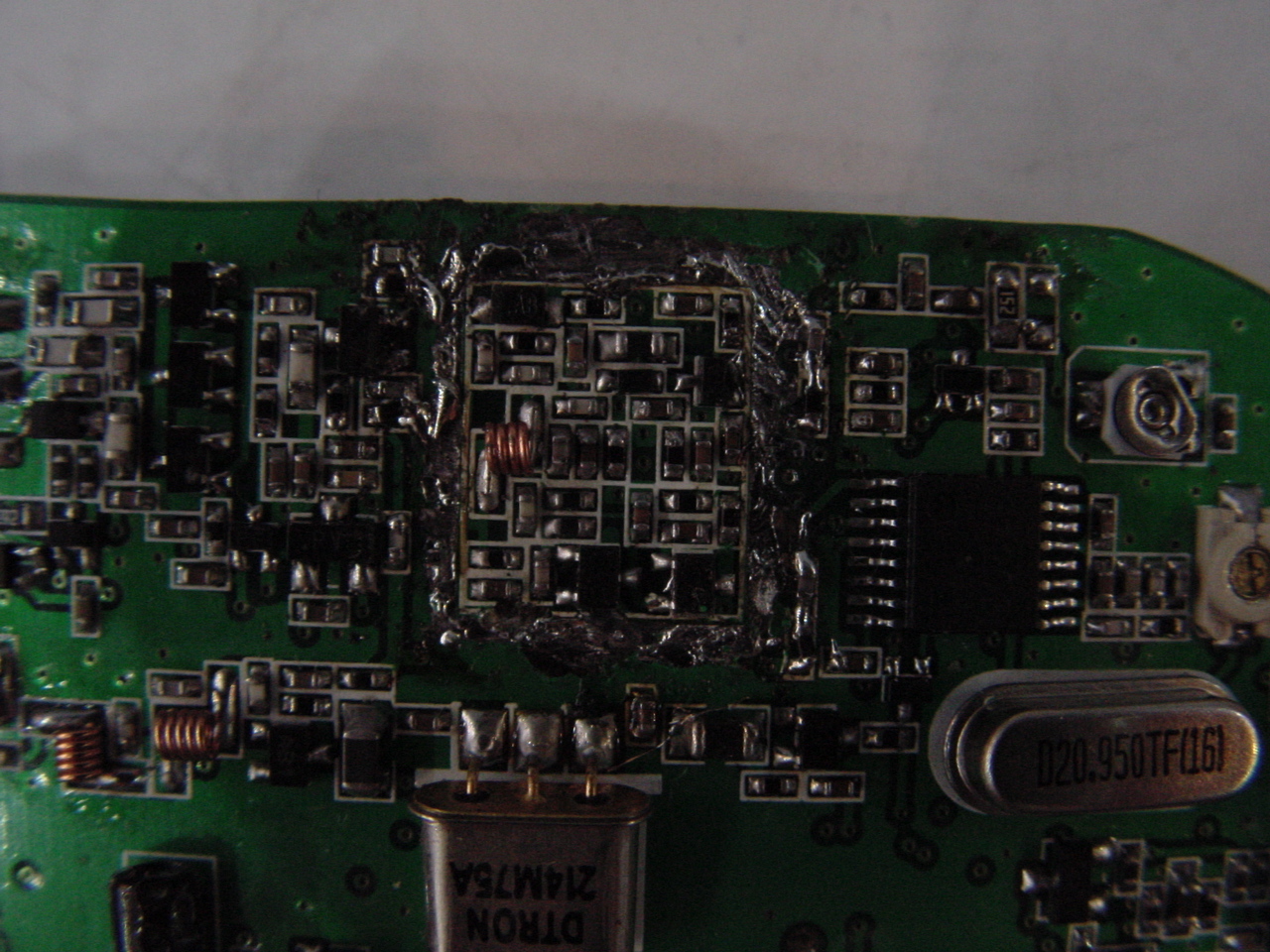

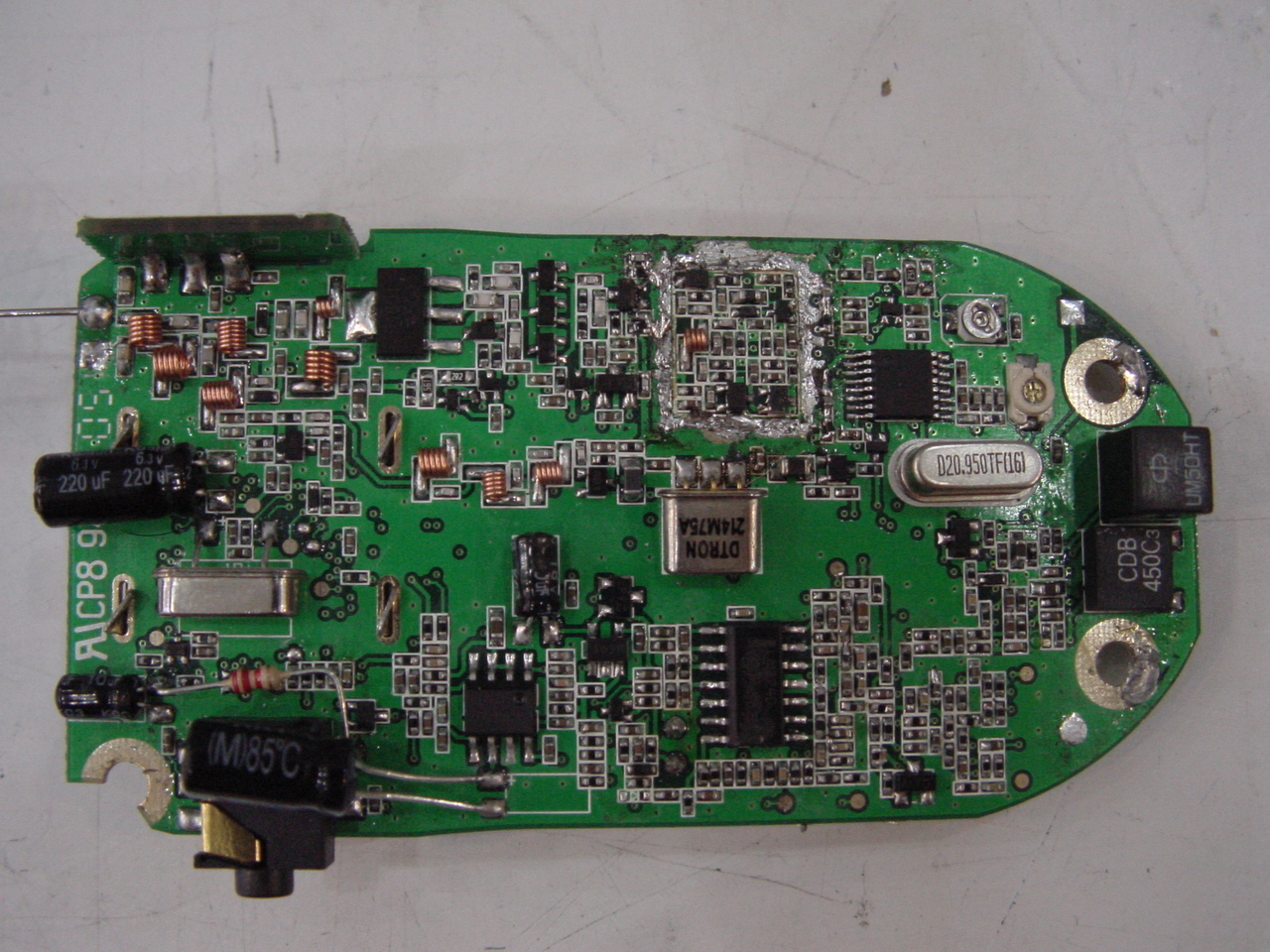

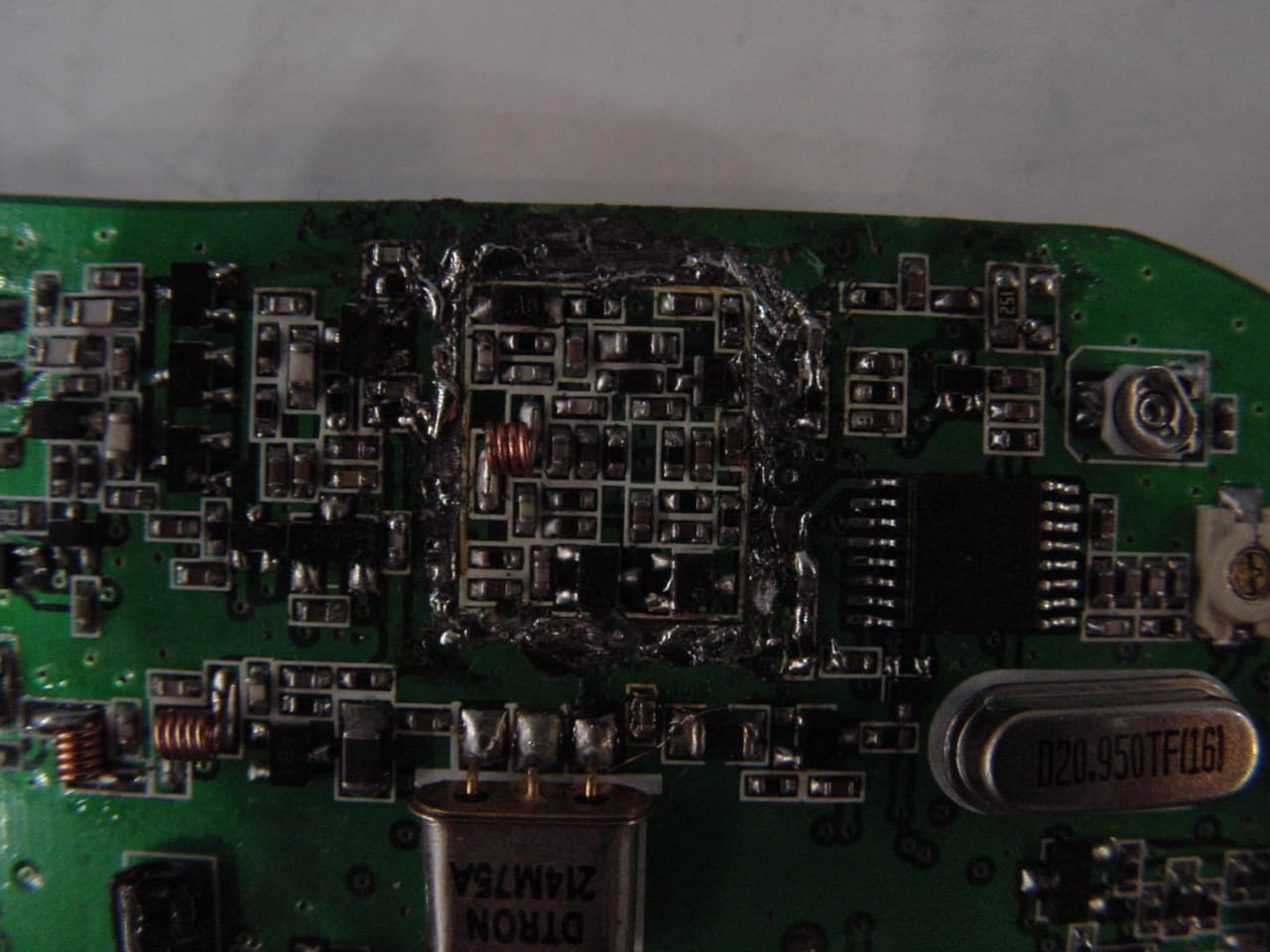

Document Number ENG_TEL_A002 Bonso Group Rev # 00 Title : BS004 APPROVAL DOCUMENTS Application : FCC APPROVAL Release Date : 12 May 2005 Page 21 of 39 PHOTOGRAPHS Front & Rear of Ext. Front & Rear of Int. Document Number ENG_TEL_A002 Bonso Group Rev # 00 Title : BS004 APPROVAL DOCUMENTS Application : FCC APPROVAL Release Date : 12 May 2005 Page 22 of 39 Side of Ext. Inside of Shield Plate

Document Number ENG_TEL_A002 Bonso Group Rev # 00 Title : BS004 APPROVAL DOCUMENTS Application : FCC APPROVAL Release Date : 12 May 2005 Page 40 of 39 LABEL FORMAT & LOCATION CHECK LIST (FCC) 1. Testings required for FCC and SAR. 2. FRN : 0012797494 3. FCC ID : OVVBS004 4. Model Number : BS004 5. Trade Name : BONSO 6. Model Description : 22Channels FRS/GMRS 7. Applicant Company Name : BONSO ELECTRONICS LTD. Address : Unit 1106-1110, 11/F., Star House, 3 Salisbury Road, Tsimshatsui, Kowloon, HongKong. Mr. Harry J Lee / Director R/D & Engineering Telephone : +852 2605 5822, +86 755 2731 1888 Ext 228 Fax. : +852 2691 1724, +86 755 2731 1999 E-mail : [email protected] 8. Manufacturer Company Name : BONSO ELECTRONICS (SHENZHEN) CO., LTD. Address : 59 Da Yang Road, Da Yang Synthetical Develop District, Fu Yong, ShenZhen, China Postcode : 518103 FCC ID : OVVBS004 MODEL : BS004 MADE IN CHINA S/N XXXXXXXXX BONSO ®

Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 25mm Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 15mm Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr [Tissue Liquid Depth : 15cm] 15cm Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Date: Juney 01, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD21046 Subject: BS004Model Battery Type To whom it may concern Here we would like to confirm that the ‘AAA’ type batteries only should be used For this subject model BS004. (FCC ID: OVVBS004)

Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX C – EUT PROFILE PHOTOGRAPHS Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX D – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX E – PROBE CALIBRATION DATA Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 04, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Issue: June 4, 2005 Test Report No.: HCT-SAR05-0604 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN : 0005866421 Manufacture; Bonso Electronics Ltd. Unit 1106-1110, 11/F. Star House, 3 Salisbury Road, Tsimshatsui, Kowloon, Hong Kong FRN : 0012797494 OVVBS004 Bonso Electronics Ltd. FCC ID : APPLICANT : EUT Type: 22 CH Combination FRS/GMRS Transceiver. Model(s): BS004 Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 462.5625 MHz – 467.7125 MHz (FRS) Max. SAR Measurement(s): 0.217 mW/g(1g) GMRS Face SAR ; 0.169 mW/g(1g) GMRS Body SAR Max. RF Output Power: 0.513W ERP(27.1 dBm)GMRS ;0.173 W ERP(22.4 dBm) FRS Conducted Power: 0.494W (26.94dBm)GMRS ; 0.486W (26.87dBm) FRS Emission Designator: 10K5F3E Channel Capacity: 22 Application Type: Certification Trade Name(s): Bonso FCC Rule Part(s): §95(A)(B), 2(J) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled Environment Occupational exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 4, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 7.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 8.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 10.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 11.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 12.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 13.1 CONCLUSION ------------------------------------------------------------------------------------------------ 14.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6-7 8 9 10 11 12 13 14 15-16 17 18 APPENDIX A – SAR TEST PLOTS APPENDIX B – TEST SETUP PHOTOGRAPHS APPENDIX C – EUT PROFILE PHOTOGRAPHS APPENDIX D – DIPOLE VALIDATION PLOTS APPENDIX E – PROBE CALIBRATION DATA APPENDIX F – DIPOLE CALIBRATION DATA Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 4, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency(RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant 2. • FCC ID: OVVBS004 • EUT Type: 22 CH Combination FRS/GMRS Transceiver. Prototype. • Trade Name: Bonso • Model(s): BS004 • Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) 462.5625 MHz – 467.7125 MHz (FRS) • Application Type: Certification • Modulation(s): FM • Max SAR Measurement: 0.217 mW/g(1g) GMRS Face SAR ; 0.169 mW/g(1g) GMRS Body SAR Figure 1. SAR System • Max. RF Output Power: 0.513W ERP(27.1 dBm)GMRS ;0.173 W ERP(22.4 dBm) FRS • Conducted Power: 0.494W (26.94dBm)GMRS ; 0.486W (26.87dBm) FRS • Power Supply: (x4) AAA Alkaline batteries (1.5VDC) Manufacture(I: Energizer / II: Rocket / III: Duracell  : LEXEL) • Place of Test(s): Hyundai C- TECH. EMC Lab. • Date(s) of Tests: June 04, 2005 • Report No.: HCT-SAR05-0604 Company Name : Bonso Electronics Ltd. Address : Unit 1106-1110, 11/F. Star House, 3 Salisbury Road, Tsimshatsui, Kowloon, Hong Kong Attention : Harry Lee / Director R/D & Engineering 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62 Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 4, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 4, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 7.1 SYSTEM SPECIFICATIONS 7.2 Robotic System Specifications Specifications POSITIONER: Stäubli Unimation Corp. Robot Model: RX90LB Repeatability: 0.02 mm No. of axis: 6 Data Acquisition Electronic (DAE) System Cell Controller Processor: Pentium III Clock Speed: 450 MHz Operating System: Windows NT 4.0 Data Card: DASY3 PC-Board Data Converter Features: Signal Amplifier, multiplexer, A/D converter, and control logic Software: DASY3 software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 bit A/D converter for surface detection system serial link to robot direct emergency stop output for robot E-Field Probes Model: ET3DV6 S/N: 1798, S/N: 1609 Construction: Triangular core fiber optic detection system Frequency: 10 MHz to 6 GHz Linearity: ± 0.2 dB (30 MHz to 3 GHz) Phantom Phantom: SAM Shell Material: Fiberglass Thickness: 2.0 ± 0.1 mm Tissue Parameters Freq. [MHz] Liquid Liquid Temp [°C] Parameters Target Value Measured Value Deviation [%] Limit [%] ε r 43.5 44.3 +1.84 ±5% Head 21.4 σ 0.87 0.85 -2.30 ±5% ε r 56.7 54.2 -4.41 ±5% 450MHz Body 21.4 σ 0.94 0.94 0.00 ±5% Report No.: HCT-SAR05-0604 FCC ID: OVVBS004 DATE: June 4, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 8.1 MEASUREMENT PROCESS 8.2 System Verification Prior to assessment, the system is verified to the ±10% of the specifications at 450MHz by using the system validation kit. (Graphic Plots Attached) Freq. [MHz] Liquid Liquid Temp [°C] SAR Average Target Value (mW/g) Measured Value (mW/g) Deviation [%] Limit [%] 450 MHz D450V2, S/N: 1007 Head 21.4 1 g 4.9 4.85 -1.02 ±10% 8.3 Dosimetric Assessment Setup The evaluation was performed with the following procedure: 1. The SAR value at a fixed location above the ear point was measured and was used as a reference value for assessing the power drop. 2. The SAR distribution at the exposed side of the head was measured at a distance of 3.9mm from the inner surface of the shell. The area covered the entire dimension of the head and the horizontal grid spacing was 20mm x 20mm. Based on this data, the area of the maximum absorption was determined by spline interpolation. 3. Around this point, a volume of 32mm x 32mm x 34mm was assessed by measuring 5 x 5 x 7 points. On this basis of this data set, the spatial peak SAR value was evaluated with the following procedure: a. The data at the surface were extrapolated, since the center of the dipoles is 2.7mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.2mm. The extrapolation was based on a least square algorithm [13]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. b. The maximum interpolated value was searched with a straight-forward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed using the 3D-Spline interpolation algorithm. The 3D-spline is composed of three one-dimensional splines with the “Not a knot” condition (in x,y, and z directions) [13][14]. The volume was integrated with the trapezoidal algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. c. All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Fig. 10. SAR Measurement Point in …

Text truncated - open the document above for the full version.
