OW8LSM01400Local Status Monitor

FCC ID: OW8LSM01400 SECTION 8 USER'S MANUAL FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400

A Division of ADC Telecommunications Inc. Section X LSM Kit Installation Instructions for Pathworx TM Network Amplifier P.N. Number XXXXXXX Page 2 of 10 2000 ADC Broadband Communications All rights reserved. Printed U.S.A. A Division of ADC Telecommunications, Inc. 4500 River Green Pkwy. Suite 110 • Duluth, GA 30096• (687) 584-7200 Proprietary Data The information in this manual is proprietary to ADC Telecommunications, Inc. and ADC Broadband Communications. It is provided for the exclusive use and benefit of our customers and is not to be reproduced outside the Company without prior written permission from ADC Telecommunications, Inc. or ADC Broadband Communications. P.N. Number XXXXXXX Page 3 of 10 P.N. Number XXXXXXX Page 4 of 10 Table of contents 1. Purpose 2. Specifications 3. LSM installation P.N. Number XXXXXXX Page 5 of 10 1. Purpose This section of the manual provides installers with the information and step-by-step directions they will need to install the Local Status Monitoring Kit in the Pathworx TM Network Amplifier. Note this installation instruction is for upgraded LSM Kit order. Do not follow these instructions if LSM kit is ordered along with the Pathworx TM Network Amplifier. Notes, Stop, Cautions, Warnings Throughout this manual you may observe graphic markers that indicate special instructions, additional information, cautions or warnings. Locate these graphic markers as you read through this manual and follow carefully the instructions that accompany the graphic markers. Notes Stop Caution Warning WARNING: Do NOT operate or attempt to install the Local Status Monitor in wet weather. Moisture can cause short-term damage to the circuitry. Because the closed Network Amplifier unit is hermetically sealed, any moisture within the unit at the time of closure will remain in the unit. WARNING: Avoid the possibility of severe or fatal electrical shock. NEVER install the Local Status Monitor during wet or damp weather or when lightening is visible in or near your installation. Warning: In order to comply with FCC RF exposure requirements, this device must be installed in such a way as to ensure that a minimum separation distance of 20 cm is always maintained between the antenna and all persons P.N. Number XXXXXXX Page 6 of 10 2. Specifications The Local Status Monitor circuit board measures 4.5” x 3.5” x ½” Weight of the Pathworx TM Network Amplifier lid unit with the Local Status Monitoring installed is 4.5 lbs. Pathworx TM Network Amplifier specifications: • Length – 18.1 inches (46.0cm) • Width – 10.65 inches (27.1cm) • Height – 1.625 inches (15.7cm) • Weight – 25 lbs (11kg) Operational Perameters Temperature • Storage-40°to +75°C(-40° to + 167°F) • Operating-40° to +60°C(-40°to + 140°F) • Cold Start-40°C(-40°F) Humidity • Storage0 to 100% relative humidity (if sealed), condensing • Operating0 to 100% relative humidity (if sealed), condensing NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. P.N. Number XXXXXXX Page 7 of 10 3. LSM Installation P.N. Number XXXXXXX Page 8 of 10 RF tray metal cover Retainer clips ½” Cover bolts Antenna Retainer clip The following steps are needed to be taken to install LSM kit as an upgrade to the existing Network amplifier. Step 1 – Loosen the 5/16 – 18 bolts holding the housing cover to base to open the housing cover. Step 2 – There are retainer clips on two hinge post. Remove the existing retainer clips located on the hinge post using a screw driver or other similar type of tool. Step 3 – Remove the housing cover. P.N. Number XXXXXXX Page 9 of 10 Verify components of the LSM kit. There should be a housing cover ( coated or uncoated) with closure bolts installed. LSM circuit board should be installed in the cover, along with an antenna and an interface cable. There should also be two replacement retainer clips included in the kit. Step 4 – Slide the new housing cover into the hinges where the previous housing cover was removed. Step 5 – Install the new retainer rings onto the hinge posts to retain the cover to the housing. Step 6 – Remove the RF tray metal cover by unscrewing the screws. Plug the interface cable to the 12 pin connector located near the Craft port after removing the cover. Reinstall the cover onto the tray. Make sure the interface cable is fit into the slot of the cover. Tighten the screws to 5 lb. – in. Local status monitor Interface cable 12-pin connector INSET P.N. Number XXXXXXX Page 10 of 10

FCC ID: OW8LSM01400

June 27, 2000 Joe Dichoso Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Mr. Dichoso, We just recently received a grant for ADC Broadband Communications for FCC ID: OW8LSM01400 (Date of Grant 5/18/00). The Frequency Range specified on the grant was 2400.5 - 2479 MHz. This information was originally filled out and based upon the letter from ADC as specified in the report. They have two different channel sets that were specified as follows: System A frequencies are: 2400.5 + (channel # - 1) * 1 MHz range: 2400.5 - 2478.5 MHz System B frequencies are: 2401 + (channel # - 1) * 1 MHz range: 2401 - 2479 MHz After the submittal, they discovered that this information as provided was incorrect. It should have been System A frequencies are: 2400.5 + (channel # - 1) * 1 MHz range: 2401.5 - 2479.5 MHz System B frequencies are: 2401 + (channel # - 1) * 1 MHz range: 2402 - 2480 MHz Channel Range is from 2 to 80 This affected the frequency range as listed in the report. Therefore the frequency range specified should have been specified as 2401.5 - 2480. Please let me know what we need to do to get this corrected. Your help is greatly appreciated. Please look into this issue and let me know if we can have the grant corrected. If you have any questions, please feel free to contact me at (770)741-0717. Sincerely, Timothy R. Johnson NARTE Certified EMC Engineer No. EMC-002205-NE

FCC ID: OW8LSM01400 SECTION 3 LABELING INFORMATION FCC ID: OW8LSM01400

FCC ID: OW8LSM01400 SECTION 3 LABELING INFORMATION FCC ID: OW8LSM01400

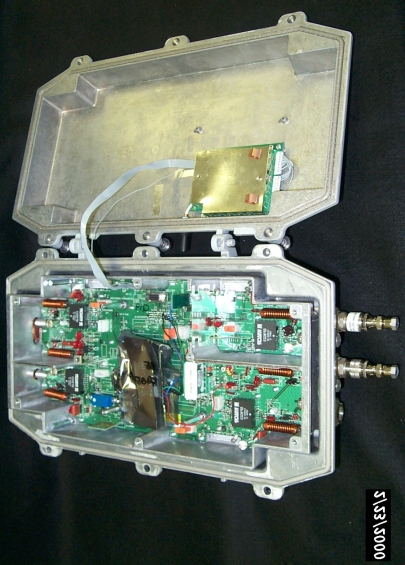

SECTION 5 PHOTOGRAPHS FCC ID: OW8LSM01400 PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1.Front View of RF Network Amplifier Photo 2.Rear View of RF Network Amplifier, Showing Mounted Antenna Photo 3.Open View of RF Network Amplifier, Showing Installed EUT Mounted to Lid Photo 4.EUT, Top View - Shield Installed Photo 5.EUT, Top View - Shield Removed Photo 6.EUT, Bottom View FCC ID: OW8LSM01400 Photo 1.Front View of RF Network Amplifier FCC ID: OW8LSM01400 Photo 2.Rear View of RF Network Amplifier, Showing Mounted Antenna FCC ID: OW8LSM01400 Photo 3.Open View of RF Network Amplifier, Showing Installed EUT Mounted to Lid FCC ID: OW8LSM01400 Photo 4.EUT, Top View - Shield Installed FCC ID: OW8LSM01400 Photo 5.EUT, Top View - Shield Removed FCC ID: OW8LSM01400 Photo 6.EUT, Bottom View

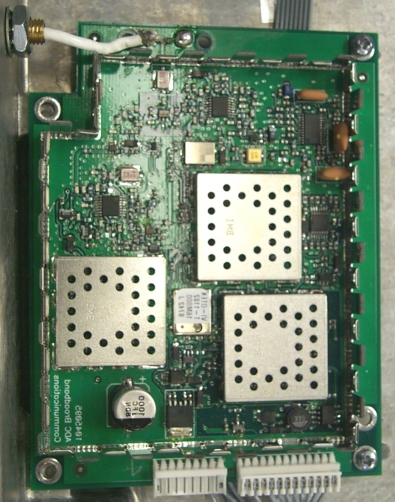

SECTION 5 PHOTOGRAPHS FCC ID: OW8LSM01400 PHOTOS OF THE TESTED EUT The following photos are attached: Photo 7. EUT, Top View – Shield and Sub-shields Removed FCC ID: OW8LSM01400 Photo 7. EUT, Top View – Shield and Sub-shields Removed

FCC ID: OW8LSM01400

FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 FCC ID: OW8LSM01400

FCC ID: OW8LSM01400 SECTION 7 RF EXPOSURE INFORMATION FCC ID: OW8LSM01400 7.1 RF Safety Requirements to 2.1091 According to Section 3 of Supplement C to OET Bulletin 65, Part 15 Transmitters are categorically excluded from Routine Environmental Evaluation by measurement or precise computations unless otherwise required by the Commissions The unit under evaluation has an external antenna of 0 dBi gain with a measured output power output of 0.0550 Watts at the antenna terminals. Due to the low power of the EUT, environmental evaluation should be deemed unnecessary since the EUT’s operational frequency range is 2.4-2.4835 GHz and the ERP is considerably less than 3 Watts.

ADC Broadband Communications FCC Part 15, Certification Application Local Status Monitor (LSM) March 28, 2000 MEASUREMENT/TECHNICAL REPORT COMPANY NAME: ADC Broadband Communications MODEL: Local Status Monitor (LSM) FCC ID: OW8LSM01400 DATE: March 28, 2000 This report concerns (check one): Original grant X Class II change_____ Equipment type: Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: OW8LSM01400 TABLE OF CONTENTS AGENCY AGREEMENT LETTER OF CONFIDENTIALITY SECTION 1 GENERAL INFORMATION 1.1 Product Description 1.2 Related Submittal(s) SECTION 2 TESTS AND MEASUREMENTS 2.1 Configuration of Tested EUT 2.2 Test Facility 2.3 Test Equipment 2.4 Modifications 2.5 Test Procedure and Results 2.6 Antenna Description 2.7 Peak Power (Antenna Conducted at Antenna Terminal) 2.8 Antenna Conducted Spurious Emissions 2.9 Peak Radiated Spurious Emissions 2.10 Average Radiated Spurious Emissions 2.11 Maximum 20 dB Bandwidth 2.12 Number of Hopping Channels 2.13 Average Time of Occupancy per Channel 2.14 Power Line Conducted Emissions for Transmitter 2.15 Radiated Emissions for Digital Device & Receiver (if Applicable) 2.16 Power Line Conducted for Digital Device & Receiver (if Applicable) SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S)/ SCHEMATIC(S) SECTION 5 PHOTOGRAPHS SECTION 6 THEORY OF OPERATION SECTION 7 RF EXPOSURE INFORMATION SECTION 8 FCC ID: OW8LSM01400 USER'S MANUAL FCC ID: OW8LSM01400 LIST OF FIGURES AND TABLES FIGURES 1)Test Configuration 2) Photograph(s) for Spurious and Fundamental Emissions Photographs(s) for Digital Device Emissions Photograph(s) for Conducted Emissions 3) Peak Power 4) Antenna Conducted Spurious Emissions 5) Peak Radiated Spurious Emissions 6) Average Radiated Spurious Emissions 7) 20 dB Bandwidth 8) Number of Hopping Channels 9) Average Time of Occupancy per Channel TABLES 1)EUT and Peripherals 2) Test Instruments 3) Peak Power Output 4) Peak Radiated Spurious Emissions 5) Average Radiated Spurious Emissions 6) 20 dB Bandwidth 7) Number of Hopping Channels 8) Average Time of Occupancy per Channel 9) Power Line Conducted Emissions for Transmitter 10) Radiated Emissions for Digital Device and Receiver 11) Power Line Conducted Emissions for Digital Device and Receiver FCC ID: OW8LSM01400 SECTION 1 GENERAL INFORMATION FCC ID: OW8LSM01400 GENERAL INFORMATION 1.1Product Description The Equipment Under Test (EUT) is a ADC Broadband Communications, Model Local Status Monitor (LSM). The ADC Broadband Communications LSM is an upgrade kit that can be installed in an ADC Network Amplifier (an RF Amplifier installed on cable lines). The main purpose for the LSM is to become a two-way wireless link between the RF amplifier and a ground located hand held smart terminal (LST – Local Smart Terminal) with a portable LSM Controller so that technicians can monitor the network. The EUT is offered in two models, the LSM-01-U and the LSM-01-C. The difference between these two models is the housing cover that is supplied with the LSM, and is a factor of the RF amplifier that the unit is being installed in. The EUT is designed to operate on one of two different channel sets. Please refer to the following letter from ADC Broadband Communications. FCC ID: OW8LSM01400 FCC ID: OW8LSM01400 1.2Related Submittal(s)/Grant(s) The EUT will be used with part of a system to send/receive data. The transceiver presented in this report will be used with another transceiver, which has been submitted under FCC ID: OW8LSMC01400 The EUT is subject to the following authorizations: a) Certification as a transmitter b) Verification as a digital device The information contained in this report is presented for the certification & verification authorization(s) for the EUT. FCC ID: OW8LSM01400 SECTION 2 TESTS AND MEASUREMENTS FCC ID: OW8LSM01400 TEST AND MEASUREMENTS 2.1 Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (1992). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecting cables were manipulated as necessary to maximize emissions. Interconnecting cables were manipulated as necessary to maximize emissions. A block diagram of the tested system is shown in Figure 1. Test configuration photographs for spurious and digital device emissions are shown in Figure 2. The sample used for testing was received by U.S. Technologies on January 10, 2000 in good condition. 2.2 Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. 2.3 Test Equipment Table 2 describes test equipment used to evaluate this product. 2.4 Modifications The following modifications were made by ADC Broadband Communications in order to bring the EUT into compliance with FCC Part 15 limits for the transmitter portion of the EUT and the Class A Digital Device Requirements: 1) A timing change was made on the firmware so that synthesizer enable turn “on” occurred 2 msec before the RF transmit dc supply turn “on”. Also, a RF transmit dc supply turn “off” was made to occur 1 msec before the synthes…
