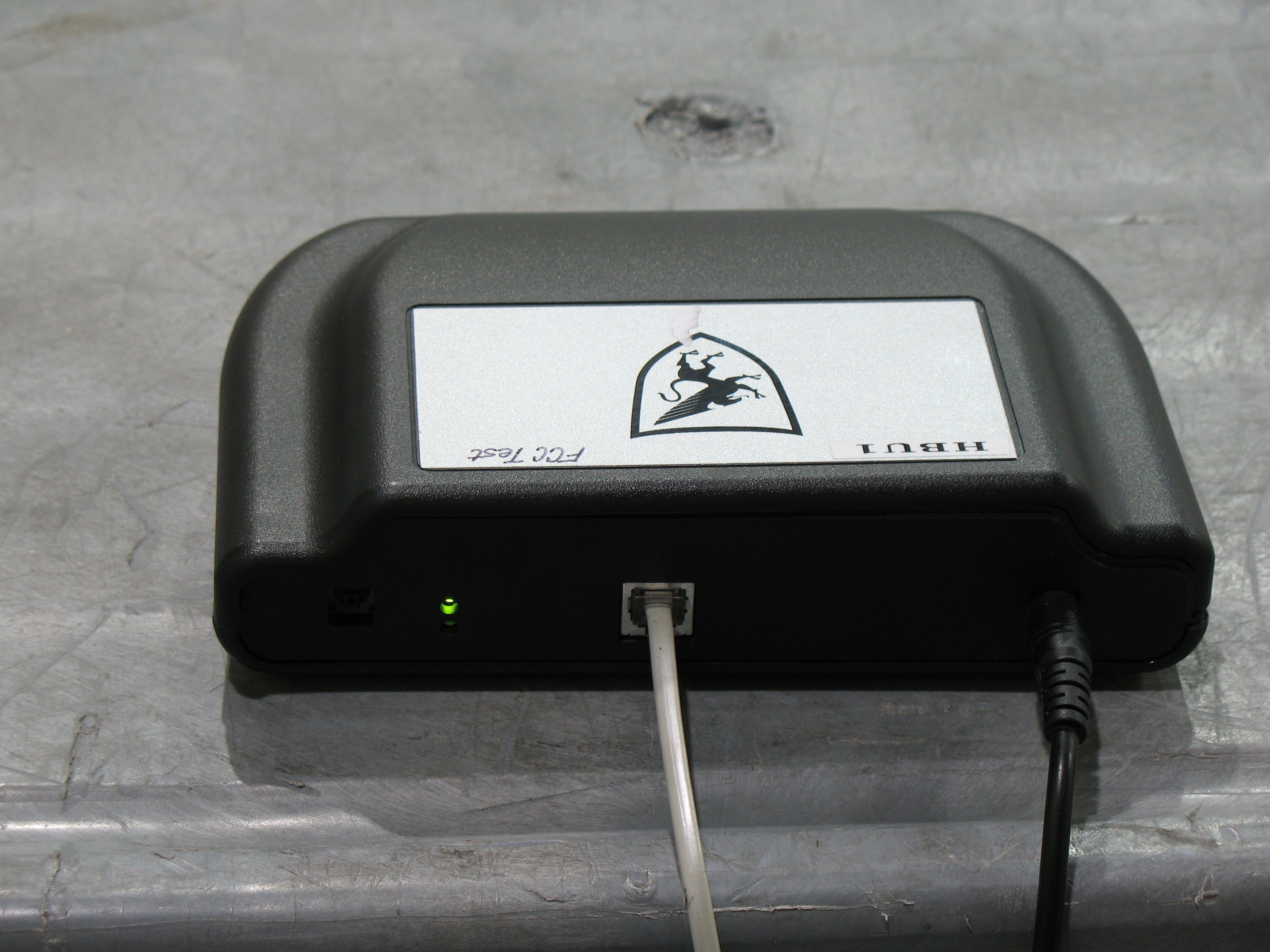

OWX-B1000Base Station for Offender Management System

Gryphex LLC
Base Station for Offender Management System - FCC ID OWX-B1000 - Gryphex LLC
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jul 25, 2012
Application Purpose
Original Equipment
Date of Application
Jul 25, 2012
Equipment Note
Base Station for Offender Management System
Frequency Range
1850.00000000 - 1910.00000000
Company
Gryphex LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C INSIGHT User Guide 2 Table of Contents Topic Definitions...................................................................................................... Login............................................................................................................... Dashboard...................................................................................................... Events.................................................................................................. Location............................................................................................... Supervision Plan................................................................................. Devices................................................................................................ Contact................................................................................................. Zone Activity........................................................................................ Schedule............................................................................................. Recipients............................................................................................. Offender......................................................................................................... Profile.................................................................................................... Supervision Plans................................................................................ Zones.................................................................................................... Schedules............................................................................................. Users and Recipients............................................................................ Notifications........................................................................................ Zones............................................................................................................... Reports...................................................................................................... Hardware.................................................................................................. Locator........................................................................................... BaseStation................................................................................... FCC Statements............................................................................ 3 5 6 7 8 9 10 11 12 13 14 15 15 16 17 18 19 20 21 22 23 23 26 27 P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 3 Battery Critical Clear Communication Failure Exclusion Zone Inclusion Zone Location Failure Neutral Zone Notifications A notice indicating a complete depletion of the battery will occur in approximately 30 minutes. Once completely depleted, the device will no longer report to the Insight software. A notice indicating that a clearing Event has occurred that has resolved an exception to satisfactory status. An alert which occurs when a device has not reported to the Insight within an expected period of time. An area in which an Offender is prohibited from entering during Scheduled periods. An area in which an Offender is required to be located during Scheduled periods. An alert which occurs when a device has not reported a valid location within an expected period of time. Area which is monitored 24/7 for exits and entries not associated with a Schedule. Alerts sent to the Recipient via SMS text or email. Definitions P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 4 Definitions (continued) The participant or client wearing the Locator ankle bracelet. A person or agency who receives alerts via email and/or SMS text – not necessarily an Insight User. Job function that determines which specific functions a User with that role can access. A time period during which the Offender should be inside an Inclusion Zone, inside a BaseStation range or outside an Exclusion Zone. Any individual accessing Insight for monitoring and managing Offenders. A specified geographic area used to enforce curfews (Inclusion) and restrictions (Exclusion). Offender Recipient Role Schedule User Zone P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 5 Users must enter their Login ID and Password to access Insight. The Account Administrator provides an initial password for each User. During their initial login, Users are required to set their own password. P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 6 Dashboard Functions 1.After logging into Insight, the User arrives at the Dashboard. The Dashboard provides a snapshot view of the status of each assigned Offender. It also contains links to all of the modules within the application. 2.The left panel contains a list of all assigned Offenders and is sorted with the Offenders having the most critical and recent violations and Events at the top. 3.The Insight Dashboard is designed to allow the User to focus on those situations and Offenders that require immediate attention. User name The tabs across the top of the Dashboard provide instant access to information relating to the Offender highlighted in the left panel. This left panel shows the Offender name, the severity of the Event, the Event name and the status of the battery in the Locator. Severe Events are displayed as either flashing red or constant red. Green indicates Offender compliance and yellow indicates an unknown or warning status. P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 7 Dashboard Functions 1.The Event tab displays a list of Events/exceptions for the currently selected Offender. 2.The contents of the list can be adjusted by checking any or all of the severi…

Text truncated - open the document above for the full version.

RF Exposure Info

731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com MPE Calculation § 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Part 1.1310 Limits for Maximum Permissible Exposure (MPE) 1.1 Test Procedure An MPE evaluation for was performed in order to show that the device was compliant with §2.1091. The maximum power density was calculated for each transmitter at a separation distance of 20cm using the following formula. 2 )20(4 cm mW EIRP tyPowerDensi × = π Once the power density for each transmitter was calculated, it was compared to the applicable MPE limit and converted to a percentage of the total power density for the device considering multiple transmissions. 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com 1.2 Results: The device contains FHSS and GSM transmitters which can transmit simultaneously. The following calculations show that the total power density from each transmitter at 20cm is less than the limit for general population / un-controlled exposure. With the FHSS and either the GSM850 or GSM1900 radios transmitting simultaneously, the worse case MPE calculations are less than 8.3% of the applicable limit. The device meets the RF exposure limit at a 20cm separation distance as required by part 2.1091 of the FCC rules with both radios transmitting simultaneously 1 . The wost case simultaneous transmission with FHSS and GSM1900 is 7.8% + 0.5% = 8.3% of applicable MPE limit. 1 It is not possible for the GSM 850 radio to transmit simultaneously with the GSM1900 radio. FHSS Radio: Radiated Output Power (Computed From Field Strength Measurement 13.26mW 2^/003.0 )20(4 26.13 )( 2 cmmWFHSStyPowerDensi cm mW = × = π MPE Limit at 903.2MHz = 0.602 mW/cm^2 FHSS Power Density % of Limit = (0.003 / 0.602) x 100 = 0.5% GSM 850 Radio: Radiated Output Power (Measured with TIA-603C Substitution Method) = 709mW 2^/14.0 )20(4 709 )850( 2 cmmWGSMtyPowerDensi cm mW = × = π Duty Cycle Correction for GSM Slot Configuration (2 Used / 8 Possible) = 0.25 Power Density Corrected for GSM Duty Cycle = (0.14mW/cm^2) * 0.25 = 0.035mW/cm^2 MPE Limit at 824MHz = 0.549 mW/cm^2 GSM 850 Power Density % of Limit = (0.035 / 0.549) x 100 = 6.35% GSM 1900 Radio: Radiated Output Power (Measured with TIA-603C Substitution Method) = 11564mW 2^/311.0 )20(4 1564 )1900( 2 cmmWGSMtyPowerDensi cm mW = × = π Duty Cycle Correction for GSM Slot Configuration (2 Used / 8 Possible) = 0.25 Power Density Corrected for GSM Duty Cycle = (0.311mW/cm^2) * 0.25 = 0.078mW/cm^2 MPE Limit above 1500MHz = 1 mW/cm^2 GSM 1900 Power Density % of Limit = (0.078 / 1) x 100 = 7.8%

Test Report

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Gryphex Electronic Monitoring on the Basestation Page 1 of 33 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 100753208LEX-005 Project Number: G100753208 Report Issue Date: 5/29/2012 Product Name: Basestation FCCID: OWX-B1000 FCC Standards: FCC Part 22 Subpart H FCC Part 24 Subpart E Industry Canada Standards: RSS-132 Issue 2 RSS-133 Issue 5 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 Gryphex Electronic Monitoring 1035 Windward Ridge Pkwy Suite 575 Alpharetta, GA 30005 Report prepared by Report reviewed by Bryan Taylor, Team Leader James Sudduth, Senior Staff Engineer Intertek Report Number: 100753208LEX-005 Issued: 5/29/2012 EMC Report for Gryphex Electronic Monitoring on the Basestation FCCID:OWX-B1000 Page 2 of 33 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Conducted Output Power.................................................................................................................... 7 5 Occupied Bandwidth ......................................................................................................................... 10 6 Conducted Spurious Emissions at Antenna Terminals ................................................................. 12 7 Radiated Output Power ..................................................................................................................... 24 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 25 9 Frequency Stability ............................................................................................................................ 30 10 Measurement Uncertainty.............................................................................................................. 32 11 Revision History ............................................................................................................................. 33 Intertek Report Number: 100753208LEX-005 Issued: 5/29/2012 EMC Report for Gryphex Electronic Monitoring on the Basestation FCCID:OWX-B1000 Page 3 of 33 1 Introduction and Conclusion The tests indicated in Section 2 were performed on the product constructed as described in Section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington Facility is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under Registration Number 485103. 2 Test Summary Page Test full name FCC Reference Industry Canada Result 7 Conducted Output Power §2.1046 §24.232(d) RSS-132 (4.4), RSS-133 (4.1), RSS-133 (6.4) Pass 10 Occupied Bandwidth §2.1049, §22.917(b)(d), and §24.238(a) RSS-GEN (4.6.1), RSS-133 (2.3) Pass 12 Conducted Spurious Emissions §2.1049, §2.1051, §22.917(a)(b), and § 24.238(a)(b) RSS-132 (4.5), RSS-133 (6.5.1) Pass 24 Radiated Output Power § 22.913(a) and § 24.232(c) RSS-132 (4.4), RSS-133 (6.4) Pass 25 Radiated Spurious Emissions (Transmitter) §2.1053, §22.917(a)(b), and §24.238(a)(b) RSS-132 (4.5), RSS-133 (6.5) Pass 30 Frequency Stability §2.1055, §22.355, and §24.235 RSS-132 (4.3), RSS-133 (6.3) Pass Intertek Report Number: 100753208LEX-005 Issued: 5/29/2012 EMC Report for Gryphex Electronic Monitoring on the Basestation FCCID:OWX-B1000 Page 4 of 33 3 Description of Equipment Under Test Equipment Under Test Manufacturer Gryphex Electronic Monitoring Model Number Basestation Serial Number Test Sample 1 FCC Identifier OWX-B1000 Receive Date 5/11/2012 Test Start Date 5/11/2012 Test End Date 5/30/2012 Device Received Condition Good Test Sample Type Production Frequency Band 824MHz - 849MHz (GSM 850 Band) 1850MHz – 1910MHz (GSM 1900 Band) Modulation…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Susan Neenan(Director of Finance)
[email protected]678-387-1884Fax: 678-387-1875

Technical Contact

Gryphex LLCDon F Pruitt
[email protected]678-387-1902

1035 Windward Ridge Parkway · Alpharetta · United States

Test Firm

Intertek Testing Services NAJames Sudduth
[email protected]859-226-1037Fax: 859 226 1040

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz1.03 W242KGXW2.5 ppm
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. This device contains functions that are not operational in U.S Territories; filings under this FCC ID are applicable only for US operations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except those identified in this filing. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance.

Other Applications from Gryphex LLC

Ankle Bracelet Locator for Offender Management System - FCC ID OWX-L1000 - Gryphex LLC
OWX-L1000

Ankle Bracelet Locator for Offender Management System

Aug 01, 2012

Equipment Class

PCT - PCS Licensed Transmitter worn on body
