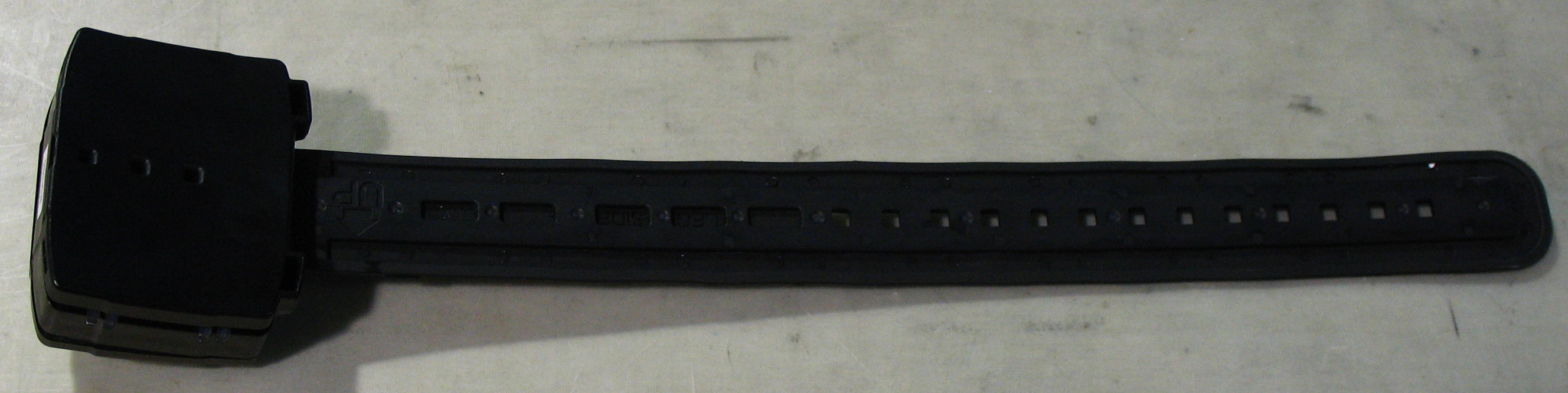

OWX-L1000Ankle Bracelet Locator for Offender Management System

P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C INSIGHT User Guide 2 Table of Contents Topic Definitions...................................................................................................... Login............................................................................................................... Dashboard...................................................................................................... Events.................................................................................................. Location............................................................................................... Supervision Plan................................................................................. Devices................................................................................................ Contact................................................................................................. Zone Activity........................................................................................ Schedule............................................................................................. Recipients............................................................................................. Offender......................................................................................................... Profile.................................................................................................... Supervision Plans................................................................................ Zones.................................................................................................... Schedules............................................................................................. Users and Recipients............................................................................ Notifications........................................................................................ Zones............................................................................................................... Reports...................................................................................................... Hardware.................................................................................................. Locator........................................................................................... BaseStation................................................................................... FCC Statements............................................................................ 3 5 6 7 8 9 10 11 12 13 14 15 15 16 17 18 19 20 21 22 23 23 26 27 P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 3 Battery Critical Clear Communication Failure Exclusion Zone Inclusion Zone Location Failure Neutral Zone Notifications A notice indicating a complete depletion of the battery will occur in approximately 30 minutes. Once completely depleted, the device will no longer report to the Insight software. A notice indicating that a clearing Event has occurred that has resolved an exception to satisfactory status. An alert which occurs when a device has not reported to the Insight within an expected period of time. An area in which an Offender is prohibited from entering during Scheduled periods. An area in which an Offender is required to be located during Scheduled periods. An alert which occurs when a device has not reported a valid location within an expected period of time. Area which is monitored 24/7 for exits and entries not associated with a Schedule. Alerts sent to the Recipient via SMS text or email. Definitions P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 4 Definitions (continued) The participant or client wearing the Locator ankle bracelet. A person or agency who receives alerts via email and/or SMS text – not necessarily an Insight User. Job function that determines which specific functions a User with that role can access. A time period during which the Offender should be inside an Inclusion Zone, inside a BaseStation range or outside an Exclusion Zone. Any individual accessing Insight for monitoring and managing Offenders. A specified geographic area used to enforce curfews (Inclusion) and restrictions (Exclusion). Offender Recipient Role Schedule User Zone P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 5 Users must enter their Login ID and Password to access Insight. The Account Administrator provides an initial password for each User. During their initial login, Users are required to set their own password. P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 6 Dashboard Functions 1.After logging into Insight, the User arrives at the Dashboard. The Dashboard provides a snapshot view of the status of each assigned Offender. It also contains links to all of the modules within the application. 2.The left panel contains a list of all assigned Offenders and is sorted with the Offenders having the most critical and recent violations and Events at the top. 3.The Insight Dashboard is designed to allow the User to focus on those situations and Offenders that require immediate attention. User name The tabs across the top of the Dashboard provide instant access to information relating to the Offender highlighted in the left panel. This left panel shows the Offender name, the severity of the Event, the Event name and the status of the battery in the Locator. Severe Events are displayed as either flashing red or constant red. Green indicates Offender compliance and yellow indicates an unknown or warning status. P R O P R I E T A R Y A N D C O N F I D E N T I A L T O G R Y P H E X , L L C 7 Dashboard Functions 1.The Event tab displays a list of Events/exceptions for the currently selected Offender. 2.The contents of the list can be adjusted by checking any or all of the severi…

Text truncated - open the document above for the full version.

731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com FCC RF Exposure Information Per KDB Inquiry Tracking Number 360152 Operational Description The Gryphex Locator (OMU) is an ankle-worn offender tracking device. The Unit utilizes GPS technology to ascertain the offender’s current location. This information can be gathered at variable rates with the maximum location data rate of 1 locate per minute and the maximum transmission frequency of 1 per minute. However the time that it takes to transmit a single packet of location data is constant regardless of the transmission frequency. A typical rate plan locates an offender once each minute and transmits location data once every 10 minutes. The maximum transmission rate is once per minute. RF Exposure Conditions The Gryphex locator ankle-worn tracking device is intended for operation in the general population / uncontrolled RF exposure environment. Two radios are incorporated into this device which can transmit simultaneously (a GPRS Class 10 transmitter and an FHSS transmitter for communication back to the base station). Antenna Separation Distances ~11.455mm to Ankle (both antennas) ~44mm FHSS Antenna to GSM Antenna Transmission Mode The Locator utilizes an internal GPRS Class 10 transmitter (2/8) as well as an FHSS transmitter for communication back to the base station. Duty Cycle The device features variable location and transmission rates with a maximum location rate of once per minute and a maximum transmission rate of once per minute. The on air transmission time from 1 location is 3 seconds. This leads to an on air duty cycle of 5%. Derived by measuring multiple message arrival times of the message reception time of the server. This was verified by measuring the total transmission time at different rate plans and observing the same total time to transmit time ratio. For example using the maximum location rate (once per minute) and the maximum transmission rate (once per minute) it takes 3 seconds to complete the 1 point transmission. Duty Cycle = Transmission Time / TOTAL Time = 3s/60s = 0.05 Duty Cycle = 5% 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com RF Output Power Comparison GPRS Mode – Cellular 850 Band Maximum Measured Conducted Output Power = 2340mW Source Based Time Averaged Duty Cycle – 2/8 uplink slots = 25% Source Based Time Averaged Duty Cycle – 5% Source Based Time Averaged Output Power = 2340mW x 0.25 x .05 = 29.25mW 60/f(GHz) mW = 70.7 mW The source based time-averaged output power is much less than 60/f GPRS Mode – PCS 1900 Band Maximum Measured Conducted Output Power = 640mW Source Based Time Averaged Duty Cycle – 2/8 uplink slots = 25% Source Based Time Averaged Duty Cycle – 5% Source Based Time Averaged Output Power = 640mW x 0.25 x .05 = 8mW 60/f(GHz) mW = 31.4 mW The source based time-averaged output power is much less than 60/f FHSS Radio - 903MHz ISM Band Maximum Measured Conducted Output Power = 3.55mW Transmission On Time (Including Becon and Data Pulses) = 5.3mS Transmissions Total Time = 14.7ms Duty Cycle = (5.3mS / 14.7mS) x 100 = 36.05% Source Based Time Averaged Output Power = 3.55mW x 0.365 = 1.3mW 60/f(GHz) mW = 66.44mW The source based time-averaged output power is much less than 60/f Simultaneous Transmission Consideration Either the GSM850 or the GSM1900 radio may transmit simultaneously with the FHSS radio. It is not possible for both the GSM850 and GSM1900 radios to transmit at the same time. Considering the worst case simultaneous transmission above with the GSM 850 and the FHSS radios transmitting the combined source based time averaged output power is still much less than 60/f(GHz) mW.

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Gryphex Electronic Monitoring on the Ankle Bracelet Page 1 of 31 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 100753208LEX-006 Project Number: G100753208 Report Issue Date: 6/17/2012/2012 Product Name: Ankle Bracelet FCCID: OWX-L1000 FCC Standards: FCC Part 22 Subpart H FCC Part 24 Subpart E Industry Canada Standards: RSS-132 Issue 2 RSS-133 Issue 5 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 Gryphex Electronic Monitoring 1035 Windward Ridge Pkwy Suite 575 Alpharetta, GA 30005 Report prepared by Report reviewed by Bryan Taylor, Team Leader James Sudduth, Senior Staff Engineer Intertek Report Number: 100753208LEX-006 Issued: 6/17/2012/2012 EMC Report for Gryphex Electronic Monitoring on the Ankle Bracelet FCCID:OWX-L1000 Page 2 of 31 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Conducted Output Power.................................................................................................................... 6 5 Occupied Bandwidth ........................................................................................................................... 9 6 Conducted Spurious Emissions at Antenna Terminals ................................................................. 11 7 Radiated Output Power ..................................................................................................................... 23 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 24 9 Frequency Stability ............................................................................................................................ 28 10 Measurement Uncertainty.............................................................................................................. 30 11 Revision History ............................................................................................................................. 31 Intertek Report Number: 100753208LEX-006 Issued: 6/17/2012/2012 EMC Report for Gryphex Electronic Monitoring on the Ankle Bracelet FCCID:OWX-L1000 Page 3 of 31 1 Introduction and Conclusion The tests indicated in Section 2 were performed on the product constructed as described in Section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington facility is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under Registration Number 485103. 2 Test Summary Page Test full name FCC Reference Industry Canada Result 6 Conducted Output Power §2.1046 §24.232(d) RSS-132 (4.4), RSS-133 (4.1), RSS-133 (6.4) Pass 9 Occupied Bandwidth §2.1049, §22.917(b)(d), and §24.238(a) RSS-GEN (4.6.1), RSS-133 (2.3) Pass 11 Conducted Spurious Emissions §2.1049, §2.1051, §22.917(a)(b), and § 24.238(a)(b) RSS-132 (4.5), RSS-133 (6.5.1) Pass 23 Radiated Output Power § 22.913(a) and § 24.232(c) RSS-132 (4.4), RSS-133 (6.4) Pass 24 Radiated Spurious Emissions (Transmitter) §2.1053, §22.917(a)(b), and §24.238(a)(b) RSS-132 (4.5), RSS-133 (6.5) Pass 28 Frequency Stability §2.1055, §22.355, and §24.235 RSS-132 (4.3), RSS-133 (6.3) Pass Intertek Report Number: 100753208LEX-006 Issued: 6/17/2012/2012 EMC Report for Gryphex Electronic Monitoring on the Ankle Bracelet FCCID:OWX-L1000 Page 4 of 31 3 Description of Equipment Under Test Equipment Under Test Manufacturer Gryphex Electronic Monitoring Model Number Ankle Bracelet Serial Number Test Sample 1 FCC Identifier OWX-L1000 Receive Date 5/11/2012 Test Start Date 5/11/2012 Test End Date 5/30/2012 Device Received Condition Good Test Sample Type Production Frequency Band 824MHz - 849MHz (GSM 850 Band) 1850MH…
