OXEKETXRemote Control Keyless Entry TX

Page: 5 of 5Received: 16.Mar.00 11:16 AM From: 5628093150 To: 7812078010

fccaewkex Page 5 of 5 • Block diagram: Transmitters: At the press of a button the circuitry is activated with power. At this point two clocks begin. The RF circuit begins to oscillate 302 MHz carrier wave. The encoder chip begins to oscillate at .833KHz and imposes an embedded digital serial identification onto the RF carrier wave. Antenna Stub is excited. Start

fccaewkex Page 1 of 1 Operation and Installation Instructions: Transmitter: Plastic Case Front Back FCC ID: (OXEKETX) This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Receiver: Plastic Case Bottom FCC-ID:OXEKETX Transmitter’s Assembled Dimensions: 1.4” wide 1.9” long .51” thick Keyless Entry: AEWKE1 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Receivers Assembled Dimensions: 3.5” wide 4.5” long 1.25” thick

fccaewkex Page 1 of 1 Operation and Installation Instructions: Transmitter: Plastic Case Front Back FCC ID: OXEKETX This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Receiver: Plastic Case Bottom FCC-ID:OXEKETX Transmitter’s Assembled Dimensions: 1.4” wide 1.9” long .51” thick Keyless Entry: AEWKE1 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Receivers Assembled Dimensions: 3.5” wide 4.5” long 1.25” thick

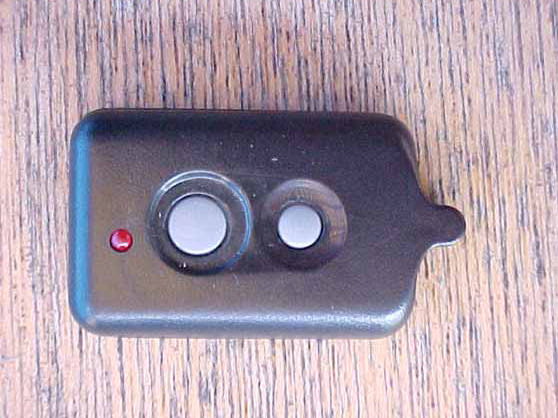

Description: Accele Electronics, Inc. RF Transmitter- FCC ID: “OXEKETX” This RF transmitter is designed to operate only when a button is pressed. The operation will super impose a digital data stream on to a 302uHz RF carrier. This data stream includes identification and a button set if bits. This transmitter is the principal communication device between the operator and the electronic receiver. This pre-wired control of selected parts of the automobile maybe activated remotely. Pressing button one will lock doors and inhibit starter. Pressing button two will unlock doors and allow the automobile to start.

Page: 5 of 5Received: 16.Mar.00 11:16 AM From: 5628093150 To: 7812078010

FCC ID: OXEKETX Report No.: B00221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 15 FCC PART 15, SUBPART C TEST METHOD: ANSI C63.4-1992 TEST REPORT for KEYLESS ENTRY TRANSMITTER Model: KETX Prepared for ACCELE ELECTRONICS 17900 CRUSADER AVENUE CERRITOS, CALIFORNIA 90703 COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 23, 2000 REPORT APPENDICES TOTAL BODY A B C D PAGES 15 2 2 8 13 40 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: OXEKETX Report No.: B00221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 14 8. CONCLUSIONS 15 FCC ID: OXEKETX Report No.: B00221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors D Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site FCC ID: OXEKETX Report No.: B00221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Keyless Entry Transmitter Model: KETX S/N: WTX001 Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Accele Electronics 17900 Crusader Avenue Cerritos, California 90703 Test Date: February 21, 2000 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart C, Sections 15.205 and 15.231 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz This test was not performed because the EUT runs off one 12 volt battery only and cannot be powered by any device that runs off of the AC public mains. 2 Radiated RF Emissions, 10 kHz - 3100 MHz Complies with the limits of CFR Title 47, Part 15, Subpart B and Subpart C, sections 15.205 and 15.231 FCC ID: OXEKETX Report No.: B00221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Keyless Entry Transmitter Model: KETX. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by CFR Title 47, Part 15, Subpart B and Subpart C, sections 15.205 and 15.231. FCC ID: OXEKETX Report No.: B00221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 15 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST). 2.3 Cognizant Personnel Accele Electronics Emery Pudder Engineer Compatible Electronics Inc. Kyle Fujimoto Test Engineer Scott McCutchan Lab Manager 2.4 Date Test Sample was Received The test sample was received on February 21, 2000. 2.5 Disposition of the Test Sample The test sample was returned to Accele Electronics on February 22, 2000. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC ID: OXEKETX Report No.: B00221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 7 of 15 3. APPLICABLE DOCUMENTS The following documents are referenced or used in the preparation of this EMI Test Report. SPEC TITLE CFR Title 47, Subpart C FCC Rules – Radio frequency devices (including digital devices) – Intentional Radia…
