OXERFMWL3Wireless FM Modulator

Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of1 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator MODEL:RFMWL 3 Introduction The RFMWL 3 is a FM Stereo Wireless FM Modulator. And This Item is special designed for mobile. Stereo audio signal input to wireless FM modulator from any audio sources such as DVD,VCR,GAME and etc. Input audio signal is converting to composite signal with FM modulation. It’s modulated FM RF signals transmitting to any FM receiver such as car FM stereo receivers or home FM stereo receivers. Specifications 1) Modulation : Frequency Modulation 2) Carrier OSC : PLL Synthesized 3) Transmission Frequencies : 88.1 / 88.3 / 88.5 / 88.7 / 88.9MHz 4) DC Power Input : DC +12V 5) Clock & Other Frquencies Utilized : 7.6MHz 6) FM Deviation : 190KHz(Max) 7) Audio Input Signal Level :775mV (1V P-P)

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 1 of 1 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 X - Tal 7,6MHz

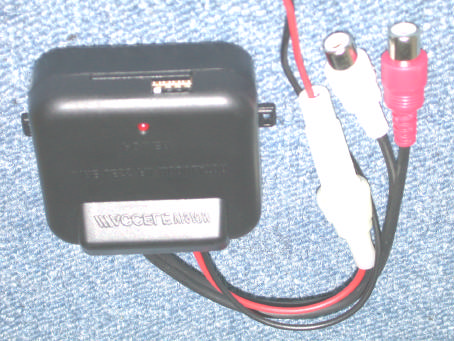

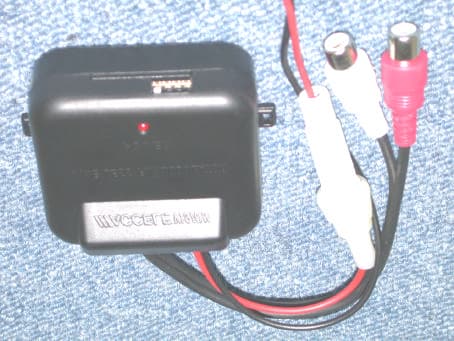

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 1 of 2 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 Top Side View of EUT Bottom Side View of EUT Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 2 of 2 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 View of Cover View of Cover

Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 1 of 1 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC Identifier (FCC ID :) and compliance statement are marked in the product label. The user notice and warning statement are described in the user manual. Wireless FM Modulator OXERFMWL3 Model NO : RFMWL 3 POWER : DC 12V(Battery) Serial No : N/A This device complies with part 15 of the FCC Rules.. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label Here

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 1 of 2 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 Inside View of EUT Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 2 of 2 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 Top Side View of Main 1

Appendix H. Operational Description ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 1 of 1 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 Operational Description The Equipment Under Test(EUT) is the Accele Electronics Inc. Wireless FM Modulator Model:RFMWL 3(FCC ID : OXERFMWL3). This Wireless FM Modulator is supply powered by DC 12V Adaptor and Battery. This equipment is Modulated FM RF signals transmitting to any FM receiver such as home FM stereo receivers. The wireless is support with audio source for FM frequency band of 88.1 ~ 88.9 MHz FM stereo receivers. - Chassis Type Plastic ( Internal copper coating) - List of Each OSC. Or X-Tal. Freq.(>=1MHz) X1:7.6MHz - Main IC : BA1417F - RF Frequency Out 88.1 MHz – 88.9 MHz - I/O Cable(s) Unshielded - Power Requirement DC 12V - Dimension(LxD) 600 x 550 mm

Appendix F. Circuit Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of1 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator MODEL:RFMWL 3

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement PRODUCT : Wireless FM Modulator MODEL/TYPE NO : RFMWL 3 FCC ID : OXERFMWL3 APPLICANT : ACCELE ELECTRONICS INC. 17900 Crusader Avenue Cerritos CA. 90703 U.S.A Attn. : Mr. Allen Arzoumanian/President MANUFACTURER : Sky Sound Corporation. Rm.803,Nok-Won Bldg, #302, Haan-Dong, KwangMyung-City, KyungKi-Do, Korea FCC CLASSIFICATION : Low Power Communication Device Transmitter : Intentional Radiator FCC RULE PART(S) : FCC Part 15 Subpart C 15.239 and CISPR 22 Class B FCC PROCEDURE : Certification TRADE NAME : Accele Vision TEST REPORT No. : E03.0522.FCC.285N DATES OF TEST : May 20 ~ 21, 2003 DATES OF ISSUE : May 22, 2003 TEST LAB. : ETL Inc ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 This Wireless FM Modulator has been tested in accordance with the measurement procedures. specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C section15.239. I attest to the accuracy of data. All measurement herein performed by me or made under my supervision and correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Name : Yo Han, Park Title : Chief Engineer E-RAE Testing Laboratory Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 2 of 19 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Te st Results 5.1 Summary of Test Results 5.2 Conducted Emission 5.3 Radiated Emissions of RF Carrier frequency 5.4 Out-of-band Radiated Emissions 5.5 Emission Bandwidth Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 3 of 19 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : Wireless FM Modulator. l Model Number : RFMWL 3 l FCC Identifier : OXERFMWL3 l Freq. Range : 88.1 MHz – 88.9 MHz l FCC Rule Part(s) : Part 15 Subpart C Section 15.239 and CISPR 22 Class B l Test Procedure : ANSI C63.4-1992 l FCC Classification : DXX - Low Power Communication Device Transmitter : Intentional Radiator l Dates of Tests : May 20 ~ 21, 2003 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, 469-880, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E03.0522.FCC.285N Applicant Name : Accele Electronics Inc. Address : 17900 Crusader Avenue Cerritos CA. 90703 U.S.A Contact Person : Mr. Allen Arzoumanian/President ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 4 of 19 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki- do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the Accele Electronics Inc.. Wireless FM Modulator Model : RFMWL 3. ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 5 of 19 FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : May 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test(EUT) is the Accele Electronics Inc. Wireless FM Modulator Model:RFMWL 3(FCC ID : OXERFMWL3). This Wireless FM Modulator is supply powered by DC 12V. This equipment is Modulated FM RF signals transmitting to any FM receiver such as home FM stereo receivers. The wireless is support with audio source for FM frequency band of 88.1 ~ 88.…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea FCC ID : OXERFMWL3 Report No: E03.0522.FCC.285N Date of Issue : Ma 22, 2003 Accele Electronics Inc. Wireless FM Modulator Model : RFMWL 3 Radiated Emission Test Setup
