OXGAB80Show Box

1 LITETUNES #V45000-26 Thank you for purchasing this new Sylvania™LITETUNES. This LITETUNES assembles in minutes. TheLITETUNES: CARTON INCLUDES:  1 Litetunes  2 Remote controls  1 Set ground stake  1 Audio cable The litetunes enables the user to plug in lights, trees and yard decoration, connect your favorite holiday music and select from 9 functions to create your very own light & sound show. Introduction of litetunes 1. There are 6 receptacle behind the host. You can insert 6 different groups of lamp combination. 2. Touch button of litetunes panel, manual operation:  Control the switch of litetunes.  Chose different light show mode.  LED display, indicate different working mode. 3. The litetunes has RF receiver function, you can control the power on/off and different light show mode of host via remote control. 4. The litetunes has wifi function, you can control litetunes through phone app.  Deliver the music on the phone to the litetunes, the music will play on the litetunes.  Control the switch of litetunes. PRODUCT FUNCTION 2  Choose different light show mode.  Choose different timer (choose the working time of litetunes).  Control the power of 6 receptacles individually as power output. OPERATION INSTRUCTIONS The litetunes need to be plugged into a power source, they can be plugged into a wall socket directly or into a power cord. Note: always use ul approved power cords with outdoor rating GFCI outlet. Plugging in your lights, trees and yard décor. Plug 6 different groups of lamp combination into the 6 receptacles on the back of litetunes. When the power supply is on, turn on the power switch on the back of litetunes. The LED Display panel shows “- -” 1. Press the power on/off on litetunes panel. The LED Display panel shows “00” The 6 lights light on one time sequentially, then all lights on. 2. There are 9 functions of steady ways of flashing lamp. Press the power on/off on litetunes panel to choose. Function 1-9: LED Display panel shows “01-09” Function 10 Lights dance along with the melody of music. 3. Press the power on/off button more than 2 seconds to make power off. 4. Line in mode: Deliver the music on the phone or MP3/ipod into the litetunes via audio cable. The working mode automatically changed into function 10 (LED Display panel shows “10”) 5. When in Line in mode, the wifi of smart phone couldn’t use. SAFETY INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product. 1. When in the mode of light & sound show (Light of output plug dances along with music), the maximum output amperage of each plug is 2.5A. 2. When using remote control to control the power (using phone app), the output amperage of each output plug is 15A(maximum). 3 Insulating tape ASSEMBLY INSTRUCTIONS 1. Assemble the ground stakes. 2. Choose a location of installation in your yard, insert the ground stake into ground stake jack of litetunes and insert into the mud. Note: Close to the wall which has power receptacle, it can shelter the rain. REMOTE CONTROL Remote control functions: Please note litetunes have 2 remote control. Please pull out the insulating tape from the remote control, Before starting to use it. 1. The first button is for the on/off power switch for the lights and the second button is for choosing different functions. 2. Connect the MP3 player (not included) to the pink connector and press /Fn button. Select from the following lighting functions: Function 1-9: Steady ways of flashing lamps Function 10: Lights dance along with the melody of music If the remote control does not work, check whether the battery of the remote control is out of power. 1 2 4 Battery installation: 1. Remove the Remote control and battery from the poly bag. 2.Open the battery cover on the back of the remote by sliding the cover towards the bottom of the remote. WARNING: This is not a toy and is not intended for use by children. (A) Do not dispose of the battery in fire as the battery may leak and explode. (B) Do not mix old and new batteries and do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. (C) Exhausted batteries are to be removed from the product. (D) Do not expose the Remote Control to moisture (E) Remote battery when not used for extended period of time, or when depleted. (F) Dispose of battery properly by following directions on battery (D) Use only 12v alkaline battery type 23a of replacement, use of other battery may damage remote. Safe for indoor use. Smart phone Operating Please remove the pink connector cord if using Wi-Fi. 1. Download application named litetunes app on your smart phone. (ios : App store/android : Google play ) 2. Go to phone setting for WiFi setting. Look for Ϙlitetunes” and select it to get connected. (Fig. 1) 3. Start Ϙlitetunes ” App. (Fig. 2) 4. The opening screen of application “litetunes” is shown on Fig. 3. 5. Main Menu of apple phone is shown on Fig. 4. Fig. 1 Fig. 2 Fig. 3 Fig. 4 1. POWER SWITCH This is to turn on/off the litetunes. 5 2. FUNCTIONS SELECTION 10 functions can be selected sequentially by each pressing. The color of this icon changes after each pressing. 3. music - iphone (apple) 1.Touch the music icon from the main menu. 2.Application will automatically take you to your music playlist on your phone. 3.Select a song from your music playlist. Once selected, swipe screen from bottom to top to open new screen as pictured. 4.Towards the bottom of the newly opened screen you will touch the airplay tab. On the next screen select litetunes tab and the music will begin playing through the litetunes with the lights in sync with the music. 5.Detailed step by step images shown on Figure 1 thru 6. Fig.1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 6 MUSIC PLAYER FUNCTION 1. Music Selection 2. Player Functions (from left to right):  Random Play  Back  Play  Forward  Stop 3. Current Music Playing Position TIMER FUNCTION Lights will stay on for the time selected. Set …

Text truncated - open the document above for the full version.

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Willis Electric CO., Ltd. Addresss No.504-1, Chung-Hua Road, Sec.4 Hsin Chu, 300 Taiwan City 300 Taiwan Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: OXG AB80 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Turn up produrce Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Taiwan, China 2014 -04-21 Grace Dai Safety Engineer

Model No : AB80 Model Name: Show Box

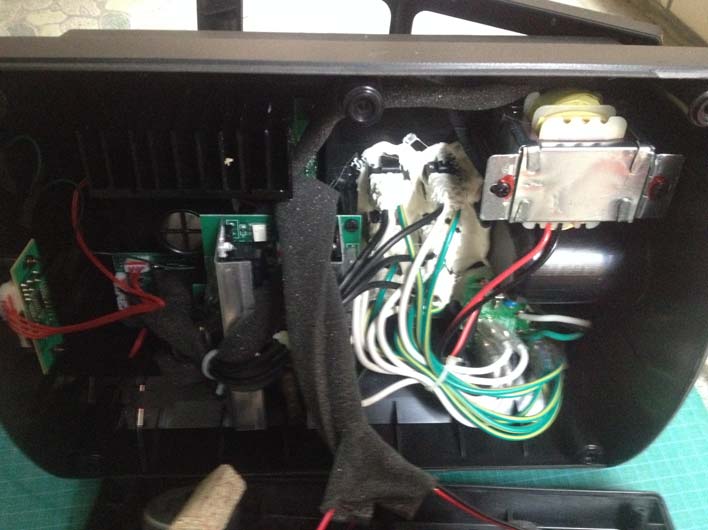

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 WIFI ANT Photo 19

RF EXPOSURE TEST FCC ID: OXGAB80 IC: 10460A-AB80 Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 TEST RESULTS NOTE: (For mobile or fixed location transmitters, the maximum power density is 1.0mW/cm 2 even if the calculation indicates that the power density would be larger) PK output power (MAX) (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 17.61 57.67 1.641(2.15dbi)0.0188 1 Pass

FCC RADIO TEST REPORT Prepared For Willis Electric CO., Ltd. Product Name: Show Box Trade Name: N/A Model Name : AB80 FCC ID: OXGAB80 IC: 10460A-AB80 Prepared By DongGuan Precise Testing Service Co.,Ltd. Room 203-204, 2F, Xinye Building, No.67 Shijing, Guanzhang Road, Dongguan, China Report No. PTS201404057F Test Date: Apr.15, 2014 ~ Apr.24, 2014 Date of Report : Apr.24, 2014 Page 2 of 59 Report No.：PTS201404057F VERIFICATION OF COMPLIANCE Applicant: Willis Electric CO., Ltd. Address No.504-1, Chung-Hua Road, Sec.4 Hsin Chu, 300 Taiwan Manufacturer Name: Willis Electric CO., Ltd. Address: No.504-1, Chung-Hua Road, Sec.4 Hsin Chu, 300 Taiwan Product Description: Show Box Brand Name: N/A Model Name: AB80 Model difference: N/A Test procedure FCC Part15.247, RSS-210 Annex 8 Standards ANSI C63.4-2003, RSS-Gen Issue 3 Prepared by : Assistant Reviewer : Supervisor Approved & Authorized Signer : Jacky Ou / Manager Page 3 of 59 Report No.：PTS201404057F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . POWER SPECTRAL DENSITY TEST 36 4.1 APPLIED PROCEDURES / LIMIT 36 4.1.1 TEST PROCEDURE 36 4.1.2 DEVIATION FROM STANDARD 36 4.1.3 TEST SETUP 36 4.1.4 EUT OPERATION CONDITIONS 36 4.1.5 TEST RESULTS 37 5 . BANDWIDTH TEST 43 5.1 APPLIED PROCEDURES / LIMIT 43 5.1.1 TEST PROCEDURE 43 5.1.2 DEVIATION FROM STANDARD 43 Page 4 of 59 Report No.：PTS201404057F Table of Contents Page 5.1.3 TEST SETUP 43 5.1.4 EUT OPERATION CONDITIONS 43 5.1.5 TEST RESULTS 44 6 . PEAK OUTPUT POWER TEST 50 6.1 APPLIED PROCEDURES / LIMIT 50 6.1.1 TEST PROCEDURE 50 6.1.2 DEVIATION FROM STANDARD 50 6.1.3 TEST SETUP 50 6.1.4 EUT OPERATION CONDITIONS 50 6.1.5 TEST RESULTS 51 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 52 7.1 DEVIATION FROM STANDARD 52 7.2 TEST SETUP 52 7.3 EUT OPERATION CONDITIONS 52 7.4 TEST RESULTS 53 8 . ANTENNA REQUIREMENT 57 8.1 STANDARD REQUIREMENT 57 8.2 EUT ANTENNA 57 9 . EUT TEST PHOTO 58 Page 5 of 59 Report No.：PTS201404057F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C RSS-210 Annex 8 Standard Section Test Item Judgment Remark 15.207&7.2.4 Conducted Emission PASS 15.247 (a)(2) & A8.26dB Bandwidth PASS 15.247 (b) & A8.4 Peak Output Power PASS 15.247 (c) &A8.5 Radiated Spurious Emission PASS 15.247 (d) & A8.2 Power Spectral Density PASS 15.205&A8.5 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 59 Report No.：PTS201404057F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 59 Report No.：PTS201404057F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Show Box Trade Name N/A Model Name AB80 Serial Model N/A Model Difference N/A Product Description The EUT is a Show Box Operation Frequency: 802.11b/g/n:2412~2462 MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n(20): DSSS (CCK, DQPSK,DBPSK)+OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n:65/52/6.5Mbps Number Of Channel 802.11b/g/n(20):11CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 17.61 dBm (Max.) 802.11g: 15.79 dBm (Max.) 802.11n: 14.78 dBm (Max.) Antenna Gain (dBi) 2.15dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Ratings AC 120V Adapter N/A Battery N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 8 of 59 Report No.：PTS201404057F 2. Channel List for 802.11b/g/n(20) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 2412 04 2427 07 2442 10 2457 02 2417 05 2432 08 2447 11 2462 03 2422 06 2437 09 2452 3. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE A N/A N/A Integrated antenna N/A 2.15 Wifi Antenna Page 9 of 59 Report No.：PTS201404057F 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. P…

Text truncated - open the document above for the full version.

Page 56 of 57 Report No.：PTS201404057F 9. EUT TEST PHOTO Radiated Measurement Photos Page 57 of 57 Report No.：PTS201404057F Conducted Measurement Photos
