OXGWDT001Remote Control

1 Holiday Living & Design® is a registered trademark of LF, LLC. All Rights Reserved. ITEM #02 06136 7.5 FT PRE-LIT 12-FUNCTION TREE MODEL #W14L0179 ATTACH YOUR RECEIPT HERE Serial Number _______________ Purchase Date _______________ Lowes.com Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. Español p. 10 2 PACKAGE CONTENTS Lowes.com PART DESCRIPTION QUANTITY A Top Section 1 B Middle Section 1 C Bottom Section 1 D Base with Speaker and Control Box 1 E Screw 1 F Pink Connector 1 3 SAFETY INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING To reduce the risk of electric shock or injury:  Do not plug in the unit before assembly.  Keep electric wires clear of being pinched or cut during assembly or installation. Discard sets with cut or damaged insulation.  For indoor use. RISK OF FIRE Do not replace attachment plug. Discard product if the attachment plug is damaged. CAUTION  To reduce the risk of overheating, replace burned-out bulbs promptly. Use 3 volt LED bulbs only.  These lightings are rated 20 watts (0.02 amps). Do not overload.  To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified personnel. When using electrical products, basic precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS  Do not use seasonal products outdoors unless marked suitable for indoor and outdoor use. When products are used in outdoor applications, connect the product to a Ground Fault Circuit Interrupting (GFCI) outlet. If one is not provided, contact a qualified electrician for proper installation.  This seasonal-use product is not intended for permanent installation or use.  Do not mount or place near gas or electric heaters, fireplaces, candles or other similar sources of heat.  Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.  Do not let lamps rest on the supply cord or on any wire.  Unplug the product when leaving the house, when retiring for the night, or if left unattended.  This is an electric product – not a toy! To avoid risk of fire, burns, personal injury and electric shock it should not be played with or placed where small children can reach it.  Do not use this product for other than its intended use.  Do not hang ornaments or other objects from cord, wire or light string.  Do not close doors or windows on the product or extension cords as this may damage the wire insulation.  Do not cover the product with cloth, paper or any material not part of the product when in use.  This product is equipped with push-in type bulbs. Do not twist bulb.  This product has a polarized plug (one blade is wider than the other) as a feature to reduce the risk of electric shock. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not use with an extension cord unless plug can be fully inserted. Do not alter or replace the plug.  For connection to a supply not in the U.S.A., use an attachment plug adaptor of the proper configuration for the power outlet, if needed.  Do not use a cracked, frayed, or damaged cord. Inspect the cord periodically.  Do not abuse cord. Do not carry product by the cord or yank or pull it to disconnect from the outlet.  Disconnect the product from the outlet when not in use. Lowes.com 4  CAUTION – If the connector of this lighting string does not properly fit into the connector of the driver, do not modify the product and discard product if the connector is damaged.  Do not use this apparatus near water.  Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.  Clean only with dry cloth.  Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.  Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.  Only use attachments/accessories specified by the manufacturer.  The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.  The main plug is used as the disconnect device, which shall remain readily operable.  WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.  Heed all warnings.  Read and follow all instructions that are on the product or provided with the product. SAVE THESE INSTRUCTIONS PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Estimated Assembly Time: 20 minutes This tree assembles with Quick Connect™ technology for a faster, easier, and safer convenience. No tools required for assembly. ASSEMBLY INSTRUCTIONS 1. Place the base (D) on a level surface. Unfold the base (D) and insert the screw (E) into the hole. Lowes.com 1 5 2. There is equipment on the stand: the green box is a control box, and the black box is a speaker. Connect green control box to the black speaker with green connector provided on the speaker. Connect the pink connector to control box to your selected MP3 player (not included). There is an on/off switch on the side of the speaker, with voice balance and an earphone jack to control the speaker. 3. Insert bottom section (C) into the base (D). Make sure the groove with white color on bottom section (C) is aligned with the groove with white color on the base (D) and pole is firmly insert…

Text truncated - open the document above for the full version.

Willis Electric Co., Ltd. Add: No.504-1, Chung-Hua Road, Sec.4, Hsin Chu, Taiwan 300, China Tel: 886-03-5385155 Fax: 886-03-5380951 2012-07-30 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: OXGWDT001 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Ms Grace Dai / Safety Engineer Contact information / Address : No.504-1, Chung-Hua Road, Sec.4, Hsin Chu, Taiwan 300, China Tel: 886-03-5385155 Fax: 886-03-5380951 E-Mail: [email protected]

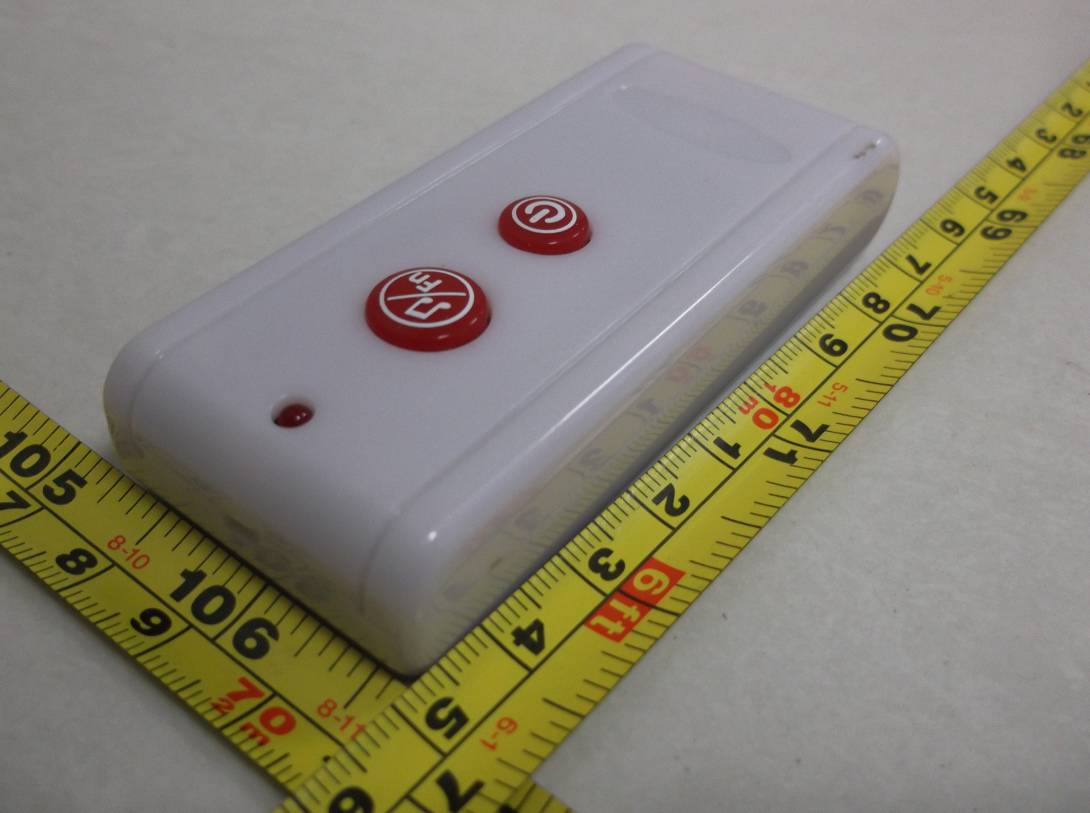

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OXGWDT001 Report No.: LCS120727150TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2
