OXGZW32Receptacle Outlet

FCC/IC ZW32 Smart Outlet Manual Federal Communications Commission (FCC) Statement FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user ’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may caus harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. IC Caution: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. In-wall smart outlet DECLARATION DE CONFORMITE D'INDUSTRIE CANADA Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même. si le brouillage est susceptible d’en compromettre le fonctionnement. WARRANTY Show Home Products warrants this product to be free from manufacturing defects for a period of two years from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this product. This warranty is in lieu of all other warranties, expressed or implied. Some states do not allow limitations on how long an implied warranty lasts or permit the exclusion or limitation of incidental or consequential damage, so the above limitations may not apply to you. This warranty gives you specific rights, and you may also have other rights which vary from state to state. if the unit should prove defective within the warranty period. SPECIFICATIONS Model:ZW32 Power: 120 VAC, 60 Hz. Signal (Frequency): 908.42 MHz. Maximum Loads: 600W, incandescent, ½ HP Motor or 1800W (15A) Resistive Range: Up to 100 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module. Operating Temperature Range: 32-104° F (0-40° C) For indoor use only. Specifications subject to change without notice due to continuing product improvement Website www.ishowlights.com WARNING RISK OF FIRE RISK OF ELECTRICAL SHOCK RISK OF BURNS CONTROLLING APPLIANCES: EXERCISE EXTREME CAUTION WHEN USING Z-WAVE DEVICES TO CONTROL APPLIANCES. OPERATION OF THE Z-WAVE DEVICE MAY BE IN A DIFFERENT ROOM THAN THE CONTROLLED APPLIANCE, ALSO AN UNINTENTIONAL ACTIVATION MAY OCCUR IF THE WRONG BUTTON ON THE REMOTE IS PRESSED. Z-WAVE DEVICES MAY AUTOMATICALLY BE POWERED ON DUE TO TIMED EVENT PROGRAMMING. DEPENDING UPON THE APPLI- ANCE, THESE UNATTENDED OR UNINTENTIONAL OP- ERATIONS COULD POSSIBLY RESULT IN A HAZARDOUS CONDITION. FOR THESE REASONS, WE RECOMMEND DO NOT RETURN THIS PRODUCT TO THE STORE THE FOLLOWING: DO NOT USE Z-WAVE DEVICES TO CONTROL ELECTRIC HEATERS OR ANY OTHER APPLIANCES WHICH MAY PRES- ENT A HAZARDOUS CONDITION DUE TO UNATTENDED OR UNINTENTIONAL OR AUTOMATIC POWER ON CONTROL. Getting To Know Your New Z-Wave Device • One Z-wave remote controlled outlet • Remote ON/OFF control via the Z-Wave controller/network • Manual ON/OFF control with the manual/program button • One Always-ON pass through outlet • Blue LED indicates outlet location in a dark room 2 Step: 1. Shut off power to the circuit at circuit breaker or fuse box. 2. Remove wall plate. 3. Remove the outlet mounting screws. 4. Carefully remove the outlet from the outlet box. 5. Disconnect the wires from the existing outlet. Be careful to label wires according to the previous terminal connection. 6. There are three terminal on the Z-Wave smart outlet. A. GROUND — Green B. Neutral — White C. Line (Hot) — Black (connected to power) Match these to the wires connected on the existing outlet. Warning: Verify power is OFF to switch box before continuing A. Always-on outlet B. Manual/Program Button C. Z-Wave controlled outlet Step: D.Ground(green) E.Line(Hot) F.Neutral(White) Observe Important Wiring Information Always follow the recommended wire strip lengths and wiring combination when making wiring connections. You may wish to consult a electrician with questions or for professional installation. Important: The wire connectors included with this receptacle are intended to only be used with copper wire. Consult a qualified electrician if you have aluminum wiring. Wire Gauge Requirements Use 14 AWG or larger wires suitable for at least 80° C for supplying HOT, neutral, ground and connections. 1. R…

Text truncated - open the document above for the full version.

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Willis Electric CO.,Ltd. Addresss No.504-1,Chung-Hua Road, Sec.4, Hsin Chu,300 Taiwan City Hsin Chu Country request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: OXG ZW32 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) X Operational Description x Block Diagrams x Schematics Diagrams Turn up produrce Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hsin Chu 2015 -03-16 Grace Dai Safety Engineer

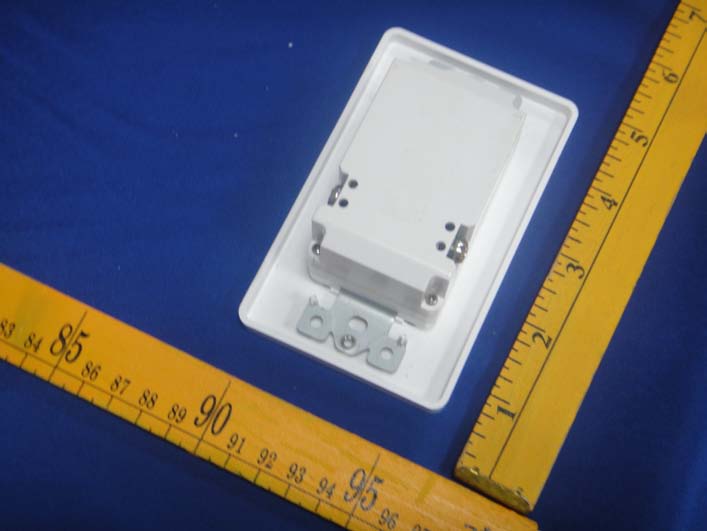

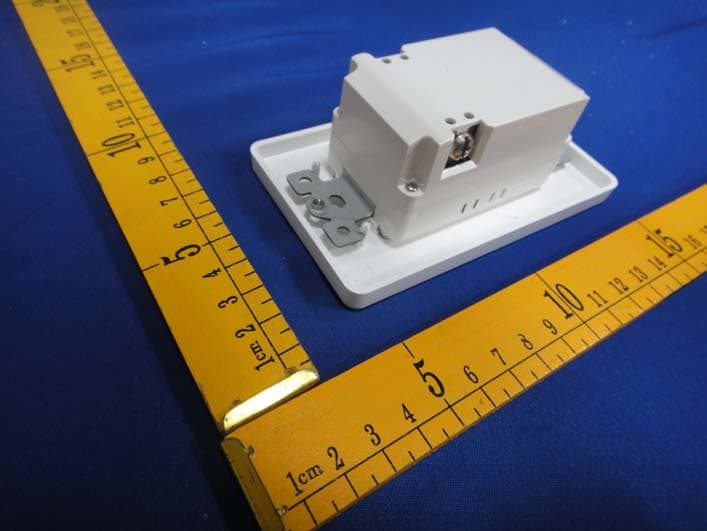

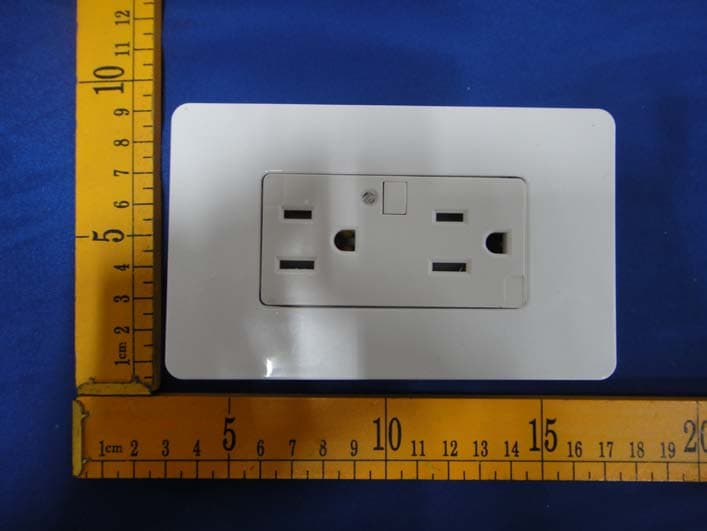

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS

Label And Location

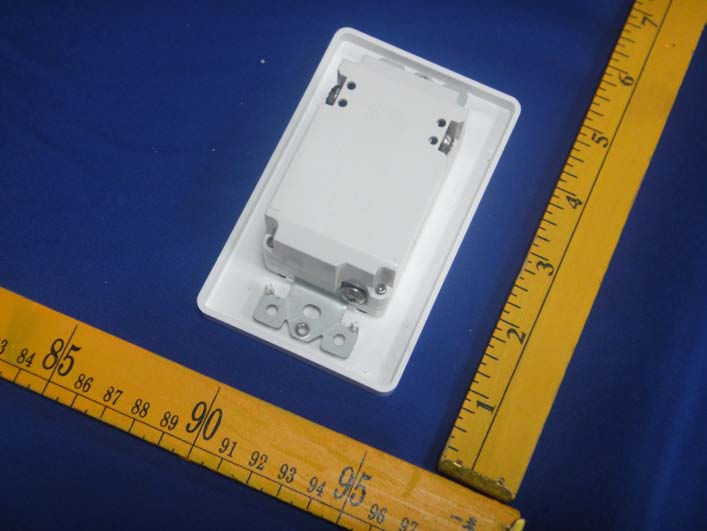

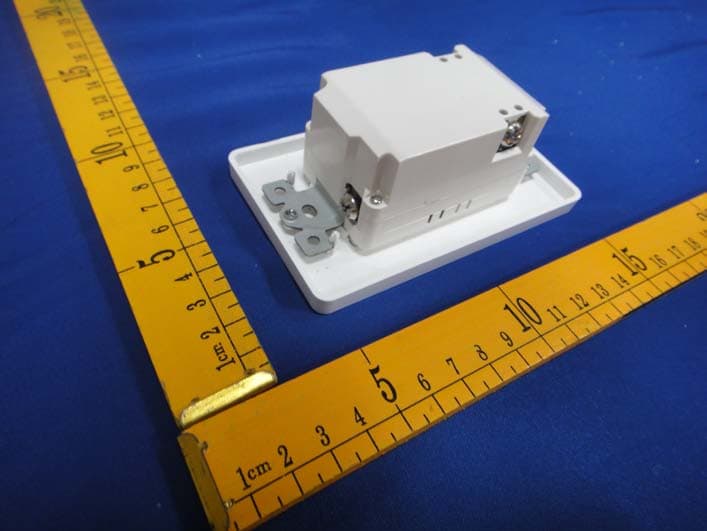

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS

FCC RADIO TEST REPORT FCC ID: OXGZW32 Product Name: Receptacle Outlet Trademark: Show Home Model Number: ZW32 Prepared For : Willis Electric CO.,Ltd. Address : No.504-1,Chung-Hua Road, Sec.4, Hsin Chu,300 Taiwan Prepared By : DongGuan Precise Testing Service Co.,Ltd. Address : Building D, Baoding Technology Park, Guangming Road 2, Guangming Community, Dongcheng District, Dongguan, Guangdong, China Test Date: May 01 – May 05, 2015 Date of Report : May 05, 2015 Report No.: PTS1503058016F Page 2 of 28 Report No.: PTS1503058016F VERIFICATION OF COMPLIANCE Applicant: Willis Electric CO.,Ltd. Address No.504-1,Chung-Hua Road, Sec.4, Hsin Chu,300 Taiwan Manufacturer Name: Kupoint(DongGuan)Electric Co.,Ltd Address: Huai De Village, HumenTown, Dong Guan, Guang Dong, China Product Description: Receptacle Outlet Brand Name: Show Home Model Name: ZW32 Model difference: N/A Test procedure ANSI C63.4-2009 Standards FCC PART15.249 Prepared by : Assistant Reviewer : Supervisor Approved & Authorized Signer : Page 3 of 28 Report No.: PTS1503058016F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 FOR RADIATED EMISSION TEST (BELOW 1GHZ) 10 FOR RADIATED EMISSION TEST (1GHZ ABOVE) 10 3 . TEST RESULT 12 3.1 ANTENNA REQUIREMENT 12 3.1.1 STANDARD REQUIREMENT 12 3.1.2 EUT ANTENNA 12 3.2 CONDUCTED EMISSION MEASUREMENT 13 3.2.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 TEST RESULT 15 3.3 RADIATED EMISSION MEASUREMENT 17 3.3.1 RADIATED EMISSION LIMITS 17 3.3.2 TEST PROCEDURE 18 3.3.3 DEVIATION FROM TEST STANDARD 18 3.3.4 TEST SETUP 19 3.3.5 TEST RESULTS (BLOW 30MHZ) 21 3.3.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 22 3.3.7 TEST RESULTS (ABOVE 1000 MHZ) 25 4 . 20DB AND 99 % BANDWIDTH TEST 27 4.1 TEST PROCEDURE 27 4.2 DEVIATION FROM STANDARD 27 4.3 TEST SETUP 27 4.4 TEST RESULTS 28 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 28 Report No.: PTS1503058016F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission Pass 15.203 Antenna Requirement Pass 15.249(a)&(d)&15.209Radiated Spurious Emission Pass 15.215 20 DB Bandwidth Pass 15.249(d)&15.209 Band Edge Emission Pass 15.249(a) Fundamental Measurement Pass Page 5 of 28 Report No.: PTS1503058016F 1.1 TEST FACILITY FCC Registration No.: 371540, IC Registration No.: 12191A-1 Dongguan Precise Testing Service Co., Ltd. Add.: Building D,Baoding Technology Park,Guangming Road2,Dongcheng District, Dongguan, Guangdong, China 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 28 Report No.: PTS1503058016F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Receptacle Outlet Trade Name Show Home Model Name ZW32 Serial Model N/A Model Difference N/A Product Description The EUT is a Receptacle Outlet Operation Frequency: 908.42MHz Modulation Type: FSK Channel number 1 channel Antenna Designation: Wire antenna Antenna Gain(Peak) -2.1dBi Max. PK field strength 85.92 dBuV/m Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Power Supply AC 120V,60Hz HVIN ZW32 FVIN F_smart receptacle V1 Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 28 Report No.: PTS1503058016F 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 TX For Radiated Emission Final Test Mode Description Mode 1 TX Note: For the TX mode, the EUT is configured as the continuously transmitting mode. Page 8 of 28 Report No.: PTS1503058016F 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED E-1 EUT AC Page 9 of 28 Report No.: PTS1503058016F 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Item Equipment Mfr/Brand Model/Type No. Series No. Note E-1 Receptacle Outlet Show Home ZW32 N/A EUT Item Shielded Type Ferrite Core Length Note Note: (1) The support equipment was authorized by Declaration of Confirmation. (2) For detachable type I/O cable should be specified the length in cm in『Length』column. Page 10 of 28 Report No.: PTS1503058016F 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS FOR RADIATED EMISSION TEST (BELOW 1GHZ) Name of Equipment Manufacturer Model Serial No. Last Cal. Next Cal. EMI Test Receiver Rohde & SchwarzESCI 101417 July 4, 2014 July 3, 2015 Trilog Broadband Antenna (25M-1GHz) SCHWARZBECK VULB9160 9160-3355 July 4, 2014 July 3, 2015 Signal Amplifier SCHWARZBECK BBV 94759745-0013 July 4, 20…
