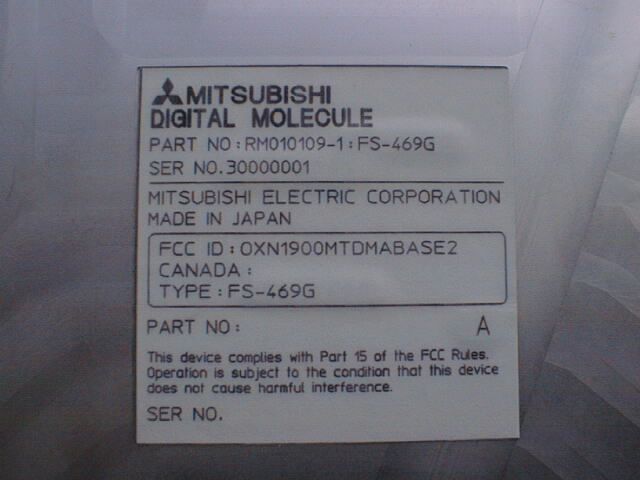

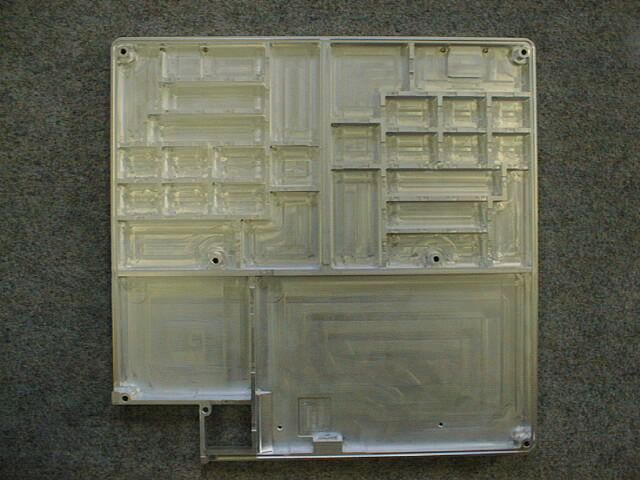

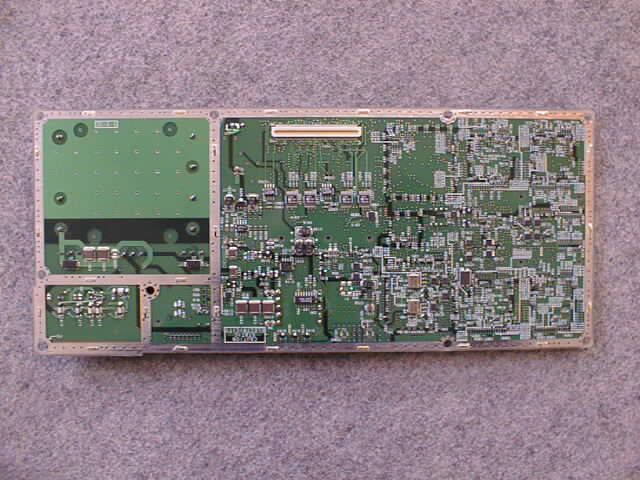

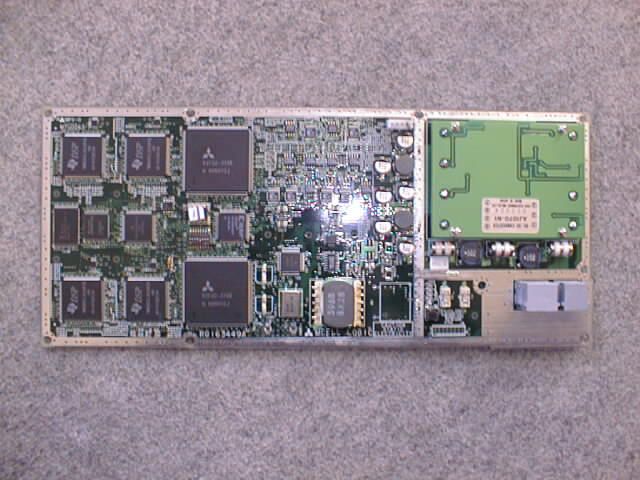

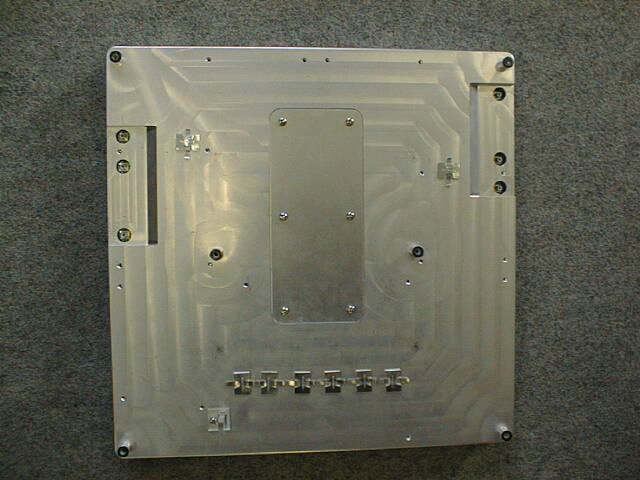

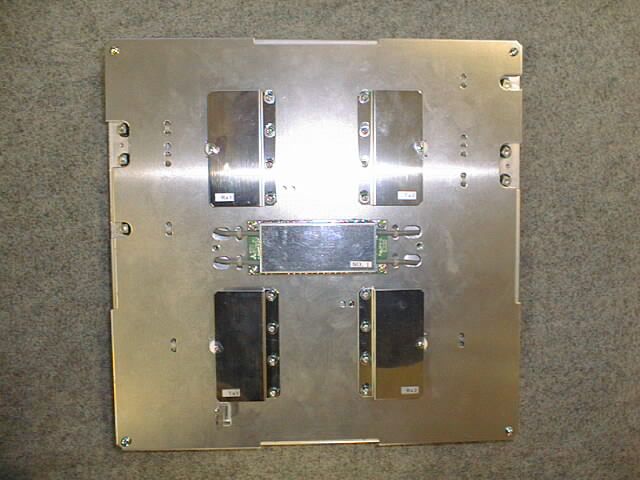

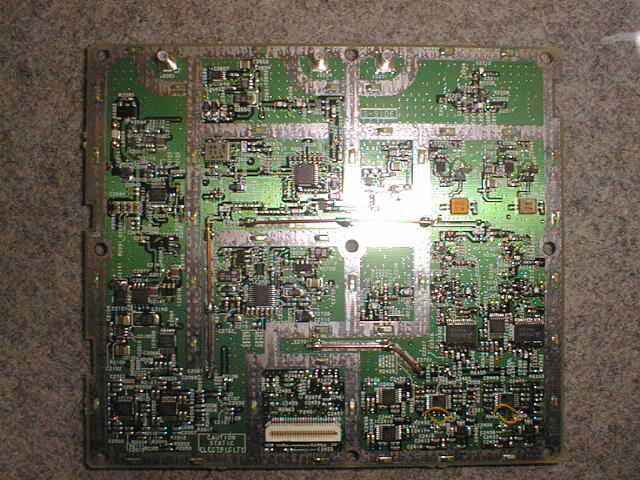

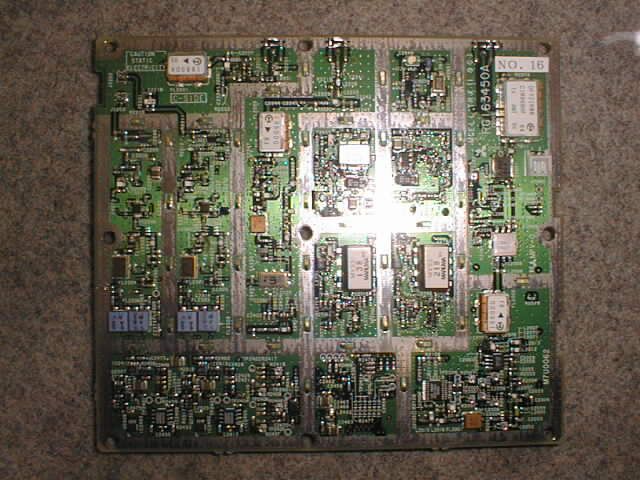

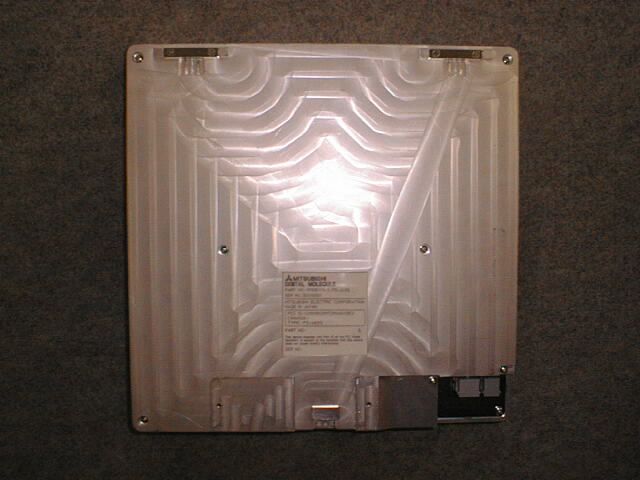

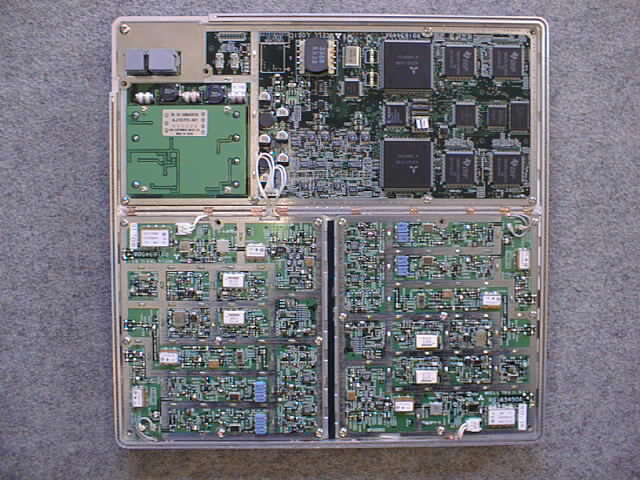

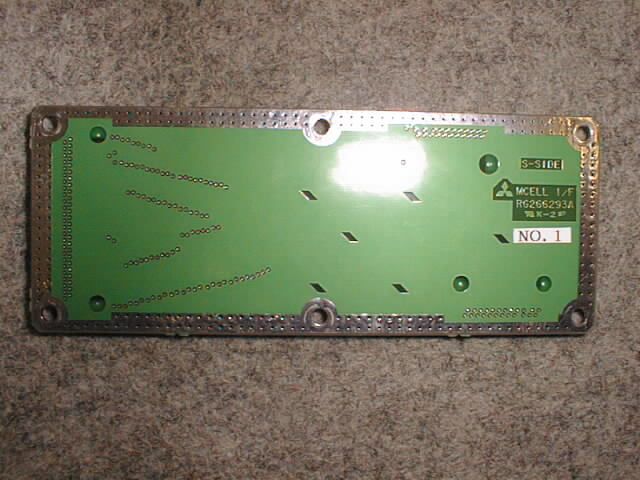

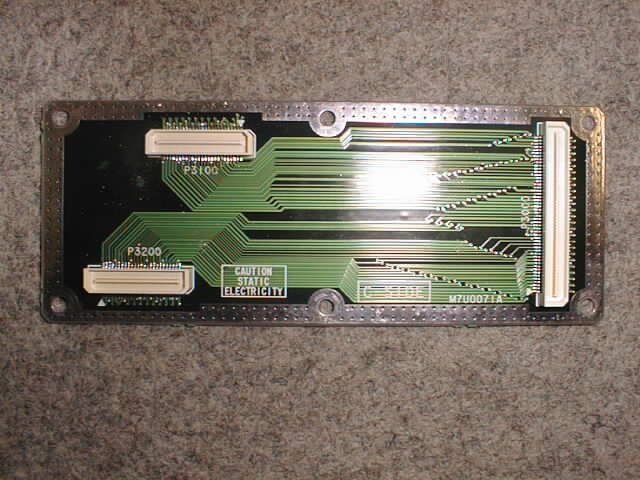

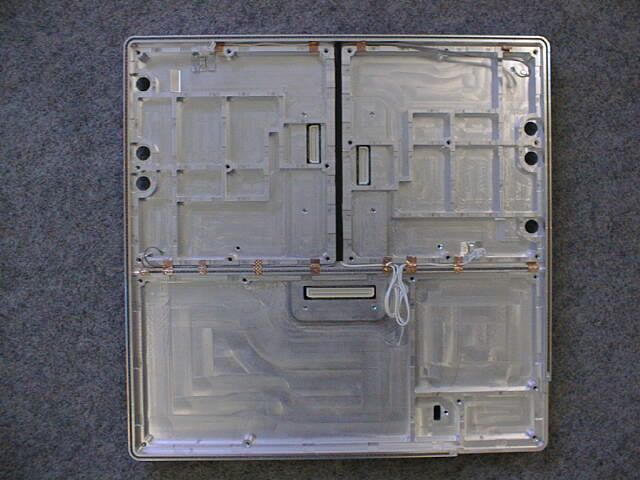

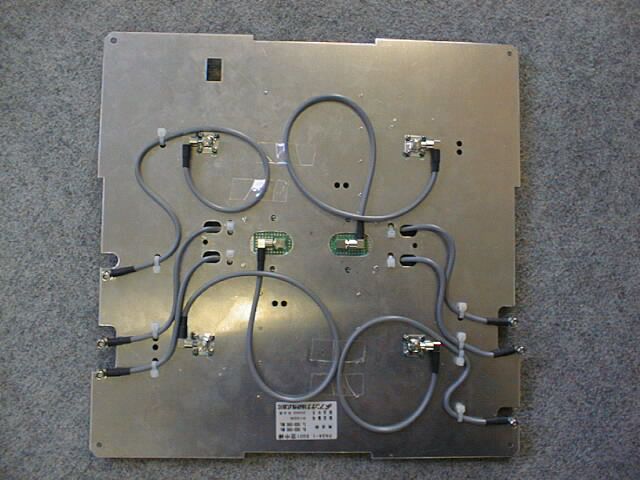

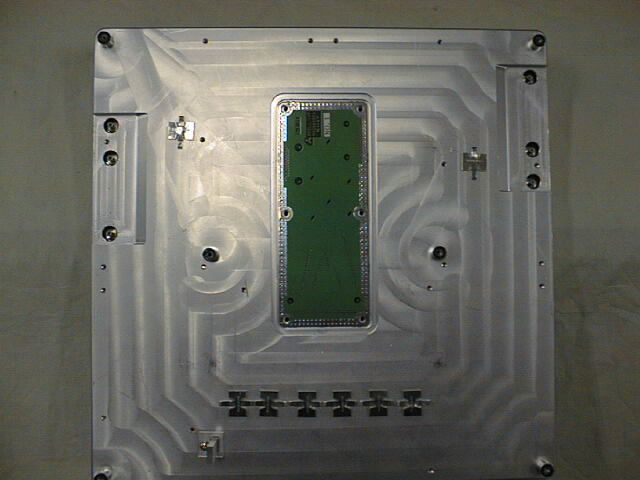

March 24, 2000 To: To whom it may concern Equipment Authorization Branch Federal Communications Commission Equipment Authorization Branch Subject: Electronic submission for FCC ID: OXN1900MTDMABASE2 Gentlemen: We would like to send these files for equipment authorization at the following schedule. Sending schedule (JST) March 24, 2000 : Cover letter : FCC ID label (3 files) : External photos (1 file) : Internal photos (13 files) : Users manual (1 file) : Test report (1 file) : Test setup photos (1 file) : Schematics (4 files) : Block diagram (2 files) Yours faithfully, (Ms) Makoto Okada EMC Div. Japan Quality Assurance Organization (JQA) Kita-Kansai Testing Center [email protected]

IssueDate:March21,2000 Page 1 of 52 EMC EMISSION - TEST REPORT JQA APPLICATION No.: KL8090756 Name of Product: 1.9GHz Wireless Base Station Unit (WBSU) Model/Type No.: FS-469G FCC ID: OXN1900MTDMABASE2 Applicant : MITSUBISHI ELECTRIC CORPORATION COMMUNICATION SYSTEMS BUSINESS DIVISON Address : 8-1-1, TSUKAGUCHI-HONMACHI, AMAGASAKI CITY, HYOGO 661-8661, JAPAN Manufacturer : MITSUBISHI ELECTRIC CORPORATION COMMUNICATION SYSTEMS BUSINESS DIVISON Address : 8-1-1, TSUKAGUCHI-HONMACHI, AMAGASAKI CITY, HYOGO 661-8661, JAPAN Receive date of TUT: February 25, 2000 Final Judgement :Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to Electro- technical Lab. of MITI Japan and Communications Research Lab. of PTT Japan. THE TEST RESULTS only responds to the test sample. This test report shall not be reproduced except in full. Page 2 of 52 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 9 Test Conditions10 - 23 Configuration of TUT / Operation mode of the TUT24 - 27 TUT Modification / Responsible Party28 Test results / Measurement Uncertainty29 - 30 Summary31 Test System-Arrangement (Drawings) 32 Test-setup (Photographs) at worst case 33 B) Test data Transmitter Power(TP)34 Antenna Spurious Conducted Emisson35 - 38 Maximum Transmitter Power(EIRP)39 Occupied Bandwidth40 - 43 Unawanted Radiation44 -47 Frequency Stability48 - 51 Maximum Permissible Exposure(MPE)52 JQA Application No. : KL8090756Regulation : CFR 47 FCC Rules Part 24 Model No.: FS-469GIssue Date : March 21, 2000 FCC ID: OXN1900MTDMABASE2 JQA Application No. : KL8090756Regulation : CFR 47 FCC Rules Part 24 Model No.: FS-469GIssue Date : March 21, 2000 FCC ID: OXN1900MTDMABASE2 Page 3 of 52 TEST REGULATION FCC Rules and Regulations Part 24 (Ocotober 1, 1998) ô- Narrowband PCS ò- Broadband PCS Test procedure: The tests were performed according to FCC Rules and Regulations Part 2 (Ocotober 1, 1999), and ANSI C63.4 (1992). GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai : 1st and 2nd Open Sites (3 m Site) Test Facility located at Kameoka Open Site (3, 10 and 30 m, on common plane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 Definitions for symbols used in this test report: ò- Black box indicates that the listed condition, standard or equipment is applicable for this Report. ô- Blank box indicates that the listed condition, standard or equipment is not applicable for this Report. JQA Application No. : KL8090756Regulation : CFR 47 FCC Rules Part 24 Model No.: FS-469GIssue Date : March 21, 2000 FCC ID: OXN1900MTDMABASE2 Page 4 of 52 Description of the Transmitter Under Test (TUT): 1) Name: 1.9GHz Wireless Base Station unit (WBSU) 2) Model/Type No.: FS-469G 3) Product Type: Prototype(Serial No. : 30000001) 4) Category: Broardband PCS 5) TUT Authorization: - Verification- Certification- D.o.C.ôòô 6) Transmitting Frequency: 1930.080 MHz (2 ch) - 1989.960 MHz (1998 ch) 7) Receiving Frequency: 1850.040 MHz (2 ch) - 1909.92 MHz (1998 ch) 8) Integrated Antenna: Patch Antenna ( /2, : Wavelength)λλ 9) Emisson Designations: 33K5D7W 10) Nominal ERP: 0.1 W 11) Power Rating: -24Vdc -48Vdc JQA Application No. : KL8090756Regulation : CFR 47 FCC Rules Part 24 Model No.: FS-469GIssue Date : March 21, 2000 FCC ID: OXN1900MTDMABASE2 Page 5 of 52 General Description of the TUT : The TDMA system is the medium for the linking calls between PBX and non-public systems users and mobile users. The system also enables a mobile user to communicate with other mobiles. This Wireless Base Station Unit(WBSU) is the distributed radio component of a 1.9 GHz PCS System that is being developed for the operation in the licensed PCS holder. The WBSU is being developed as a subsystem component. The WBSU provides the IS-136A air interface to handheld mobiles operating as a private in-building or campus system. The WBSU is connected to the centralized system controller through a dedicated line interface. This interface utilizes a RJ45 physical connector(modular). This cable connection from the controller to the WBSU provides the following signals. (1) -48Vdc power to supply a WBSU. (2) The clock source of 128kHz for the WBSU to control the frequency accuracy. (3) ISDN BRI(Basic Rate Interface) signal to control the communications. The voltage of -48Vdc generated at the controller gets lower as it comes to the WBSU by its consumption current through the line cable. It can operate at the input line voltage of -48Vdc to -24Vdc. An internal power supply circuit in th WBSU converts the DC input voltage into the internal working voltage of 5V and 3.6V. The WBSU is approximately 12" x 12" x 3". The unit weighs approximately 4kg. A security screw is provided which requires a special tool for removal. The antennas (TX1 and TX2) are integrated to the WBSU and are contained within the assembly. The operating frequency range of the WBSU is the standard licensed bands within the PCS spectrum. The output level of the transceiver is from -10dBW to -38 dBW and is software controlled. The network connections to provide voice or data communications through to the PSTN(Public Switched Telephone Network) or PBX are provided by the central controller and are not part of the WBSU. The TDMA system is the medium for linking calls between PBX and non-public system users and mobile users. The system also enables a mobile user to communicate with other mobiles. The WBSU is wall mounted on exposed interior walls. The basic office environment is air conditioned, normally 25 C(77 F). The humidity is usually low. The WBSU is designed to operate at least in 0°° (32 F) to 40 C(104 F). In an office environment, the equipment is in view but placed in locations that°°° are out of the general traffic areas. JQA Applica…

Text truncated - open the document above for the full version.

Page 52 of 52 Maximum Permissible Exposure(MPE) : The limit for Maximum Permissible Exposure(MPE) at frequency of 1.96 GHz is 1.00 mW/cm . (1.00 2 mW/cm for General Population/Uncontrolled environment in ß1.1310.) Since the total power of all 2 channels is less than 2000 WERP(3280 WEIRP), compliance testing with the MPE limits of ß1.1307 is not required. The conversion from power to power density uses the following equation : PD = PrG/4 r = EIRP/4 rππ 22 Where : PD is Power Density(in W/m ); 2 Pr is radiated power (in W); G is the numeric gain of the antenna; and EIRP is Equivalent Isotropically Radiated Power(=PrG) = 0.600 (W); and r is the distance(in m) from the antenna The conversion from W/m to mW/cm is:mW/cm = W/m /10 2222 Calculations: At a distance of r = 1 m from the antenna, the power density is (note that this power density will only be induced on an individual if that individual was physically 1 m in line-of-site of the antenna): Power density calculations for MPE ItemsTransmitter Antenna Measured Maximum EIRP(W)0.6 Power Density(W/m )0.048 2 Power Density(mW/cm )0.0048 2 Minimum distance in m for MPE0.07 At this power level, an individual would need to be within 0.07 m of the device in order to be at the limit for General Population/Uncontrolled exposure. This TUT ,at 1m away from the transmitter antenna, is well within the limits for maximum permissible exposure. JQA Application No. : KL8090756Regulation : CFR 47 FCC Rules Part 24 Model No.: FS-469GIssue Date : March 21, 2000 FCC ID: OXN1900MTDMABASE2

Radiated Emission Front View Rear View
