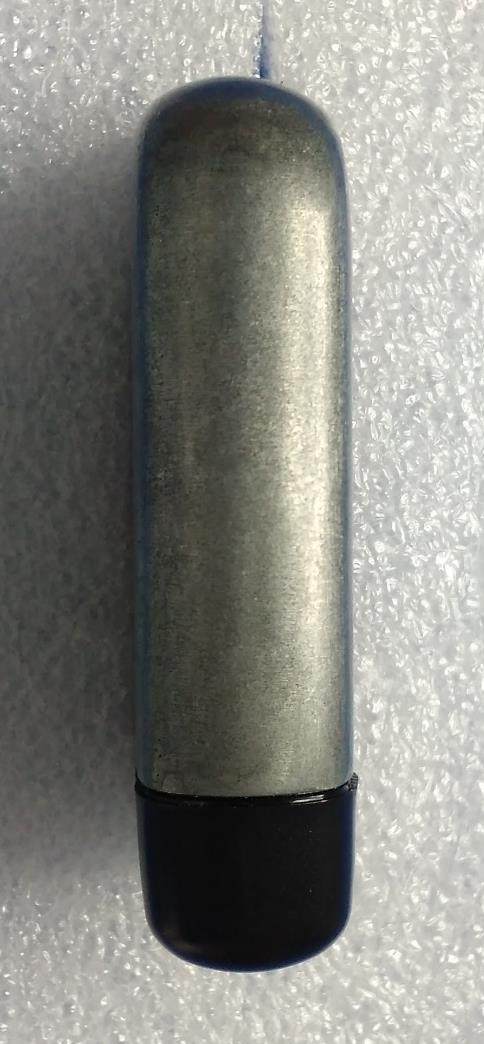

OXW-CA0007Electronic Cigarette Cartridge

Bluetooth ® Smart rechargeable device © 2015 RJRVC *WEBSITE AND OFFERS RESTRICTED TO AGE 21+ TOBACCO CONSUMERS For more information, go to www.vusevapor.com* This device complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two conditions: (1) The device may not cause harmful interference, and (2) The device must accept any interference that may cause undesired operation. This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver’s • Consult a dealer or an experienced radio/TV technician for assistance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.XXXXXXXX PALM Why VUSE Palm is different A unique and easy-to-use interface between the PowerUnit ® and the cartridge. Simply snap to connect VUSE Cartridges (sold separately). QuickConnect ® Cartridge sold separately 1 This enhanced VaporDelivery Processor ® is designed to monitor power, heat and vapor up to 2,000 times a second, for a perfect puff, first time, every time. It also manages communication and data transfer between your VUSE and the VUSE App. VaporDelivery Processor ® 3 Enables seamless connection between your VUSE and the VUSE App for enhanced product functionality, including battery and cartridge level, cartridge usage and child lock. Our proprietary Bluetooth ® Low Energy design has no noticeable impact on the battery of the PowerUnit ® . Bluetooth ® Smart 2 Blended in the USA by R.J. Reynolds flavor experts. Our unique blend uses the finest sourced ingredients including vegetable glycerin, the highest quality tobacco-derived nicotine extracted from the tobacco plant, and other flavor additives. V•Liquid ® 4 Long lasting PowerUnit ® with pass through micro USB charging ensures the longest usage time between recharging. The VUSE PowerUnit ® has been built with overheating protection, which minimizes the potential for overheating. PowerUnit ® 6 Takes the guesswork out of how many puffs remain in each cartridge and when a cartridge is depleted. SmartMemory ® 5 2 4 3 5 6 1 Federal Communications Commission (FCC) Notice This elegant, compact form has a long lasting battery meaning you can vape for twice as long between charges than VUSE Solo. On-device status indication keeps you informed of battery and cartridge levels at the press of a button. Additional information can be accessed via the Bluetooth enabled smartphone app. VUSE Palm is powered by Smart Technology and uses existing VUSE Cartridges, which retract back into the body of the device when not in use. VUSE Palm redefines form and function How to charge VUSE Palm uses pass-through micro USB, which enables you to continue vaping while charging. Just connect the USB charging cable to the device and plug into any USB power outlet. VUSE App features 1. Battery level 2. Cartridge level 3. Child lock settings VUSE App gives you two options to disable your PowerUnit ® to prevent unauthorized use. • Proximity lock. Sets your VUSE to function only if the PowerUnit ® is within the Bluetooth ® range of the user’s mobile phone. • Hard lock. Turns off your VUSE. In order to reactivate the unit, the feature has to be switched to “on”. 4. Cartridge usage Tracks the number of cartridges you have used since the last time the counter was reset. 5. Battery health Over time batteries naturally lose their ability to retain a charge. Battery health indicator indicates when it’s time to replace your VUSE PowerUnit ® . 6. Identify your VUSE Helps to differentiate between multiple VUSE devices. Getting the best from your VUSE experience To ensure the optimum vapor experience: Take longer, slower puffs. This allows the VUSE V-Liquid ® to heat and turn into a rich, satisfying vapor to give you a perfect puff, first time, every time. 1. Download and launch the VUSE App from Apple App Store or Google Play. Optimized for the iPhone 4S and later running iOS 7.0 or higher; Samsung Galaxy S4 or Samsung Galaxy S5 running Android™ 4.4 KitKat or newer. 2. Make sure that your phone’s Bluetooth ® setting is turned on. 3. Open the app and follow on-screen instructions to pair device. Connecting to the VUSE App

OXW-CA0007 . .

FCC ID: OXW-CA0007 FCC Pt. 15.249 BLUETOOTH LE TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 23 0Y1507171410.OXW 7/17 - 7/21/2015 Electronic Cigarette © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Applicant Name: Date of Testing: Device Solutions Inc. 7/17 - 7/21/2015 3211 Moorefields Road Test Site/Location: Hillsborough, NC 27278 PCTEST Lab. Columbia, MD, USA United States Test Report Serial No.: 0Y1507171410.OXW FCC ID: OXW-CA0007 APPLICANT: Device Solutions Inc. Application Type: Certification Model(s): CA0007 EUT Type: Electronic Cigarette Frequency Range: 2402 – 2480MHz FCC Classification: Low Power Communications Device Transmitter (DXX) FCC Rule Part(s): Part 15 Subpart C (15.249) Test Procedure(s): ANSI C63.10-2009 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.249 BLUETOOTH LE FCC ID: OXW-CA0007 FCC Pt. 15.249 BLUETOOTH LE TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 23 0Y1507171410.OXW 7/17 - 7/21/2015 Electronic Cigarette © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 TABLE OF CONTENTS FCC PART 15.249 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 3.4 ENVIRONMENTAL CONDITIONS ................................................................................................................. 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 OCCUPIED BANDWIDTH MEASUREMENT ............................................................................................... 11 6.3 DUTY CYCLE CALCULATION..................................................................................................................... 12 6.4 FUNDAMENTAL FIELD STRENGTH LEVEL MEASUREMENT .................................................................. 14 6.5 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 15 6.6 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 18 6.7 LINE CONDUCTED MEASUREMENT DATA .............................................................................................. 20 7.0 CONCLUSION ....................................................................................................................................... 22 APPENDIX A: SUPPLEMENTAL DATA ............................................................................................................. 23 FCC ID: OXW-CA0007 FCC Pt. 15.249 BLUETOOTH LE TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 23 0Y1507171410.OXW 7/17 - 7/21/2015 Electronic Cigarette © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 MEASUREMENT REPORT FCC Part 15.249 § 2.1033 General Information APPLICANT: Device…

Text truncated - open the document above for the full version.

Device Solutions Inc. FCC ID: OXW-CA0007 Model: CA0007 Test Set-Up Photos EUT Type: Electronic Cigarette Page 1 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 TEST SETUP PHOTOGRAPHS Device Solutions Inc. FCC ID: OXW-CA0007 Model: CA0007 Test Set-Up Photos EUT Type: Electronic Cigarette Page 2 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Device Solutions Inc. FCC ID: OXW-CA0007 Model: CA0007 Test Set-Up Photos EUT Type: Electronic Cigarette Page 3 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015
