OXW-PA0020Sensor II Board Module

3/9/2015 Page 1(2) Device Solutions Inc Proprietary & Confidential http://www.device-solutions.com/ Phone/Fax: (919) 732-7872 PA0020 Technical User Manual 1 Introduction The Device Solutions PA0020 SensorII Board is based on an nRF905 Low Power Multiband RF Transceiver. The PA0020 card has Limited Modular approval under FCC 15C, this document summarizes the requirements for integrating the PA0020 into additional products. 2 FCC Requirements The Modular FCC approval for the PA0020 SensorII Board only authorizes integration into Device Solutions host products; specifically the Gateway and Sensor products. To conform to the limited modular approval, the integration must conform to the following: 1. There must be no changes to the antenna system. 2. There must be no changes to the remainder of the module. 3. Unless the product is smaller than palm sized, it shall be labeled “Contains FCC ID OXW- PA0020” per FCC requirements. 4. All integrations must conform to applicable RF exposure limits and associated usage conditions for installation type (fixed, portable, mobile). 5. The user manual shall include the following text: This device complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two conditions: (1) The device may not cause harmful interference, and (2) The device must accept any interference that may cause undesired operation. This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver's • Consult a dealer or an experienced radio/TV technician for assistance Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3/9/2015 Page 2(2) Device Solutions Inc Proprietary & Confidential http://www.device-solutions.com/ Phone/Fax: (919) 732-7872 3 Other Recommendations 1. The PA0020 shall be installed in such a way as to maximize clearance around the antenna.

Applicant/Grantee Device Solutions Inc FCC ID: OXW-PA0020 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Maximum output power is only 10dBm, with a duty cycle of much less than 10%. All layers ground filled and extensively stitched with vias. Most radio components are integrated into the primary IC. N 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The TX signal is directly synthesized by dedicated hardware from programmatically generated data. It should not be possible to over modulate or generate excessive data rates. Y 3 The modular transmitter must have its own power supply regulation. The supply into the radio IC is regulated and there are additional regulators internally. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The antenna is permanently attached. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). The unit was tested in stand-alone configuration. Y 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is The PCB will be labeled with the FCC ID either in the silk screen or a sticker. Y installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. These modules will only be integrated by the manufacturer into more complex products. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The module is integrated into products which are not used in proximity to humans. Any integrated devices will be reviewed for exposure limits Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is alw…

Text truncated - open the document above for the full version.

OXW-PA0020 DS Sensor II

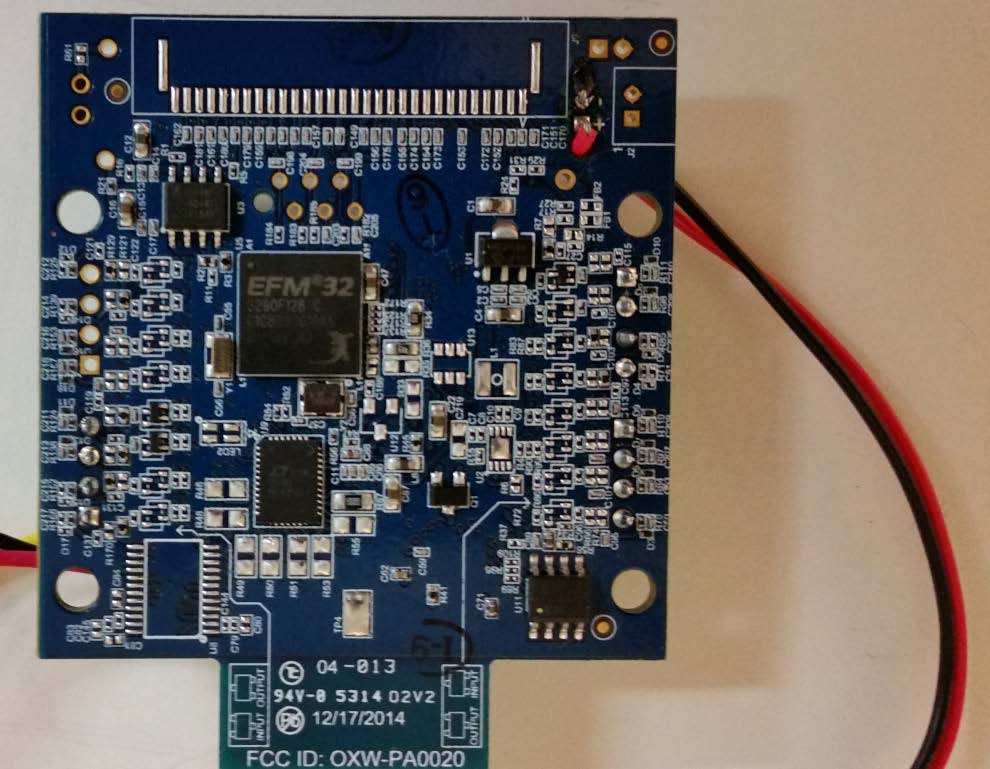

Bottom Layer Silkscreen FCC ID labeling

OXW-PA0020 DS Sensor II

FCC ID: OXW-PA0020 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 6 0Y1501280260.OXW 2/19/2015 Sensor II Board Module © 2015 PCTEST Engineering Laboratory, Inc. REV 3.2MPE 7/27/2012 Applicant Name: Date of Testing: Device Solutions Inc. 2/19/2015 3211 Moorefields Road Test Site/Location: Hillsborough, NC 27278 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1501280260.OXW FCC ID: OXW-PA0020 APPLICANT: Device Solutions Inc. EUT Type: Sensor II Board Module FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: FCC Part 15 Frequency Hopping Spread Spectrum Transceiver (DSS) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION Maximum Permissible Exposure (MPE) FCC ID: OXW-PA0020 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 6 0Y1501280260.OXW 2/19/2015 Sensor II Board Module © 2015 PCTEST Engineering Laboratory, Inc. REV 3.2MPE 7/27/2012 T A B L E O F C O N T E N T S 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................... 3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW ..................................................................................................... 4 1.4 PROCEDURE ........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 5 2.0 CONCLUSION .................................................................................................................................. 6 FCC ID: OXW-PA0020 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 6 0Y1501280260.OXW 2/19/2015 Sensor II Board Module © 2015 PCTEST Engineering Laboratory, Inc. REV 3.2MPE 7/27/2012 1 . 0 R F E X P O S U R E E V A L U A T IO N – M A X I M U M PE R M I S S I B L E E X P O S U R E ( M P E ) 1.1 Introduction This document is prepared on behalf of Device Solutions Inc. to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Device Solutions Sensor II Board Module FCC ID: OXW-PA0020 is a module employing hopping operation in the 900MHz ISM band. For this MPE evaluation, the device is set to transmit from the antenna of each transmitter and the RF exposure is evaluated using the antenna gain information. EUT: Model: PA0020 Grantee: Device Solutions Inc. FCC ID: OXW-PA0020 Antenna Gain: -1.0dBi FCC ID: OXW-PA0020 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 4 of 6 0Y1501280260.OXW 2/19/2015 Sensor II Board Module © 2015 PCTEST Engineering Laboratory, Inc. REV 3.2MPE 7/27/2012 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation require…

Text truncated - open the document above for the full version.

FCC ID: OXW-PA0020 FCC Pt. 15.247 900MHz ISM BAND TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 36 0Y1501280261.OXW 01/30 - 03/12/2015 Sensor II Board Module © 2015 PCTEST Engineering Laboratory, Inc. V 2.0 01/20/2015 Applicant Name: Date of Testing: Device Solutions Inc. 01/30 - 03/12/2015 3211 Moorefields Road Test Site/Location: Hillsborough, NC 27278 PCTEST Lab. Columbia, MD, USA United States Test Report Serial No.: 0Y1501280261.OXW FCC ID: OXW-PA0020 APPLICANT: Device Solutions Inc. Application Type: Certification Model(s): PA0020 EUT Type: Sensor II Board Module Max. RF Output Power: 6.691 mW (8.26 dBm) Peak Conducted Frequency Range: 904.8 – 924.8MHz Type of Modulation: GFSK FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): Part 15 Subpart C (15.247) Test Procedure(s): ANSI C63.10-2009, DA 00-705 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and DA 00-705. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 900MHz ISM Band FCC ID: OXW-PA0020 FCC Pt. 15.247 900MHz ISM BAND TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 36 0Y1501280261.OXW 01/30 - 03/12/2015 Sensor II Board Module © 2015 PCTEST Engineering Laboratory, Inc. V 2.0 01/20/2015 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 RADIATED EMISSIONS ................................................................................................................................ 6 3.3 ENVIRONMENTAL CONDITIONS ................................................................................................................. 6 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 7 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 8 6.0 TEST RESULTS ...................................................................................................................................... 9 6.1 SUMMARY ..................................................................................................................................................... 9 6.2 20DB BANDWIDTH MEASUREMENT ......................................................................................................... 10 6.3 OUTPUT POWER MEASUREMENT ........................................................................................................... 12 6.4 BAND EDGE COMPLIANCE ....................................................................................................................... 15 6.5 CARRIER FREQUENCY SEPARATION ...................................................................................................... 18 6.6 TIME OF OCCUPANCY ............................................................................................................................... 19 6.7 NUMBER OF HOPPING CHANNELS .......................................................................................................... 21 6.8 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 22 6.9 RADIATED SPURIOUS EMISSION MEASUREMENTS – ABOVE 1GHZ ................................................... 26 6.10 RADIATED SPURIOUS EMISSIONS MEASUREMENTS – BELOW 1GHZ ............................................ 32 7.0 CONCLUSION ....................................................................................................................................... 36 FCC ID: OXW-PA0020 FCC Pt. 15.247 900MHz ISM BAND TEST REPORT (CERTIFICAT…

Text truncated - open the document above for the full version.

Device Solutions Inc. FCC ID: OXW-PA0020 Model: PA0020 Test Set-Up Photos EUT Type: Sensor II Board Module Page 1 of 2 © 2015 PCTEST Engineering Laboratory, Inc. V 2.0 01/20/2015 TEST SETUP PHOTOGRAPHS Device Solutions Inc. FCC ID: OXW-PA0020 Model: PA0020 Test Set-Up Photos EUT Type: Sensor II Board Module Page 2 of 2 © 2015 PCTEST Engineering Laboratory, Inc. V 2.0 01/20/2015
