OXZWD7102WD7102

(866) 977-7326 www.PreView Radar .com 3700076A Copyright 2015 Page 16 Proudly developed by 10335 W. Emerald St. Boise, Idaho 83704 Phone 1.844.787.2327 PreView ® Wireless Display WD7102 Operating Manual www.PreView Radar .com (866) 977-7326 www.PreView Radar .com 3700076A Copyright 2015 Page 15 Warranty Information: MANUFACTURER STANDARD LIMITED WARRANTY AND LIMITATION OF LIABILITY Manufacturer warrants that on the Date of Purchase this Product will conform to Manufacturer's published specifications fo r the product, which are available from Manufacturer on request, and Manufacturer warrants that the product is free from defects in materials and workmanship. Th is Limited Warranty extends for twelve (12) months from the date of shipment. Manufacturer will, at its option, repair or replace any product found by Manufacturer to be defective and subj ect to this Limited Warranty. This Limited Warranty does not apply to part s or products that are misused; abused; modified; damaged by accident, fire or other hazard; improperly installed or operated; or not maintained in accordance with the maintenance procedures set forth in Manufacturer's Installation and Operating Instructions. To obtain warranty service, you must ship t he product(s) to the specified Manufacturer location within thirty (30) days from expiration of the warranty period. To obtain warranty service you must call Preco Customer Service at 866-977-7236 or 208-323-1000, or fax your request to 208-323-1034. Customer Service will issue warranty authorization and further instructions. You must prepay sh ipping charges and use the original shipping container or equivalent. EXCLUSION OF OTHER WARRANTIES : MANUFACTURER MAKES NO OTHER WARRANTIES, EXPRESSED, IMPLIED OR STATUTORY. THE IMPLIED WARRANTIES FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED AND SHALL NOT APPLY TO THE PRODUCT. BUYER'S SOLE AND EXCLUSIVE REMEDY IN CONTRACT, TORT OR UNDER ANY OTHER THEORY AGAINST MANUFACTURER RESPECTING THE PRODUCT AND ITS USE SHALL BE THE REPLACEMENT OR REPAIR OF THE PRODUCT AS DESCRIBED ABOVE. LIMITATION OF LIABILITY : IN THE EVENT OF LIABILITY FOR DAMAGES ARISING OUT OF THIS LIMITED WARRANTY OR ANY OTHER CLAIM RELATED TO MANUFACTURER'S PRODUCTS, MANUFAC TURER'S LIABILITY FOR DAMAGES SHALL BE LIMITED TO THE AMOUNT PAID FOR THE PRODUCT AT THE TIME OF ORIGINAL PURCHASE. IN NO EVENT SHALL MANUFACTURER BE LIABLE FOR LOST PROFITS, THE COST OF SUBSTITUTE EQUIPMENT OR LABOR, PROPERTY DAMAGE, OR OTHER SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES BASED UPON ANY CLAIM FOR BREACH OF CONTRACT, NEGLIGENCE OR OTHER CLAIM, EVEN IF MANUFACTURER OR A MANUFACTURER'S REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Manufacturer shall have no further obligation or liability with respect to the product or its sale, operation and use, and Manufacturer nei ther assumes nor authorizes the assumption of any other obligation or liability in connection with such product. This Limited Warranty gives you specific l egal rights, and you may also have other legal rights which vary from state to state. Some st ates do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. Any oral statements or representations about the product which may have been made by salesmen or Manufacturer representatives do not constitute warranties. This Limited Warranty may not be amended, modified or enlar ged, except by a written agreement signed by an authorized official of Manufacturer which expressly refers to this Limited Warranty. (866) 977-7326 www.PreView Radar .com 3700076A Copyright 2015 Page 14 Additional Options: Custom System Configurations – Thanks to the advanced engineering by the Preco Engineers, the technology behind PreView Sensors can easily integrate or control your machines existing or new safety systems. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference. TRADEMARKS The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Any rights not expressly granted herein are reserved. (866) 977-7326 www.PreView Radar .com 3700076A Copyright 2015 Page 13 Troubleshooting: Display will not turn on:  Verify that DC power (9-33V) is applied to the display.  Verify that the display has a solid ground connection. Display cannot find or connect to the wireless sensor:  Verify that DC power (9-33V) is applied to the sensor.  Sensor may be out of range. Contact Preco Electronics for assistance. “Not In Reverse” message is present, but machine is in reverse:  Verify display and sensor are configured properly, see page 6.  For installation method A (see page 2), verify reverse connection has 9-33V present.  For installation method B (see page 4), verify sensor is powered and c…

Text truncated - open the document above for the full version.

Matching Network Low Pass Filter Texas Instruments CC2591 RF Front End (LNA/PA) Texas Instruments CC2520 2.4GHz IEEE 802.15.4 RF Transceiver Oscillator (32MHz) TX/RX Antenna 2.4Ghz OXZWD7102 2.4GHz Radio Frequency Block Diagram Microprocessor

PRECO ELECTRONICS, INC. 10335 W. Emerald Street Boise, Idaho 83704 Phone: (208) 323-1000 Fax: (208) 323-1034 www.PreViewRadar.com April 16, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Wireless PreView Display Model WD7102 FCC ID: OXZWD7102 To whom it may concern: Preco Electronics is seeking approval of their WD7102 Wireless PreView display. This display has a Zigbee radio operating in the 2.4GHz band. Approval is being sought under FCC Part 15.247 (2.4GHz).

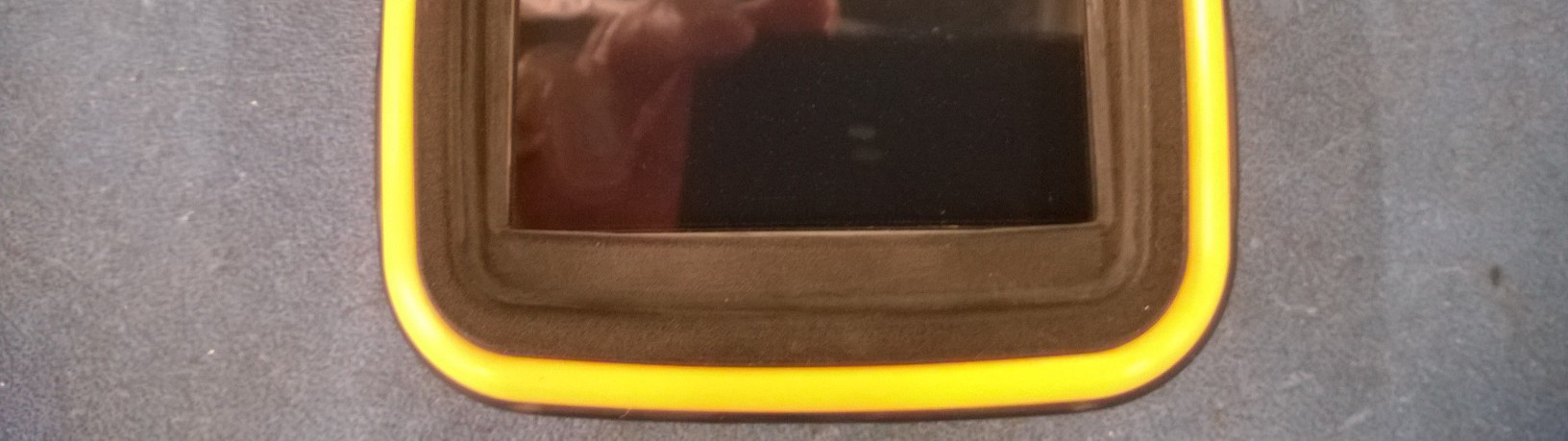

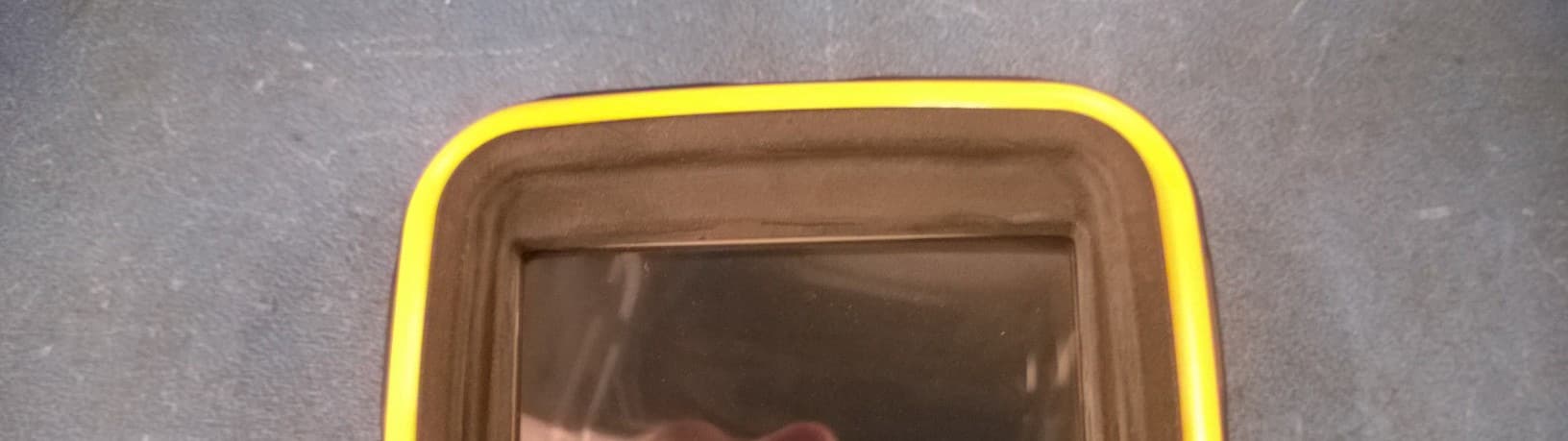

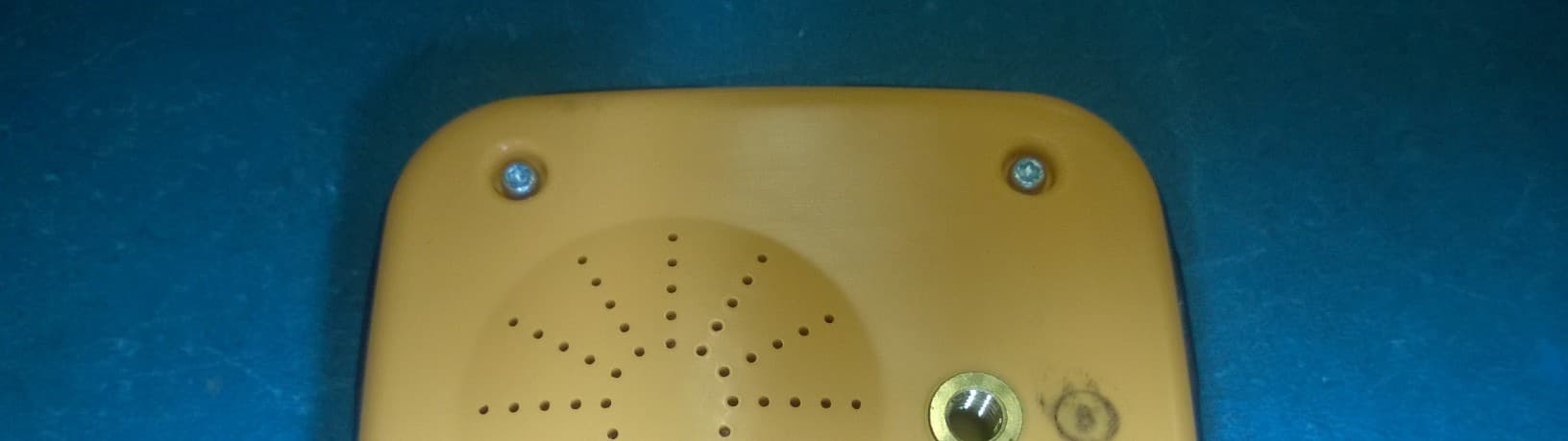

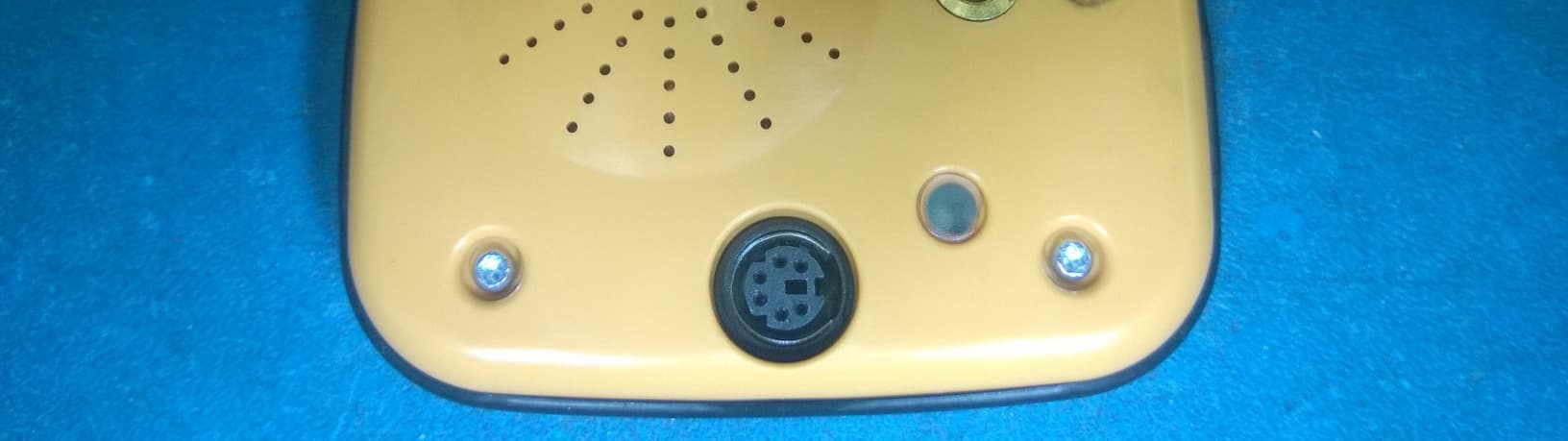

External Photographs Model: WD7102 FCC ID: OXZWD7102 WD7102 Front WD7102 Back

LCD Display Model WD7102 FCC Label and Location Photos

Internal Photographs Model: WD7102 FCC ID: OXZWD7102 WD7102 Internal WD7102 PCB Top WD7102 PCB Bottom

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. This Report may only be duplicated in its entirety Preco, Inc. Wireless WorkSight Preview Display Model WD7102 FCC 2.1091:2015 Report # PRCO0071 NVLAP Lab Code: 200630-0 CERTIFICATE OF EVALUATION 2014-12-10 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Last Date of Test: May 07, 2015 Preco, Inc. Wireless WorkSight Preview Display WD7102 Radio Equipment Testing Standards Specification Method FCC 2.1091:2015 KDB 447498 D01 General RF Exposure Guidance v05r02 Results Method Clause Test Description Applied Results Comments 7.1 Maximum Permissible Exposure Yes Pass Deviations From Test Standards None Approved By: Don Facteau, IT Manager Report No. PRCO00712/9 REVISION HISTORY REV 2014.10.14 Revision Number Description Date Page Number 00 None Report No. PRCO00713/9 ACCREDITATIONS AND AUTHORIZATIONS REV 2015.2.19 United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC 17065 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea MSIP / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Israel MOC – Recognized by MOC as a CAB for the acceptance of test data. Hong Kong OFCA – Recognized by OFCA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ http://gsi.nist.gov/global/docs/cabs/designations.html Report No. PRCO00714/9 FACILITIES REV 2015.2.19 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 Minnesota Labs MN01-08, MN10 9349 W Broadway Ave. Brooklyn Park, MN 55445 (612)-638-5136 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 554-8214 Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 Texas Labs TX01-09 3801 E Plano Pkwy Plano, TX 75074 (469) 304-5255 Washington Labs NC01-05 19201 120 th Ave NE Bothell, WA 9801 (425)984-6600 NVLAP NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200630-0 NVLAP Lab Code:201049-0 NVLAP Lab Code: 200629-0 Industry Canada 2834B-1, 2834B-3 2834E-1 N/A 2834D-1, 2834D-2 2834G-1 2834F-1 BSMI SL2-IN-E-1154R SL2-IN-E-1152R N/A SL2-IN-E-1017 SL2-IN-E-1158R SL2-IN-E-1153R VCCI A-0029 A-0109 N/A A-0108 A-0201 A-0110 Recognized Phase I CAB for ACMA, BSMI, IDA, KCC/RRA, MIC, MOC, NCC, OFCA US0158 US0175 N/A US0017 US0191 US0157 Report No. PRCO00715/9 PRODUCT DESCRIPTION 2014-12-10 Client and Equipment Under Test (EUT) Information Company Name: Preco, Inc. Address: 10335 W Emerald St City, State, Zip: Boise, ID 83704 Test Requested By: John Fadgen Model: Wireless WorkSight Preview Display Model WD7102 Evaluation Date: May 7, 2015 Information Provided by the Party Requesting the Test Functional Description of the EUT: LCD Display with a 2.4GHz DTS radio Testing Objective: To demonstrate compliance with FCC requirements for RF exposure for 2.1091 mobile devices Report No. PRCO00716/9 MAXIMUM PERMISSIBLE EXPOSURE (MPE) WTD.2014.12.17 OVERVIEW Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-1992 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. If the use of warning labels on a transmitter is not effective or desirable, the alternative of performing SAR evaluation with the device at its closest range to persons under normal operating conditions may be used. The field strength and power density limits adopted by the FCC are based on whole-body averaged exposure and the assumption of RF field levels relate most accurately to estimating whole-body averaged SAR. This means some local values of exposures exceeding the stated field strength and power density limits may not necessarily imply non-compliance if the spat…

Text truncated - open the document above for the full version.

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. This Report may only be duplicated in its entirety Preco, Inc. Wireless WorkSight Preview Display Model: WD7102 FCC 15.247:2015 Report # PRCO0071.1 NVLAP Lab Code: 200630-0 CERTIFICATE OF TEST 2014-12-10 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Last Date of Test: April 28, 2015 Preco, Inc. Wireless WorkSight Preview Display Model: WD7102 Radio Equipment Testing Standards Specification Method FCC 15.247:2015 ANSI C63.10:2009 Results Method Clause Test Description Applied Results Comments 6.2 Powerline Conducted Emissions No N/A Not required for vehicle mounted devices. 6.5, 6.6 Spurious Radiated Emissions Yes Pass 6.7 Band Edge Compliance Yes Pass 6.7 Out of Band Emissions Yes Pass 6.9.1 Occupied Bandwidth Yes Pass 6.10.2 Output Power Yes Pass 6.11.2 Power Spectral Density Yes Pass 7.5 Duty Cycle Yes N/A Characterization of radio operation. Deviations From Test Standards None Approved By: Kyle Holgate, Operations Manager Report No. PRCO0071.12/30 REVISION HISTORY REV 2014.10.14 Revision Number Description Date Page Number 00 None Report No. PRCO0071.13/30 ACCREDITATIONS AND AUTHORIZATIONS REV 2015.2.19 United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC 17065 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea MSIP / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Israel MOC – Recognized by MOC as a CAB for the acceptance of test data. Hong Kong OFCA – Recognized by OFCA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ http://gsi.nist.gov/global/docs/cabs/designations.html Report No. PRCO0071.14/30 MEASUREMENT UNCERTAINTY TMU.2014.12.03 Measurement Uncertainty When a measurement is made, the result will be different from the true or theoretically correct value. The difference is the result of tolerances in the measurement system that cannot be completely eliminated. To the extent that technology allows us, it has been our aim to minimize this error. Measurement uncertainty is a statistical expression of measurement error qualified by a probability distribution. A measurement uncertainty estimation has been performed for each test per our internal quality document WP 342. The estimation is used to compare the measured result with its "true" or theoretically correct value. The expanded measurement uncertainty (K=2) for each test is on each data sheet. Our measurement data meets or exceeds the measurement uncertainty requirements of the applicable specification; therefore, the test data can be compared directly to the specification limit to determine compliance. The calculations for estimating measurement uncertainty are based upon ETSI TR 100 028 (or CISPR 16-4-2 as applicable), and are available upon request. The following table represents the Measurement Uncertainty (MU) budgets for each of the tests that may be contained in this report. Test + MU - MU Frequency Accuracy (Hz) 0.0007% -0.0007% Amplitude Accuracy (dB) 1.2 dB -1.2 dB Conducted Power (dB) 0.3 dB -0.3 dB Radiated Power via Substitution (dB) 0.7 dB -0.7 dB Temperature (degrees C) 0.7°C -0.7°C Humidity (% RH) 2.5% RH -2.5% RH Voltage (AC) 1.0% -1.0% Voltage (DC) 0.7% -0.7% Field Strength (dB) 5.2 dB -5.2 dB AC Powerline Conducted Emissions (dB) 2.9 dB -2.9 dB Report No. PRCO0071.15/30 FACILITIES REV 2015.2.19 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 Minnesota Labs MN01-08, MN10 9349 W Broadway Ave. Brooklyn Park, MN 55445 (612)-638-5136 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 554-8214 Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 Texas Labs TX01-09 3801 E Plano Pkwy Plano, TX 75074 (469) 304-5255 Washington Labs NC01-05 19201 120 th Ave NE Bothell, WA 9801 (425)984-6600 NVLAP NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200630-0 NVLAP Lab Code:201049-0 NVLAP Lab Code: 200629-0 Industry Canada 2834B-1, 2834B-3 2834E-1 N/A 2834D-1, 2834D-2 2834G-1 2834F-1 BSMI SL2-IN-E-1154R SL2-IN-E-1152R N/A SL2-IN-E-1017 SL2-IN-E-1158R SL2-IN-E-1153R VCCI A-0029 A-0109 N/A A-0108 A-0201 A-0110 Recognized Phase I CAB for ACMA, BSMI, IDA, KCC/RRA, MIC, MOC, NCC, OFCA US0158 US0175 N/A US0017 US0191 US0157 Report No. PRCO0071.16/30 PRODUCT DESCRIPTION 2014-12-10 Client and Equipment Under Test (EUT) Informatio…

Text truncated - open the document above for the full version.

photo EV01 EIRP Output Power 001.JPG EV01 EIRP Output Power 002.JPG SPURIOUS RADIATED EMISSIONS PSA-ESCI 2015.03.03 photo EV01 EIRP Output Power 003.JPG EV01 EIRP Output Power 004.JPG SPURIOUS RADIATED EMISSIONS PSA-ESCI 2015.03.03 photo EV01 EIRP Output Power 005.JPG SPURIOUS RADIATED EMISSIONS PSA-ESCI 2015.03.03 XMit 2015.01.14 EV01 EIRP Output Power 001.JPG EV01 EIRP Output Power 002.JPG BAND EDGE COMPLIANCE XMit 2015.01.14 EV01 EIRP Output Power 003.JPG BAND EDGE COMPLIANCE photo EV01 EIRP Output Power 001.JPG EV01 EIRP Output Power 002.JPG OUT OF BAND EMISSIONS PSA-ESCI 2015.03.03 photo EV01 EIRP Output Power 003.JPG EV01 EIRP Output Power 004.JPG SPURIOUS CONDUCTED EMISSIONS PSA-ESCI 2015.03.03 photo EV01 EIRP Output Power 005.JPG SPURIOUS CONDUCTED EMISSIONS PSA-ESCI 2015.03.03 XMit 2015.01.14 EV01 EIRP Output Power 001.JPG EV01 EIRP Output Power 002.JPG OCCUPIED BANDWIDTH XMit 2015.01.14 EV01 EIRP Output Power 003.JPG OCCUPIED BANDWIDTH photo EV01 EIRP Output Power 001.JPG EV01 EIRP Output Power 002.JPG OUTPUT POWER PSA-ESCI 2015.03.03 photo EV01 EIRP Output Power 003.JPG EV01 EIRP Output Power 004.JPG OUTPUT POWER PSA-ESCI 2015.03.03 photo EV01 EIRP Output Power 005.JPG OUTPUT POWER PSA-ESCI 2015.03.03 XMit 2015.01.14 EV01 EIRP Output Power 001.JPG EV01 EIRP Output Power 002.JPG POWER SPECTRAL DENSITY XMit 2015.01.14 EV01 EIRP Output Power 003.JPG POWER SPECTRAL DENSITY
