OYGTSSRE3UDTire Pressure Monitoring System (TPMS)

Huf Electronics Bretten Tire Pressure Monitoring Systems User’s manual & compliance statement Huf Electronics Bretten GmbH • Gewerbestr. 40 • 75015 Bretten • Germany • Tel.: +49 (0)7252 970-0 • E-Mail: [email protected] • www.huf-group.com 2014-10-15, haertera Page 1 of 1 Huf Electronics Bretten GmbH Gewerbestrasse 40, 75015 Bretten Germany Tire Pressure Monitoring System (TPMS) Model(s): TSSRE3Dg The device under test is manufactured by the grantee (Huf Electronics Bretten) and sold as an OEM product for motor vehicles. Therefore, we will not supply a separate user’s manual. Huf Electronics Bretten will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the vehicle. INFORMATION TO BE INCLUDED IN THE END USER’S MANUAL The following information must be included in the end user’s manual to ensure continued FCC and Industry Canada regulatory compliance. +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ FCC ID: OYGTSSRE3UD IC: 3702A-TSSRE3UD This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

Huf Electronics Bretten Tire Pressure Monitoring Systems User’s manual & compliance statement Huf Electronics Bretten GmbH • Gewerbestr. 40 • 75015 Bretten • Germany • Tel.: +49 (0)7252 970-0 • E-Mail: [email protected] • www.huf-group.com 2014-10-15, haertera Page 1 of 1 Huf Electronics Bretten GmbH Gewerbestrasse 40, 75015 Bretten Germany Tire Pressure Monitoring System (TPMS) Model(s): TSSRE3Ud The device under test is manufactured by the grantee (Huf Electronics Bretten) and sold as an OEM product for motor vehicles. Therefore, we will not supply a separate user’s manual. Huf Electronics Bretten will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the vehicle. INFORMATION TO BE INCLUDED IN THE END USER’S MANUAL The following information must be included in the end user’s manual to ensure continued FCC and Industry Canada regulatory compliance. +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ FCC ID: OYGTSSRE3UD IC: 3702A-TSSRE3UD This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

American Certification Body Inc. 6731 Whittier Ave, Suite C110 McLean, VA22101 Date: 30.10.2014 FCC ID: OYGTSSRE3UD IC: 3702A-TSSRE3UD Model: TSSRE3Dg / TSSRE3Ud Request for Confidentiality of Internal Photographs Our client’s model mentioned above is a sealed unit. The circuitry is encased in this ‘sealant’ and the circuitry would be destroyed if the device was dismantled. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Thomas Ring Manager Certification CSA Group Bayern GmbH Ohmstr. 1-4 94342 Strasskirchen Germany

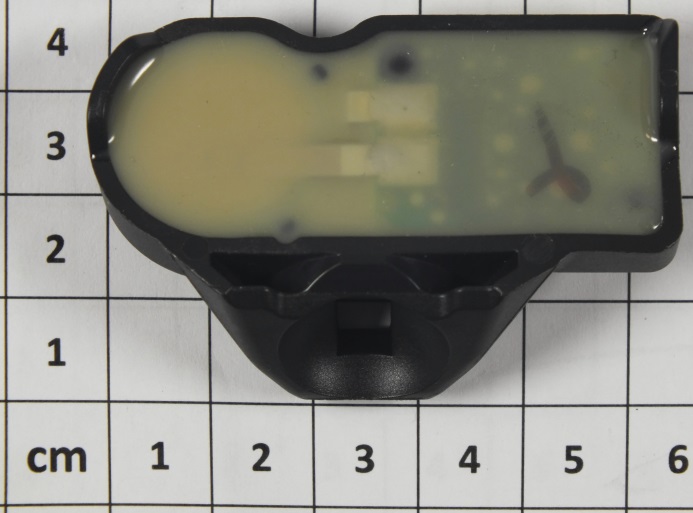

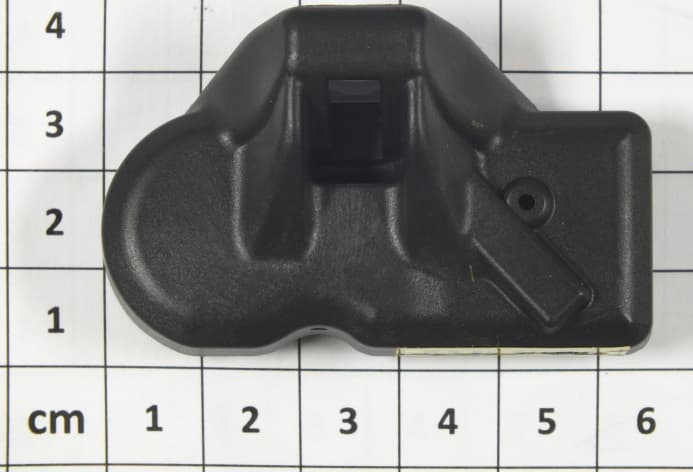

External views – TSSRE3Dg and TSSRE3Ud: TSSRE3Dg TSSRE3Ud

Huf Electronics Bretten Tire Pressure Monitoring Systems Label and location 2014-10-15 page 1 of 2 no. description content text height mm text width mm 1 trade name RE G3.8M 2.2 11.0 2 Huf IntelliSens logo symbol 2.5 9.5 3 approval for USA FCC ID: OYGTSSRE3UD 1.1 13.0 4 approval for Canada IC: 3702A-TSSRE3UD 1.1 13.0 5 country of origin Germany 1.1 6.0 6 model designation Model: 1.5 6.4 7 model designation TSSRE3Dg 1.5 7.5 8 serial number (hex, 8 character) nnnnnnnn 1.5 11.0 9 frequency 315MHz 1.4 4.0 10 number of final test station (2 ch.) nn 1.4 3.0 11 date of manufacture dd/mm/yy 1.5 7.0 12 torque value 4 Nm 1.4 4.0 13 hex wrench size 11mm Symbol 2.9 3.4 14 wheeled bin symbol symbol 4.0 3.0 15 manufacturer logo symbol 5.8 7.0 16 manufacturer name Huf 1.5 3.5 17 approval for Europe n/a 2.5 3.3 18 not used 1.4 2.6 Model: TSSRE3Dg Huf Electronics Bretten Tire Pressure Monitoring Systems Label and location 2014-10-15 page 2 of 2 Huf Model: TSSRE3 Dg FCC ID: OYGTSSRE3UD IC: 3702A-TSSRE3UD RE G3.8M 315MHz

Huf Electronics Bretten Tire Pressure Monitoring Systems Label and location 2014-06-13 page 1 of 2 no. description content text height mm text width mm 1 trade name RE G3.8R 2.2 11.0 2 approval for USA FCC ID: OYGTSSRE3UD 1.0 15.0 3 approval for Canada IC: 3702A-TSSRE3UD 1.0 15.0 4 model designation Model: 1.3 4.4 5 model designation TSSRE3Dg 1.3 7.5 6 serial number (hex, 8 character) nnnnnnnn 1.2 9.5 7 frequency 315MHz 1.3 6.0 8 number of final test station (2 ch.) nn 1.3 2.0 9 date of manufacture dd/mm/yy 1.5 7.0 10 torque value 1.25 Nm 1.3 5.3 11 wheeled bin symbol symbol 3.2 3.4 12 country of origin Germany 1.5 7.0 13 manufacturer logo symbol 4.2 5.0 14 approval for Europe n/a 2.5 3.3 15 not used 1.4 2.6 16 Huf IntelliSens logo symbol 2.5 8.5 Model: TSSRE3Dg Huf Electronics Bretten Tire Pressure Monitoring Systems Label and location 2014-06-13 page 2 of 2 FCC ID: OYGTSSRE3UD IC: 3702A-TSSRE3UD

Huf Electronics Bretten Tire Pressure Monitoring Systems Label and location 2014-10-15 page 1 of 2 no. description content text height mm text width mm 1 trade name UVS30x0 2.2 11.0 2 Huf IntelliSens logo symbol 2.5 9.5 3 approval for USA FCC ID: OYGTSSRE3UD 1.1 13.0 4 approval for Canada IC: 3702A-TSSRE3UD 1.1 13.0 5 country of origin Germany 1.1 6.0 6 model designation Model: 1.5 6.4 7 model designation TSSRE3Ud 1.5 7.5 8 serial number (hex, 8 character) nnnnnnnn 1.5 11.0 9 frequency 315MHz 1.4 4.0 10 number of final test station (2 ch.) nn 1.4 3.0 11 date of manufacture dd/mm/yy 1.5 7.0 12 torque value 4 Nm 1.4 4.0 13 hex wrench size 11mm Symbol 2.9 3.4 14 wheeled bin symbol symbol 4.0 3.0 15 manufacturer logo symbol 5.8 7.0 16 manufacturer name Huf 1.5 3.5 17 approval for Europe n/a 2.5 3.3 18 not used 1.4 2.6 Model: TSSRE3Ud Huf Electronics Bretten Tire Pressure Monitoring Systems Label and location 2014-10-15 page 2 of 2 Huf Model: TSSRE3 Ud FCC ID: OYGTSSRE3UD IC: 3702A-TSSRE3UD UVS30x0 315MHz

Huf Electronics Bretten Tire Pressure Monitoring Systems Label and location 2014-06-13 page 1 of 2 no. description content text height mm text width mm 1 trade name UVS30x1 2.2 11.0 2 approval for USA FCC ID: OYGTSSRE3UD 1.0 15.0 3 approval for Canada IC: 3702A-TSSRE3UD 1.0 15.0 4 model designation Model: 1.3 4.4 5 model designation TSSRE3Ud 1.3 7.5 6 serial number (hex, 8 character) nnnnnnnn 1.2 9.5 7 frequency 315MHz 1.3 6.0 8 number of final test station (2 ch.) nn 1.3 2.0 9 date of manufacture dd/mm/yy 1.5 7.0 10 torque value 1.25 Nm 1.3 5.3 11 wheeled bin symbol symbol 3.2 3.4 12 country of origin Germany 1.5 7.0 13 manufacturer logo symbol 4.2 5.0 14 approval for Europe n/a 2.5 3.3 15 not used 1.4 2.6 16 Huf IntelliSens logo symbol 2.5 8.5 Model: TSSRE3Ud Huf Electronics Bretten Tire Pressure Monitoring Systems Label and location 2014-06-13 page 2 of 2 FCC ID: OYGTSSRE3UD IC: 3702A-TSSRE3UD

FCC ID: OYGTSSRE3UD CSA Group Bayern GmbH File No. T38905-00-00HU, page 1 of 37 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 EMI − T E S T R E P O R T - FCC Part 15.231 - Test Report No. : T38905-00-00HU 10. December 2014 ______________________________________________________________________________________________ Date of issue Type / Model Name : TSSRE3Ud / TSSRE3Dg Product Description : TPMS sensors of G3.8 family Applicant : Huf Electronics Bretten GmbH Address : Gewerbestr. 40 75015 Bretten, Germany Manufacturer : Huf Electronics Bretten GmbH Address : Gewerbestr. 40 75015 Bretten, Germany Licence holder : Huf Electronics Bretten GmbH Address : Gewerbestr. 40 75015 Bretten, Germany Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: OYGTSSRE3UD CSA Group Bayern GmbH File No. T38905-00-00HU, page 2 of 37 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 7 3.1 Photo documentation of the EUT – See Attachment A 7 3.2 Power supply system utilised 7 3.3 Short description of the Equipment under Test (EUT) 7 4 T E S T E N V I R O N M E N T 8 4.1 Address of the test laboratory 8 4.2 Statement regarding the usage of logos in test reports 8 4.3 Environmental conditions 8 4.4 Statement of the measurement uncertainty 8 4.5 Measurement Protocol for FCC, VCCI and AUSTEL 8 5 T E S T C O N D I T I O N S A N D R E S U L T S 10 5.1 Conducted emissions 10 5.2 Field strength of the fundamental wave 11 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz 14 5.4 Spurious emissions radiated (electric field) 16 5.5 Correction for pulse operation (duty cycle) 20 5.6 Emission bandwidth 23 5.7 On / Off Period 27 5.8 Signal deactivation 33 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 37 A T T A C H M E N T A FCC ID: OYGTSSRE3UD CSA Group Bayern GmbH File No. T38905-00-00HU, page 3 of 37 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2014) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2014) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1: 1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: OYGTSSRE3UD CSA Group Bayern GmbH File No. T38905-00-00HU, page 4 of 37 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 2 S U M M A R Y GENERAL REMARKS: All radiated tests have been performed on samples which are in original state. The test report covers complete testing on TSSRE3Ud and partly testing with TSSRE3Dg in conjunction with TeeLeFant and Testsoftware. For activating the EuT a “Trigger device, TeeLeFant” was used to power up the Wheel Unit Sensor in the different operation modes. The EuT has an incorporated antenna and is powered by a primary battery. Declaration of the manufacturer The EUT is a wireless tire pressure and temperature sensor for vehicles equipped with a tire pressure monitoring system (TPMS). The EUT consists of four parts, the sensor and the tire valve, with C case Tantal and with flash memory. In use the device is permanently affixed inside the tire with the valve. There are two housing variants, one for metal valves (M), and another for rubber valves (R).  The PCBA (Tx part) and the battery are always the same. FCC ID: OYGTSSRE3UD CSA Group Bayern GmbH File No. T38905-00-00HU, page 5 of 37 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 For testing the manufacturer declares following transmitting intervals: The TPMS sensor includes already all possible application cases in its program memory and is configured once by a professional installer. Upon manually activated LF request (through special configuration tool at a vehicle dealership), the EUT respond with a single RF transmission (sensor type information). In the second step the tool will send the configuration data on LF and the EUT will respond with a single confirmation transmission. Now the TPMS sensor is configured for the target vehicle application. When the EUT is mounted in the vehicle tire in the worst case, periodically RF transmission where the duration of each transmission is always less than 1 second and the silent period is at least 30 times the duration of the transmission, and never less than 10 seconds. In the case of an emergency condition (rapid pressure loss), the devise will transmit tire pressure and temperat…

Text truncated - open the document above for the full version.

Transmitter Field Strength levels measured in section 5.2.3 are all based on measurements of a CW signal with 100% duty cycle, to allow the measurement to be made. Lower Mode = EUT Transmit in CW mode on the lower frequency f1 Upper Mode = EUT Transmit in CW mode on the upper frequency f2 Where the lower and upper frequencies are the frequency shift associated with the FSK signal. The nominal frequency shift is 60 kHz For the ASK signal, the EUT uses the centre frequency. The highest measured level was: 58.2 dBμV/m peak. Adding antenna factors etc., gives: 75.0 dBμV/m peak The duty cycle reduction associated with the FSK signal is ‐21.21 dB, which results in an average level of: (75.0‐21.21): 53.8 dBμV/m The duty cycle reduction associated with the ASK signal is ‐23.22 dB, which results in an average level of: (75.0‐23.22): 51.8 dBμV/m
