OYL0122Universal FM Hands Free~Easy-Talk

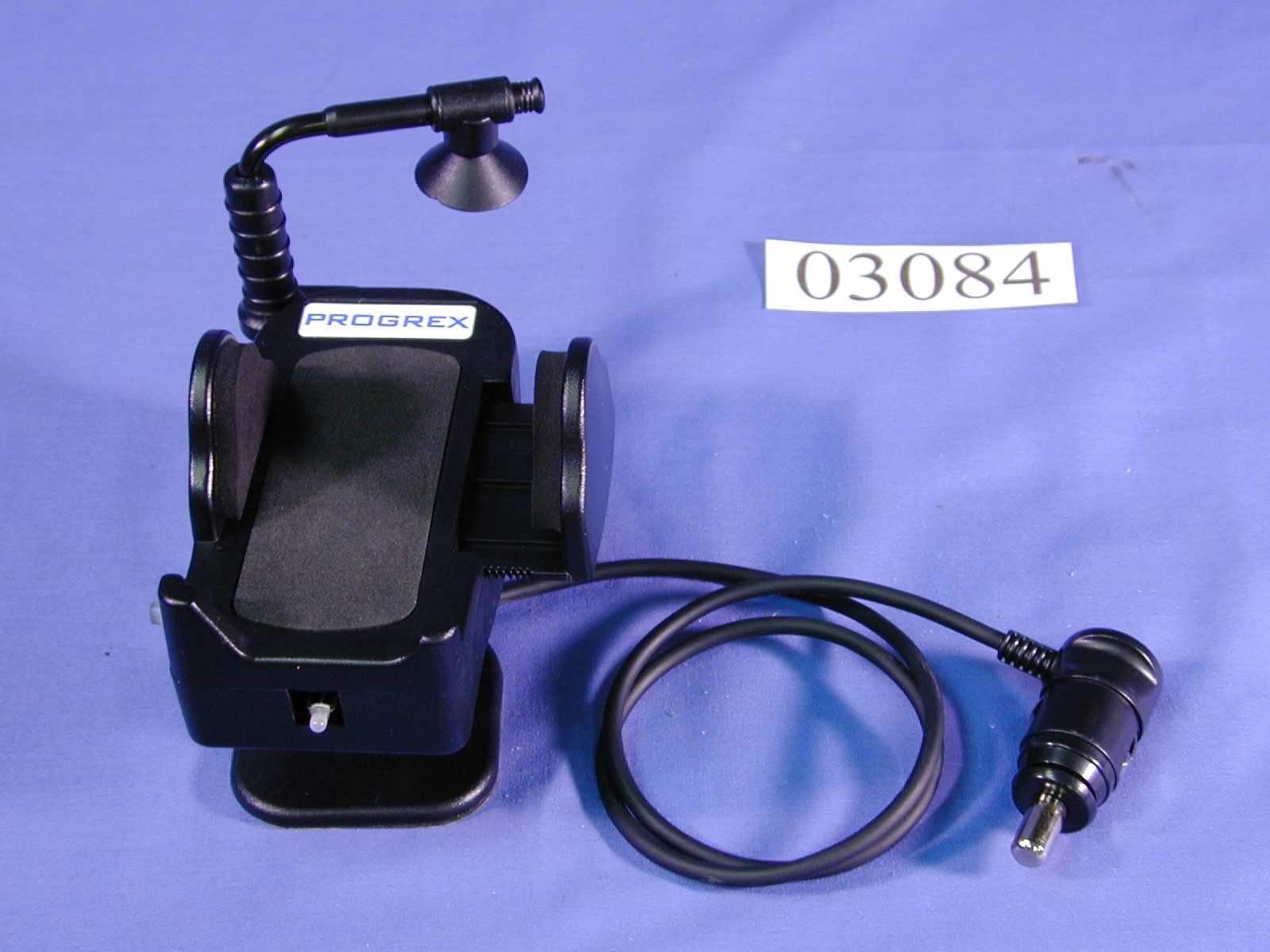

PROGREX PROGREXPROGREX PROGREX INTERNATIONAL CO., LTD. 1F. No. 7, Lane 26, Chien Kang Street, Shin Lin, Taipei, 11154, Taiwan TEL: 886-2-2882 0050Date: March 14, 2000 FAX: 886-2-2882 0741/2882 0028Ref: e-mail: [email protected] Universal FM Hands Free ~ Easy - talk It all ows you to hear phone conversati on through the car audio system (stereo). Its audio frequency is FM 96.0MHz. All you have to do is to insert the plug into the car lighter and set your car radio channel to be FM 96.0MHz. When the phone ring and the signal effective, the car audio system immediately stop to become the phone ring voice. The sound volume transfer from the car speaker. When the phone conversation terminated, the car audio system reverts to the origin within 15 seconds. The sound volume can adjust both car audio system and universal FM hands free.

TRANSMITTER SPECIFICATION 1. TRANSMIT FREQUENCY : 96.000MHZ 2. TRANSMIT FREQUENCY TOLARANCE : 96.000MHZ +/- 5kHZ 3. POWER EMISSION : < -10.0 dbm (at TP3 50 Ohms point) 4. MODULATION BANDWIDTH : < 200 KHZ 5. MODULATION DISTORTION : > 5% 6. SPURIOUS & HARMONIC SUPPRESSION : >40 db GENERAL SPECIFICATION 1. POWER SUPPLY : 12V DC, 100mA 2. POWER CONSUMPTION : < 65mA

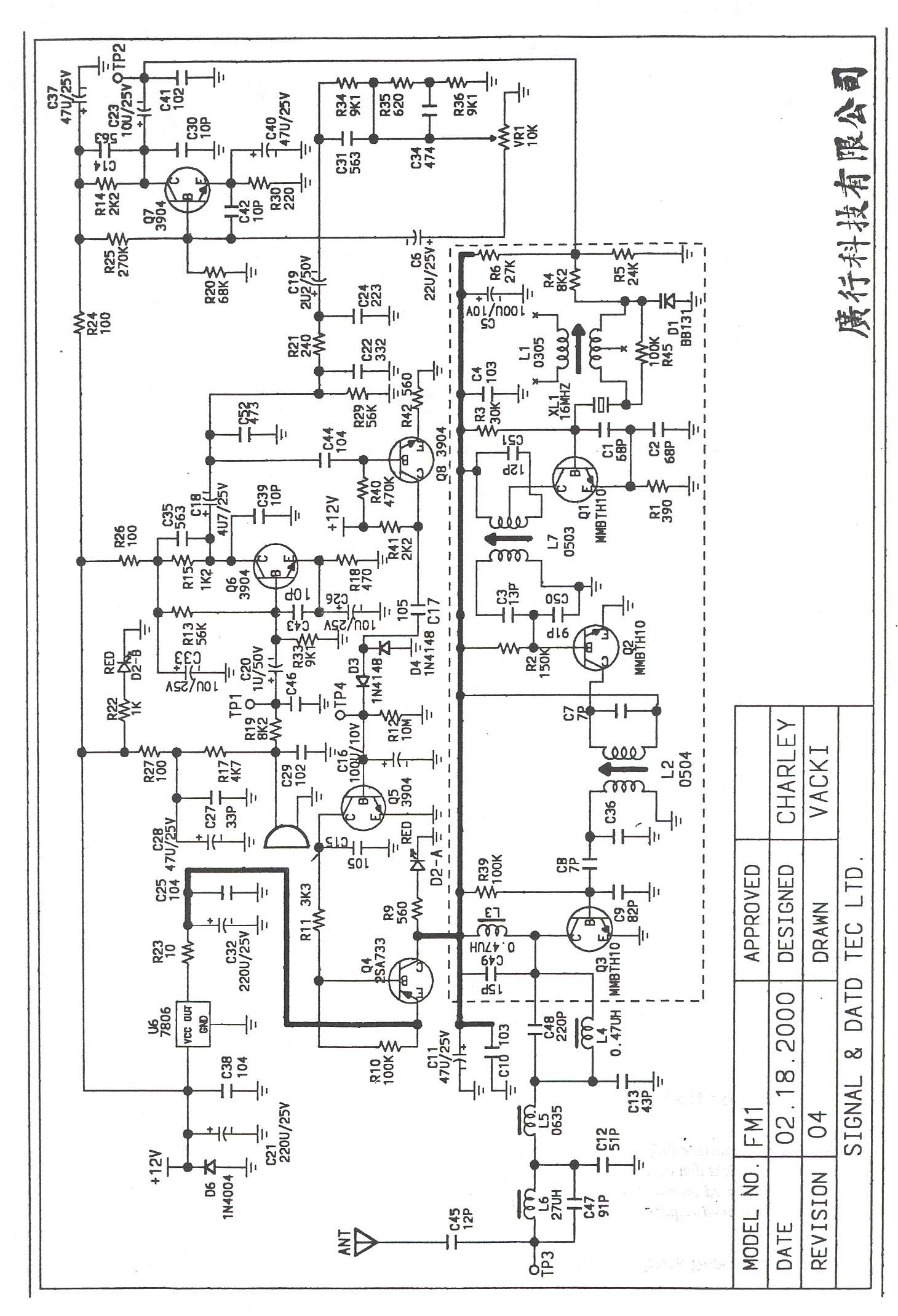

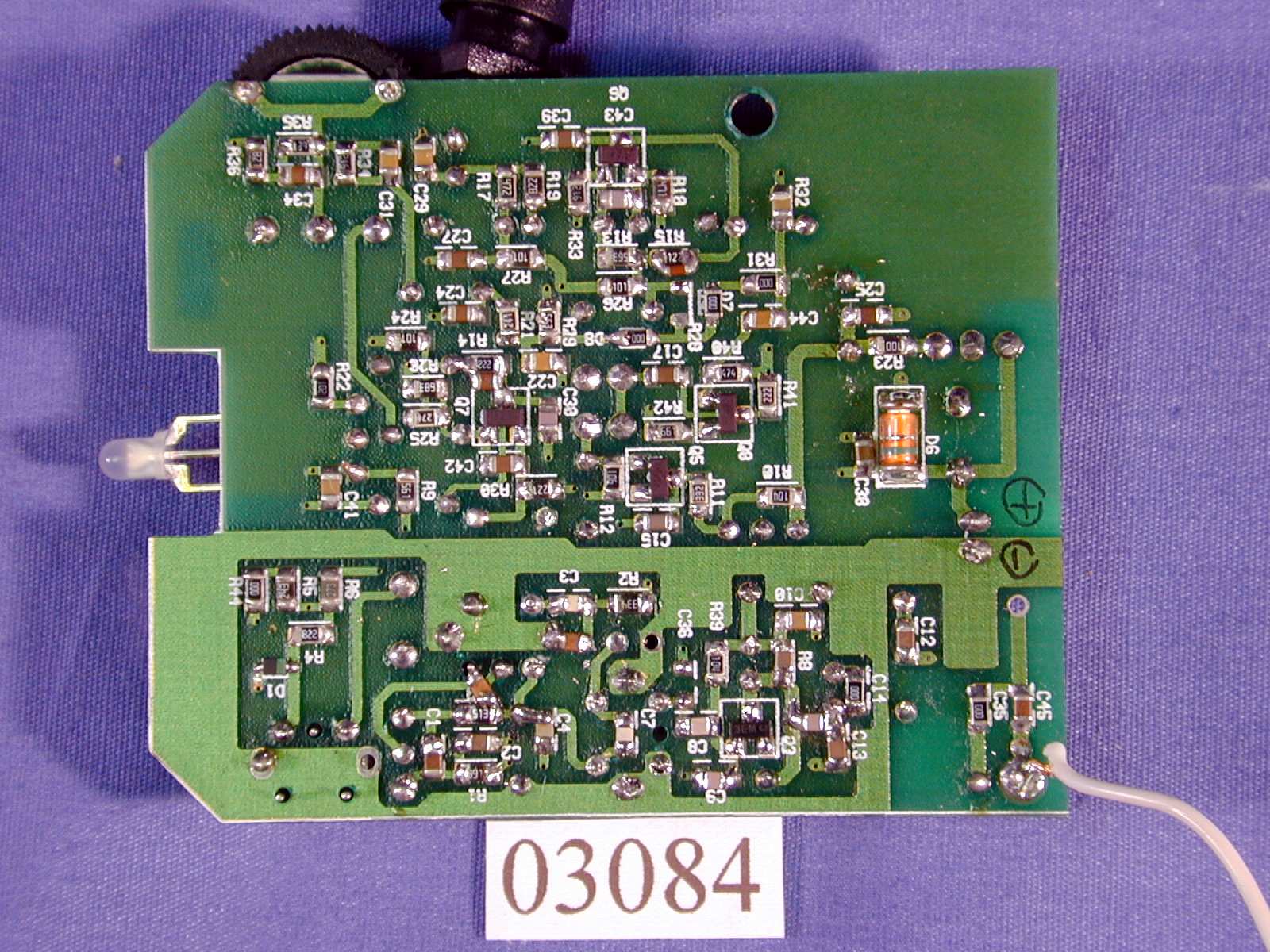

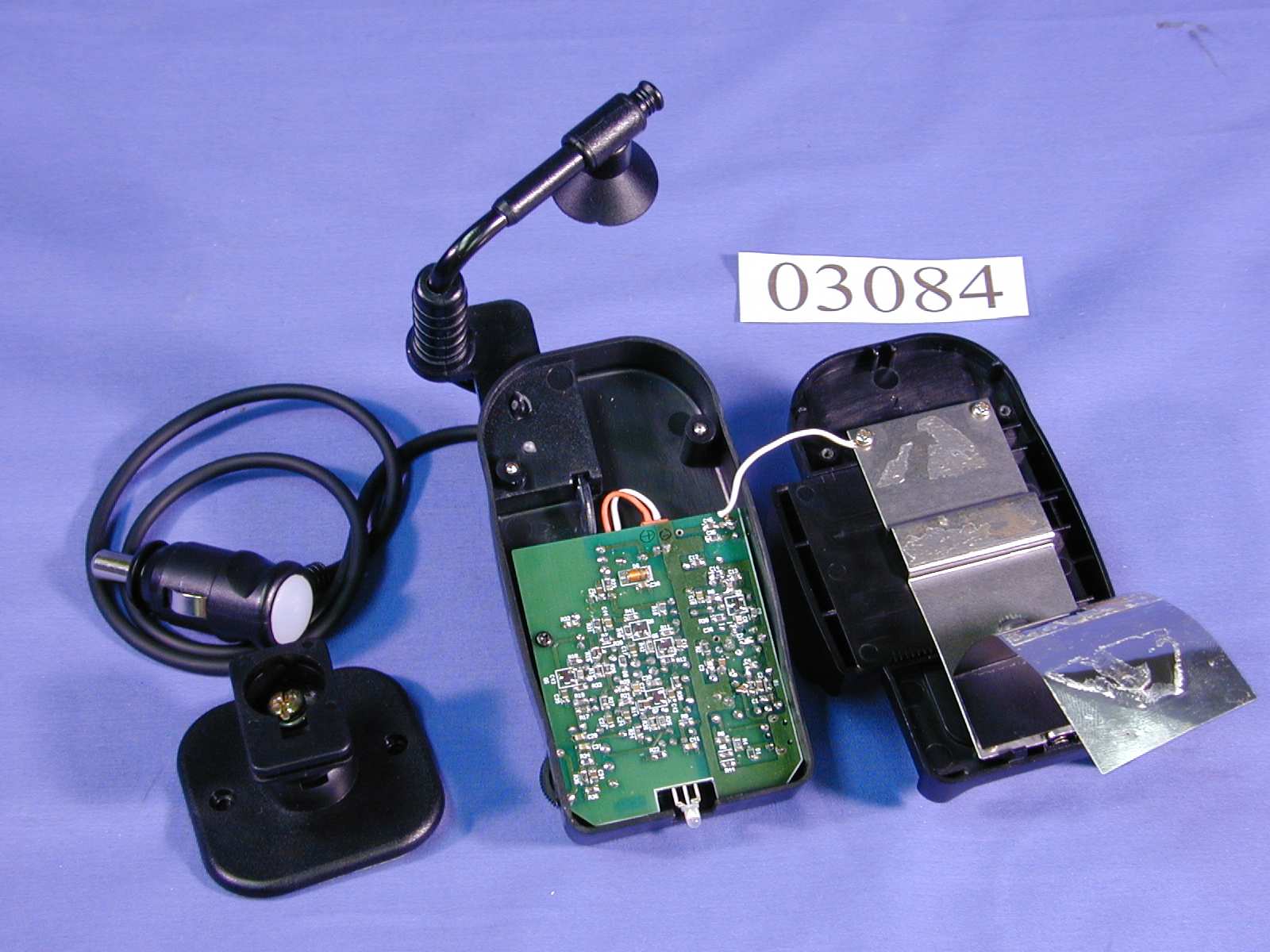

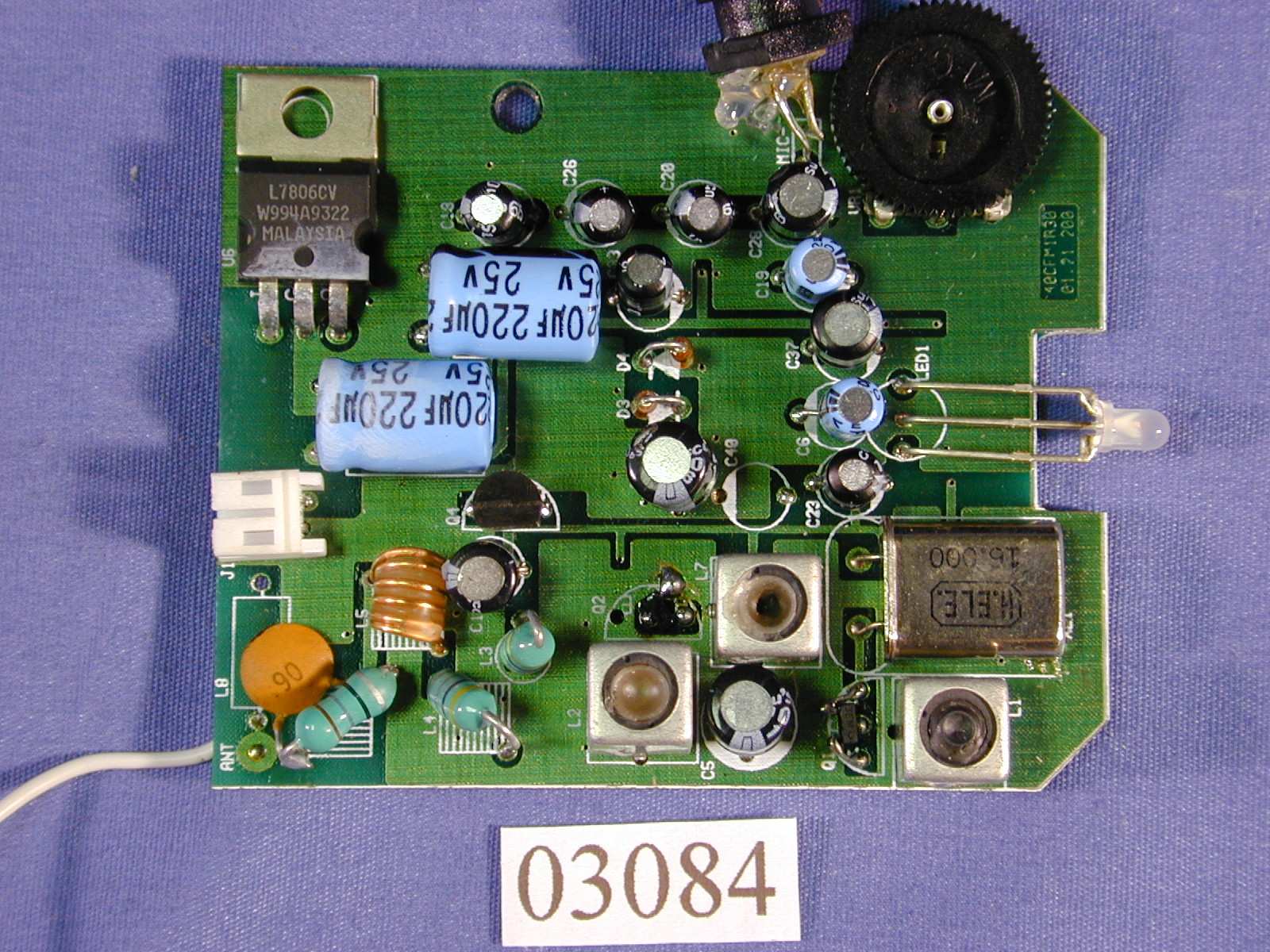

PRO_FM1 BLOCK DIAGRAM REGULATOR DC 12V IN 6V O/P Q1 OSC Q2 BUF Q3 AMP XL1 16.XXXX x 6 MATCH L.C L1 : ( FREQUENCY FINE TUNE ) L1 MIC Q6 PREAMP Q5,Q4 SW (TX VCC) MOD / IN ANT TX VCC Q7 AMP TRANSMITTER 96.00 MHZ Tx power on condition : MIC audio /in trigger

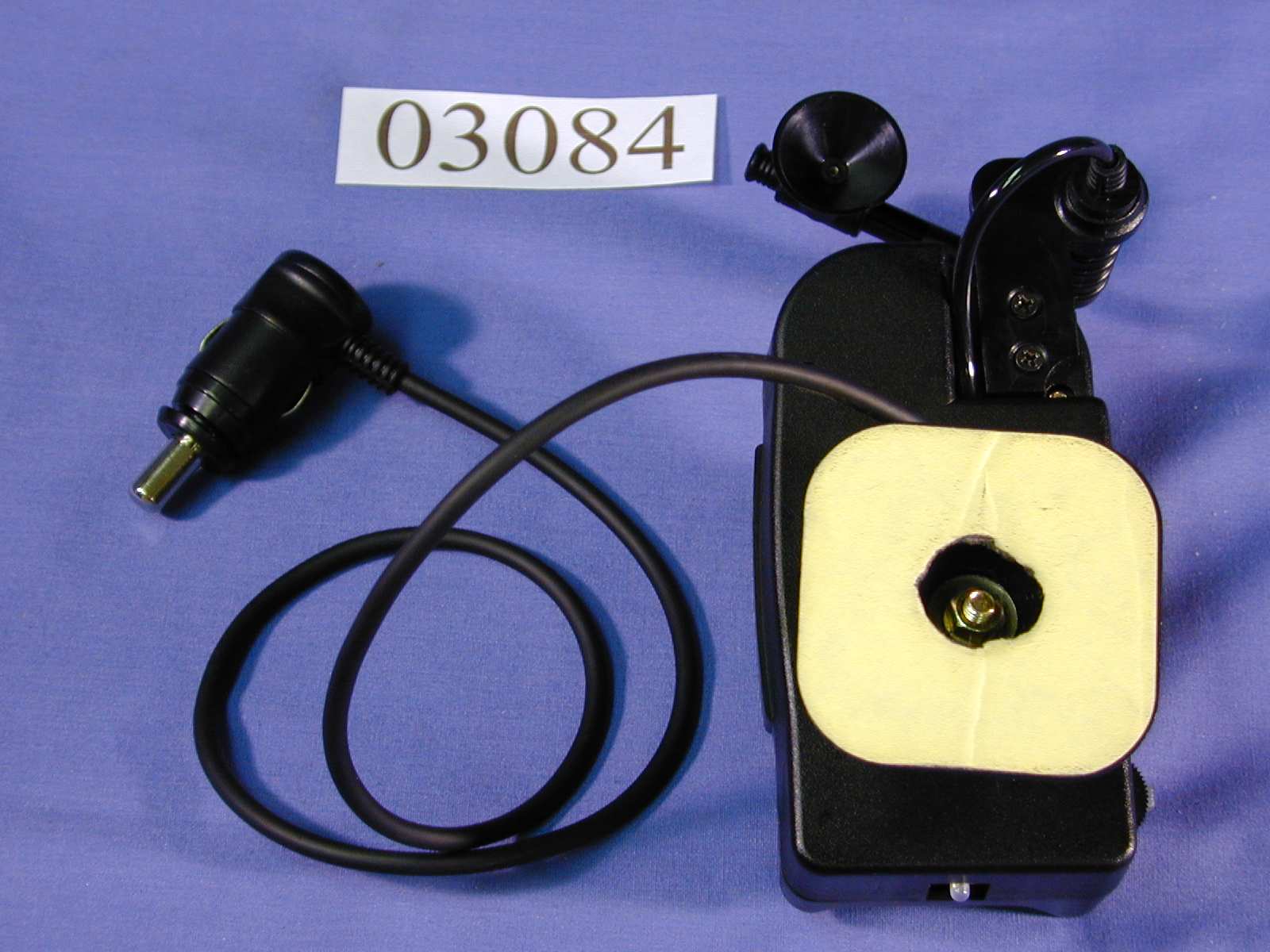

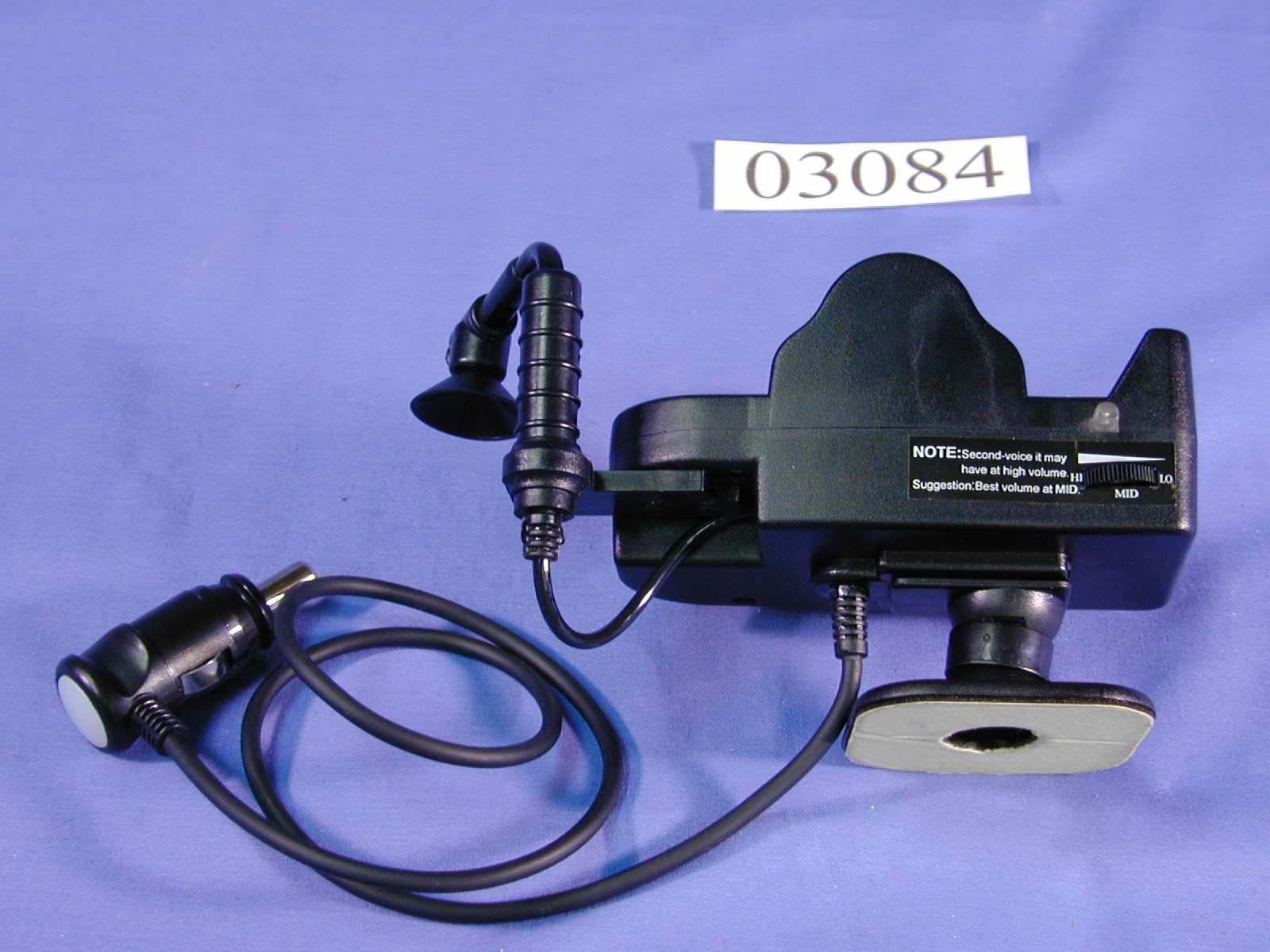

Universal FM Hands Free ~ Easy - talk Operation Decription: Insert the plug into the car lighter and set your car radio channel to be FM 96.0MHz. When the phone ring and the signal effective, the car audio system immediately stop to become the phone ring voice. The sound volume transfer from the car speaker. When the phone conversation terminated, the car audio system reverts to the origin within 15 seconds.

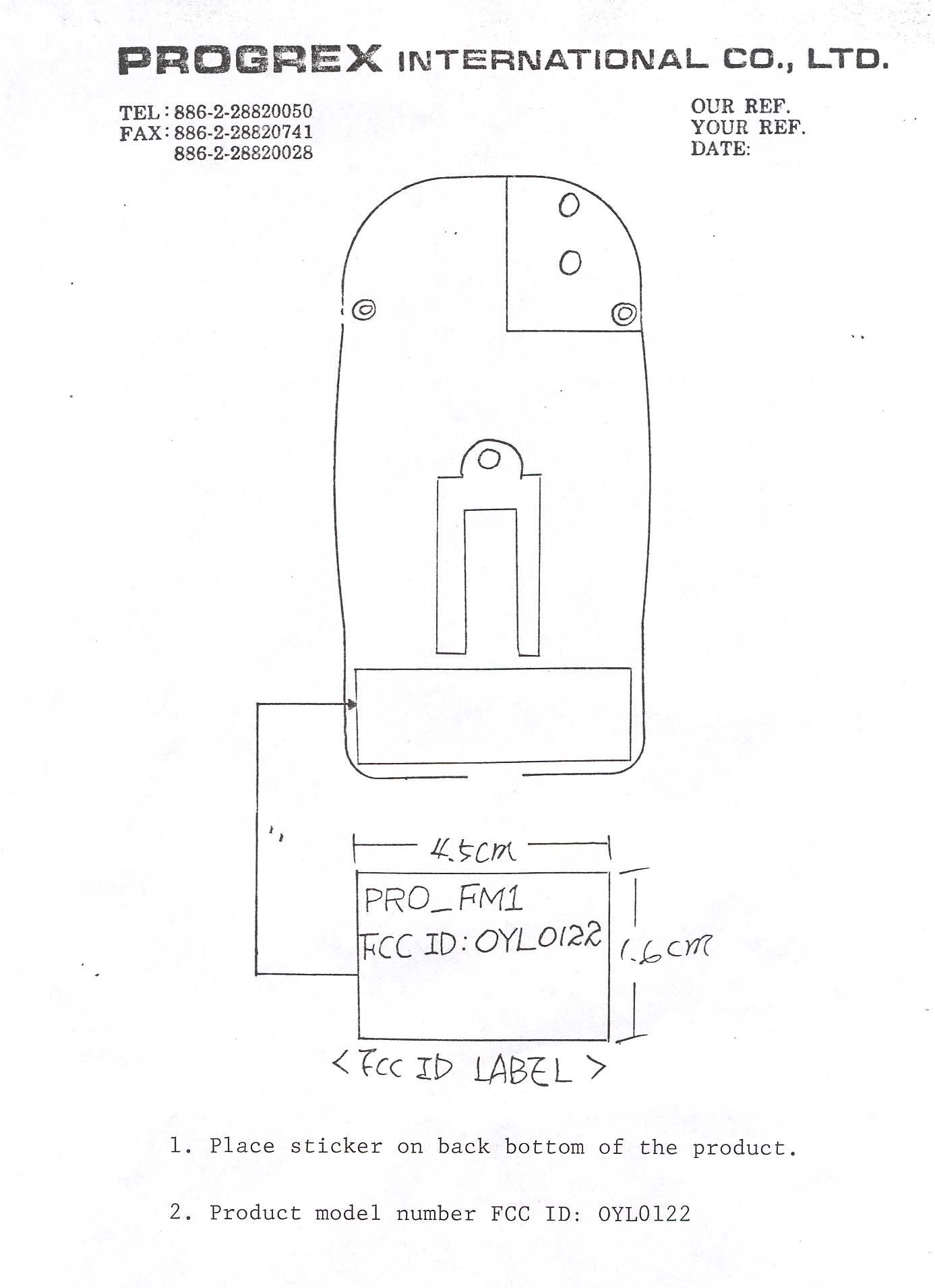

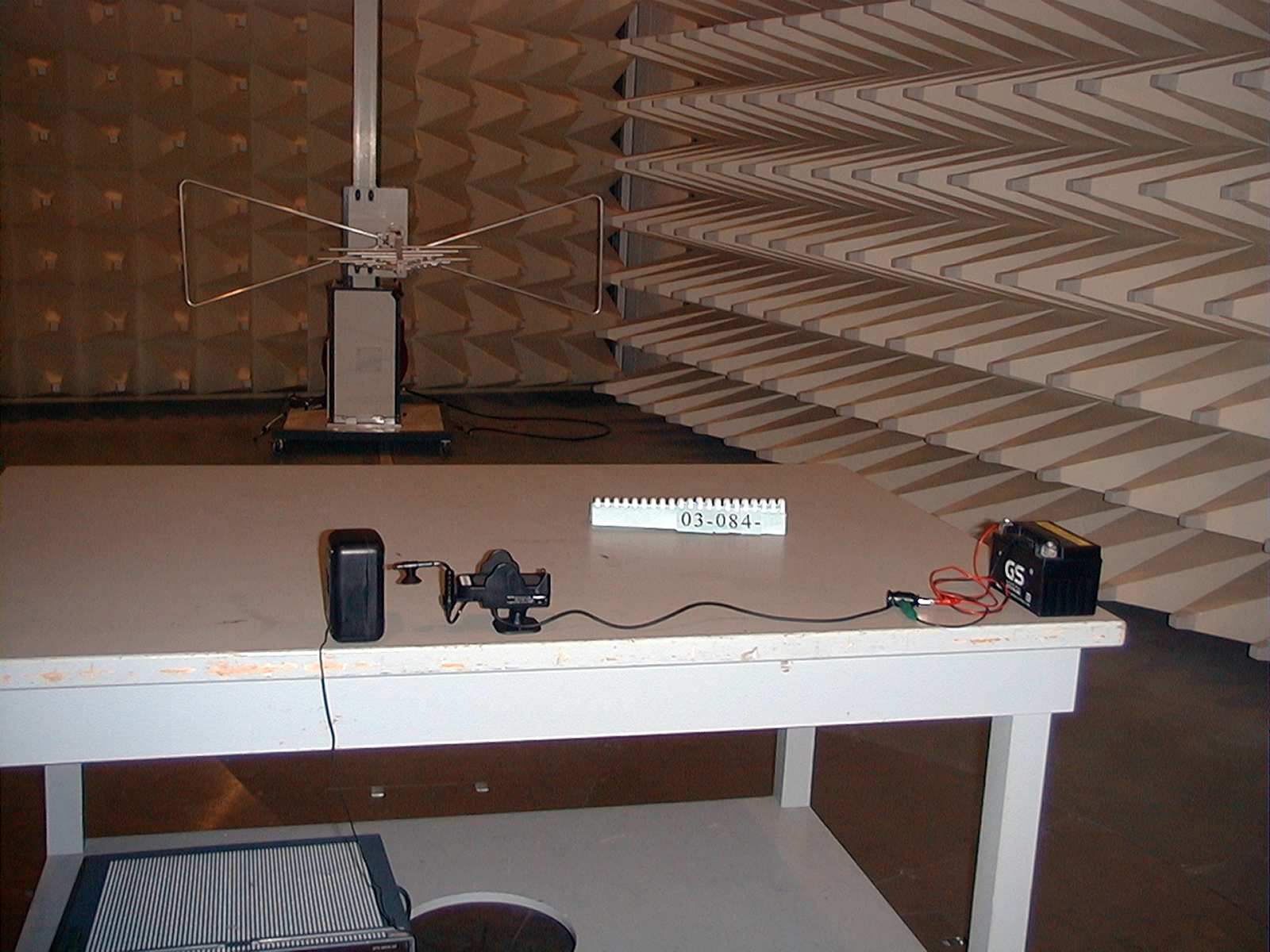

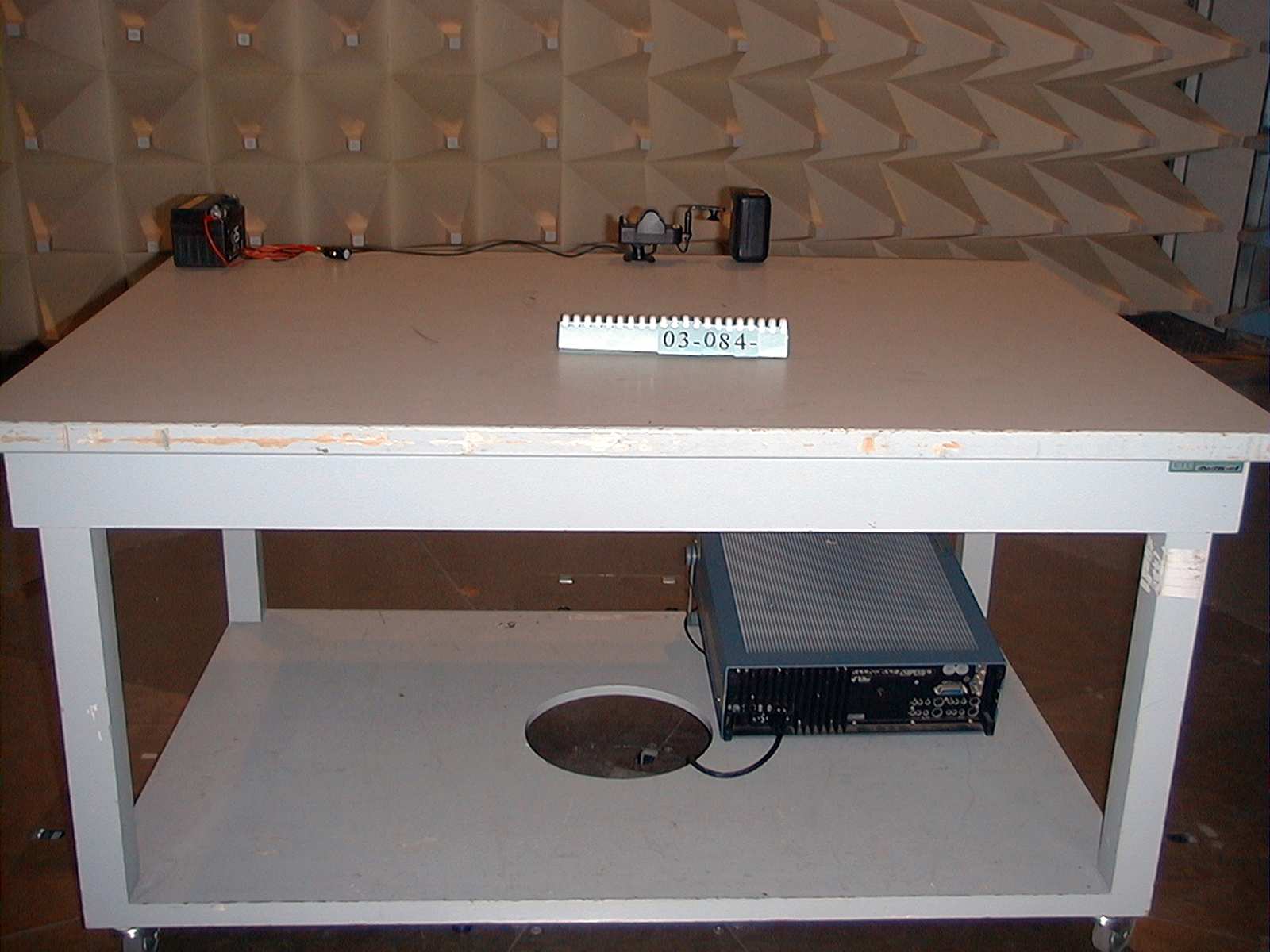

FCC ID.:OYL0122 Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Universal FM Hands Free ~ Easy - Talk (Transmitter) FCC ID. : OYL0122 MODEL : PRO_FM1 Working Frequency : 96.0 MHz for APPLICANT : PROGREX INTERNATIONAL CO., LTD. ADDRESS: 1F. NO. 7, LANE 26, CHIEN KONG STREET, SHIN LIN, TAIPEI, 11154, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3276170-3276174 Fax:(03)3276188 Report Number : ET89S-03-084 ETC Report No.:ET89S-03-084FCC ID.: OYL0122 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: PROGREX INTERNATIONAL CO., LTD. 1F. NO. 7, LANE 26, CHIEN KONG STREET, SHIN LIN, TAIPEI, 11154, TAIWAN, R.O.C. Manufacturer: PROGREX INTERNATIONAL CO., LTD. 1F. NO. 7, LANE 26, CHIEN KONG STREET, SHIN LIN, TAIPEI, 11154, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: Universal FM Hands Free ~ Easy - Talk) b) Trade Name: -- c) Model No.: PRO_FM1 d) FCC ID: OYL0122 e) Working Frequency : 96.0 MHz f) Power Supply: DC 12V Battery Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (1998) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date : Mar. 30, 2000 Test Engineer : Approve & Authorized Signer : Win-Po Tsai, Supervisor, NVLAP Signatory EMC Dept. of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET89S-03-084FCC ID.: OYL0122 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ........................................................................................................................................ 1 1.1 P RODUCT D ESCRIPTIO N ................................................................................................................................................... 1 1.2 C HARACTERISTICS OF D EVICE : ........................................................................................................................................ 1 1.3 T EST M ETHODOLOGY ...................................................................................................................................................... 1 1.4 T EST F ACILITY ................................................................................................................................................................. 1 2. DEFINITION AND LIMITS.......................................................................................................................................... 2 2.1 D EFINITION ..................................................................................................................................................................... 2 2.2 R ESTRICTED B ANDS OF O PERATION ................................................................................................................................. 2 2.3 L IMITATION ..................................................................................................................................................................... 2 2.4 L ABELIN G R EQ UIREMEN T ................................................................................................................................................. 4 2.5 U SER I NFORMATION ........................................................................................................................................................ 4 3. RADIATED EMISSION MEASUREMENT................................................................................................................. 5 3.1 A PPLICABLE S TANDARD .................................................................................................................................................. 5 3.2 M EASUREMEN T P ROCEDURE ............................................................................................................................................ 5 3.3 T EST D ATA ...................................................................................................................................................................... 7 3.4 F IELD S TREN GTH C ALCULATIO N ...................................................................................................................................... 8 3.5 R ADIATED T EST E QUIPMENT ............................................................................................................................................ 8 3.6 M EASURIN G I N STRUMEN T S ETUP ..................................................................................................................................... 9 3.7 R ADIATED M EASUREMEN T P HOTOS ................................................................................................................................. 9 4. BANDWIDTH OF EMISSION.................................................................................................................................... 10 4.1 A PPLICABLE S TANDARD P LO T G RAPHIC OF B ANDWIDTH ............................................................................................... 10 4.2 B ANDWIDTH T EST E QUIPMENT ...................................................................................................................................... 10 4.3 P LO T G RAPHIC OF B ANDWIDTH ..................................................................................................................................... 10 5. CONDUCTED EMISSION MEASUREMENT.......................................................................................................... 13 5.1 S TANDARD A PPLICABLE .....................................................…
