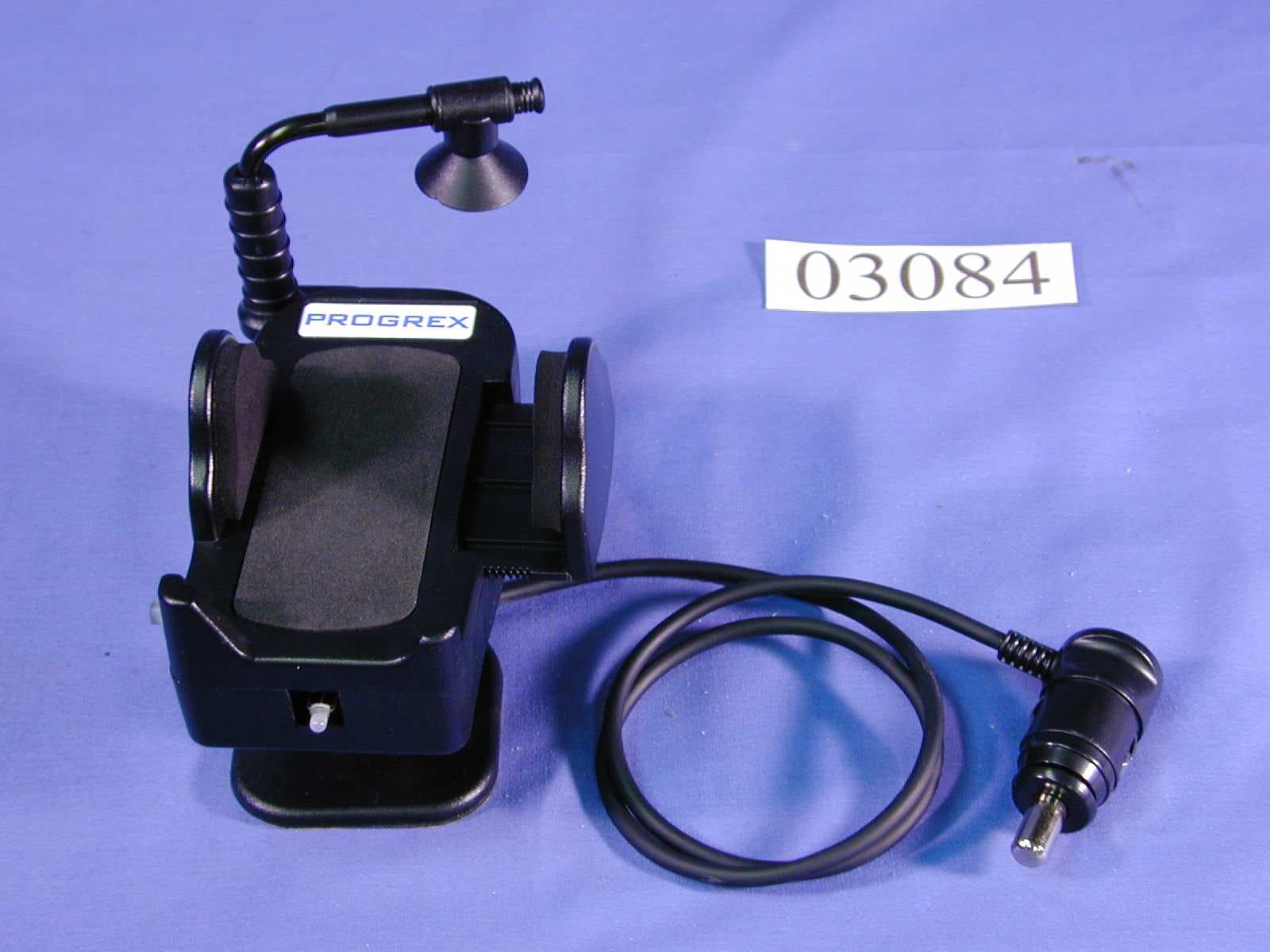

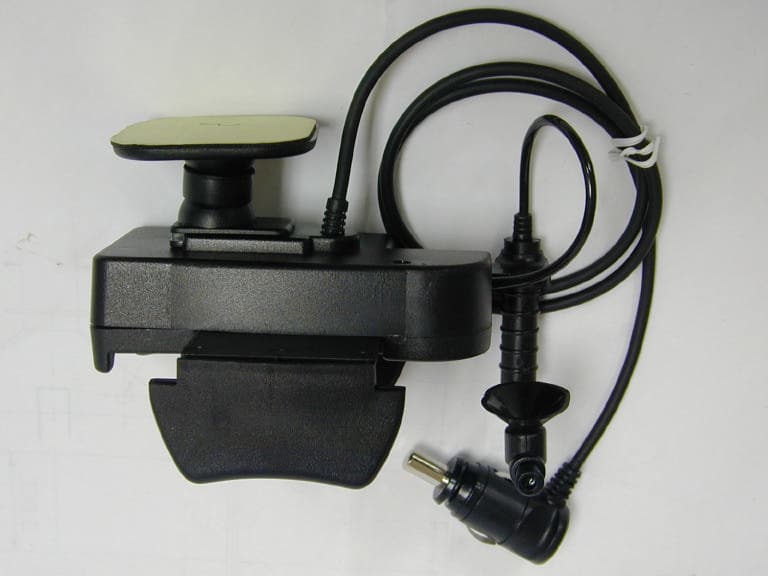

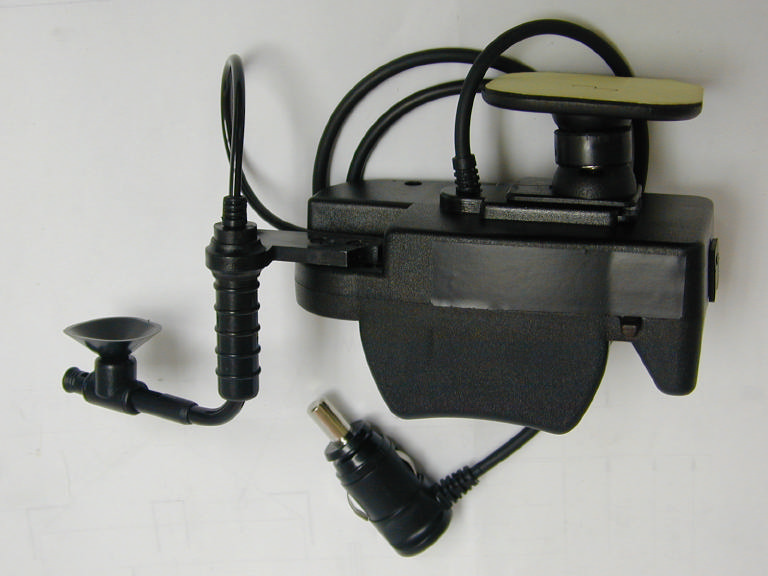

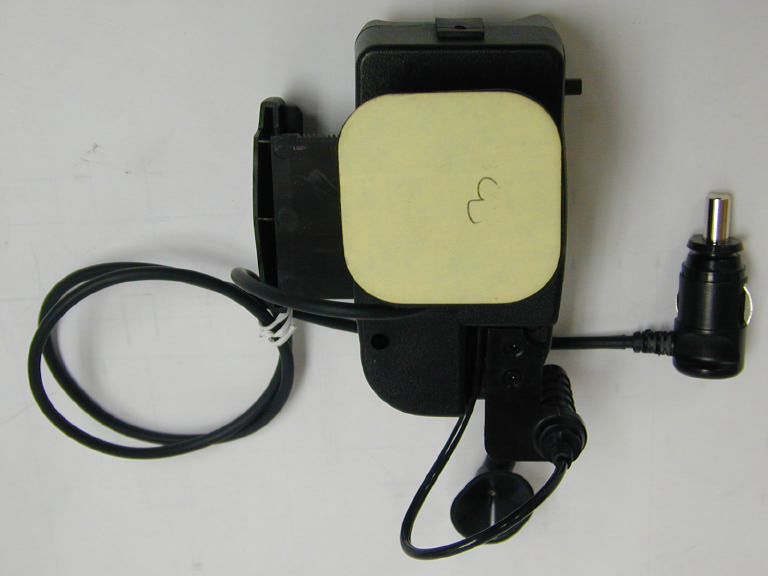

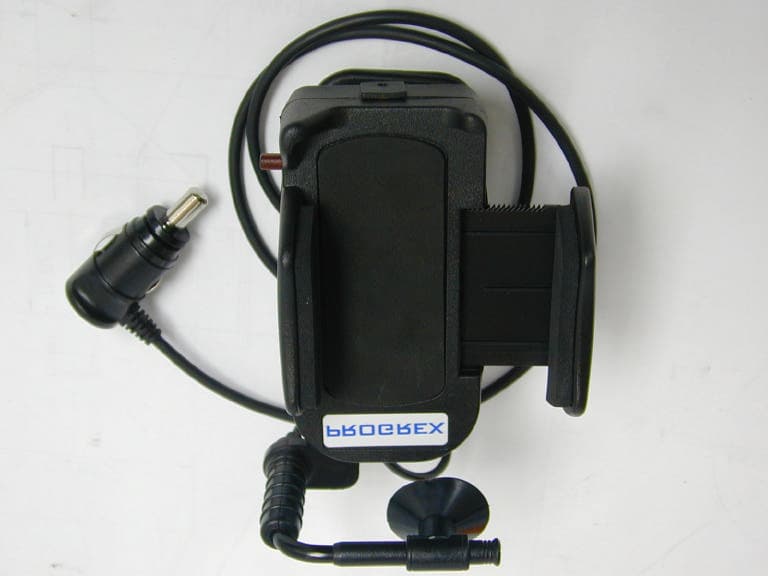

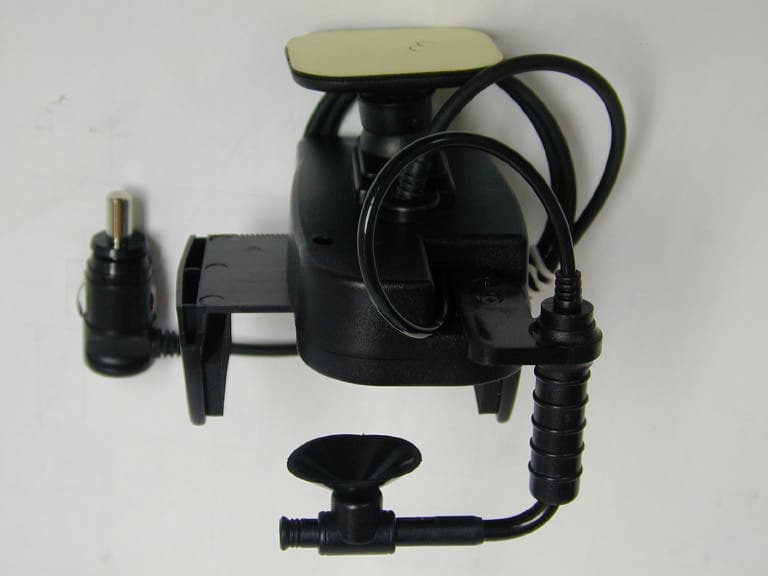

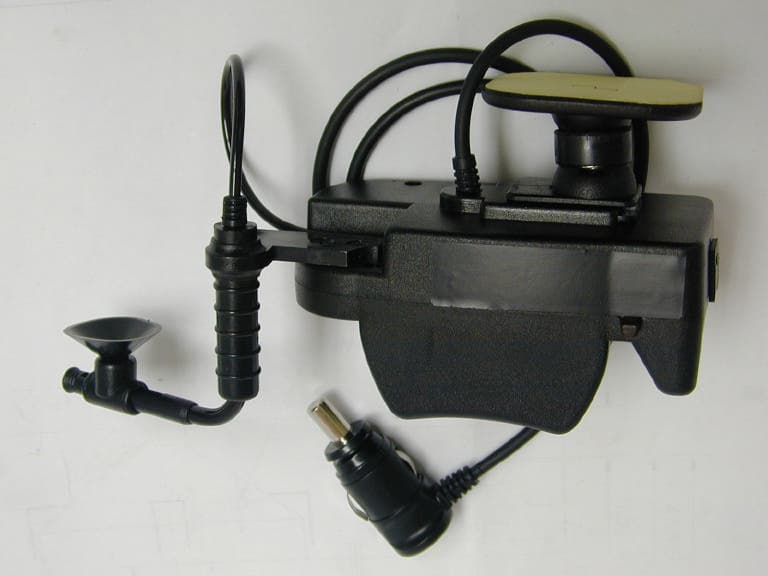

OYL8899Hands Free Easy Talk

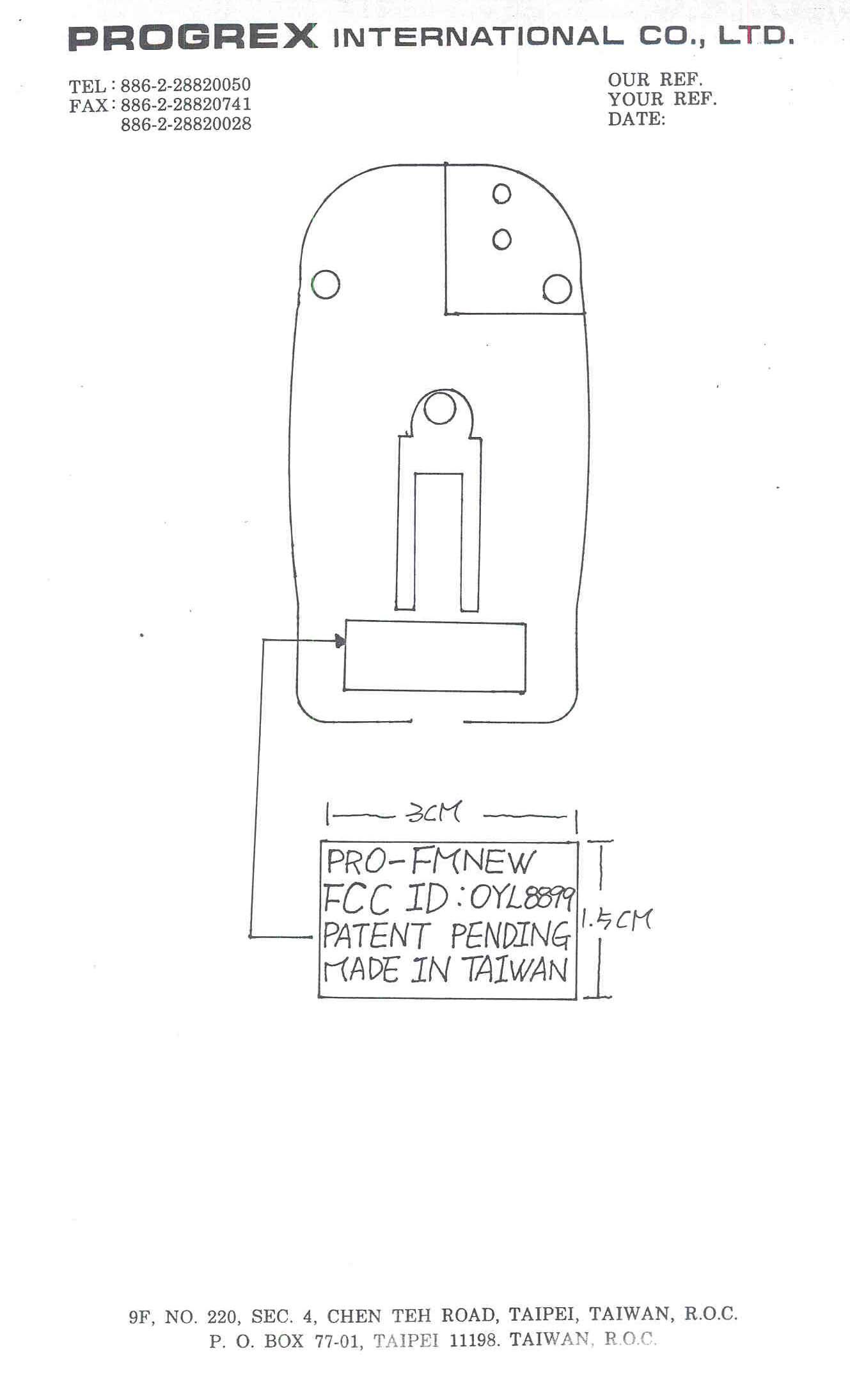

PRO-FMNEW INSTRUCTION SHEET It allows you to hear phone conversation through the car audio system (stereo). Its audio frequency is FM96.1MHz. All you have to do is to insert the plug into the car lighter and set your car radio channel to FM96.1MHz. When the phone ring and the signal effective, upon acceptance of the phone call, the radio will stop for the receipt of the incoming call. The sound will be heard through the speakers in the vehicle. User Informaton This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

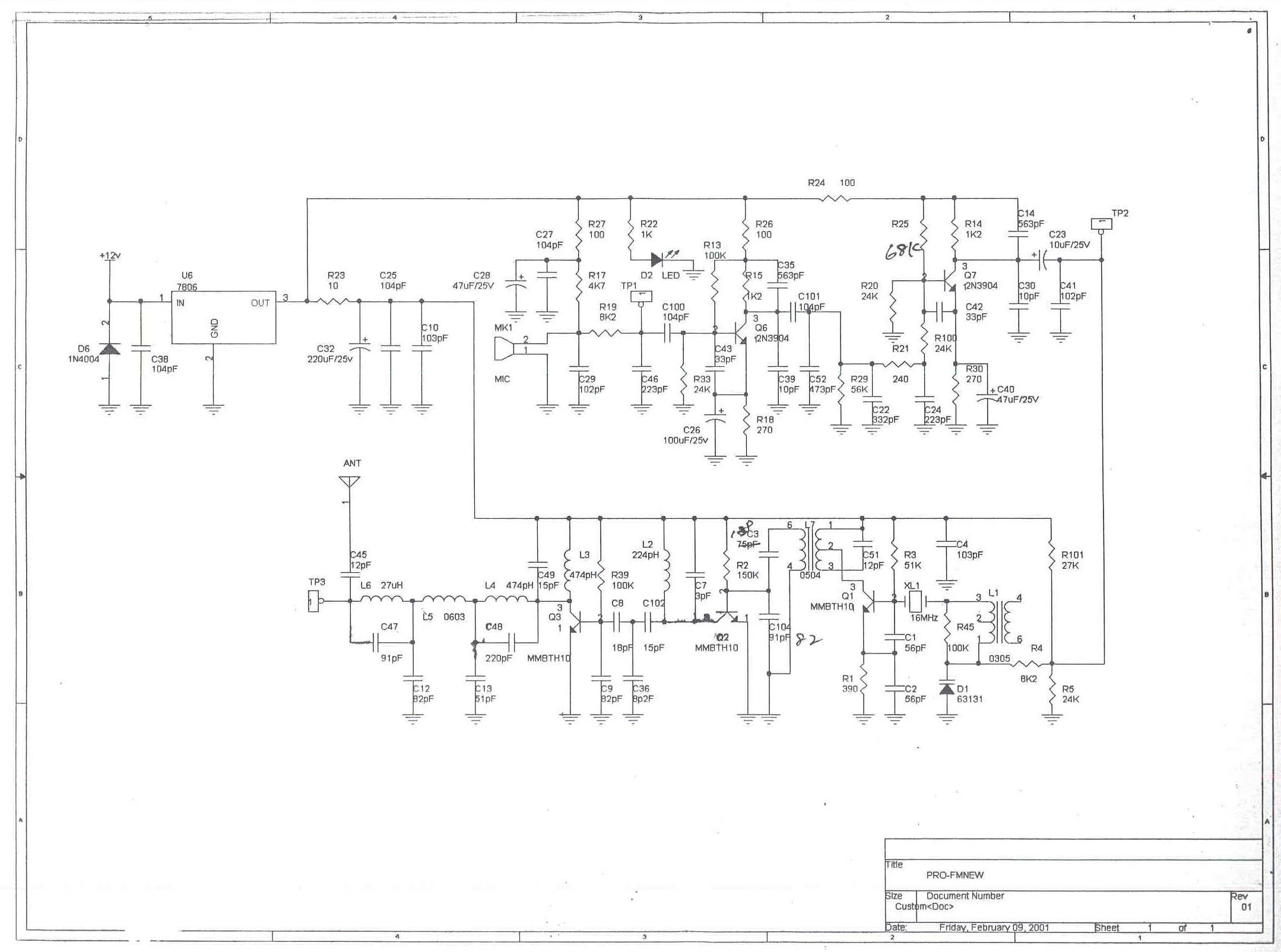

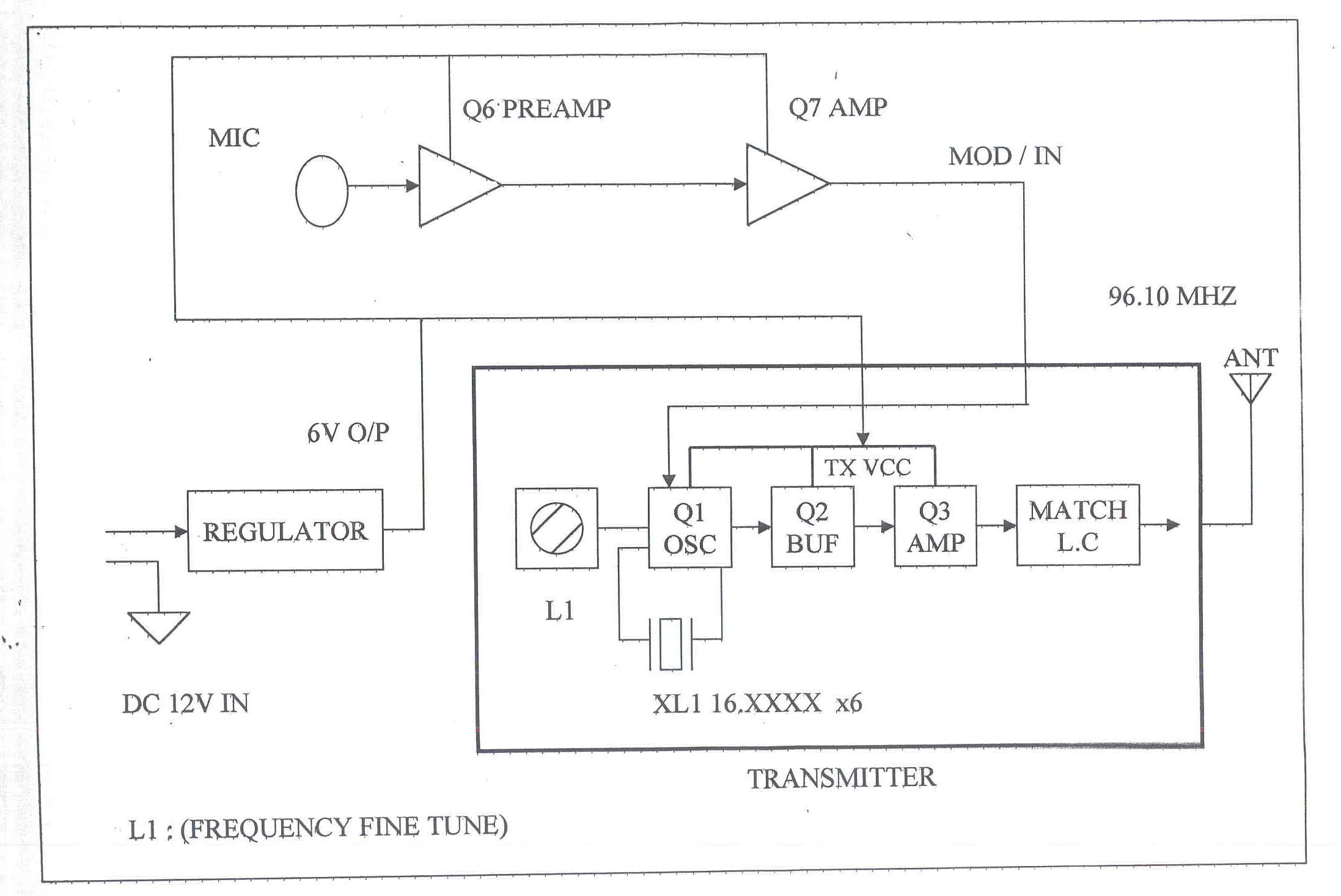

PRO-FMNEW The working principle of product FMNEW is to input signal through MIC via 2 level (Q6 Q7), with CR low frequency voltage to amplify circuit. Then penetrates quartz crystal and powered frequency circuit (Q1. XL1. Q2), power amplifier circuit (Q3), which is transmitted through ANT. U6 provides 6V powers to TX MIC line in the supply.

FCC ID.:OYL 8899 Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Universal FM Hands Free ~ Easy Talk FCC ID. : OYL 8899 MODEL : PRO-FMNEW Working Frequency : 96.100 MHz for APPLICANT: PROGREX INTERNATIONAL CO., LTD. ADDRESS: 1F, NO. 7, LANE 26, CHIEN KONG STREET, TAIPEI, 11157, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3276170~4 Fax:(03)3276188 Report Number : ET90S-03-167 ETC Report No.:ET90S-03-167FCC ID.: OYL 8899 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: PROGREX INTERNATIONAL CO., LTD. 1F, NO. 7, LANE 26, CHIEN KONG STREET, TAIPEI, 11157, TAIWAN, R.O.C. Manufacturer: PROGREX INTERNATIONAL CO., LTD. 1F, NO. 7, LANE 26, CHIEN KONG STREET, TAIPEI, 11157, TAIPEI, 11154, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: Universal FM Hands Free ~ Easy Talk b) Trade Name: WELLMIKE c) Model No.: PRO-FMNEW d) FCC ID: OYL 8899 e) Working Frequency: 96.100 MHz f) Power Supply: DC 12V Battery/100mA Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (1996) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date : Mar. 28, 2001 Test Engineer : Approve & Authorized Signer : Joseph Lu, Supervisor, NVLAP Signatory EMC Dept. of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET90S-03-167FCC ID.: OYL 8899 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.............................................................................................................................................1 1.1 PRODUCT DESCRIPTION..........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:................................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY........................................................................................................................................................................1 2. DEFINITION AND LIMITS...............................................................................................................................................2 2.1 DEFINITION.............................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION........................................................................................................................................2 2.3 LIMITATION............................................................................................................................................................................2 2.4 LABELING REQUIREMENT........................................................................................................................................................3 2.5 USER INFORMATION...............................................................................................................................................................3 3. RADIATED EMISSION MEASUREMENT.....................................................................................................................4 3.1 APPLICABLE STANDARD.........................................................................................................................................................4 3.2 MEASUREMENT PROCEDURE...................................................................................................................................................4 3.3 TEST DATA.............................................................................................................................................................................6 3.4 FIELD STRENGTH CALCULATION.............................................................................................................................................7 3.5 RADIATED TEST EQUIPMENT..................................................................................................................................................7 3.6 MEASURING INSTRUMENT SETUP............................................................................................................................................8 3.7 RADIATED MEASUREMENT PHOTOS.......................................................................................................................................8 4. BANDWIDTH OF EMISSION...........................................................................................................................................9 4.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH.......................................................................................................9 4.2 BANDWIDTH TEST EQUIPMENT...............................................................................................................................................9 4.3 PLOT GRAPHIC OF BANDWIDTH.............................................................................................................................................9 5. CONDUCTED EMISSION MEASUREMENT..............................................................................................................12 5.1 STANDARD APPLICABLE....................…
