OZE-RCV1000Radio Control Valve

RCV-1000 Radio Controlled Valve User Manual Operation The RCV 1000 accepts 4 control signals from a control unit. Signal 1: Open – Opens the valve. Signal 2: Close 90% – Close the valve to 90%, limiting the amount of water that will flow through the valve. Signal 3: Close 100% – Close the valve to 100%, completely shutting off the flow of water through the valve. Signal 4: Report Status – Instructs the valve to reply to the controller with its position and battery status. After each action is performed, the RCV 1000 will send a confirmation signal back to the controller. Specifications FCC ID : OZE-RCV1000 Signal Frequency : 915 MHz Encoding : Frequency Modulation Power Input : DC 3.6 Volts (AA Lithium Thionyl Chloride battery) This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference including interference that may cause undesired operation. Any changes or modifications made to this device without express written approval from Qtronics Manufacturing, Inc. could void the end user's authority to operate this device under FCC regulations.

P O R T T E S T IN G P O R T P R O G R AMMIN G IC S P V AL V E P IC 16F 890 MC U C WMDP 03 with a ntenna tra ns ceiver module R C V 1000 B lock Dia gra m Q troncis Ma nufa cturing Inc. ABCDEFGH 6 5 4 3 2 1 HGFEDCBA 1 2 3 4 5 6 AP P R O V E D DB YR evDAT EDE S C R IP T IO N O F R E V IS IO N T IT L E : N U MB E R : O F S H E E T :S IZE :R E V : N otes :DE S IG N E D DR AWN B YDAT EMon Aug 28 2006DAT E P R IN T E D: DAT E DR AWN :

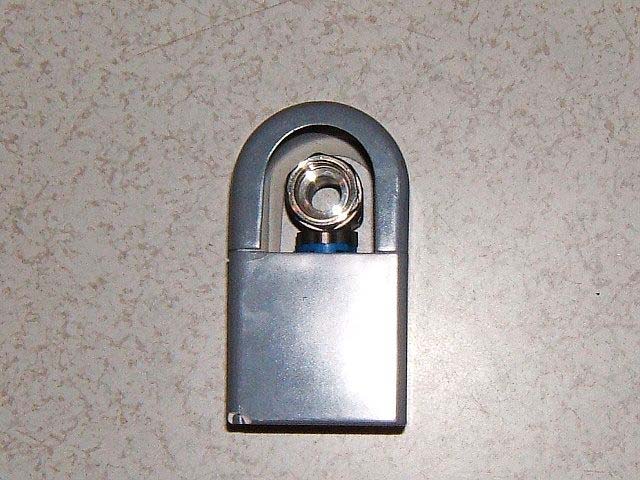

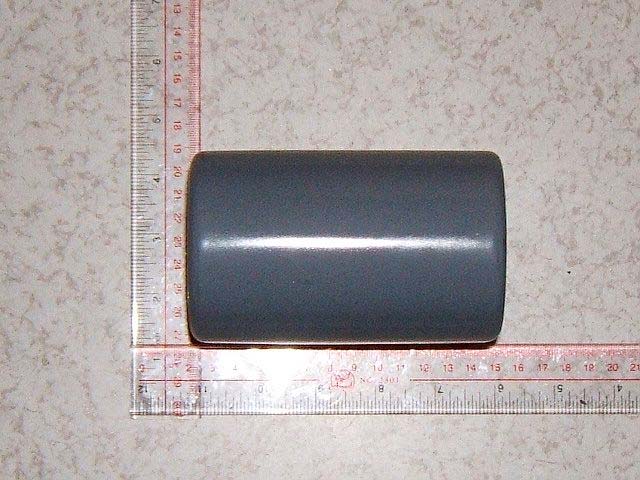

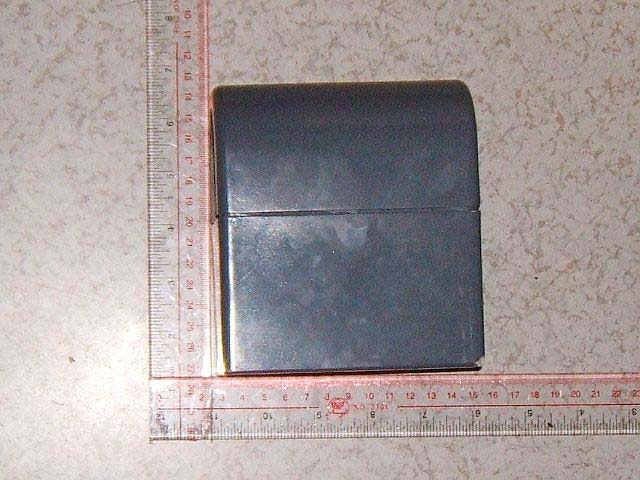

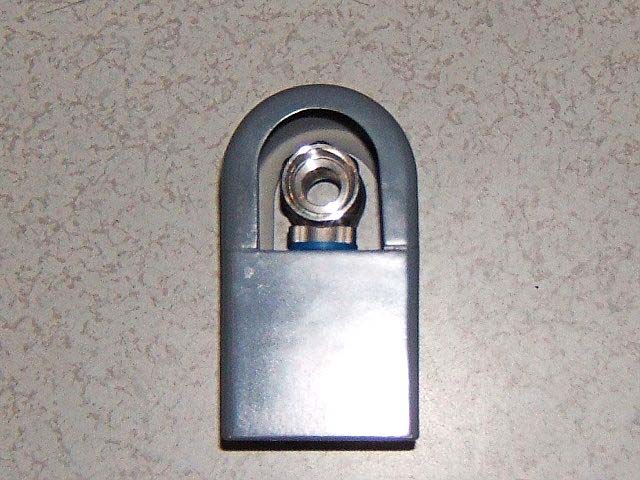

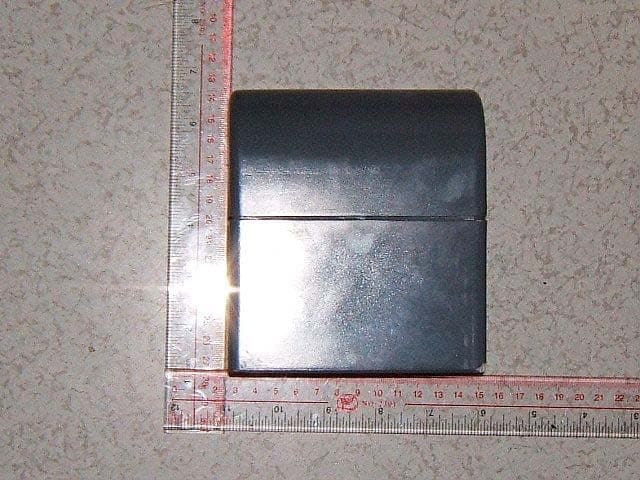

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 19 Rev. 00 Top View of EUT Bottom View of EUT Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 20 Rev. 00 Front View of EUT Back View of EUT Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 21 Rev. 00 Left View of EUT Right View of EUT

Model Name: RCV1000 FCC ID: OZE-RCV1000 This device complies with part15 of the FCC Rules. Operation is subject to the following two conditions :(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 22 Rev. 00 Internal of EUT– Open Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 23 Rev. 00 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 24 Rev. 00 Internal of EUT– 1 Internal of EUT– 2 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 25 Rev. 00 Internal of EUT– 3 Internal of EUT–4 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 26 Rev. 00 Internal of EUT–5

2421 CANOE AVENUE COQUITLAM, B.C. V3K 6A9 TEL : 604-944-8891 FAX : 604-944-8825 www.qtronics.com Theory of Operation of RCV1000 Radio Control Valve is a water/gas valve that is remotely controlled by a handheld device. Qtroncis model RCV1000 Radio Control valve is using a 915MHZ radio frequency transceiver. The RCV works on the 3.6V lithium battery. The extreme low power design make the device lasting over 10 years. The unit house in a plastic enclosure and mounted on top of a shutoff valve. A handheld controller equipped with the same transceiver module. The handheld controller sends a FM radio signal contains the units Ids and message code. In the event of opening the valve, the operator can select the RCV which needs to be opened from a list, and sends a ” open message” that embedded ID to that particular RCV. The RCV check the received message and compare the ID with a pre-stored device ID. If the ID matches, the RCV open the valve accordingly. The RCV replies to the handheld controller with a feedback signal. The same principle applies when the operator needs to close the valve, check RCV status. This FM 915MHZ transceiver module contains a 10 bytes preamble and manufacturer’s ids. RF baud rate is 25000kps. 2421 CANOE AVENUE COQUITLAM, B.C. V3K 6A9 TEL : 604-944-8891 FAX : 604-944-8825 www.qtronics.com Handheld RCV01 Handheld transmit a “Ask Status” message RCV01 reply with a “Report Status” message. Handheld send a “Open Valve” message RCV reply a “Acknowledge Open” Message Open the valve Sent “Report Status” message Handheld send a “Close Valve” message RCV reply a “ Acknowledge Close” message Close the valve Send “Report Status” message RX TX RX TX RX TX

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 7-Sep-2006 Sheet of File: C:\Documents and Settings\K evin\My Documents\1203BASE3.DDB Drawn By: MCLR/VPP 1 RA0/AN0 2 RA1/AN1 3 RA2/AN2 4 RA3/AN3/VREF 5 RA4/T0CK1 6 RA5/AN4/SS 7 VSS 8 OSC1/CLKIN 9 OSC2/CLKOUT 10 RC0/T1OS0/T1CK1 11 RC1/T1OSI/CCP2 12 RC2/CCP1 13 RC3/SCK/SCL 14 RC4/SDI/SDA 15 RC5/SD0 16 RC6/TX/CK 17 RC7/RX/DT 18 VSS 19 VDD 20 RB0/INT 21 RB1 22 RB2 23 RB3 24 RB4 25 RB5 26 RB6 27 RB7 28 U1 PIC16F73 DCLK Y1 16M C2 C3 ENSOSISCLK C4 C9 DATAPAT C11 C7 C8 C10 +5V VCC vin 1 gnd 2 en 3 vout 5 4 4 dc+3v U2DC+3.3V R10 R1 VCC VPP VPP R7 C1 C6 C5 R9R8 TXRXSCL SDA R6 RS_TXDRS_RXDDATAINSWITCH R2R5R3R4 SLEEPTESTSETFEI 1 A0 2 A1 3 A2 4 GND 8 VCC 7 WP 6 SCL 5 SDA U3 24C01A VCC R11 R12 R13 vcc SET D2LED D1 LED 1234567 J1 CON7 vcc txrxsetsleep 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 7-Sep-2006 Sheet of File: C:\Documents and Settings\Kevin\My Documents\DP12032.DDB Drawn By: L3 c13c14 c11NP C25 L6 C10 VDD L8 C27 NC C28 C29 R11 Y1 C15 C8 VDD C23 C22 C16 R10 C5 R3 C6 R7 R8 R9 R4 R5 R6 R2 R1 pt dai da ck sc si so e S_CLK S_IN S_OUT EN clko D_CLK DATA DA_IN PAT VC1 4 IN 5 VC2 6 J2 3 GND 2 J3 1 ALPHA1 C19 C17 C30 VDD L7 C26 C18 C9 C21 C7 L4 C20 RXENTXEN SW L5 C12NP VDD C3 C2NC L1 C1 C4 C24 R12 R13nc DP1202 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24 25 25 26 26 27 27 28 28 29 29 30 30 31 31 32 32 33 33 34 34 35 35 36 36 37 37 38 38 39 39 40 40 41 41 42 42 43 43 44 44 45 45 46 46 47 47 48 48 u1 XE1203

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 1 of 27 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Radio Control Valve FCC ID: OZE-RCV1000 MODEL No.: RCV1000 BRAND NAME: QTRONICS REPORT NO: WE06090001 ISSUE DATE: Sep 18, 2006 Prepared for QTRONICS MANUFACTURING INC. 2421 CANOE AVE, COQUITLAM, BC, CANADA V3K6A9 Prepared by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD d.b.a. SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD HUATONGWEI BUILDING, KEJI RD. 12 S., HIGH-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG, P.R.CHINA TEL: 86-755-26748099 FAX: 86-755-26748005 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: Qtronics Manufacturing Inc. 2421 Canoe Ave, Coquitlam, BC, CANADA V3K6A9 Product Description: Radio Control Valve Brand Name: QTRONICS Model Number: RCV1000 Serial Number: N/A File Number: WE06090001 Date of Test: Sep 08, 2006 ~ Sep 16,2006 We hereby certify that: The above equipment was tested by SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Jimmy Li / Executive Manager Tracy Qi / Testing Engineer SHENZHEN HUA TONG WEI SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD INTERNATIONAL INSPECTION CO., LTD Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06090001 FCC ID: OZE-RCV1000 DATE: 09/18/2006 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION ................................................................................................ 4 1.1 PRODUCT DESCRIPTION...............................................................................................................................4 1.2 R ELATED SUBMITTAL(S) / GRANT (S)............................................................................................................. 4 1.3 T EST METHODOLOGY................................................................................................................................... 4 1.4 T EST FACILITY............................................................................................................................................. 4 1.5 S PECIAL ACCESSORIES................................................................................................................................4 1.6 E QUIPMENT MODIFICATIONS......................................................................................................................... 5 1.7. LABORATORY ACCREDITATIONS AND LISTINGS............................................................................................... 5 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................................... 7 2.2 EUT EXERCISE......................................................................................................................................................... 7 2.3 T EST PROCEDURE.................................................................................................................................................... 7 2.4 L IMITATION................................................................................................................................................................ 7 2.5 C ONFIGURATION OF TESTED SYSTEM...................................................................................................................... 8 3. SUMMARY OF TEST RESULTS ........................................................................................ 9 4. DESCRIPTION OF TEST MODES ..................................................................................... 9 5. CONDUCTED EMISSIONS TEST .................................................................................... 10 5.1 MEASUREMENT PROCEDURE:................................................................................................................................. 10 5.2 T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)........................................................................................ 10 5.3 MEASUREMENT EQUIPMENT USED:....................................................................................................................... 11 5.4 M EASUREMENT RESULT:........................................................................................................................................ 11 6. RADIATED EMISSION TEST ........................................................................................... 12 6.1 MEASUREMENT PROCEDURE.................................................................................................................................. 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)......................................................................................... 12 6.3 M EASUREMENT EQUIPMENT USED:........................................................................................................................ 13 6.4 F IELD STRENGTH CALCULATION............................................................................................................................. 13 6.5 MEASUREMENT RESULTS....................................................................................................................…
