OZLMW-RC01Predator Remote

Product Name: Predator Remote Control MODEL NO: MW-RC01 Unit working voltage: 3V Unit working Frequency: 433.92MHz For use with any Predator Decoy compatible with this Remote Control. Parts List: Remote Transmitter CR2032 battery is preinstalled in the unit Operation: There are two keys “ON” and “OFF” To operate, turn the power switch of the Predator Decoy. Press “ON” to trigger function ON. Press “OFF” to trigger function OFF. LED lights up when key is pressed. TROUBLE SHOOTING: Common problems: The Predator Decoy doesn’t respond to the Remote Transmitter; the remote distance is too shot. Check List: 1. Make sure the Predator Decoy is power on. 2. Make sure the battery is not too low. 3. Extend the antenna of both the Remote Transmitter and Predator Decoy to maximum. If those steps do not get it back working, contact Customer Service at the number is 715-381-2935. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

MW Products LTD. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 04.08.2012 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Shenzhen Certification Technology Service Co., Ltd. Address 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Predator Remote Model Name MW-RC01 Brand Name EDGE We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Francis Ho Position manager Company Name MW Products LTD. Address Flat D, 2/F, Effort Industrial Building, 2-8 Kung Yip Street, Kwai Chung, Hong Kong. Tel 852-26622190 Fax 852-30115796 Email [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

MW Products LTD. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: MW Products LTD. FCC ID : OZLMW-RC01 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Francis Ho Position manager Company Name MW Products LTD. Address Flat D, 2/F, Effort Industrial Building, 2-8 Kung Yip Street, Kwai Chung, Hong Kong. Tel 852-26622190 Fax 852-30115796 Email [email protected]

Label location 20 mm 15mm FCC ID: OZLMW-RC01

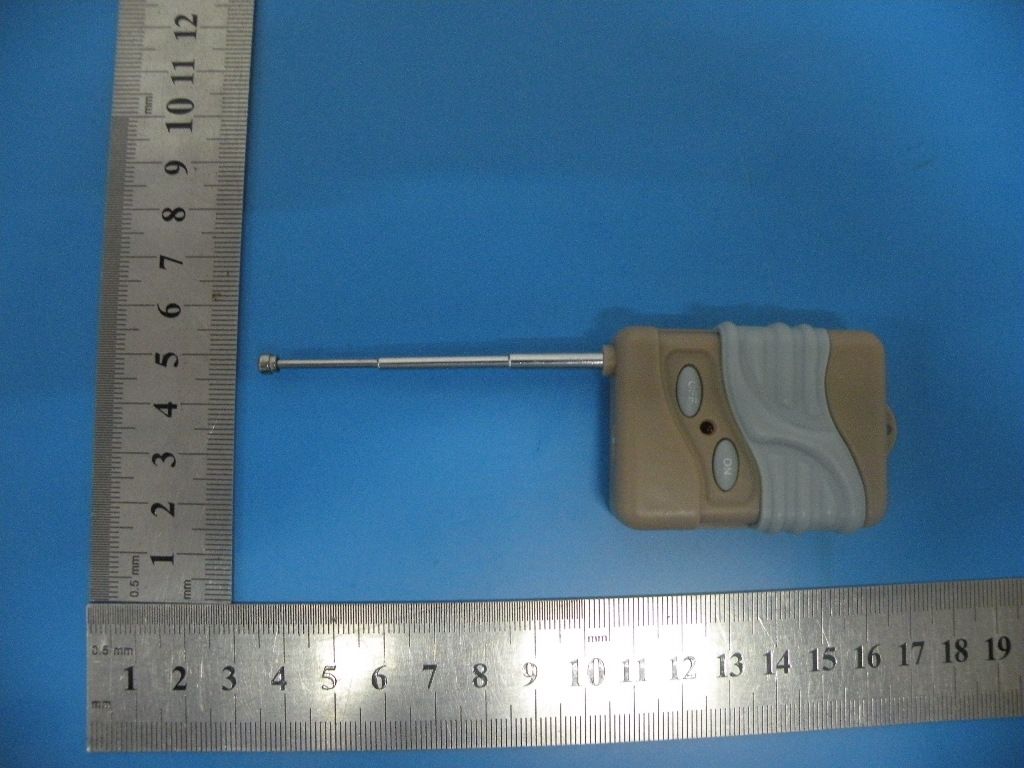

ANTENNA

Shenzhen Certification Technology Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, Shenzhen 518126, P.R. China. FCC ID: OZLMW-RC01 Page 1 of 36 TEST REPORT FCC ID: OZLMW-RC01 Applicant : MW Products LTD. Address : Flat D, 2/F, Effort Industrial Building, 2-8 Kung Yip Street, Kwai Chung, Hong Kong. Equipment under Test (EUT): Name : Predator Remote Model : MW -RC01 Standards : FCC PART 15, SUBPART C : 2011 (Section 15.231 ) Report No. : STE 120 726965 Date of Test : July 28-31, 201 2 Date of Issue : August 2, 201 2 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: STE 120726965 FC C ID: OZLMW-RC01 Page 2 of 36 TABLE OF CONTENT Description Page 1 General Information--------------------------------------------------------------------------------------3 1.1 Description of Device (EUT)---------------------------------------------------------------------3 1.2 Description of Test Facility-----------------------------------------------------------------------3 2 EMC Equipment List-----------------------------------------------------------------------------------4 3 Test Procedure---------------------------------------------------------------------------------------------5 4 Summary of Measurement---------------------------------------------------------------------------6 Occupied bandwidth----------------------------------------------------------------------------------------6 5 Radiation Emission------------------------------------------------------------------------------------8 5.1 Duty cycle-------------------------------------------------------------------------------------------8 5.2 Radiation Emission Limits(15.209&231)--------------------------------------------------12 5.3 Test Setup-----------------------------------------------------------------------------------------12 5.4 Test Procedure-----------------------------------------------------------------------------------14 5.5 Test Equipment Setting For emission test.-----------------------------------------------15 5.6 Test Condition------------------------------------------------------------------------------------15 5.7 Test Result----------------------------------------------------------------------------------------15 6 POWER LINE CONDUCTED EMISSION-------------------------------------------------------20 6.1 Conducted Emission Limits(15.209)--------------------------------------------------------20 6.2 Test Setup-----------------------------------------------------------------------------------------20 6.3 Test Procedure-----------------------------------------------------------------------------------21 6.4 Test Results---------------------------------------------------------------------------------------21 7 Occupied bandwidth---------------------------------------------------------------------------------22 7.1 Test limit-------------------------------------------------------------------------------------------22 7.2 Method of measurement-----------------------------------------------------------------------22 7.3 Test Setup-----------------------------------------------------------------------------------------22 7.4 Test Results---------------------------------------------------------------------------------------22 8 Transmission time------------------------------------------------------------------------------------24 8.1 Test limit-------------------------------------------------------------------------------------------24 8.2 Method of measurement-----------------------------------------------------------------------24 8.3 Test Setup-----------------------------------------------------------------------------------------24 8.4 Test Results---------------------------------------------------------------------------------------24 9 Band Edge Check-------------------------------------------------------------------------------------26 9.1 Test limit-------------------------------------------------------------------------------------------26 9.2 Test Procedure-----------------------------------------------------------------------------------26 9.3 Test Setup-----------------------------------------------------------------------------------------26 9.4 Test Result----------------------------------------------------------------------------------------26 10 Antenna Requirement-------------------------------------------------------------------------------27 10.1 Standard Requirement-------------------------------------------------------------------------27 10.2 Antenna Connected Construction-----------------------------------------------------------27 10.3 Result-----------------------------------------------------------------------------------------------27 11 Photographs of Test Setup------------------------------------------------------------------------28 12 Photographs of EUT---------------------------------------------------------------------------------30 Report No.: STE120726965 FCC ID: OZLMW-RC01 Page 3 of 36 1 General Information 1.1 Description of Device (EUT) Trade Name : EDGE EUT : Predator Remote Model No. : MW-RC01 Type of Antenna : Telescope antenna, Max Gain 0dBi. Operation Frequency : 433.92 MHZ Channel number …

Text truncated - open the document above for the full version.

Photos of Radiated emission
