P25BWMC8829C1007RWireless ThumbPad RX Dongle for PS3

!! Page 29 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! !! Page 2: ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

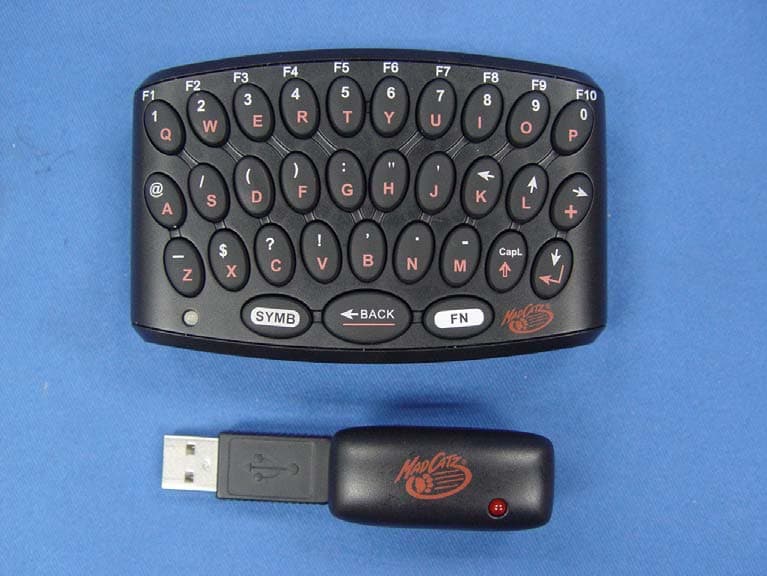

!! Page 6 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! EXHIBIT 2 Photographs Photographs From Page 6 to Page 8 !! Page 7 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! Photographs Figure 1 General Appearance Figure 2 General Appearance !! Page 8 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! Figure 3 General Appearance Figure 4 General Appearance Label Location

!! Page 4 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! EXHIBIT 1 Label Drawing !! Page 5 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! Label Drawing Please refer Exhibit 2 Figure 4 for Label Placement Location

!! Page 9 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! Figure 5 Inside of the EUT Figure 6 Inside of the EUT !! Page : ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! Figure 7 Inside of the EUT Figure 8 Inside of the EUT !! Page 21 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! Figure 9 Inside of the EUT Figure 10 Inside of the EUT

!! Page 28 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! Operational Description !! Page 29 ! MadCatz, Inc. ! Wireless ThumbPad Receiver for PS3 ! FCC ID:P25BWMC8829C1007R ! ! Our product mini PS3 wireless keyboard 8829 is a hopping system, it sets in the 74 channels working range from 2410MHz to2470MHz.And the system will hop at random on every channel when in the process of being used ,each channel used on average will be guaranted. The system complies with the requirement 15.247(a)/RSS-210 A8.1. While system sets in the prosess of searching, the transmitter will create a random code to the receiving end. When the two sides connect successfully ,both of their random codes shall be the same. While system sets in the process of communicating as a benchmark of 2410MHz frequency, random code will create one more random code in accordance with the same formula to reach an offset frequency. Then the offset frequency plus base frequency works out the final frequency, at the same time ensuring the final frequency will range within 2410MHz and 2470MHz.Thus System hops randomly in such an approach in 74 channels to spread messages probably 100 times in a second time, and each one channel shall be surely used at least once . The system complies with the requirement 15.247(g)/RSS-210 A8.1. Cause our product is a random hopping system, it doesn't have any mechanic procedure to automatically control to hop any frequency or close any frequency on the next second. it not have the ability to be coordinated with other FHSS systems in an effort to avoid the simultaneous occupancy of individual hopping frequencies by multiple transmitters. The system complies with the requirement 15.247(h)/RSS-210 A8.1.

FCC ID:P25BWMC8829C1007R page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07172 11. MPE ESTIMATION 11.1.Limit for General Population / Uncontrolled Exposures Frequency Power density (mW/cm²) Averaging time (minutes) 300MHz~1.5GHz F/1500 30 1.5GHz~100GHz 1.0 30 Frequency (MHz) Power density (mW/cm²) Averaging time (minutes) 2410 1.0 30 2440 1.0 30 2469 1.0 30 Note: F = Frequency in MHz 11.2.Estimation Result CH Frequency (MHz) Peak output power (dBm) Antenna gain (dBi) Antenna gain (Linear) Low 2410 0.64 0 1 Mid 2440 1.11 0 1 High 2469 0.16 0 1 CH Frequency (MHz) Peak output power (mW) Power density at 20cm (mW/ cm²) Low 2410 1.159 2.31*10 - 5 Mid 2440 1.291 2.57*10 - 5 High 2469 1.038 2.06*10 - 5

FCC ID:P25BWMC8829C1007R page 1-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07172 APPLICATION FOR CERTIFICATION On Behalf of MadCatz, Inc. Wireless ThumbPad Receiver for PS3 Model Number: 8829R Prepared for : MadCatz, Inc. 7480 Mission Valley Road, Suite 101, San Diego, California, 92108 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F07172 Date of Test ： Apr.09 ~ 30, 2007 Date of Report ： May. 15, 2007 FCC ID:P25BWMC8829C1007R page 1-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07172 TABLE OF CONTENTS Description Page FCC Test Report for Declaration of Conformity 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-5 1.1. Description of Standards and Results ............................................................................................1-5 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Tested Supporting System Details .................................................................................................2-1 2.3. Test Facility ...................................................................................................................................2-2 2.4. Measurement Uncertainty ..............................................................................................................2-2 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits................................................................................3-1 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results ..............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-2 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-3 5. CARRIER FREQUENCY SEPARATION TEST ................................................................. 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Test Information .............................................................................................................................5-1 5.3. Test Results ....................................................................................................................................5-1 6. 20 DB BANDWIDTH TEST .................................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Test Information .............................................................................................................................6-1 6.3. Test Results ....................................................................................................................................6-1 7. NUMBER OF HOPPING FREQUENCY TEST ................................................................... 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Test Information .............................................................................................................................7-1 7.3. Test Results ....................................................................................................................................7-1 8. DWELL TIME TEST ............................................................................................................... 8-1 8.1. Test Equipment ..............................................................................................................................8-1 8.2. Test Information ..................................................................…

Text truncated - open the document above for the full version.

FCC ID:P25BWMC8829C1007R Page 12-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07172 12. PHOTOGRAPH 12.1.Photos of Power Line Conducted Emission Test FCC ID:P25BWMC8829C1007R Page 12-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07172 12.2.Photos of Radiated Emission Test 30-1000MHz FCC ID:P25BWMC8829C1007R Page 12-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07172 Above 1000MHz
