P25R232267AL.Y.N.X.9 Mobile Hybrid Controller

Mad Catz, Inc.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Mar 03, 2015
Application Purpose: Original Equipment
Date of Application: Mar 01, 2015
Equipment Note: L.Y.N.X.9 Mobile Hybrid Controller
Frequency Range: 2402.00000000 - 2480.00000000
Company: Mad Catz, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ENGLISH TECHNICAL SUPPORT Canʼt get started? Donʼt worry; weʼre here to help you! Nearly all the products that are returned to us as faulty are not faulty at all - they have just not been installed properly. If you experience any difficulty with this product, please first visit our website http://support.madcatz.com. The technical support area will provide you with all the information you need to get the most out of your product and should solve any problems you might have. If you do not have access to the Internet, or if the website cannot answer your question, please contact your local Mad Catz Technical Support Team. We aim to offer quick, comprehensive, and thorough technical support to all our users so, before you call, please make sure you have all the relevant information at hand. IMPORTANT! Before using this product read all accompanying information and your game systemʼs instruction manual for safety, health, and other information. 2-YEAR LIMITED WARRANTY Mad Catz warrants this product to be free from defects in materials and workmanship for the warranty period. This non-transferable, two- (2) year limited warranty is only to you, the first end-user purchaser. If a defect covered by this warranty occurs AND you provide proof of purchase, Mad Catz, at its option, will repair or replace the product at no charge. The Mad Catz two- (2) year limited warranty is available to North American and European customers. Your sole and exclusive remedy is repair or replacement of your Mad Catz product. In no event shall Mad Catz liability exceed the original purchase price of the product. This warranty does not apply to: (a) normal wear and tear or abusive use; (b) industrial, professional or commercial use; (c) if the product has been tampered with or modified. NORTH AMERICA AND EUROPE To receive warranty service, you must: Obtain a Return Authorization Number from Mad Catz Technical Support via ONE of the following methods: a. Submit a Ticket at http://support.madcatz.com b. Call the Mad Catz Tech Support Center nearest you: North America: 1-800-659-2287 (USA) United Kingdom: 01633 928072 Europe (outside UK): +44(0) 1633 883110 France: 01 82 88 01 80 Germany: 089-21094818 Spain: 93 181 63 94 Once you have your unique Return Authorization Number, do the following: 1. Ship the product to Mad Catz at your expense for service. 2. Enclose a copy of the original sales receipt showing a purchase date. 3. Enclose a full return address with daytime and evening phone numbers. Technical Support Online Support: http://support.madcatz.com North American telephone, available Monday through Friday (excluding holidays): 1-800-659-2287 (USA only). United Kingdom telephone, available Monday through Friday (excluding bank holidays): 01633 928072. European telephone (outside UK), available Monday through Friday (excluding bank holidays): +44(0) 1633 883110. CAUTION - Use this unit only as intended. - To prevent fire or shock hazard, do not expose this unit to rain or moisture. Do not use within 30ʼ of any water such as swimming pools, bathtubs, or sinks. - To avoid electrical shock, do not disassemble. Refer servicing to qualified personnel only. - Never insert objects of any kind, other than authorized items, into the product as they may touch dangerous voltage points or short out parts that could result in fire or electrical shock. - Stop using this unit immediately if you begin to feel tired or if you experience discomfort or pain in your hands and/or arms while operating the unit. If the condition persists, consult a doctor. - Do not attempt to operate the unit in any way except with your hands. Do not bring the unit in contact with your head, face, or near the bones of any other part of your body. - Avoid prolonged use of this unit. Take breaks every 30 minutes. - Route all cords so that they are not likely to be walked on or tripped over. Make sure that cords are not placed in a position or areas where they may become pinched or damaged. - Do not wrap cords around any part of anyoneʼs body. - Do not allow children to play with cords. - This unit should be operated only from the power source indicated on the unit. If you are not sure of the type of electrical power supplied to your home, contact your local power company. - Do not overload wall outlets or extension cords beyond their capacity, since doing so can cause fire or electric shock. - Misuse of batteries within this unit may cause batteries to leak and/or explode and lead to personal injury. - This product contains small parts that may cause choking if swallowed. Not intended for use by children under 3 years of age. SEIZURES Some individuals may have seizures or black outs triggered by the flashing lights on television or in video/PC games, even if they have never before had a seizure. Anyone who has had a seizure, loss of awareness, or other symptom linked to an epileptic condition should consult a doctor before playing a video/PC game. Parents should be aware when their children play video/PC games and observe them regularly. Stop playing and consult a doctor if you or your child have any of the following symptoms: Convulsions, Loss of awareness, Involuntary movements, Eye or muscle twitching, Altered vision, Disorientation. When playing video/PC games: 1. Sit or stand as far from the screen as possible. 2. Play video games on the smallest available screen. 3. Do not play if you are tired or need rest. 4. Play in a well-lighted room. 5. Take a 15-minute break every hour. REPETITIVE MOTION INJURIES Playing video/PC games (and the repetitive motion involved) can make your muscles, joints or skin hurt. Playing video/PC games in moderation can help avoid such damage. Also: Take a 10- to 15-minute break every hour, even if you donʼt think you need it. If your hands, wrists or arms begin to hurt or feel sore or tired, stop playing and rest them for several hours before playing again. If pain and soreness continues, stop playing and consult a doctor. F…

Text truncated - open the document above for the full version.

External Photos

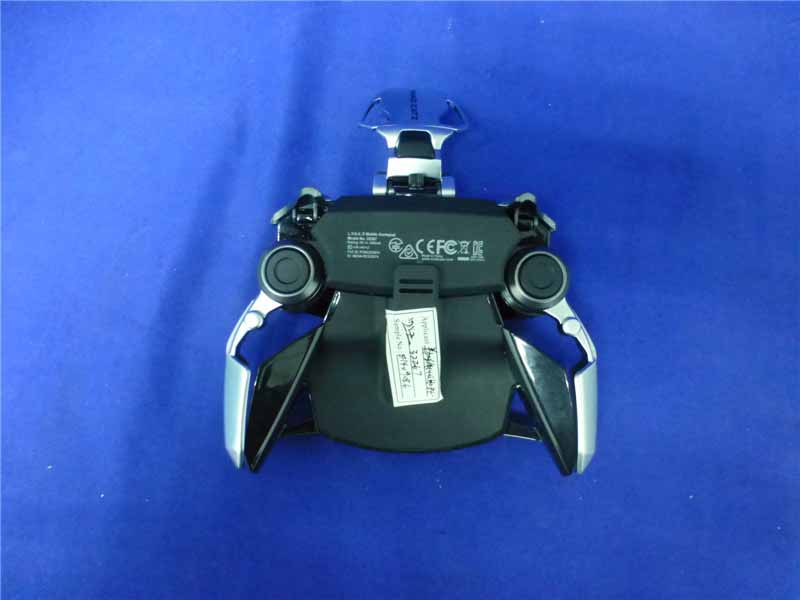

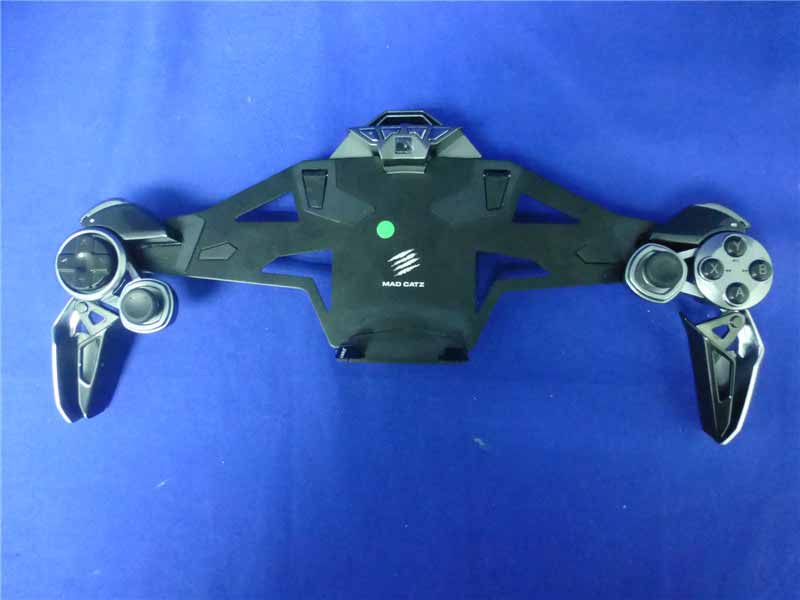

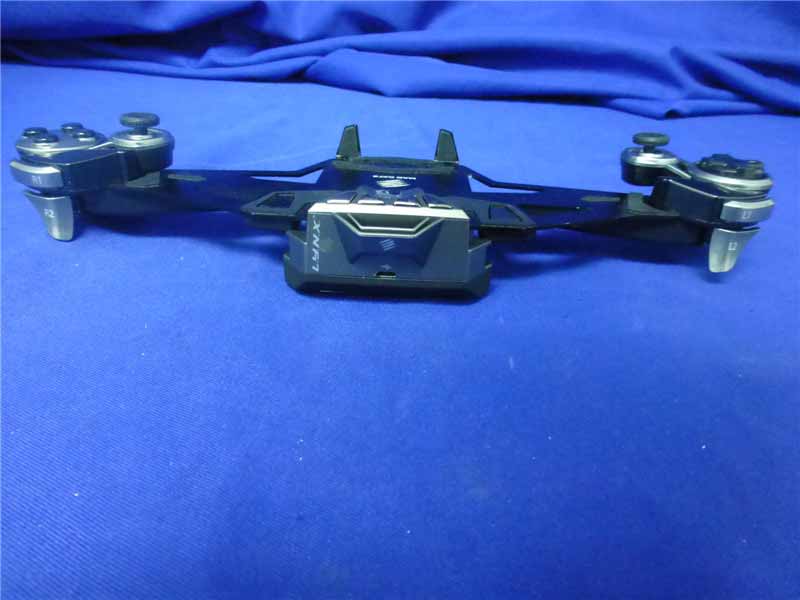

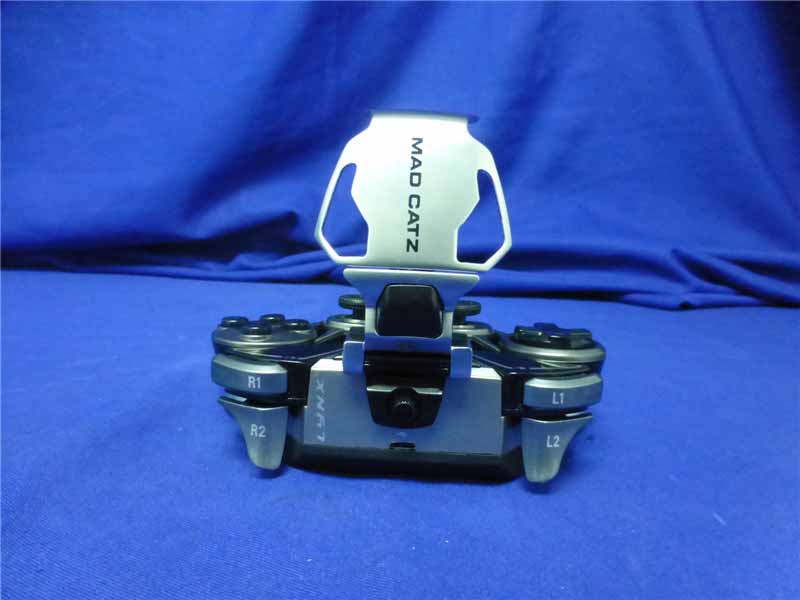

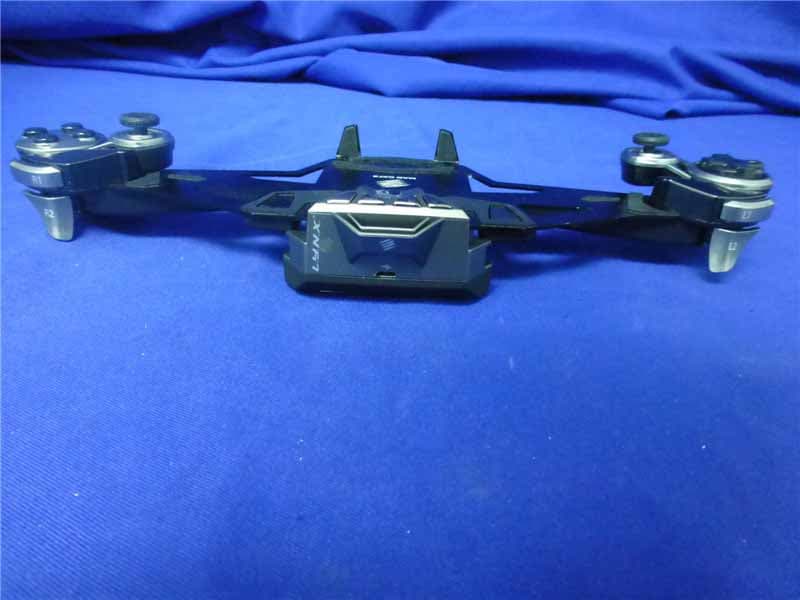

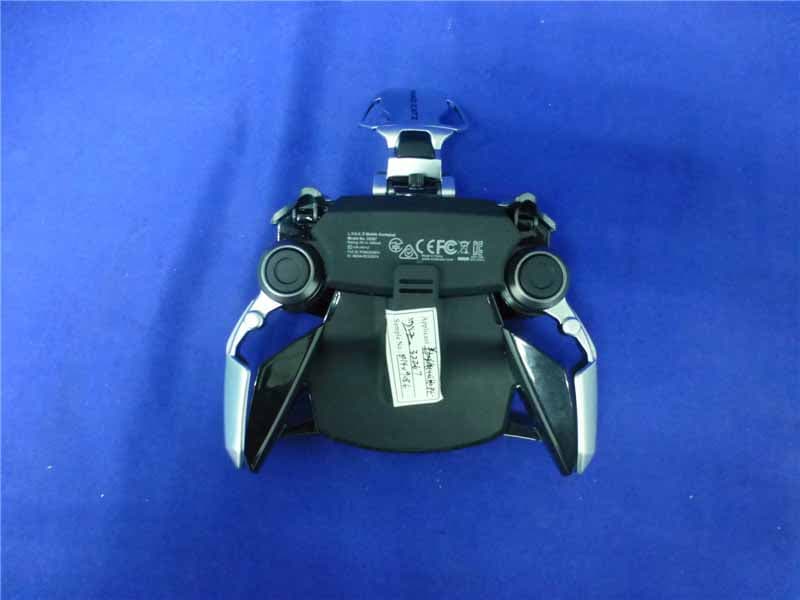

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

Internal Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-4 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-6 Figure 11 Component side of the PCB Figure 12 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-7 Figure 13 Inside of the EUT Figure 14 Battery of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-8 Figure 15 Battery of the EUT Figure 16 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-9 Figure 17 Component side of the PCB Figure 18 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-10 Figure 19 Component side of the PCB Figure 20 Inside of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 14-11 Figure 21 Cable of the EUT

RF Exposure Info

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2.402MHz 6.693dBm(4.67 mW) output power] (4.67mW /5mm) [√2.402(GHz)]= 1.4477 <3.0 for 1-g SAR Then SAR evaluation is not required

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Mad Catz, Inc. L.Y.N.X.9 Mobile Hybrid Controller Model Number: 32267 FCC ID: P25R232267A Prepared for : Mad Catz, Inc. 10680 Treena Street Suite 500 San Diego, CA 92131 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ACS-F15024 Date of Test Oct.09, 2014~Jan.17, 2015 Date of Report Jan.26, 2015 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results................................................................................... 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-2 2.4. EUT Configuration and operation conditions for test. ......................................................... 2-2 2.5. Test Facility.......................................................................................................................... 2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT................................................................................................ 3-2 3.6. Test Procedure...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results..................................................................... 3-2 4. RADIATED EMISSION MEASUREMENT ................................................................ 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit Standard: FCC 15.209 ................................................................. 4-2 4.4. EUT Configuration on Test.................................................................................................. 4-2 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-3 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. CARRIER FREQUENCY SEPARATION TEST ........................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Results. ......................................................................................................................... 6-1 7. 20 DB BANDWIDTH TEST ........................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Results .......................................................................................................................... 7-1 8. NUMBER OF HOPPING FREQUENCY TEST .......................................................... 8-1 8.1. Test Equipment .................................................................................................................... 8-1 8.2. Limit ............................…

Text truncated - open the document above for the full version.

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 5-13 8-DPSK R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 6-1 6. CARRIER FREQUENCY SEPARATION TEST 6.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1 Spectrum Analyzer Agilent N9030A MY51380221 Oct.29, 14 1Year 6.2. Limit Frequency hopping systems shall have hopping channel carrier frequency separated by a minimum of 25kHz or the 20dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. 6.3. Test Results. EUT: L.Y.N.X.9 Mobile Hybrid Controller M/N: 32267 Test date: 2014-10-29 Pressure: 101.21.0 kpa Humidity: 50.83.0% Tested by: Kobe_Huang Test site: RF Site Temperature21 .40.6 Test Mode Channel separation Conclusion 8-DPSK 1.0MHz PASS GFSK 1.0MHz PASS R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 6-2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 7-1 7. 20 DB BANDWIDTH TEST 7.1. Test Equipment Item Equipment ManufacturerModel No. Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent N9030A MY51380221 Oct.29, 141Year 2. Attenuator (20dB) Agilent 8491B MY39262165 Apr. 28,141 Year 3. RF Cable HubersuhnerSUCOFLEX10228620/2 Apr. 28,141 Year 7.2. Limit Intentional radiators operating under the alternative provisions to the general emission limits, as contained in §§ 15.217 through 15.257 and in Subpart E of this part, must be designed to ensure that the 20 dB bandwidth of the emission, or whatever bandwidth may otherwise be specified in the specific rule section under which the equipment operates, is contained within the frequency band designated in the rule section under which the equipment is operated. 7.3. Test Results EUT: L.Y.N.X.9 Mobile Hybrid Controller M/N: 32267 Test date: 2014-10-09 Pressure: 101.21.0 kpa Humidity: 53.33.0% Tested by: Kobe_Huang Test site: RF Site Temperature22.50.6 Test Mode Frequency MHz 20dB bandwidth KHz Limit (KHz) 2402 869.6 N/A 2441 865.8 N/A GFSK 2480 859.6 N/A 2402 1210 N/A 2441 1210 N/A 8-DPSK 2480 1211 N/A ConclusionPASS R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 7-2 GFSK Test Frequency: 2402MHz Test Frequency: 2441MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 7-3 Test Frequency: 2480MHz 8-DPSK Test Frequency: 2402MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 7-4 Test Frequency: 2441MHz Test Frequency: 2480MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 8-1 8. NUMBER OF HOPPING FREQUENCY TEST 8.1. Test Equipment Item Equipment ManufacturerModel No. Serial No. Last Cal. Cal. Interval 1 Spectrum Analyzer Agilent N9030A MY51380221 Oct.29, 14 1Year 8.2. Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels 8.3. Test Results EUT: L.Y.N.X.9 Mobile Hybrid Controller M/N: 32267 Test date: 2014-10-09 Pressure: 101.21.0 kpa Humidity: 50.83.0% Tested by: Kobe_Huang Test site: RF Site Temperature21 .40.6 Test Mode Number of channel Limit Conclusion 8-DPSK 79 >=15 PASS GFSK 79 >=15 PASS R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 8-2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 9-1 9. DWELL TIME 9.1. Test Equipment Item Equipment ManufacturerModel No. Serial No. Last Cal. Cal. Interval 1 Spectrum Analyzer Agilent N9030A MY51380221 Oct.29, 141Year 9.2. Limit The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. 9.3. Test Results EUT: L.Y.N.X.9 Mobile Hybrid Controller M/N: 32267 Test date: 2014-10-09 Pressure: 101.21.0 kpa Humidity: 50.83.0% Tested by: Kobe_Huang Test site: RF Site Temperature21 .40.6 Mode dwell time Limit Conclusion DH1 50hops/5s*0.4*79chanels*0.449ms =141.884ms <400ms PASS DH3 26hops/5s*0.4*79chanels*1.698ms =279.02ms <400ms PASS GFSK DH5 17hops/5s*0.4*79chanels*2.955ms=317.485ms <400ms PASS DH1 53hops/5s*0.4*79chanels*0.454ms=152.072ms <400ms PASS DH3 25hops/5s*0.4*79chanels*1.710ms =270.18ms <400ms PASS 8-DPSK DH5 17hops/5s*0.4*79chanels*2.970ms =319.10ms <400ms PASS Note: All the lower levels were signal from receiver’s, and should not considered in here. R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 9-2 Test Mode: GFSK DH1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 9-3 DH3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 9-4 DH5 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 9-5 Test Mode: 8DPSK DH1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 9-6 DH3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 9-7 DH5 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A …

Text truncated - open the document above for the full version.

Test Setup Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 13-1 13. PHOTOGRAPH OF TEST 13.1. Photos of Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 13-2 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R232267A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15024 13-3 Above 1000MHz
