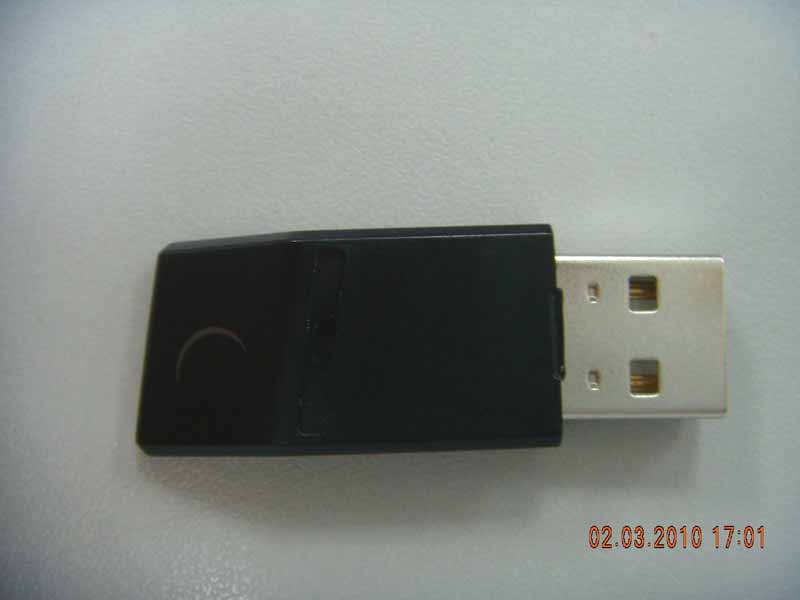

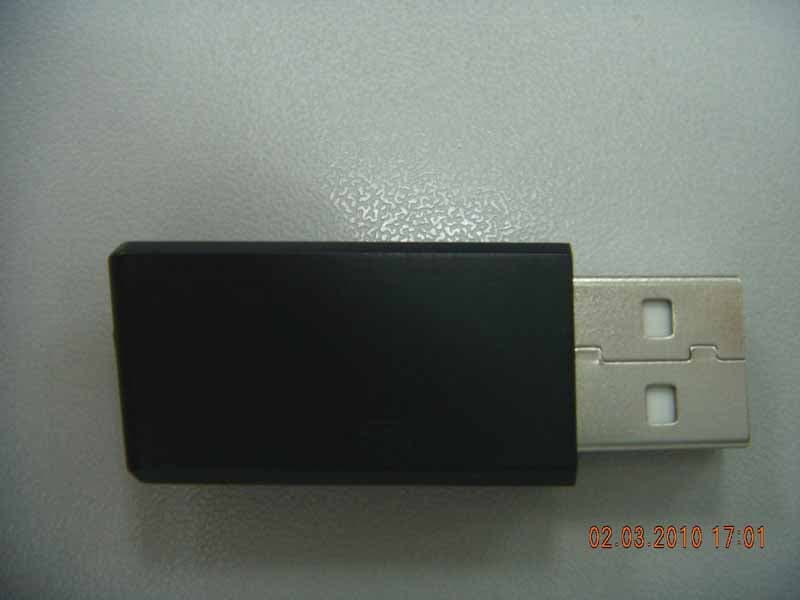

FCC ID:P25M043001C1011R page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10040 9-1 9. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

Label Location

FCC ID:P25M043001C1011R page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10040 9-2 Figure 3 Inside of the EUT Figure 4 Inside of the EUT

FCC ID: P25M043001C1011R Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10050 APPLICATION OF CERTIFICATION For Mad Catz, Inc. Eclipse Wireless Litetouch Keyboard (Dongle) Model Number: ECB43001 FCC ID: P25M043001C1011R Prepared for : Mad Catz, Inc. 7480 Mission Valley Road, Suite 101, San Diego, California, 92108 Prepared By: Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Fax: (0755) 26632877 Report Number ： ACS-F10050 Date of Test ： Feb.11, 2010 Date of Report ： Mar.18, 2010 FCC ID: P25M043001C1011R Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10050 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................1-1 2. GENERAL INFORMATION................................................................................................... 2-1 2.1. Description of Device (EUT)......................................................................................................... 2-1 2.2. Tested Supporting System Details ................................................................................................. 2-1 2.3. Test Facility ................................................................................................................................... 2-2 2.4. Measurement Uncertainty (95% confidence levels, k=2) .............................................................. 2-2 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipment .............................................................................................................................. 3-1 3.2. Block Diagram of Test Setup......................................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ............................................................................... 3-1 3.4. Configuration of EUT on Test ....................................................................................................... 3-2 3.5. Operating Condition of EUT ......................................................................................................... 3-2 3.6. Test Procedure ............................................................................................................................... 3-2 3.7. Conducted Disturbance at Mains Terminals Test Results ............................................................. 3-2 4. RADIATED EMISSION TEST................................................................................................ 4-1 4.1. Test Equipment .............................................................................................................................. 4-1 4.2. Block Diagram of Test Setup......................................................................................................... 4-1 4.3. Radiated Emission Limit ............................................................................................................... 4-2 4.4. EUT Configuration on Test ........................................................................................................... 4-2 4.5. Operating Condition of EUT ......................................................................................................... 4-2 4.6. Test Procedure ............................................................................................................................... 4-2 4.7. Radiated Disturbance Test Results ................................................................................................ 4-3 5. DEVIATION TO TEST SPECIFICATIONS ......................................................................... 5-1 6. PHOTOGRAPH ........................................................................................................................ 6-1 6.1. Photos of Power Line Conducted Emission Test........................................................................... 6-1 6.2. Photos of Radiated Emission Test (In Anechoic Chamber) .......................................................... 6-2 7. PHOTOS OF THE EUT ........................................................................................................... 7-1 FCC ID: P25M043001C1011R Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10050 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Limits Results Power Line Conducted Emission Test FCC Part 15: 2008 ANSI C63.4: 2003 Class B PASS Radiated Emission Test FCC Part 15: 2008 ANSI C63.4: 2003 Class B PASS FCC ID: P25M043001C1011R Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10050 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) EUT Description : Eclipse Wireless Litetouch Keyboard (Dongle) Model Number : ECB43001 FCC ID : P25M043001C1011R Operation Frequency : 2405MHz~2480MHz Applicant : Mad Catz, Inc. 7480 Mission Valley Road, Suite 101, San Diego, California, 92108 Date of Test : Feb.11, 2010 Date of Receipt : Jan.10, 2010 Sample Type : Prototype production 2.2. Tested Supporting System Details 2.2.1. Notebook 2.2.2. Keyboard M/N : PP09S S/N : N/A Manufacturer : DELL Power Adaptor : Manufacturer: DELL, M/N: LA65NS1-00 Cable: Unshielded, Detachabled, 4.0m (Bond one ferrite core) M/N : ECB43001 Manufacturer : Mad Catz, Inc. Power Adapter : Manufacturer: Mass Power M/N: SDF0500150A1B13 Cable: Shielded, Undechable, 1.5m (with one core) FCC ID: P25M043001C1011R Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10050 2-2 2.3. Test Facility Site Description Name of…

Text truncated - open the document above for the full version.

FCC ID: P25M043001C1011R Page 8-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10040 8. PHOTOGRAPH OF TEST 8.1. Photos of Power Line Conducted Emission Test FCC ID: P25M043001C1011R Page 8-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10040 8.2. Photos of Radiated Emission Test (In Anechoic Chamber) 30~1000MHz FCC ID: P25M043001C1011R Page 8-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10040 Above 1000MHz
