P25R243717AOffice R.A.T.M.

:: WIRELESS MOBILE MOUSE FOR PC, MAC & ANDROID ™ :: :: (适用于PC、MAC和ANDROID) :: :: 無線便攜滑鼠 (適用於PC、MAC和ANDROID) :: :: (PC 용, MAC 및 ANDROID) :: 1. BOX CONTENTS // // // 1 2 3 1 2 3 Office R.A.T. M 2 x AAA Batteries Pouch ENGLISH 1 2 3 Office R.A.T. M 2 節 AAA 電池 旅行袋 TAIWAN 1 2 3 Office R.A.T. M 2 节 AAA 电池 旅行袋 CHINA 1 2 3 Office R.A.T. M 2개 AAA 배터리 파우치 KOREA 5 My Laptop Mad Catz Oce R.A.T. M 3 My Tablet Mad Catz Oce R.A.T. M a c 2. OFFICE R.A.T. M SETUP // R.A.T.M // R.A.T.M // R.A.T.M j k My Tablet Mad Catz Oce R.A.T. M 3. MULTIPLE DEVICE SETUP // // // 6. PRODUCT INFORMATION // // // b c d e f g h i j m n k l EN CN TW KR Internet Backwards * 网页查看后退 * 網頁查看後退 * 웹페이지 뒤로 보기* EN CN TW KR Precision Control * 精度控制 * 精度控制 * 정확한 제어 * EN CN TW KR Internet Forwards * 网页查看前进* 網頁查看前進 * 웹페이지 앞으로 보기 * EN DE FR IT EN CN TW KR Scroll Wheel Click * 滚动滑轮点击 * 滾動滑輪點擊 * 스크롤 휠 클릭 * EN CN TW KR Right Click 右键点击 右鍵點擊 마우스 오른쪽 버튼 클릭 EN CN TW KR Programmable Button 可编程按键 可程式設計按鍵 프로그래밍 버튼 EN CN TW KR Status LED 状态LED 狀態LED 상태 LED i j h k l e g m b a n f d c * Programmable // 可编程 // 可程式設計 // 프로그래밍 EN CN TW KR Wing Button * 侧翼按键 * 側翼按鍵 * 측면 버튼 * EN CN TW KR Vertical Scroll 垂直滚动 垂直捲動 수직 스크롤 EN CN TW KR Adjustable Palm Rest 可调节的掌托 可調節的掌托 조정 가능한 손목 받침대 EN CN TW KR ON / OFF 开启/关闭 開啟/關閉 온 / 오프 EN CN TW KR Battery Compartment 电池盒 電池盒 배터리 박스 a EN CN TW KR Battery Relase Button 电池释放按钮 電池釋放按鈕 배터리 분리 버튼 * 不包括 * 불포함 TW KR * Not included * 不含 EN CN 5 My Laptop Mad Catz Oce R.A.T. M OFF 5 My Laptop Mad Catz Micro R.A.T. M CLASSIC OFF Left Click 左键点击 左鍵點擊 마우스 왼쪽 버튼 클릭 www.madcatz.com/downloads 5. SOFTWARE INSTALLATION // // // Installing the Mad Catz desktop software will allow you to: 1. Assign game and office application shortcuts to the extra buttons. 2. Alter the DPI speed of the sensor. 3. Adjust power consumption settings. 安装美加狮桌面软件，您将能够： 1. 为更多的按键绑定游戏和办公应用程序快捷方式。 2. 更改传感器的 DPI 速度。 3. 调整功耗设置。 安裝美加獅桌面軟體，您將能夠： 1. 為更多的按鍵綁定遊戲和辦公應用程式快捷方式。 2. 更改感測器的 DPI 速度。 3. 調整功耗設置。 매드 캐의 데스크톱 소프트웨어를설치하면 : 1. 더 많은 키 바인딩 게임과 오피스 애플리케이션 바로 가기 2. 센서 DPI 속도 변경. 3. 전력 소비 설정 조정. EN CN TW KR 4. LED INDICATORS // LED // LED // LED m 1 1 EN CN TW KR Discoverable 可发现模式 可發現模式 검색 가능 모드 EN CN TW KR Low battery 电池电量低 電池電量低 배터리 부족 EN CN TW KR Connected 已连接 已連接 연결되었습니다 EN CN TW KR Searching for paired device 正在搜索配对设备 正在搜索配對設備 페어링 된 기기를 검색하 고 있습니다 * 單獨出售 * 별도 판매 TW KR * Sold separately * 单独出售 EN CN WORK SMART HDMI ADAPTER /适配器 / 適配器 /어댑터 HDMI CABLE/连接线/ 連接線/어댑터 . YOUR SMARTPHONE AS AN OFFICE AND MEDIA CENTER 智能地工作...您的智能手机如同一个办公和媒体中心 多平臺支援...您的智慧手機如同一個辦公和媒體中心 스마트작업...귀하의 핸드폰은 사무실, 미디어 센터로 활용할 수 있 니다 Designed to work wirelessly and seamlessly with a wide range of Smart Devices, the GameSmart ecosystem brings core gaming experiences to the mobile platform evolution, using Bluetooth, with a range of Control Pads, Keyboards, Mice and Headsets for gaming, productivity, and multimedia. 专为以无线方式连接各种智能设备使之无缝使用而设计，通过蓝牙技术与一系列的用于游戏、工作和媒 体的控制板、键盘、鼠标和游戏耳麦相连接，GameSmart生态系统为移动平台演进带来了核心游戏体验。 專為以無線方式連接各種智慧設備使之無縫使用而設計，通過藍牙技術與一系列的用於遊戲、工作和媒 體的控制板、鍵盤、滑鼠和遊戲耳麥相連接，GameSmart生態系統為移動平臺演進帶來了核心遊戲體驗。 무선 방식으로 연결하는 스마트 장치를 위한 것으로, 블루투스 기술에 기초하여 다양한 게임, 업무 및 미디어에 활용되는 제어판, 키보드, 마우스 및 게임 헤드셋과 연결할 수 있으며 GameSmart 에코 시스템은 모바일 플랫폼의 발전을 위하여 핵심적인 게임 체험을 제공합니다. multiplatform :: 多平台支持 :: 多平臺支援 :: 멀티 플랫폼 지원 ©2014 Mad Catz, Inc. 7480 Mission Valley Road, Suite 101, San Diego, CA 92108 U.S.A. Mad Catz, GameSmart, M.O.J.O., Micro-Console, Office R.A.T. M , and the Mad Catz and GameSmart logos are trademarks or registered trademarks of Mad Catz Interactive, Inc., its subsidiaries and affiliates. The shape and design of this product is a trade dress of Mad Catz Interactive, Inc., its subsidiaries and affiliates. Covered by U.S. Patent No. 6,157,370. Android is a trademark of Google Inc. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License. Windows is a trademark of the Microsoft group of companies. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. This product is not sponsored, endorsed or approved by Google, Microsoft, or Apple Inc. All other product names and images are trademarks or registered trademarks of their respective owners. Made in China. All rights reserved. Product features, appearance and specifications may be subject to change without notice. Please retain this information for future reference. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Mad Catz, Inc. is under license. Other trademarks and trade names are those of their respective owners. 版权所有© 2014美加狮公司 7480 Mission Valley Road, Suite 101, San Diego, CA 92108 U.S.A. Mad Catz（美加狮）、 GameSmart、M.O.J.O.、Micro-Console 以及Mad Catz（美加狮）和 GameSmart 的标识均是 Mad Catz Interactive, Inc. 及其子公司及附属公司的商标或注册商标。本产品的外形和设计是 Mad Catz Interactive, Inc. 及其子公司及 附属公司的商业外观。美国专利号：6157370。Android （安卓）是谷歌（Google）公司的商标。安卓机器人 复制或修改自谷歌创建并共享的作品，并且根据 Creative Commons 3.0 Attribution License 所述的条款使用。 Windows是微软（Microsoft）集团公司的商标。Mac是苹果公司（Apple Inc.）在美国及其他国家的注册商标 。本产品未经谷歌公司、微软公司或苹果公司赞助、认可或批准。所有其他产品名称和图形均为其各自所有 者的注册商标。中国制造。版权所有。产品功能、外观及规格如有更改，恕不另行通知。请保留此信息以备 将来参考。 蓝牙（Bluetooth）®文字商标和标识归 Bluetooth SIG 公司所有，美加狮公司已获得许可使用该商标。其他商 标和商品名称均归其各自所有者所有。 版權所有© 2014美加獅公司 7480 Mission Valley Road, Suite 101, San Diego, CA 92108 U.S.A. Mad Catz （美加獅）、GameSmart、M.O.J.O.、Micro-Console 以及Mad Catz（美加獅）和 GameSmart 的標 識均是 Mad Catz Interactive, Inc. 及其子公司及附屬公司的商標或注冊商標。本產品的外形和設計是 Mad Catz Interactive, Inc. 及其子公司及附屬公司的商業外觀。美國專利號：6157370。Android （安卓 ）是穀歌（Google）公司的商標。安卓機器人複製或修改自穀歌創建並共用的作品，並且根據 Creative Commons 3.0 Attribution License 所述的條款使用。Windows是微軟（Microsoft）集團公司的商標。 Mac是蘋果公司（Apple Inc.）在美國及其他國家的注冊商標。本產品未經穀歌公司、微軟公司或蘋果公 司贊助、認可或批准。所有其他產品名稱和圖形均為其各自所有者的注冊商標。中國製造。版權所有。產品 功能、外觀及規格如有更改，恕不另行通知。請保留此資訊以備將來參考。 藍牙（Bluetooth）®文字商標和標識歸 Bluetooth SIG 公司所有，美加獅公司已獲得許可使用該商標。其 他商標和商品名稱均歸其各自所有者所有。 저작권 소유© 2014 매드 캐츠7480 Mission Valley Road, Suite 101, San Diego, CA 92108 U.S.A. Mad Catz(매드 캐츠),GameSmart, MOJO, 마이크로 콘솔 및 매드 캐츠…

Text truncated - open the document above for the full version.

MCB43717-warranty sheet-R0P/N no.: 47-2437174-R2-0G02 FRONT Size: 450mm x 226mm Date: 14 AUG 14 Technical support and warranty information EN TECHNICAL SUPPORT Can’t get started - don’t worry, we’re here to help you! Nearly all the products that are returned to us as faulty are not faulty at all - they have just not been installed properly. If you experience any difficulty with this product, please first visit our website http://support.madcatz.com.The technical support area will provide you with all the information you need to get the most out of your product and should solve any problems you might have. If you do not have access to the internet, or if the website cannot answer your question, please contact your local Mad Catz Technical Support Team. We aim to offer quick, comprehensive and thorough technical support to all our users so, before you call, please make sure you have all the relevant information at hand. Online Support and User Guides: http://support.madcatz.com NORTH AMERICA AND EUROPE To receive warranty service, you must: 1. Obtain a Return Authorization Number from Mad Catz Technical Support via ONE of the following methods: a. Submit a Ticket at http://support.madcatz.com b. Call the Mad Catz Tech Support Center nearest you: - North America: 1-800-659-2287 (USA) or 1-619-683-2815 (outside USA) - United Kingdom: 01633 928072 - Europe (outside UK): +44(0) 1633 883110 - France: 01 82 88 01 80 - Germany: 089-21094818 - Spain: 93 181 63 94 Once you have your unique Return Authorization Number, do the following: 1. Ship the product to Mad Catz at your expense for service. 2. Enclose a copy of the original sales receipt showing a purchase date. 3. Enclose a full return address with daytime and evening phone numbers. TECHNICAL SUPPORT Online Support: http://support.madcatz.com North American telephone, available Monday through Friday (excluding holidays): 1-800-659-2287 (USA only) or 1-619-683-2815 (outside USA). United Kingdom telephone, available Monday through Friday (excluding bank holidays): 01633 928072. European telephone (outside UK), available Monday through Friday (excluding bank holidays): +44(0) 1633 883110. EU DECLARATION OF CONFORMITY: As required, certain of these products have been tested and conform to the requirements of the European Union Directives 1999/5/EC, 2002/95/EC, 2002/96/EC, and 2004/108/EC. Authorized signatory of the manufacturer is Mad Catz, Inc., 7480 Mission Valley Road, Suite 101, San Diego, Ca 92108. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Information for Customers in the United States FCC & IC Warning This device complies with part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IC RF Exposure Statement: The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that, the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. CONDITIONS OF WARRANTY 1 Warranty period is 2 years from date of purchase with proof of purchase submitted. 2 Operating instructions must be followed. 3 Specifically excludes any damages associated with leakage of batteries. Note: Batteries can leak when left unused in a product for a period of time, so it is advisable to inspect batteries regularly. 4 Product must not have been damaged as a result of defacement, misuse, abuse, neglect, accident, destruction or alteration of the serial number, improper electrical voltages or currents, repair, alteration or maintenance by any person or party other than ourvv own service facility or an authorized service center, use or installation of non-Mad Catz replacement parts in the product or the modification of this product in accident, fire, floods, lightning, or acts of God, or any use violative of instructions furnished by Mad Catz. 5 Obligations of Mad Catz shall be limited to repair or replacement with the same or similar unit, at our option. To obtain repairs under this warranty, present the product and proof of purchase (eg, bill or invoice) to the authorized Mad Catz Technical Support Center (listed on the separate sheet packaged with this product) transportation charges prepaid. Any requirements that conflict with any state or Federal laws, rules and/or obligations shall not be enforceab le in that particular territory and Mad Catz will adhere to those laws, rules, and/or obligations. 6 When returning the product for repair, please pack it very carefully, preferably using the original packaging materials. Please also include an explanatory note. 7 IMPORTANT: To save yourself unnecessary cost and inconvenience, please check carefully that you have read and followed the instructions in this manual. This warranty is in lieu of all other expressed warranties, obligations or liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARR…

Text truncated - open the document above for the full version.

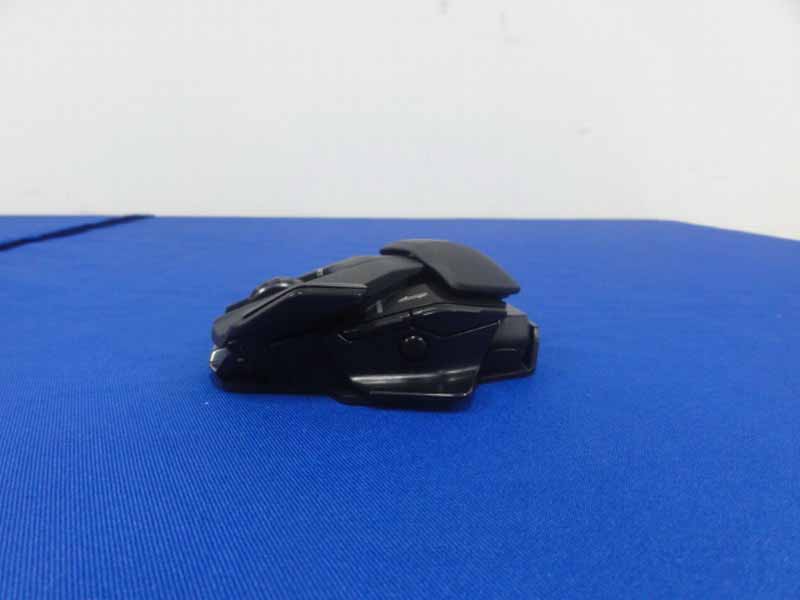

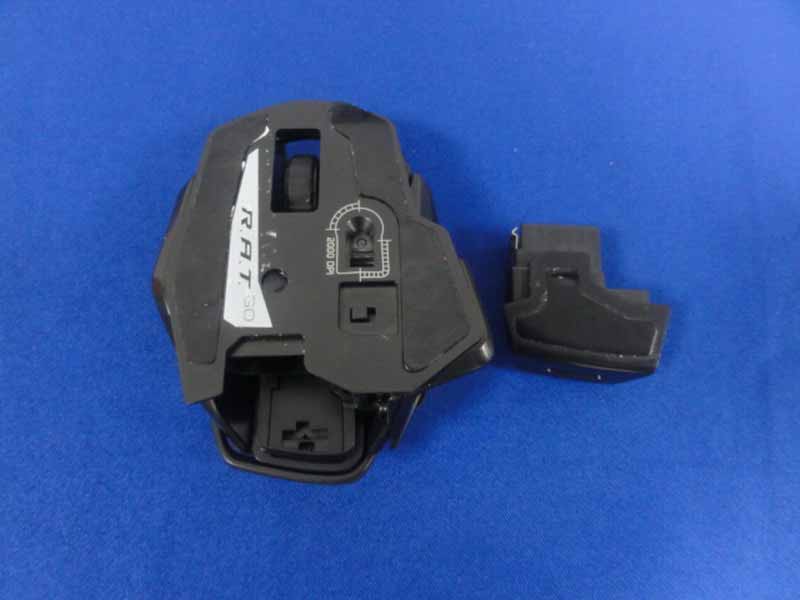

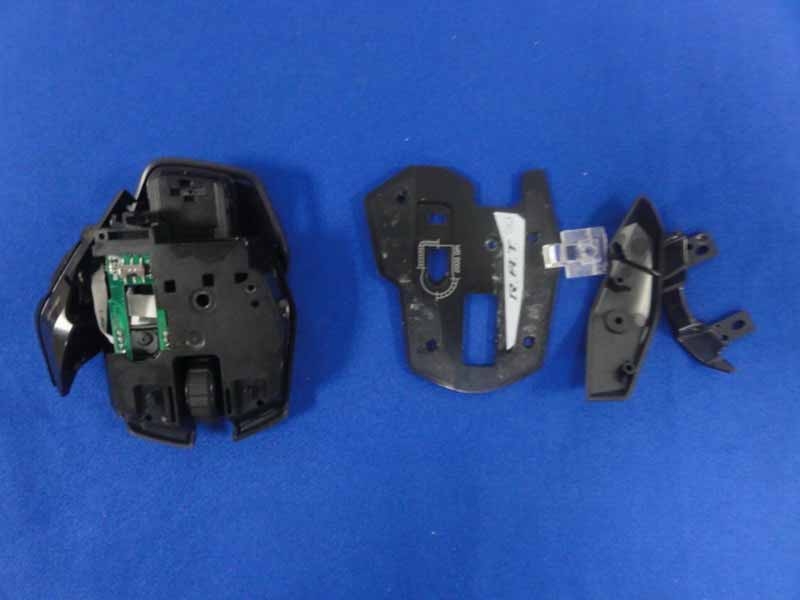

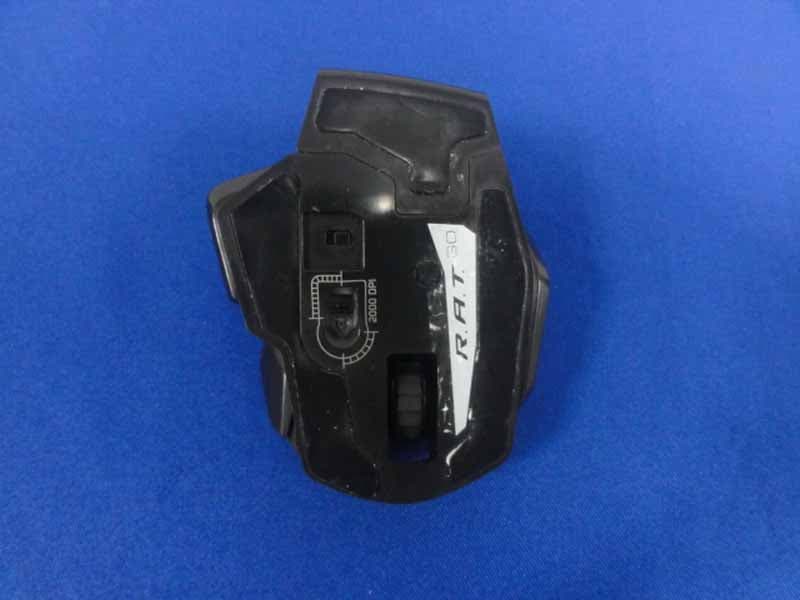

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-4 Figure 7 General Appearance of the EUT Figure 8 Inside of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-6 Figure 11 Inside of the EUT Figure 12 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-7 Figure 13 Components Side of the PCB Figure 14 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-8 Figure 15 Components Side of the PCB Figure 16 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-9 Figure 17 Components Side of the PCB Figure 18 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-10 Figure 19 Components Side of the PCB Figure 20 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-11 Figure 21 Components Side of the PCB Figure 22 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-12 Figure 23 Components Side of the PCB Figure 24 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-13 Figure 25 Components Side of the PCB Figure 26 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 14-14 Figure 27 Components Side of the PCB Figure 28 Components Side of the PCB

Product Name：Office R.A.T.M. Model Number: 43717 FCCID: P25R243717A RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : According to 447498 D01 General RF Exposure Guidance v05 and RSS‐102 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz ‐2.222 dBm(0.5995 mW) output power] (0.5995mW /5mm) ·[√2.48(GHz)]= 0.1888<3.0 for 1‐g SAR Then SAR evaluation is not required

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Mad Catz Inc. Office R.A.T.M. Model Number: 43717 FCC ID: P25R243717A Prepared for : Mad Catz Inc. 7480 Mission Valley Road, Suite 101, San Diego, California, 92108, USA Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ACS-F14241 Date of Test Jun.11~27, 2014 Date of Report Aug.20, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results................................................................................... 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test information ................................................................................................................... 2-2 2.3. Block Diagram of Test Setup ............................................................................................... 2-2 2.4. Test Facility.......................................................................................................................... 2-3 2.5. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 4. RADIATED EMISSION MEASUREMENT ................................................................ 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit Standard: FCC 15.209 ................................................................. 4-2 4.4. EUT Configuration on Test.................................................................................................. 4-2 4.5. Operating Condition of EUT................................................................................................ 4-2 4.6. Test Procedure...................................................................................................................... 4-2 4.7. Radiated Emission Test Results ........................................................................................... 4-3 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. CARRIER FREQUENCY SEPARATION TEST ........................................................ 6-8 6.1. Test Equipment .................................................................................................................... 6-8 6.2. Limit ..................................................................................................................................... 6-8 6.3. Test Results. ......................................................................................................................... 6-8 7. 20 DB BANDWIDTH TEST ........................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Results .......................................................................................................................... 7-1 8. NUMBER OF HOPPING FREQUENCY TEST .......................................................... 8-1 8.1. Test Equipment .................................................................................................................... 8-1 8.2. Limit ..................................................................................................................................... 8-1 8.3. Test Results .......................................................................................................................... 8-1 9. DWELL TIME ................................................................................................................. 9-1 9.1. Test Equipment .................................................................................................................... 9-1 9.2. Limit ..................................................................................................................................... 9-1 9.3. Test Results .......................................................................................................................... 9-1 10. MAXIMUM PEAK OUTPUT POWER TEST........................................................... 10-1 10.1. Test Equipment ...........................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 13-1 13. PHOTOGRAPH OF TEST 13.1. Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P25R243717A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14241 13-2 (Above 1000MHz)
