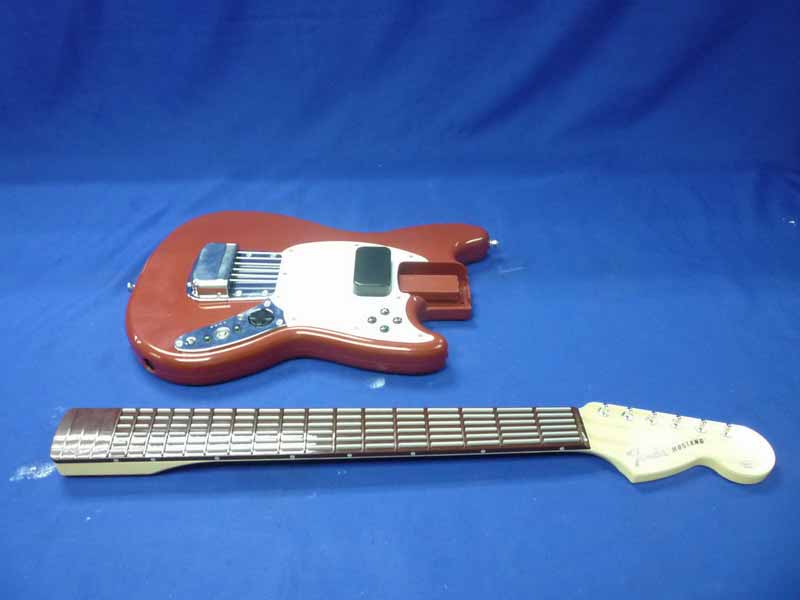

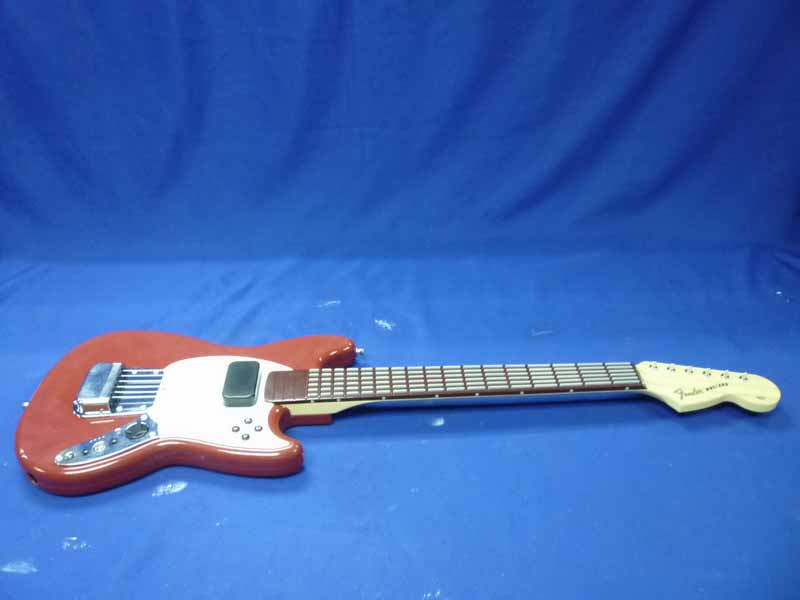

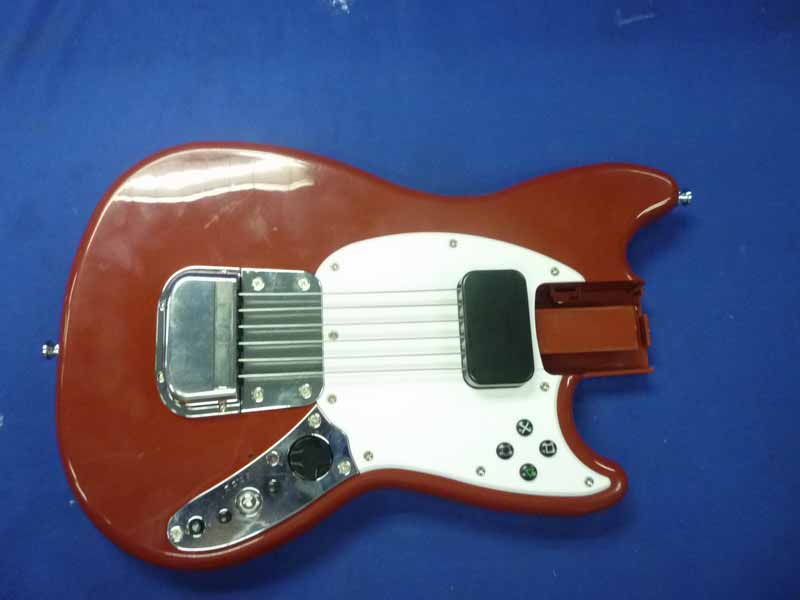

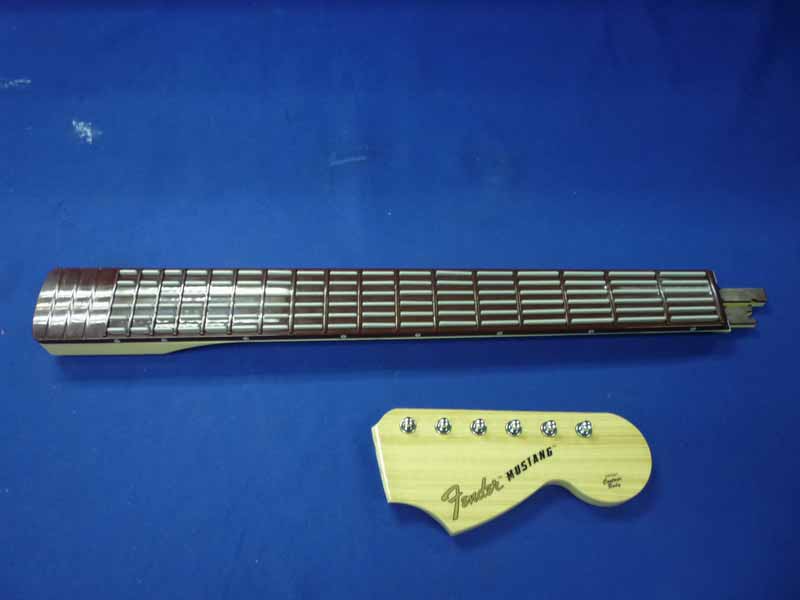

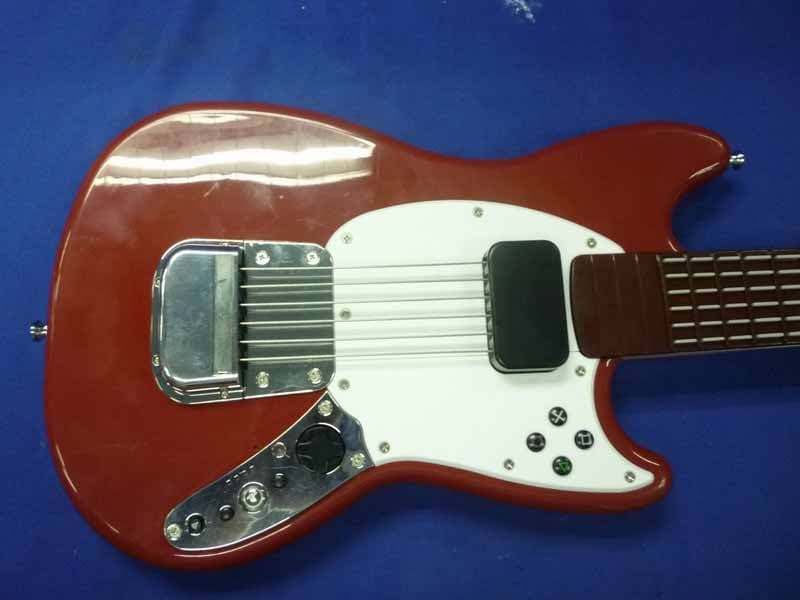

Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT

Label Location

Figure 9 Inside of the EUT Figure 10 Inside of the EUT Figure 11 Inside of the EUT Figure 12 Inside of the EUT Figure 13 Inside of the EUT Figure 14 Inside of the EUT Figure 15 Inside of the EUT Figure 16 Inside of the EUT Figure 17 Inside of the EUT Figure 18 Inside of the EUT Figure 19 Inside of the EUT Figure 20 Inside of the EUT Figure 21 Inside of the EUT Figure 22 Inside of the EUT Figure 23 Inside of the EUT Figure 24 Inside of the EUT Figure 25 Inside of the EUT Figure 26 Inside of the EUT Figure 27 Inside of the EUT Figure 28 Inside of the EUT Figure 29 Inside of the EUT Figure 30 Inside of the EUT Figure 31 Inside of the EUT Figure 32 Inside of the EUT Figure 33 Inside of the EUT Figure 34 Inside of the EUT

FCC ID: P25SU97563Y3010C Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10202 APPLICATION FOR CERTIFICATION On Behalf of Mad Catz, Inc. Rock Band 3 Wireless Fender Mustang ProGuitar Controller for PlayStation 3 Model Number: 97563-C (RB3) FCC ID: P25SU97563Y3010C Prepared for : Mad Catz, Inc. 7480 Mission Valley Road, Suite 101, San Diego, California, 92108, USA Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F10202 Date of Test ： Aug.01~04, 2010 Date of Report ： Aug.06, 2010 FCC ID: P25SU97563Y3010C Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10202 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .................................................................. 1-1 1.1. Description of Standards and Results.............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test Facility....................................................................................................................................2-2 2.3. Test Uncertainty (95% confidence levels, k=2) .............................................................................2-2 3. POWER LINE CONDUCTED EMISSION TEST................................................................ 3-1 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit Standard: FCC 15.209 and 15.249 ........................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-3 5. BAND EDGE COMPLIANCE TEST ..................................................................................... 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Limit ...............................................................................................................................................5-1 5.3. Test Produce ...................................................................................................................................5-1 5.4. Test Results ....................................................................................................................................5-1 6. BANDWIDTH TEST................................................................................................................ 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Limit ...............................................................................................................................................6-1 6.3. Test Results ....................................................................................................................................6-1 7. DEVIATION TO TEST SPECIFICATIONS ........................................................................ 7-1 8. PHOTOGRAPH OF TEST...................................................................................................... 8-1 8.1. Photos of Radiated Emission Test (In Anechoic Chamber) ...........................................................8-1 9. PHOTOGRAPH OF EUT........................................................................................................ 9-1 FCC ID: P25SU97563Y3010C Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10202 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Power Line Conducted Emission Test FCC Part 15C: 15.207 ANSI C63.10-2009 N/A Radiated Emission Test FCC Part 15C: 15.209 FCC Part 15C: 15.249 ANSI C63.10-2009 PASS Band Edge Compliance Test FCC Part 15: 15.249 ANSI C63.10-2009 PASS 20dB Bandwidth Test FCC Part 15: 15.215 ANSI C63.10-2009 PASS N/A is an abbreviation for Not Applicable. FCC ID: P25SU97563Y3010C Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10202 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Product name : Rock Band 3 Wireless Fender Mustang ProGuitar Controller for PlayStation 3 Model Number : 97563-C (RB3) FCC ID : P25SU97563Y3010C Operation frequency : 2408MHz~2476MHz Modulation : GFSK Power Supply : DC 4.5V (Note: Batteries were full charged for all the test.) Applicant : Mad Catz, Inc. 7480 Mission Valley Road, Suite 101, San Diego, California, 92108, USA Date of Test : Aug.01~04, 2010 Date of Receipt : Jul.23, 2010 Sample Type : Prototype production FCC ID: P25SU97563Y3010C Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10202 2-2 2.2. Test Facility Site Description Name of…

Text truncated - open the document above for the full version.

8. PHOTOGRAPH OF TEST 8.1. Photos of Radiated Emission Test (In Anechoic Chamber) 30~1000MHz Above 1000MHz
