P2BBS-1202GCar Alarm

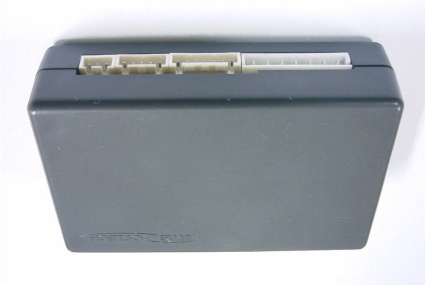

KTI01E-F1148 FCC ID : PZBBS-1202G Korea Technology Institute Co., Ltd. Page 1 of 2 External photo-Front KTI01E-F1148 FCC ID : PZBBS-1202G Korea Technology Institute Co., Ltd. Page 2 of 2 External photo-Rear

Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC LABEL LOCATION

Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: BS-1202G FCC ID : PZBBS-1202G BLUESOLTECH.CO.LTD. Made in Korea This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

KTI01E-F1148 FCC ID : PZBBS-1202G Korea Technology Institute Co., Ltd. Page 1 of 2 Internal photo-Main Board KTI01E-F1148 FCC ID : PZBBS-1202G Korea Technology Institute Co., Ltd. Page 2 of 2 Internal photo- Main Board

KTI01E-F1148 FCC ID : PZBBS-1202G Korea Technology Institute Co., Ltd. Page 1 of 9 Test Report Test Report No.:KTI01E-F1148 Registration No.:99058 Applicant:BLUESOLTECH.CO.LTD. Applicant Address: ROOM211, PUSAN VENTURE BLDG, 651-1 EUMG UNG-DO NG, SASANG- KU, PUSAN, KOREA Product:Main Control Unit FCC ID:PZBBS-1202GModel No.BS-1202G Receipt No.:KTI20011013Date of receipt:Oct, 13, 2001 Date of Issue:December 4, 2001 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards:ANSI. C63.4 : 1992 Rule Parts:FCC Part 15, Subpart C Equipment Class:Class B Digital Device Peripheral Test Result:The above mentioned product has been tested and passed. Approved by: G. C. Min/ President Tested by: S. B. Kim/ Engineer Signature Date Signature Date Other Aspects : Abbreviations : OK, Pass=passed Fail=failed N/A=not applicable ♠ This test report is not permitted to copy partly without our permission. ♠ This test result is dependent on only equipment to be used. ♠ This test result is based on a single evaluation of one sample of the above mentioned. ♠ This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. ♠ We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI01E-F1148 FCC ID : PZBBS-1202G Korea Technology Institute Co., Ltd. Page 2 of 9  Contents  1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measureme nt cond itio ns 4.1 Modes of operation 4.2 Additional equipments 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 6 6 7 7 10 11 13~20  List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Radiated Emissions  List of Photographs Photograph 1 Setup for Radiated Emissions 4 8 10 Korea Technology Institute Co., Ltd. Page 3 of 9 KTI01E-F1148 FCC ID : PZBBS-1202G 1. General This equipment has been show n to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by Korea Technology Institute Co., LTD. And were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., LTD 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/1992 for measurement of radio Interference. Korea Technology Institute Co., Ltd. Page 4 of 9 KTI01E-F1148 FCC ID : PZBBS-1202G 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment • Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 9.2002 Spectrum Analyzer R3261C 61720427 11.2002 Pre Amplifier 8447D 2944A06874 11.2002 Log Periodic Antenna 3146 9105-1343 11.2002 Biconical Antenna 3110 9105-3100 11.2002 Open Site Cable N/ A N/ A 11.2002 Antenna Mast DETT-03 N/ A N/ A Antenna & Turntable controller DETT-03 91X519 N/ A 2.3 Test Date Date of Application : Oct. 13, 2001 Date of Test : December 3, 2001 2.4 Test Environment See each test item’s description . KTI01E-F1148 FCC ID : PZBBS-1202G Korea Technology Institute Co., Ltd. Page 5 of 9 3. Description of the tested samples The EUT is Main Control Unit. 3.1 Rating and Physical Characteristics Voltage: DC12V Operating Frequency: 433.92MHz 3.2 Submitted Documents User’s Guide Block Diagram KTI01E-F1148 FCC ID : PZBBS-1202G Korea Technology Institute Co., Ltd. Page 6 of 9 4. Measurement Conditions Testing Input Voltage: DC12V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID 4.3 Uncertainty 1) Radiated disturbance UC (Combined standard Uncertainty) = ± 1.8dB Expanded uncertainty U=Kuc K = 2 4 U = ± 3.6dB 2) Conducted disturbance UC = ± 0.88dB U = K uc= 2 xUc = ± 1.8dB 4.4 Test Setup The test setup photographs showed the external supply connections and interfaces KTI01E-F1148 FCC ID : PZBBS-1202G Korea Technology Institute Co., Ltd. Page 7 of 9 5. EMISSION Test 5.1 Radiated Emissions Result: Pass Preliminary measurements were made indoors at 3 meter using B.C & L.P antennas, broadband Amplifier, and spectrum analyzer to determine the frequency producing the maximum EME. Appropriate precaution was taken to ensure that all EME from the EUT were maximized and Investigated. The system configurations, clock speed, mode of operation or video resolution, turntable azimuth with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30 to 300 MHz using biconical antenna and from 300 to 1000 MHz using log-periodic antenna. Above 1 GHz, linearly polarized double ridge horn antennas were used. Final measurements were made outdoors at 3-meter test range using EMCO antennas. The test equipment was placed on a wooden table situated on a 4x4 meter area adjacent to the measurement area. Turntable was to protect from weather in the dome that made with Polyethylene film. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating condition. Each frequency found during pre-scan measurements was re- examined and investigated using EMI/Field Intensity Meter (ESPC) R & S. The detector function was set to CISPR quasi-peak mode and the bandwidth of the receiver was set to 120k…

Text truncated - open the document above for the full version.

Korea Technology Institute Co., Ltd. Page 1 of 1 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions
