P2I-800RF Mouse
Super Device Microelectronics Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Dec 08, 2002
- Application Purpose
- Original Equipment
- Date of Application
- Dec 08, 2002
- Equipment Note
- RF Mouse
- Frequency Range
- 433.92000000 - 433.92000000
- Country
- Taiwan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

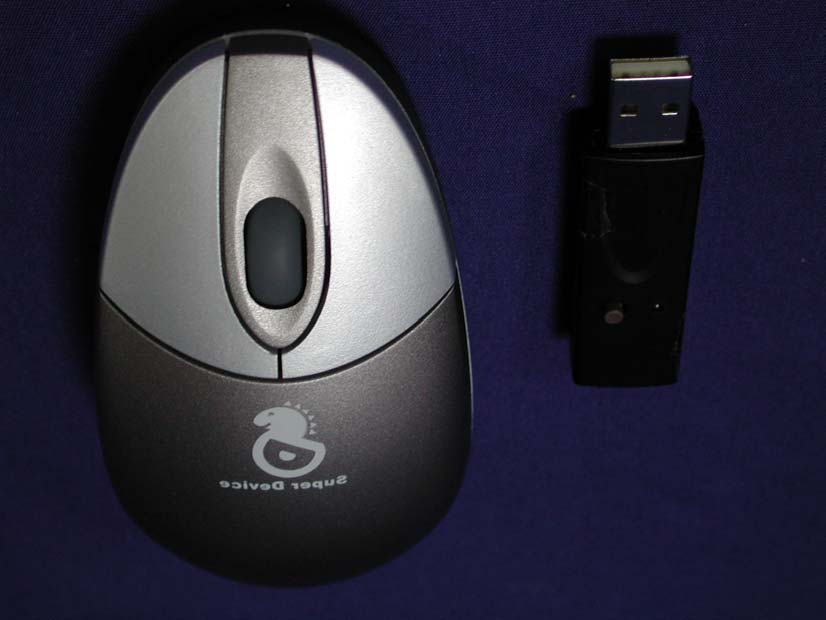

External Photos
Report No.: 02AL119FI Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo
ID Label/Location Info
Super Device Microelectronics Co., Ltd. 12F-6, No. 2, Jian Ba Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. TEL: (886) 2-8226-1788#222 FCC ID.: P2I-800 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Super Device Microelectronics Co., Ltd. Super Device M/N: SD-400UB; SD- 400OT; SD-800UB; SD-800OT TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan RF MOUSE Model No.: SD-400UB; SD-400OT; SD-800UB; SD-800OT F F C C C C I I D D : : P P 2 2 I I - - 8 8 0 0 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan
ID Label/Location Info
Super Device Microelectronics Co., Ltd. 12F-6, No. 2, Jian Ba Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. TEL: (886) 2-8226-1788#222 FCC ID.: P2I-800 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Super Device Microelectronics Co., Ltd. Super Device M/N: SD-400UB; SD- 400OT; SD-800UB; SD-800OT TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan RF MOUSE Model No.: SD-400UB; SD-400OT; SD-800UB; SD-800OT F F C C C C I I D D : : P P 2 2 I I - - 8 8 0 0 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan
Internal Photos
Report No.: 02AL119FI Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 02AL119FI Page : 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 02AL119FI Page : 3 of 7 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 02AL119FI Page : 4 of 7 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 02AL119FI Page : 5 of 7 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 02AL119FI Page : 6 of 7 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 02AL119FI Page : 7 of 7 Version:1.0 (13) EUT Photo
Operational Description
Report No. 02AL119FI Page: 4of 17 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : RF MOUSE Trade Name : Super Device FCC ID. : I4L-MS6978 Model No. : SD-400UB; SD-400OT; SD-800UB; SD-800OT Frequency Range : 433.92MHz Channel Number : 1 Type of Modulation : AM Channel Control : Not Application Note: 1. This device is a 433.92MHz RF MOUSE intends to use in household and office PC system or related application. 2. The EUT includes four model numbers, the difference between them is different OEM manufacturer. 3. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.209. 4. This device is a composite device in accordance with Part 15 regulations. The function receiving was measured and made a test report that the report number is 02AL119F under Declaration of Conformity. 1.2. Operational Description The EUT is a 433.92MHz RF MOUSE intends to use in household and office PC system. The device adapts AM modulation. The antenna soldered on PCB Provides diversity function to improve the transmitting function. The super generation type receiver was used. An external excitation was used when the test of receiver was performed.
Test Report
Report No. 02AL119FI Page: 1of 17 Version:1.0 Test Report Product Name : RF MOUSE Model No.: SD-400UB; SD-400OT; SD-800UB; SD-800OT FCC ID.: P2I-800 Applicant : Super Device Microelectronics Co., Ltd. Address : 12F-6, No. 2 Jian Ba Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. Date of Receipt : Oct. 17, 2002 Date of Test : Oct. 31, 2002 Report No. : 02AL119FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 02AL119FI Page: 3of 17 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................4 1.3. Tested System Datails....................................................................................................................5 1.4. Configuration of tested System .....................................................................................................6 1.5. EUT Exercise Software .................................................................................................................6 1.6. Test Facility ...................................................................................................................................7 2. Conducted Emission....................................................................................................................8 2.1. Test Equipment..............................................................................................................................8 2.2. Test Setup ......................................................................................................................................8 2.3. Limits ............................................................................................................................................8 2.4. Test Procedure ...............................................................................................................................9 2.5. Test Result of Conducted Emission.............................................................................................10 3. Radiated Emission ..................................................................................................................... 11 3.1. Test Equipment............................................................................................................................11 3.2. Test Setup ....................................................................................................................................11 3.3. Limits ..........................................................................................................................................12 3.4. Test Procedure .............................................................................................................................13 3.5. Test Result of Radiated Emission................................................................................................14 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 02AL119FI Page: 4of 17 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : RF MOUSE Trade Name : Super Device FCC ID. : I4L-MS6978 Model No. : SD-400UB; SD-400OT; SD-800UB; SD-800OT Frequency Range : 433.92MHz Channel Number : 1 Type of Modulation : AM Channel Control : Not Application Note: 1. This device is a 433.92MHz RF MOUSE intends to use in household and office PC system or related application. 2. The EUT includes four model numbers, the difference between them is different OEM manufacturer. 3. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.209. 4. This device is a composite device in accordance with Part 15 regulations. The function receiving was measured and made a test report that the report number is 02AL119F under Declaration of Conformity. 1.2. Operational Description The EUT is a 433.92MHz RF MOUSE intends to use in household and office PC system. The device adapts AM modulation. The antenna soldered on PCB Provides diversity function to improve the transmitting function. The super generation type receiver was used. An external excitation was used when the test of receiver was performed. Report No. 02AL119FI Page: 5of 17 Version:1.0 1.3. Tested System Datails The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards ) are: Product Manufacturer Model No. Serial No. Power Cord (1) Notebook DELL PP01L N/A Non-shielded, 1.8m (2) Monitor ADI CM703 038054T10203876A Non-shielded, 1.8m (3) Modem ACEEX DM-1414 0102027557 Non-shielded,1.8m (4) Microphone& Earphone TOKTO SX-MI N/A N/A (5) Mouse HITACHI PC-KM1300 N/A N/A (6) Monitor SONY PVM-14M2U 2105742 Non-shielded, 1.8m (7) Printer EPSON Color 680 023913 Non-shielded, 1.8m Signal Cable Type Signal Cable Description A. Monitor cable Shielded, 1.8m, one ferrite core bonded. B. Modem cable Shielded, 1.5m C. Microphone & Earphone Cable Non-shielded, 1.8m D. Mouse Cable Non-shielded, 1.0m E. Monitor Cable Shielded, 1.2m F. Printer Cable Shielded, 1.7m G. Telecom Cable Non-shielded, 5.0m H. LAN Cable Non-shielded, 6.0m Report No. 02AL119FI Page: 6of 17 Version:1.0 1.4. Configuration of tested System 1.5. EUT Exercise Software 1.4.1 Setup the EUT and simulators as shown on 1.3. 1.4.2 Turn on the power of all equipment. 1.4.3 Notebook PC reads data from disk. 1.4.4 Data will be receiving through EUT. 1.4.5 The rec…
Text truncated - open the document above for the full version.
Test Setup Photos
Report No.: 02AL119FI Page : 1 of 2 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test Back View of Radiated Test Report No.: 02AL119FI Page : 2 of 2 Version:1.0 Front View of High Frequency Radiated Test
Contact Information
Applicant
Cantus Tang(Manager)
Test Firm
DEKRA Testing and Certification Co., Ltd.Sky Hsu
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 433.92 MHz - 433.92 MHz | - |
