P2ISD-200WEWireless Earphone Base

CLOCK DATA 0 / P I / P CLOCK DATA 0 / P I / P SPK MIC Block Diagram X’TAL X’ TAL MIC SPK U3600BM Base M C U U3600BM Hand M C U ANT ANT CHANNEL VOLUME

C:\windows\TEMP\probonholdemail.doc TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: tei@t imcoengr.com (date) FCC SUBJECT: SUPER DEVICE MICROELECTRONICS CO., LTD. FCC ID: P2ISD- 200WE To Whom It May Concern: The page numbers in the test report are not consistent because originally the applicant had 2 different applications combined. The related device has the FCCID : P21SD-200WE-1. Sincerely, Sid Sanders

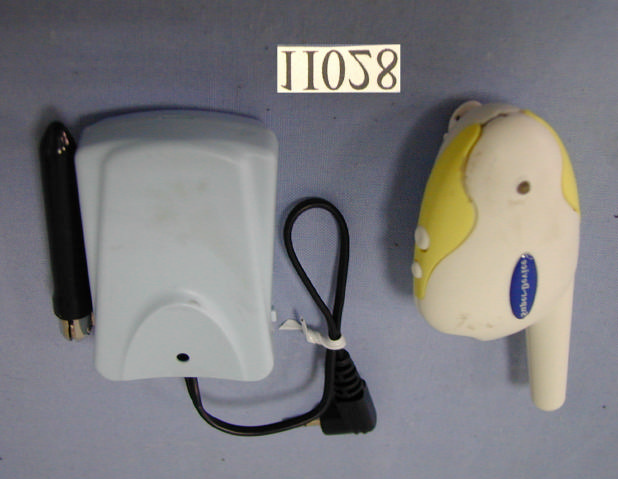

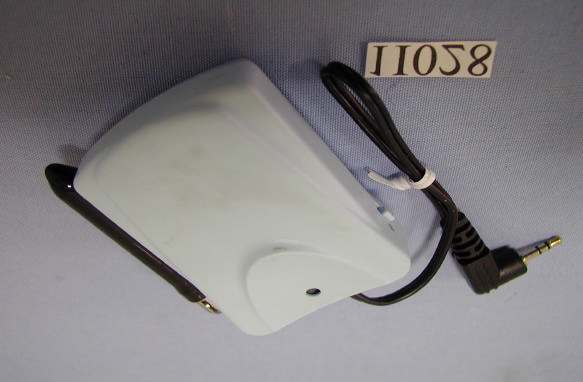

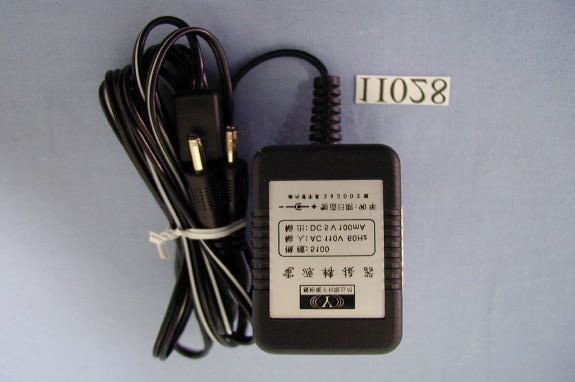

PHOTOS OF TESTING A. EUT front side whole view PHOTOS OF TESTING B. EUT front side whole view (Base) C. EUT back side whole view PHOTOS OF TESTING F. Adaptor whole view

FCC LABLE Sample of FCC ID Label FCC ID : P2ISD-200WE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENE THAT CAUSE UNDESIRED OPERATION.

PHOTOS OF TESTING A. EUT inside whole view (Base) B. EUT case inside whole view PHOTOS OF TESTING E. EUT circuit board component side (Base) F. EUT circuit board solder side PHOTOS OF TESTING I. Base antenna whole view PHOTOS OF TESTING J. Adaptor inside whole view PHOTOS OF TESTING K. Adaptor board component side L. Adaptor board solder side PHOTOS OF TESTING M. Battery whole view (Base)

Class B Certification Application Under Part 15, Subpart C (15.209) EUT Wireless Earphone MODEL SD-200WE FCC ID P2ISD-200WE SRT REPORT # FID1I028 PREPARED FOR SUPER DEVICE MICROELECTRONICS CO., LTD. 3F, NO. 11, ALLEY 3, LANE 182, SEC. 2, WEN-HUS ROAD, PANCHIAO CITY, TAIPEI SHIEN, TAIWAN, R.O.C. Spectrum Research & Testing Lab. FCC ID P2ISD-200WE Report # FID1I028 PAGE 2 OF 52 Spectrum Research & Testing Lab. FCC ID P2ISD-200WE Report # FID1I028 PAGE 3 OF 52 EMI TESTING REPORT EUT : Wireless Earphone MODEL : SD-200WE FCC ID : P2ISD-200WE PREPARED FOR SUPER DEVICE MICROELECTRONICS CO., LTD. 3F, NO.11, ALLEY 3, LANE 182, SEC. 2, WEN-HUS ROAD, PANCHIAO CITY, TAIPEI SHIEN, TAIWAN, R.O.C. PREPARED BY SPECTRUM RESEARCH & TESTING LABORATORY INC. NO. 101-10 , LING 8 , SHAN-TONG LI CHUNG – LI CITY , TAOYUAN, TAIWAN , R. O. C. TEL (03) 4987684 FAX (03) 4986528 Spectrum Research & Testing Lab. FCC ID P2ISD-200WE Report # FID1I028 PAGE 4 OF 52 TABLE OF CONTENTS 1. TEST REPORT CERTIFIICATION................................................................ 5 2. TEST STATEMENT 2 . 1 TEST STATEMENT.............................................................................. 6 2 . 2 DEPARTURE FROM DOCUMENT POLICIES, PROCEDURE OR SPECIFICATIONS, TEST STATEMENT....................... 6 3. EUT MODIFICATIONS................................................................................. 7-8 4. CONDUCTED POWER LINE TEST 4 . 1 TEST EQUIPMENT.............................................................................. 9 4 . 2 TEST PROCEDURE.............................................................................. 9 4 . 3 TEST SETUP....................................................................................... 10 4 . 4 CONFIGURATION OF THE EUT......................................................... 11-12 4 . 5 EUT OPERATING CONDITION............................................................. 13 4 . 6 EMISSION LIMITS............................................................................... 13 4 . 7 CONDUCTED EMISSION TEST RESULTS............................................. 14 5. RADIATED EMISSION TEST 5 . 1 TEST EQUIPMENT.............................................................................. 15 5 . 2 TEST PROCEDURE............................................................................. 16 5 . 3 TEST SETUP...................................................................................... 16-17 5 . 4 CONFIGURATION OF THE EUT......................................................... 18 5 . 5 EUT OPERATING CONDITION............................................................. 18 5 . 6 EMISSION LIMITS............................................................................... 18 5 . 7 RADIATED EMISSION TEST RESULTS................................................ 19-27 6. BANDWIDTH 6 . 1 LIMIT.................................................................................................. 28 6 . 2 RESULTS.............................................................................................. 28-33 7. CHANGE THE VOLTAGE +/-15% TEST..................................................... 34-39 8. CHANGE THE TEMPERATURE TEST......................................................... 40-51 9. VERIFY CHANNELS AND FREQUENCIES................................................. 52 Spectrum Research & Testing Lab. FCC ID P2ISD-200WE Report # FID1I028 PAGE 5 OF 52 1. TEST REPORT CERTIFICATION APPLICANT SUPER DEVICE MICROELECTRONICS CO., LTD. ADDRESS 3F, NO. 11, ALLEY 3, LANE 182, SEC. 2, WEN-HUS ROAD, PANCHIAO CITY, TAIPEI SHIEN, TAIWAN, R.O.C. EUT DESCRIPTION Wireless Earphone (A) POWER SUPPLY BASE FROM BATTERY HANDSET FROM BATTERY (B) MODEL SD-200WE (C) FCC ID P2ISD-200WE FINAL TEST DATE 11/09/2001 MEASUREMENT PROCEDURE USED * PART 15 SUBPART C (15.209) OF FCC RULES AND REGULATIONS ( 47 CFR PART 15) * ANSI C63.4 - 1992 * TEST PROCEDURE AND DATA ARE TRACEABLE TO NATIONAL OR INTERNATIONAL STANDARDS. We hereby certify that The measurements contained in this report were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. TESTING ENGINEER DATE 11/09/2001 Jack Wang SUPERVISOR DATE 11/09/2001 Sunyou Chen APPROVED BY DATE 11/09/2001 Johnson Ho Spectrum Research & Testing Lab. FCC ID P2ISD-200WE Report # FID1I028 PAGE 6 OF 52 2. TEST STATEMENT 2 . 1 TEST STATEMENT 1. This statement is to explain the test condition of this project. The EUT was the test condition of each test item. 2. The data was shown in this report reflects the worst – case data for the condition as the summary of test result. 3. EUT conditions. Frequency range : Base ‡ 46.610MHz ~ 46.970MHz Handset ‡ 49.670MHz ~ 49.970MHz Support channel : 10 channel Mode Channel Mode Channel Mode 1 Charge --- Mode 5 Handset 1 Mode 2 Base 1 Mode 6 Handset 6 Mode 3 Base 6 Mode 7 Handset 10 Mode 4 Base 10 Mode 8 MP3 1 --- --- --- Mode 9 MP3 8 4. Antenna Statement : Ten antenna that can be rolled is semi-fixed in the left of the Base(The antenna is unchangeable by user). The antenna of handset is fixed. 5. NVLAP logo is to be approved by management (it is according to NVLAP requirement if it need) before use. 2 . 2 DEPARTURE FROM DOCUMENT POLICIES, PROCEDURE OR SPECIFICATIONS , THE STATEMNT 1. Did have Any departure from document policies & procedures or from specifications. Yes , No  . If yes , the description as below. 2. .The certificate and report shall not be reproduced except in full , without the written approval of SRT laboratory. 3. .The report must not be used by the client to claim product endorsement by NVLAP or any agency the government. 4. This product is a test sample that was shown as the photos of this test report only. 5. The effect that the results relate only to the items tested. Spectrum Research & Testing Lab. FCC ID P2ISD-200WE Report # FID1I028 PAGE 7 OF 52 3. EUT MODIFICATIONS No modifications by SRT lab. Spectrum Research & Testing Lab. FC…

Text truncated - open the document above for the full version.

PHOTOS OF TESTING A. Conducted test front view (Charge mode) B. Conducted test back view PHOTOS OF TESTING C. Open site test front view (Mode 1) D. Open site test back view PHOTOS OF TESTING E. Open site test front view (Mode 2) F. Open site test back view PHOTOS OF TESTING G. Open site test front view (Mode 3) H. Open site test back view PHOTOS OF TESTING I. Open site test front view (Mode 4) J. Open site test back view PHOTOS OF TESTING Q. Open site test front view (Mode 8) R. Open site test back view PHOTOS OF TESTING S. Open site test front view (Mode 9) T. Open site test back view
