P39-YP3000Internet Phone

1 User Guide 2 Copyright Copyright 2001 G.Mate, Inc. All rights reserved. The contents of this manual may be changed without notice. All proprietary ownerships of information included in this manual are protected by the copyright law. You are prohibited from copying or using any information in this manual without a documentary permission from G.Mate, Inc. GMate, YOPY, Linupy, the GMate logo, YOPY logo, and the Linupy logo used in this manual are trademarks of G.Mate, Inc. Linux is a trademark of Linus Torvalds, and other trademarks or trade name may be used in this manual to designate a specific company, trade name, or trademark. All copyrights of trademarks other than those owned by G.Mate Inc, are owned by their respective owners. G.Mate, Inc. is not responsible for any damage occurred in connection with use of this manual. G.Mate Inc is also not responsible for any loss or damage occurred by using any S/W that was not provided originally by G.Mate Inc. 3 Table of Contents About this manual Chapter 1 : Overview of YOPY What is YOPY? YOPY Components Locating front panel components Locating side panel components YOPY Functions YOPY CD-ROM Components Chapter 2 : Using your YOPY for the first time Recharging the battery Initial settings of YOPY Using the YOPY Desktop software Using the expansion kit Chapter 3 : Basic Operations of your YOPY Turning on and off your YOPY Using the Stylus Pen Entering data into your YOPY Using the Screen Keyboard to enter data Using the DioPen to enter data Using the Key Pad to enter data Resetting your YOPY Soft Reset Hard Reset (to factory settings) Chapter 4 : Using basic applications File Manager Personal Information Management System (PIMS) Date Book Address Book To Do Memo Pad 4 Image Pad YOPY Engineering Calculator Clock MP3 Player Voice Recorder Games Chapter 5 : Connecting with your desktop PC System Requirements Installing your Desktop software Connecting with your desktop PC Using Desktop Software Chapter 6 : Internet / Network / Communication Services Connecting to an ISP Using the Internet Using the E-mail Chapter 7 : Installing and uninstalling programs Installing and uninstalling programs from YOPY Desktop Uninstalling application programs Installing program from Multimedia Card (MMC) Chapter 8 : Customizing your YOPY (Preferences) How to run “Settings” Network preferences Infrared communication Hardware manager Card information System Preferences Processor Setting sounds System information Setting power Setting time Setting coordinates 5 Entering owner information Input/edit owner information Assign password Chapter 9 : FAQ (Troubleshooting and FAQ) Chapter 10 : Additional Information Specification Support Product Warranty Agreement on Software License FCC Approval Index A ~ Z 6 About this manual Thank you for purchasing the Linux Color PDA, YOPY. This manual includes all detailed information on your using the YOPY, and will help you use the YOPY more easily and in no time. We recommend that you read this manual first before using your YOPY. This manual first explains the components of your YOPY, and then finishes the basic preparations for using your YOPY by performing the initial settings. By explaining the basic functions step by step, this manual will help you use your YOPY more effectively. Also, by explaining the basic application programs and how to customize your YOPY, this manual will enhance the efficiency of using your YOPY. If you experience any inconvenience or troubleshooting while using your YOPY, please refer to this manual for help. 7 Chapter 1 Overview of YOPY This chapter explains the features of your YOPY, its component, and the contents of the CD-ROM. What is YOPY? The multimedia PDA YOPY uses the Linux OS developed by G.Mate, Linupy. With its slim size and folder type design, mobility, and high performance, YOPY is capable of providing entertainment contents such as images, games, or music, and the newest information on the Internet, from anywhere, at any time. The basic features of YOPY are as follows. Internet website access through wireless service network You can realize a handheld information world using the internal web browser, while sending or receiving E-mails or accessing to PC communication services. Mobile entertainment You can use the internal MP3 player to listen to high-quality music, and enjoy various games with its 65,000-color display screen and powerful stereo sound. Fully accessible information management All schedules and information can be inputted and fully accessed by day, week, or month. Moreover, easy input and management of addresses or phone numbers is also possible. When you have important appointments, the alarm function will help you fully manage your schedules and information. Easy voice recording Sudden ideas or simple memos can be voice recorded, and easily played back. Installation of various application programs You can also add various practical programs developed in the X Window environment of the Linux OS. The easy-to-use Key Pad You can easily run application programs without using the Stylus Pen, by using the convenient Navigation Keys or the special keys. Also, fast character input is possible by using the character and number buttons on the Key Pad. YOPY Components 8 Locating front panel components 1. Display Screen Composed of a TFT-LCD supporting up to 65,536 colors, and a sensitive touch panel, it displays all the programs and information of YOPY. 2. Power Key Used to turn YOPY’s power on and off. 3. Function Key 2 Carries out specific functions when using the MP3 player or playing games. Refer to each program instruction for details. 4. Function Key 1 Carries out specific functions when using the MP3 player or playing games. Refer to each program instruction for details. 5. Run Program Key 9 2 3 4 6 11 13 8 10 12 5 7 9 Use this button to run programs, or use it as a “Play” button while using the MP3 player. 6. Start Key Use this button to open the Start Menu. Functions the sa…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM SA-1110 Serial4 Flash 16MB SDRAM 64MB Codec UDA1341 PC SPK (0.5W) 5V 3.3V 1.7V LED1 LED2 Audio Out Serial2(ICP) Serial0(USB) YOPY POP MIC UCB1200 Touch MMC I/F 22P Conn 232DR IrDA LCD Charger BATT 1350mAh LCD MQ1132 gamma MQG SPI Key DC 5V Serial3(UART) Serial4(SSP) GP USB/ RS-232C MMC Type Memory,etc CDMA,GPS, etc Serial1 (UART) RTC,PLL,SSP L3 I/F TS.. Keys ADC 20P Jacket Conn Key RS-232C 3.6864MHz 32.768KHz 27MHz 48MHz

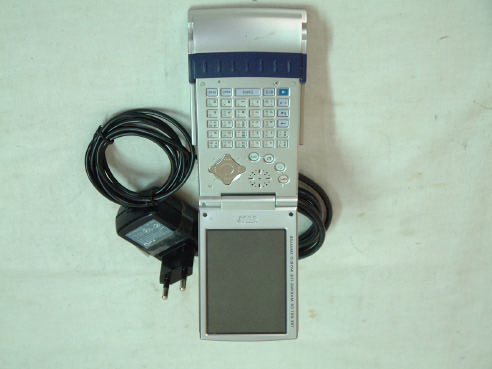

Test report Our reference : KEL01I-B018K Page : B1 of Appendix Issued date : 2001-10-30 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> <REAR VIEW OF EUT>

Test report Our reference : KEL01I-B018K Page : D1 of Appendix Issued date : 2001-10-30 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample

Test report Our reference : KEL01I-B018K Page : C1 of Appendix Issued date : 2001-10-30 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL01I-B018K Page : C2 of Appendix Issued date : 2001-10-30 <FRONT VIEW OF MAIN TOP BOARD> Test report Our reference : KEL01I-B018K Page : C3 of Appendix Issued date : 2001-10-30 <REAR VIEW OF MAIN TOP BOARD> Test report Our reference : KEL01I-B018K Page : C4 of Appendix Issued date : 2001-10-30 <FRONT VIEW OF MAIN BOTTOM BOARD> Test report Our reference : KEL01I-B018K Page : C5 of Appendix Issued date : 2001-10-30 <REAR VIEW OF MAIN BOTTOM BOARD > Test report Our reference : KEL01I-B018K Page : C6 of Appendix Issued date : 2001-10-30 <FRONT VIEW OF LCD> Test report Our reference : KEL01I-B018K Page : C7 of Appendix Issued date : 2001-10-30 <REAR VIEW OF LCD> Test report Our reference : KEL01I-B018K Page : C8 of Appendix Issued date : 2001-10-30 <FRONT VIEW OF BATTERY> Test report Our reference : KEL01I-B018K Page : C9 of Appendix Issued date : 2001-10-30 <REAR VIEW OF BATTERY> Test report Our reference : KEL01I-B018K Page : C10 of Appendix Issued date : 2001-10-30 <FRONT VIEW OF ADAPTER> Test report Our reference : KEL01I-B018K Page : C11 of Appendix Issued date : 2001-10-30 <REAR VIEW OF ADAPTER> Test report Our reference : KEL01I-B018K Page : C12 of Appendix Issued date : 2001-10-30 <FRONT VIEW OF CRADLE> Test report Our reference : KEL01I-B018K Page : C13 of Appendix Issued date : 2001-10-30 <BOTTOM VIEW OF CRADLE > Test report Our reference : KEL01I-B018K Page : C14 of Appendix Issued date : 2001-10-30 <FRONT VIEW OF SET > Test report Our reference : KEL01I-B018K Page : C15 of Appendix Issued date : 2001-10-30 <REAR VIEW OF SET >

CERTIFICATE OF COMPLIANCE 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Oct. 27. 2001 Applicant’s Name : G.Mate, Inc. Applicant’s Address : 3F, Kyungdong Bldg.4-4, Suenae-Dong, Pundang-Ku, Kyoungki-Do, 463-020, Korea Manufacturer’s Name : G.Mate, Inc. Manufacturer’s Address : 3F, Kyungdong Bldg.4-4, Suenae-Dong, Pundang-Ku, Kyoungki-Do, 463-020, Korea Declares that the product Product Description : PDA Brand Name : YOPY Model Number : YP3000 FCC ID : P39-YP3000 Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date : Oct. 30. 2001 Report No : KEL01I-B018K Authorized Signature : M. S. CHO / President Test report Our reference : KEL01I-B018K Page : 2 of 13 Issued date : 2001-10-30 Korea EMC Laboratory TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 System Configuration Diagram 6 2.5 Preliminary testing 7 2.6 Shielded Enclosure 7 2.7 Data Reporting Format 7 2.8 Operating Condition 7 2.9 Conditioning of the EUT 7 2.10 Power Line Conducted Emissions 8 2.11 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram - F : User’s Manual Test report Our reference : KEL01I-B018K Page : 3 of 13 Issued date : 2001-10-30 Korea EMC Laboratory 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : PDA Model Number : YP3000 Serial Number : Prototype Manufacturer : G.Mate, Inc. 3F, Kyungdong Bldg.4-4, Suenae-Dong, Pundang-Ku, Kyunggi-Do, Korea. Type of Test : FCC CLASS B Report Number : KEL01I-B018K Date Tested : Oct. 27. 2001 Tested By : S. J. LEE The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Test report Our reference : KEL01I-B018K Page : 4 of 13 Issued date : 2001-10-30 Korea EMC Laboratory 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The YP3000 is a PDA made by G.Mate, Inc. in Korea. Refer to the user's manual for more information. 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type MODEL NAME FCC ID Serial No Manufacturer ------------------------------------------------------------------------------------------------------------------------------------------ PDA YP3000 P39-YP3000 Prototype G.Mate, Inc. PC Brio 500 DoC NONE HP Monitor G790 GSS19001 M885200416 Viewsonic Corp. Keyboard SKR-1032 GJJSKR-1032 1EAC000237 SEJIN Mouse SMB-601 GJJB50PAQ SKBE020496 SEJIN Adapter PLA10-5 NONE POWERLINK CORP. Earphone KOREAN AIR NONE G.Mate, Inc. Cradle YP3000-C NONE G.Mate, Inc. 1.4 System Configuration Type Model Name Serial NO Manufacturer Remark MAIN TOP B/D MAIN Bottom B/D LCD Battery YOPY POP YOPY POP DMRB09240120 Litium Ion Polymer Battery NONE NONE NONE NONE G.Mate, Inc. G.Mate, Inc. SAMSUNG VIABLE KOREA KOREA KOREA KOREA KOREA Test report Our reference : KEL01I-B018K Page : 5 of 13 Issued date : 2001-10-30 Korea EMC Laboratory 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4, 1992. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40cm from a vertical conducting plane. Power to the EUT was provided through the LISN(KNW-407,Kyoritsu) which has the Impedance vs Frequency Characteristic in accordance with the Fig.1 Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(NSLK8128,Schwarzbeck). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9cm high, approximately 2.0cm in diameter and that are spaced 6cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 1992. Korea EMC Lab. was refiled in FCC in 1998. INSTRUMENTATION Description Model Manufacturer Serial No. Last Cal. Due Cal. Test Receiver ESH-2 RodeSchwarz 893268/004 '2001.06.15. '2002.06.15 Test Receiver ESVS10 RodeSchwarz 825120/006 '2001.10.10. '2002.10.10 Test Receiver ESPC …
