P3M1Scanning mouse

124 UL STATEMENT UL- GARANTI Alle UL-mærkede C-Pen produkter opfylder kravene i standarden UL 1950, sikkerhedsstandarden for IT-udstyr. UL 1950 KONFORMITETSERKLÄRUNG Die in diesem Handbuch beschriebenen C-Pen-Produkte erfüllen die Anforderungen der Norm UL 1950 über die Sicherheit von Geräten der Informationstechnologie (UL Standard for Safety of Information Technology Equipment). DECLARATIÓN UL Todos los productos C-Pen que llevan la denominación UL cumplen con los requisitos de la normativa UL 1950 : UL standard for Safety of Information Technology Equipment (Estándar UL para Seguridad de los Equipos de la Tecnoloía de la Información). UL STATEMENT All UL-labelled C-Pen products fulfill the requirements of the UL 1950 standard: UL Standard for Safety of Information Technology Equipment. UL-ILMOITUS Kaikki UL-merkinnällä varustetut C-Pen-tuotteet ovat UL 1950 -standardin mukaisia: UL:n tietotekniikan laitteistojen turvastandardi. DECLARATION RELATIVE AU MARQUAGE UL Tous les produits C-Pen portant le marquage UL sont conformes à la norme américaine UL 1950 : Norme UL relative à la sécurité du matériel informatique. UL – STAÐFESTING Allar UL-merktar C-Pen vörur standast kröfur samkvæmt staðli UL 1950, sem er öryggisstaðall fyrir UT-búnað. DICHIARAZIONE UL Tutti i prodotti C-Pen con marchio UL soddisfano ai requisiti della norma UL 1950: UL Standard for Safety of Information Technology Equipment. UL-VERKLARING Alle UL-gemarkeerde C-Pen-producten voldoen aan de vereisten van de norm UL 1950, veiligheidsnorm voor IT-apparatuur. UL-ERKLÆRING Alle UL-merkede C-Pen-produkter overholder kravene i standarden UL 1950, sikkerhetsstandarden för IT-utstyr. 125 DECLARAÇÃO UL Todos os produtos C-Pen com a etiqueta UL satisfazem os requisitos da norma UL 1950: Norma UL relativa à Segurança de Equipamento Informático. UL-FÖRSÄKRAN Alla UL-märkta C-Pen-produkter uppfyller kraven i standarden UL 1950, säkerhetsstandarden för IT-utrustning. FCC STATEMENT Radio and Television Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio and TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402. WARNING! This equipment has been certified to comply with the limits for a Class B digital device under Part 15 of FCC Rules. Only peripherals (computer input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this computer. Operation withnon-certified peripherals is likely to result in interference to radio and TV reception. Any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

Attestation C Technologies wish to apply to FCC rules, part 15, for the product C-Pen 10. Johan Fredrikson

Request of confidentiality The following documents must be treated confidentially: Schematics.pdf

12/04/01 Mr. Johan Fredrikson C Technologies AB In reference to FCC ID: PXU- C-PEN 10 Mr. Fredrikson Upon completion of review of the your application for FCC ID: PXU-C-PEN, there are several discrepancies that must be addressed before the application can be granted by ATCB. Please address each issue below. 1) The 731 form is not complete and the product description is a bit vague please address the follow ing items. A) Please verify the FCC ID grantee number. Y ou have uploaded files state it as P3M but the 731 form states it as PXU. Please provide the correct FCC Grantee code B) Please verify the FCC ID number, the file states it as P3MI but the 731 form states it as PXU- C-Pen10. We need the correct FCC ID number before we can upload it to the FCC. C) Please fill out completely sections 2 parts #2 and 3 of the 731 form addressing technical and non technical contact information. (note if section 3 non technical is the same as the technical information there is no need to fill that out completely, just list it as “same as technical contact”. This information is needed as part of the application. D) Please fill out Part 9a of section 2 of the 731 form (name of the test lab) E) Please fill out section 3 completely including the Rule part this device operate under. F) Please fill out section 4 dealing with the agency information completely. 2) You will need to apply for a FCC Registration Number for your company before we can upload it to the FCC. This umber can be obtained on line at no charge from the FCC at https://gullfoss2.fcc.gov/servlet/coresw eb.servlet.user.HomeServlet 3) Is this an uni ntentional radiator being certified under Subpart B of the FCC rules or is this device an intentional transmitter being certified under Part 15 C of the rules, the product description is not clear per 731 form? 4) Please provide a copy of the FCC listing of the test lab and description of the testing facility w here the product was tested at. 5) Please verify that the device was tested in accordance w ith ANSI C 63.4 6) Please provide a draw ing or a clear picture of the label with the correct FCC ID number on it. The picture must be clear enough to read the FCC ID number on the label 7) Please provide additional internal shots showing the component side of the board. 8) Please provide a list of the calibration dates for the equipment used. 9) Please provide a complete set of external photos show ing the follow ing A) Top of unit B) Bottom of unit C) Side of unit D) Cable and connector of unit. 10) Please provide a request for confidentiality in the correct form as required by the FCC. The letter must request confidentiality under sections the Commission Rules section 0.457(d)(1)(.ii) and 0.459 of the commission rules and applies only to the following items, schematics, block diagram, parts list and theory of operation (providing theory of operation contains information w hich would hurt the applicant by giving specific information to the competitor). This letter must be signed and dated by the applicant and must have the applicants letter head on it. 11) Review ing the report one of the pictures reference’s a ferrite bead on the cable. Please provide the follow ing. A) Was the ferrite bead placed on the device to bring it into compliance during the test or was it originally designed in? B) Will the ferrite bead be molded into the cable or will the manufacturer provide a ferrite bead in the package and instructions on how and w here to place it on the cable. If so please provide a copy of those instructions. Regards David A. Case NCE Examining Engineer mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

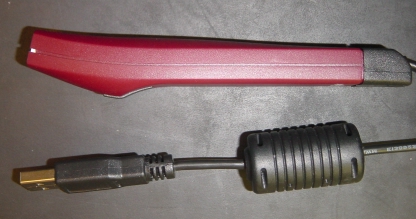

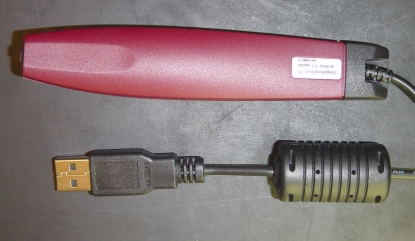

External photos of C-Pen 10 Top of unit Bottom of unit Side of unit Cable and connector

Y/W 0120 MADE IN SWEDEN CT-151018R1B Y/W 0120 MADE IN SWEDEN CT-151018R1B Scale 5:1 Scale 1:1 fcc id: P3M1 fcc id: P3M1 R C US LISTED I.T.E 10A R C US LISTED I.T.E 10A

20dan-uk-g D E LTA Danish Electronics, Light & Acoustics Venlighedsvej 4 DK-2970 Hørsholm Denmark Tel. (+45) 45 86 77 22 Fax (+45) 45 86 58 98 www.delta.dk This report is issued under the rules of DANAK (The Danish Accreditation Scheme) - see overleaf. The report must not be reproduced, except in full without the written approval of DELTA. Test Report DANAK Reg. no. 19 Measurements of radio frequency interference from C-PEN 10 Performed for C Technologies AB DANAK-195760 Project no.: K222253-1 Page 1 of 10 4 annexes 2001-10-11 DANAK-195760 DELTA-K222253-1 Page 2 of 10 PEH/blj Title Measurements of radio frequency interference from C-PEN 10 Test object Scanner and mouse device, C-PEN 10 Report no. DANAK-195760 Project no. K222253-1 Test period 2001-09-25 Client C Technologies AB Scheelevägen 15 SE-223 70 Lund Sweden Telephone: +46 46 540 10 00 Fax: +46 46 540 10 01 www.cpen.com Contact person Mr. Johan Fredrikson [email protected] Manufacturer C Technologies AB Specifications FCC Part 15, Subpart B, Class B Results The AC mains conducted emission and radiated electro- magnetic fields emission from the test object were below the limits of FCC Part 15, Subpart B, Class B. Test personnel Henrik Egeberg Nielsen Date 2001-10-11 Project manager Per Hansen Facility Manager - EMC DELTA Responsible Per Thåstrup Jensen Project Manager - EMC DELTA DANAK-195760 DELTA-K222253-1 Page 3 of 10 PEH/blj Table of contents Page 1. Summary of test results 4 2. Test specimen 5 3. General test conditions 6 3.1 Test set-up 6 4. Tests and results 9 4.1 Conducted emission, AC mains (FCC Part 15, Subpart B, Class B) 9 4.2 Radiated electromagnetic field (FCC Part 15, Subpart B, Class B) 10 Annex 1 List of instruments (1 page) Annex 2 Test record sheets and photos regarding conducted emission, AC mains (FCC Class B) (3 pages) Annex 3 Test record sheets and photos regarding radiated electromagnetic field (FCC Class B) (6 pages) Annex 4 Technical details (1 page) DANAK-195760 DELTA-K222253-1 Page 4 of 10 PEH/blj 1. Summary of test results The results of the emission tests can be summarised as follows: Emission tests FCC part 15 Subpart B Class B Conducted emission, AC mains Passed Radiated electromagnetic field Passed Abbreviations : Passed : The emission was below the limit. Not done : No test was performed. N/A : Not applicable. Not relevant : The test was not relevant for the test object. The test results relate only to the specimen tested. DANAK-195760 DELTA-K222253-1 Page 5 of 10 PEH/blj 2. Test specimen Category : Peripheral PC equipment Manufacturer : C Technologies AB Model/Type : C-PEN 10 Part no. : CT 151018 Serial no. : - Supply voltage : 115 VAC to the LapTop PC (5 VDC to EUT through USB connection) Operational mode : Test programme, continuously reading Comments : Cotec Corporation Ltd ferrite type 10-13-142635285-0 (K5A RH 14.2 x 6.35 x 28.5) on USB cable. DANAK-195760 DELTA-K222253-1 Page 6 of 10 PEH/blj 3. General test conditions 3.1 Test set-up FIG. 1 Test set-up including test object and peripheral equipment. Semi-anechoic shielded room C-Pen 10 Test object 3.1.1 AC Adapter 3.1.6 Mouse 3.1.5 IR Scanner 3.1.3 Image loader 3.1.4 LapTop PC 3.1.2 115 VAC Cables: 1) AC Power cable. 1.5 m. Unshielded. 2) DC power cable. 1.5 m. Unshielded. 3) USB cable. 1.8 m. Shielded. With ferrite. 4) Parallel cable. 1.0 m. Shielded. 5) Serial cable. 1.5 m. Unshielded. 6) USB cable 1.8m. Shielded. 1 2 3 6 5 4 DANAK-195760 DELTA-K222253-1 Page 7 of 10 PEH/blj The complete system used during the tests consisted of the following units: 3.1.1 C-Pen 10 EUT 1 Manufacturer : C Technologies AB Model/Type : C-PEN 10 Part no. : CT 151018 Serial no. : - FCC ID : - 3.1.2 LapTop PC AUX 1 Manufacturer : DELL Model/Type : PPX Part no. : - Serial no. : - FCC ID : Tested to comply with FCC Standards 3.1.3 IR Scanner AUX 2 Manufacturer : - Model/Type : XTND Access Part no. : - Serial no. : - FCC ID : - 3.1.4 Image loader AUX 3 Manufacturer : SanDisk Model/Type : ImageMate, Compact flash Part no. : - Serial no. : - FCC ID : - 3.1.5 Mouse AUX 4 Manufacturer : Logitech Model/Type : M-BD58 Part no. : 830386-0000 Serial no. : LZS10211393 FCC ID : Tested to comply with FCC Standards DANAK-195760 DELTA-K222253-1 Page 8 of 10 PEH/blj 3.1.6 AC Adapter AUX 5 Manufacturer : DELL Model/Type : AA20031 (PA-6) Part no. : 9364U Serial no. : - FCC ID : - DANAK-195760 DELTA-K222253-1 Page 9 of 10 PEH/blj 4. Tests and results 4.1 Conducted emission, AC mains (FCC Part 15, Subpart B, Class B) Requirements Specification FCC Rules and Regulations Part 15:2000, Subpart B, Class B Test method FCC Rules and Regulations Part 15:2000, Subpart B Test set-up ANSI C63.4:1992 Frequency range 0.45-30 MHz Limit: (quasi-peak) 0.45-30 MHz: 48 dBμV Test record sheet Annex 2 Results The emission was within the specified limits. Climatic conditions: 22.7°C and 40.5% R.H. Comments Supply power was 115 VAC to the LapTop PC (5 VDC to EUT through USB connection). DANAK-195760 DELTA-K222253-1 Page 10 of 10 PEH/blj 4.2 Radiated electromagnetic field (FCC Part 15, Subpart B, Class B) Requirements Specification FCC Rules and Regulations Part 15:2000, Subpart B, Class B Test method FCC Rules and Regulations Part 15:2000, Subpart B Test set-up ANSI C63.4:1992 Measuring distance 3 m Frequency range 30-1000 MHz Limit: (quasi-peak) 30-88 MHz: 88-216 MHz: 216-960 MHz: 960-1000 MHz: 40.0 dBμV/m 43.5 dBμV/m 46.0 dBμV/m 54.0 dBμV/m Test record sheets Annex 3 Results The emission was within the specified limits. Climatic conditions: 22.7°C and 40.5% R.H. Comments Supply power was 115 VAC to the LapTop PC (5 VDC to EUT through USB connection). DANAK-195760 DELTA-K222253-1 PEH/blj Annex 1 List of instruments (1 page) DANAK-195760 DELTA-K222253-1 PEH/blj LIST OF INSTRUMENTS EC NO. INSTRUMENT MANUFACTURER TYPE -------------------------------------------------------------------------------------------------------------------------- 29797 BILOG ANTENNA, 30-1000 MHz CHASE CBL 6111A 29461 ARTIFICIAL MAINS NE…

Text truncated - open the document above for the full version.

Test set-up Semi-anechoic shielded room C-Pen 10 Test object 3.1.1 AC Adapter 3.1.6 Mouse 3.1.5 IR Scanner 3.1.3 Image loader 3.1.4 LapTop PC 3.1.2 115 VAC Cables: 1) AC P ower cable. 1. 5 m. Unshielded. 2) DC power cable. 1. 5 m. Unshielded. 3) USB cable. 1. 8 m. Shielded. With ferrite. 4) Paralle l cab le. 1. 0 m. Shielded. 5) Serial cab le. 1. 5 m. Unshielded. 6 ) USB cable 1.8m. Shielded. 1 2 3 6 5 4 PHOTO A2.1 AC mains conducted emission measuring PHOTO A2.2 AC mains conducted emission measuring PHOTO A3.1 Radiated electromagnetic field emission PHOTO A3.2 Radiated electromagnetic field emission PHOTO A3.3 Radiated electromagnetic field emission (3 meter antenna distance) Photo A4.1Detail on USB cable ferrite
