P3TDH7S-00XA700/800 MHZ DUAL BAND INDUSTRIAL BOOSTER

AN IIA COMPANY 849 NW State Road 45, Newberry, Florida 32669 (352) 472-5500 ● Certification: [email protected] ● Testing: [email protected] ● www.timcoengr.com April 8, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 20145 Ref: Fiplex Communication’s Inc. application for certification for their FCC ID: P3TDH7S-00XA To Whom It May Concern: We have tested and submitted for certification, Fiplex Communication Inc’s FCC ID P3TDHS7-00X which was certified under equipment class B9B. As such, both Class B-width and Class A-width emissions were distinctly tested on this device, as evidenced in the accompanying test report. Per KDB 484596 Section 3 a, in order to re-use the Class A data from the testing of the previous FCC ID P3TDHS7-00X, this document attests that the present filing for FCC ID: P3TDHS7-00XA is electrically identical to, and is equipped with identical software/firmware as the previous FCC ID P3TDH7S-00X by the same manufacturer. Per KDB 484596 Section 3 b, the current FCC ID P3TDH7S-00XA was tested using a using a software filter setting that limited channel bandwidth to < 75 kHz. This necessitates a new FCCID and new grant of certification, under equipment class B9A, though no change (electrical, software, or otherwise) has been made to the equipment in question. Based on this, we are submitting the same test report/test data as submitted with the FCC ID: P3TDHS7- 00X which contains both B9A and B9B data. Please advise if you have any questions. Sincerely, Sharon Hoffman

C OMMUNICATIONS, INC. 2101 NW 79th Avenue . Miami FL 33122 . United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com Electromagnetic Devices for Radio Communications Systems 27th of December, 2019 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, FL 32669 USA FCC ID: P3TDH7S-00XA Product Name: DH7S-00X Request for Long Term Confidentiality Pur suant to Sections 0.457(d) and 0.459 of the commission’s rules, we hereby request that the following documents be held as long term confidential: •Schematics Tuning Procedure •Technical/operational desc ription •Block diagram •Bill of Materials •Internal pictures •User Manual This Restricted Access of Equipment and Documentation Notice is to inform Timco Engineering, Inc. that access to equipment and related documentation supplied by Fiplex Communications Inc. is to be restricted to only authorized users in order to ensure the security of the equipment and confidentiality of related documentation at all times. Only designated professionals shall be allowed to maintain or service the equipment. Fiplex Communications, Inc. is requesting the internal photos be permanently confidential. This nonconsumer device is inaccessible to the general public, and shall be kept in a secured and locked environment. The reason for this request is that the listed Documents are of a technical nature and are not provided to the consumer because the consumer cannot service the device. Our products will be sold to a limited audience and the Fiplex wishes the Documents to be inaccessible to the general public at all times. Appropriate documentation will be made be available only to Fiplex Communications, Inc. partners and integrators only. Designated professionals under the employ of these partners and integrators will be responsible for service and maintenance of our products. Each partner and integrator will be under a non-disclosure agreement with Fiplex Communications, Inc. A sample of this agreement is included below. COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Avenue . Miami FL 33122 . United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com D ated this 27 th day of December 2019 By : . Signature Ricardo de Goycoechea . Printed T itle: CEO On behalf of: Fiplex Communications, Inc Telephone: +1 305 884 8991 COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Avenue . Miami FL 33122 . United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Avenue . Miami FL 33122 . United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com

COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 27th of December 2019 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REF: FCC ID: P3TDH7S-00XA Dear Sir/Madam: This equipment meets the requirements of the FCC Rules, Part 90.203(e) and (g), as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer, authorized service and maintenance personnel. The operator cannot program transmit frequencies using the equipment’s external operating controls. Sincerely, Dated this 22nd day of May 2019 By: . Signature Ricardo de Goycoechea . Printed Title: CEO On behalf of: Fiplex Communications, Inc Street, Miami, FL 33122 USA. Telephone: +1 305 884 8991 2101 N.W. 79 th Ave, Miami, Florida 33122 Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com

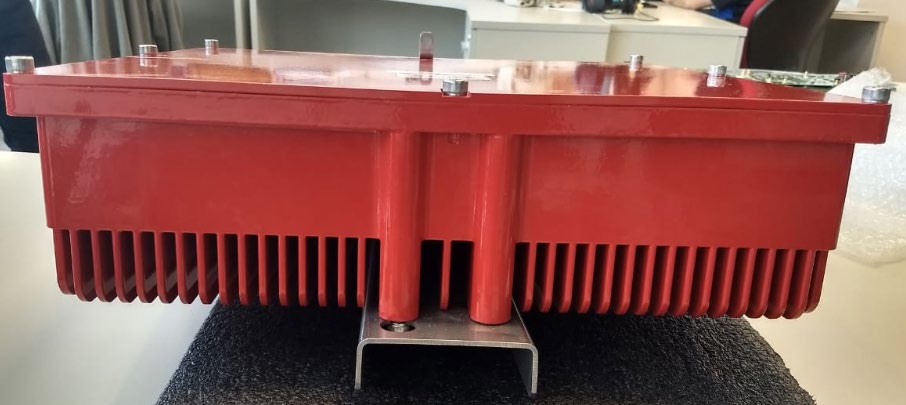

COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Ave. Miami, FL 33122. United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com External Pictures COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Ave. Miami, FL 33122. United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Ave. Miami, FL 33122. United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Ave. Miami, FL 33122. United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com

P3TDH7SX 8986A-DH7SX DH7SX BDA DH7SX SERIES FCC ID & PART 90 LABELS FCC001 BDA DH7SX SERIES FCC ID LABEL P3TDH7SX 8986A-DH7SX DH7SX FCC001

849 NW STATE ROAD 45 PHONE: 888.472.2424 OR 352.472.5500 NEWBERRY, FL 32669 USA EMAIL: [email protected] WEB: HTTP://WWW.TIMCOENGR.COM An IIA Company RF Exposure Evaluation Report APPLICANT FIPLEX COMMUNICATIONS INC. ADDRESS 2101 NW 79th Ave. MIAMI FL 33122 USA FCC ID P3TDH7S-00XA MODEL NUMBER DH7S-00 X PRODUCT DESCRIPTION 700/800 MHZ DUAL BAND INDUSTRIAL BOOSTER DATE SAMPLE RECEIVED 12/13/2019 FINAL TEST DATE 01/16 /2020 PREPARED BY Franklin Rose TEST RESULTS PASS FAIL Report Number Report Version Description Issue Date 747UT20 MPE_TestReport_ Rev1 Initial Issue 03/19/2019 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TA BLE OF CONTENTS GENERAL REMARKS ........................................................................................................ 2 GENERAL INFORMATION ................................................................................................ 3 ANTENNA INFORMATION ............................................................................................... 3 MPE CALCULATION ......................................................................................................... 4 MPE LIMITS .................................................................................................................... 4 MPE SEPARATION .......................................................................................................... 5 Applicant: FCC ID: Report: FIPLEX COMMUNICATIONS INC. P3TDH7S-00XA 747UT20 MPE_TestReport_Rev1 Page 2 of 6 GENERAL REMARKS Su mmary T he device under test does: Fulfill the general approval requirements as identified in this test report and was selected by the customer. Not fulfill the general approval requirements as identified in this test report A ttestations T his equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Designation #: US1070 Prepared by: Name and Title Franklin Rose, Project Manager / EMC Specialist Date 03/19/2019 Applicant: FCC ID: Report: FIPLEX COMMUNICATIONS INC. P3TDH7S-00XA 747TU20 MPE_TestReport_Rev1 Page 3 of 6 GENERAL INFORMATION EUT Description 700/800 MHZ DUAL BAND INDUSTRIAL BOOSTER Model Number DH7S-00X EUT Power Source ☒110–120Vac, 50– 60Hz ☐DC Power☐Battery Operated Test Item ☐Engineering Prototype ☒Pre-Production☐Production Type of Equipment ☒Fixed☐Mobile☐Portable Antenna Connector 2 external N Type Test Conditions The temperature was 26ºC Relative humidity of 50%. Modification to the EUT No Modification to EUT. Applicable Standards FCC CFR 47 Part 2.1091 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Designation #: US1070 ANTENNA INFORMATION Manufacturer Provides Antenna Type Max Gain (dBi) No Unspecified 0 dBi Applicant: FCC ID: Report: FIPLEX COMMUNICATIONS INC. P3TDH7S-00XA 747UT20 MPE_TestReport_Rev1 Page 4 of 6 MPE CALCULATION T he minimum separation distance is calculated as follows: MPE LIMITS Applicant: FCC ID: Report: FIPLEX COMMUNICATIONS INC. P3TDH7S-00XA 747UT20 MPE_TestReport_Rev1 Page 5 of 6 MPE SEPARATION ParameterValueUnit EUT Form Factor Lowest Frequency768.000 MHz Highest Frequency869.000 MHz Maximum Power33.000 Tune Up Tolerance2.000 Duty Cycle100% % Antenna Gain0.000 Coax Loss0.000 EIRP3.162W EUT Parameters Separation Distance (cm) Pow e r De nsity (mW/cm 2 ) Separation Distance (cm) Pow e r De nsity (mW/cm 2 ) 0.512 mW/cm2 Controlled Occupational RF Exposure/MPE Guideline 20 cm 0.629 mW/cm2 Uncontrolled Public RF Exposure/MPE Guideline 22.17 cm Applicant: FCC ID: Report: FIPLEX COMMUNICATIONS INC. P3TDH7S-00XA 747UT20 MPE_TestReport_Rev1 Page 6 of 6 MPE CALCULATION RF Exposure Field Strength Limits Separation Distance Calculation Method Uncontrolled Sep. Distance @ 0.512 mW/cm2 Controlled Sep. Distance @ 2.56 mW/cm2 EUT Power Density at 20 cm Calculation Method EUT Pow er Density @ 20 cm Calculations Public Persons may be exposed up to: Worst-Case RF Field Strength Limit for the General Public (Uncontrolled Environment) 0.512 mW/cm2 2.56 mW/cm2 Distance from Radiating Element (cm) = SQRT (P(mW) / 4π S(mW/cm 2 )) 22.17 cm 9.91 cm Power Density (mW/cm 2 ) = P(mW) / 4π R(cm) 2 Occupational Persons may be exposed up to: Worst-Case RF Field Strength Limit for Controlled Use (Controlled Environment) Mandatory distance from radiating element: 0.629 mW/cm2

3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 51 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM KDB 935210 4.9 SPURIOUS EMISSION RADIATED MEASUREMENTS 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 52 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM 2.1055 FREQUENCY STABILITY ☐ ☐ ☐ ☐ 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 53 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM FREQUENCY STABILITY 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 54 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM KDB 935210 4.8 FREQUENCY STABILITY 90.213 FREQUENCY STABILITY Applies to EUT Frequency range (MHz) Fixed and base stations (ppm) Mobile stations > 2 watts output power (ppm) Mobile stations ≤ 2 watts output power (ppm) ☒ 806-809 14 1.0 1.5 1.5 ☒ 809-824 14 1.5 2.5 2.5 ☒ 851-854 1.0 1.5 1.5 ☒ 854-869 1.5 2.5 2.5 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 55 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM FREQUENCY STABILITY Test Procedure: ANSI C63.26 S 5.6.3 Test Setup Block Diagram: 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 56 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The measurement uncertainty was calculated for all measurements listed in this test report according To CISPR 16–4 or EN TR 100-028 Specification for radio disturbance and immunity measuring apparatus and methods – Part 4: “Uncertainty in EMC Measurements” and is documented in the Timco Engineering, Inc. quality system according to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Hereafter the best measurement capability for Timco Engineering, Inc. is reported: Test Items Measurement Uncertainty Notes TR 100 028 PARAGRAPH 7.1.1 – FREQUENCY ERROR < 30 MHz ± 0.063 ppm (1) TR 100 028 PARAGRAPH 7.1.1 - FREQUENCY ERROR < 200 MHz ± 0.051 ppm (1) TR 100 028 PARAGRAPH 7.1.1 - FREQUENCY ERROR < 1 GHz ± 0.051 ppm (1) TR 100 028 PARAGRAPH 7.1.1 - FREQUENCY ERROR ≤ 18 GHz ± 0.051 ppm (1) TR 100 028 PARAGRAPH 7.1.1 - FREQUENCY ERROR ≤ 40 GHz ± 0.051 ppm (1) TR 100 028 PARAGRAPH 7.1.2 - CONDUCTED POWER MEASUREMENT ±0.643 dB (1) TR 100 028 PARAGRAPH 7.1.4.1 - CONDUCTED SPURIOUS EMISSIONS 9 kHz – 150 kHz ± 3.14 dB (1) TR 100 028 PARAGRAPH 7.1.4.1 - CONDUCTED SPURIOUS EMISSIONS 150 kHz – 30 MHz ± 3.08 dB (1) TR 100 028 PARAGRAPH 7.2 – RADIATED EMISSIONS < 200 MHz ± 2.16 dB (1) TR 100 028 PARAGRAPH 7.2 – RADIATED EMISSIONS < 1 GHz ± 2.15 dB (1) TR 100 028 PARAGRAPH 7.2 – RADIATED EMISSIONS < 18 GHz ± 2.14 dB (1) TR 100 028 PARAGRAPH 7.2 – RADIATED EMISSIONS ≤ 40 GHz ± 2.31 dB (1) FLUKE Multimeter AC Voltage Uncertainty ± 2.263 % (1) FLUKE Multimeter DC Voltage Uncertainty ± 0.453 % (1) Temperature (C°) ± 0.81 C° Notes: (1) This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=1.96. 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 57 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM EMC EQUIPMENT LIST Device Manufacturer Model SN Calibration Date Cal Due Date Function Generator Standford DS340 25200 02/21/18 02/21/20 Modulation Analyzer HP 8901A 3050A05856 04/13/17 04/13/20 Audio Analyzer HP 8903B 3011A13084 02/20/18 02/20/20 EMI Test Receiver R & S ESIB 40 firmware v 4.34.3 BIOS v3.3 Rohde & Schwarz ESIB 40 100274 07/22/19 07/22/21 EMI Test Receiver R & S ESU 40 firmware v 4.43 SP 3 BIOS v5.1-24-3 Rohde & Schwarz ESU 40 100320 08/28/18 08/28/20 Software: Field Strength Program Timco N/A Version 4.10.7.0 N/A N/A Coaxial Cable - Chamber 3 cable set (backup) Micro-Coax Chamber 3 cable set (backup) KMKM-0244-02 KMKM-0670-01 KFKF-0197-00 02/27/19 02/27/21 CHAMBER Panashield 3M N/A 03/15/19 03/15/21 Antenna: Active Loop ETS-Lindgren 6502 00062529 12/11/17 12/11/19 Antenna: Biconical 1096 Eaton 94455-1 1096 08/01/17 08/01/19 Antenna: Log-Periodic 1122 Electro-Metrics LPA-25 1122 07/26/17 07/26/19 Ant: Double-Ridged Horn/ETS Horn 1 ETS-Lindgren 3117 00035923 01/30/17 01/30/19 Temperature Chamber LARGE Tenney Engineering TTRC 11717-7 N/A N/A Type K J Thermometer Martel 303 080504494 11/06/17 11/06/20 Oscilloscope LeCroy LT364 00414 03/28/19 03/28/21 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 58 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM ANNEX I – MANUFACTURER-PROVIDED INFORMATION Note: The accuracy and precision of the following information provided by the manufacturer of the equipment under test has not been verified using test methods, cannot be verified, or is not necessary to verify. Power at Final Amplifier: 120 V * 0.8 A = 100 W 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 59 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM ANNEX II – MEASUREMENT DATA KDB 935210 4.1 INPUT SIGNALS 4K00F3E (Narrowband Analog FM Voice) Substituted for signals: 4K00F1E (Narrow NXDN Voice) 4K00F1D (Narrow NXDN Data) 4K00F1W (Narrow NXDN Voice & Data) 4K00F2D (Narrow NXDN CW ID) Occupied Bandwidth: 4.04 kHz Ref-54 dBm Att 5 dB* * Offset 1.1 dB 1 PK VIEW A LVL PS 3DB RBW 100 Hz VBW 300 Hz SWT 2.4 s AC Center800 MHzSpan20 kHz2 kHz/ …

Text truncated - open the document above for the full version.

An IIA Company FCC 47 CFR Part 90 700/800 MHz Booster Test Report FCC ID: P3TDH7S-00XA, referencing FCC ID: P3TDH7S-00X APPLICANT FIPLEX COMMUNICATIONS INC. FCC ID P3TDH7S-00XA MODEL NUMBER DH7S-00X PRODUCT DESCRIPTION 700/800 MHZ DUAL BAND INDUSTRIAL BOOSTER DATE SAMPLE RECEIVED DEC 13 2019 FINAL TEST DATE JAN 16 2020 REPORT NUMBER 3412AUT19_PT90 7800 BOOSTER TestReport_ AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION UNDER ISO/IEC 17025, AND ISO/IEC 17065 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 2 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM TABLE OF CONTENTS SIGNATURE PAGE .............................................................................................................. 3 TEST LABORATORY INFORMATION ....................................................................................... 4 TEST INFORMATION ........................................................................................................... 5 EUT INFORMATION ............................................................................................................. 6 90.7 DEFINITIONS ............................................................................................................. 7 KDB 935210 EQUIPMENT CLASSES ...................................................................................... 8 KDB 935210 TEST METHODOLOGIES .................................................................................... 9 2.1033 APPLICATION REQUIREMENTS ................................................................................ 10 2.1033 MODULATION CHARACTERISTICS............................................................................ 12 2.1041 MEASUREMENT PROCEDURE ................................................................................... 14 2.1046 – 2.1055 TECHNICAL REQUIREMENTS ..................................................................... 14 KDB 935210 TECHNICAL REQUIREMENTS ........................................................................... 15 2.1057 FREQUENCY SPECTRUM TO BE INVESTIGATED .......................................................... 16 KDB 935210 4.1 INPUT SIGNALS ....................................................................................... 18 KDB 935210 4.2 AGC THRESHOLD ..................................................................................... 19 KDB 935210 4.3 OUT OF BAND REJECTION ......................................................................... 20 2.1046 RF POWER OUTPUT................................................................................................ 21 KDB 935210 4.5 RF POWER OUTPUT & GAIN ....................................................................... 22 KDB 935210 4.6 NOISE FIGURE ......................................................................................... 24 2.1047 AUDIO FREQUENCY RESPONSE ............................................................................... 25 2.1047 LOW PASS FILTER RESPONSE ................................................................................. 26 2.1047 MODULATION LIMITING ......................................................................................... 27 2.1049 OCCUPIED BANDWIDTH ......................................................................................... 28 2.1051 CONDUCTED SPURIOUS EMISSIONS........................................................................ 39 2.1053 FIELD STRENGTH OF SPURIOUS EMISSIONS ............................................................ 44 2.1055 FREQUENCY STABILITY .......................................................................................... 52 STATEMENT OF MEASUREMENT UNCERTAINTY .................................................................... 56 EMC EQUIPMENT LIST ...................................................................................................... 57 ANNEX I – MANUFACTURER-PROVIDED INFORMATION ......................................................... 58 ANNEX II – MEASUREMENT DATA ....................................................................................... 59 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 3 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM SIGNATURE PAGE Timco Engineering, Inc. attests that: ☒ The EUT tested herein fulfills all approval requirements and/or the customer requirements as identified in this test report. ☐ The EUT tested herein does not fulfill all approval requirements and/or the customer requirements as identified in this test report. This report relates only to the Equipment Under Test (EUT) sample(s) tested. This report shall not be reproduced except in full without the written approval of Timco Engineering, Inc. To the best of my knowledge and belief, this device has been tested in accordance with the standards identified in this test report, and these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that measurements were made at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Name and Title Franklin Rose, Project Manager / EMC Specialist Name and Title Tim Royer, Project Manager / EMC Engineer Name and Title Sharon Hoffman, Senior Marketing Director / Operations Date JAN 16 2020 3412AUT19_PT90 7800 BOOSTER TestReport_Rev2 Page 4 of 195 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM TEST LABORATORY INFORMATION Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669, USA United States FCC Accredited and Recognized Test Lab & TCB # US1070 DHS Recognized P25 CAP Test Facility # P25CAPTIMCO081016 Australia / New Zealand U…

Text truncated - open the document above for the full version.

Page 1 of 4 TEST SETUP PHOTOGRAPHS Applicant: FIPLEX COMMUNICATIONS INC. FCC ID: P3TDH7S-00XA IC: 8986A-DH7S00X Conducted Measurements Page 2 of 4 Field Strength of Spurious Emissions, 30 MHz to 200 MHz (Biconical Antenna) Page 3 of 4 Field Strength of Spurious Emissions, 200 MHz to 1 GHz (Log Periodic Antenna) Page 4 of 4 Field Strength of Spurious Emissions, 1 – 18 GHz (Dual Ridge Waveguide Antenna)
