P3TDHS40-RAPUBLIC SAFETY 800 MHz DIGITAL SIGNAL BOOSTER

COMMUNICATIONS, INC. 2101 NW 79th Ave. Miami, FL 33122. United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com Electromagnetic Devices for Radio Communications Systems 28th of April, 2020 Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 SUBJECT: Applications for certification for FCC ID: P3TDHS40-R and P3TDHS40-RA and IC: 8986A-DHS40R To Whom It May Concern: We, the undersigned, hereby authorize Sharon HoffmanTimco Engineering Inc. on our behalf, to apply to the Federal Communications Commission and ISED on our equipment. Any and all acts carried out by Timco Engineering Inc. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Dated this 27 th day of December 2019 By: . Signature Ricardo de Goycoechea . Printed Title: CTO On behalf of: Fiplex Communications, Inc Telephone: +1 305 884 8991

COMMUNICATIONS, INC. 2101 NW 79th Avenue . Miami FL 33122 . United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com Electromagnetic Devices for Radio Communications Systems 28th of April 2020 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, FL 32669 USA FCC ID: P3TDHS40-R and FCC ID: P3TDHS40-RA Product Name: DHS40-R Request for Long Term Confidentiality Pursuant to Sections 0.457(d) and 0.459 of the commission’s rules, we hereby request that the following documents be held as long term confidential: User Manual •Schematics •Technical/operational descriptionTune-up Procedure •Block diagram •Bill of Materials •Internal pictures This Restricted Access of Equipment and Documentation Notice is to inform Timco Engineering, Inc. that access to equipment and related documentation supplied by Fiplex Communications Inc. is to be restricted to only authorized users in order to ensure the security of the equipment and confidentiality of related documentation at all times. Only designated professionals shall be allowed to maintain or service the equipment. Fiplex Communications, Inc. is requesting the internal photos be permanently confidential. This nonconsumer device is inaccessible to the general public, and shall be kept in a secured and locked environment. The reason for this request is that the listed Documents are of a technical nature and are not provided to the consumer because the consumer cannot service the device. Our products will be sold to a limited audience and the Fiplex wishes the Documents to be inaccessible to the general public at all times. Appropriate documentation will be made be available only to Fiplex Communications, Inc. partners and integrators only. Designated professionals under the employ of these partners and integrators will be responsible for service and maintenance of our products. Each partner and integrator will be under a non-disclosure agreement with Fiplex Communications, Inc. A sample of this agreement is included below. COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Avenue . Miami FL 33122 . United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com Dated this 28 th day of April 2020 By: . Signature Ricardo de Goycoechea . Printed Title: CTO On behalf of: Fiplex Communications, Inc Telephone: +1 305 884 8991 COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Avenue . Miami FL 33122 . United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems 2101 NW 79th Avenue . Miami FL 33122 . United States Phone: (305)884-8991 . Fax: (305)884-4041 . E-mail: [email protected] . www.fiplex.com

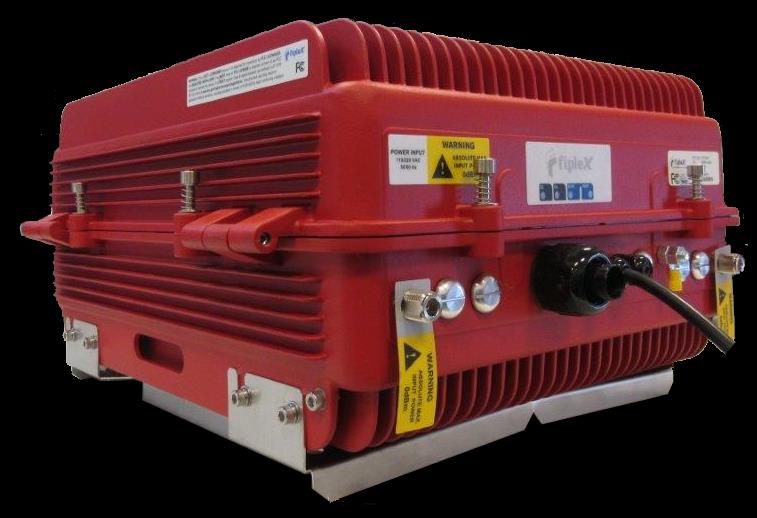

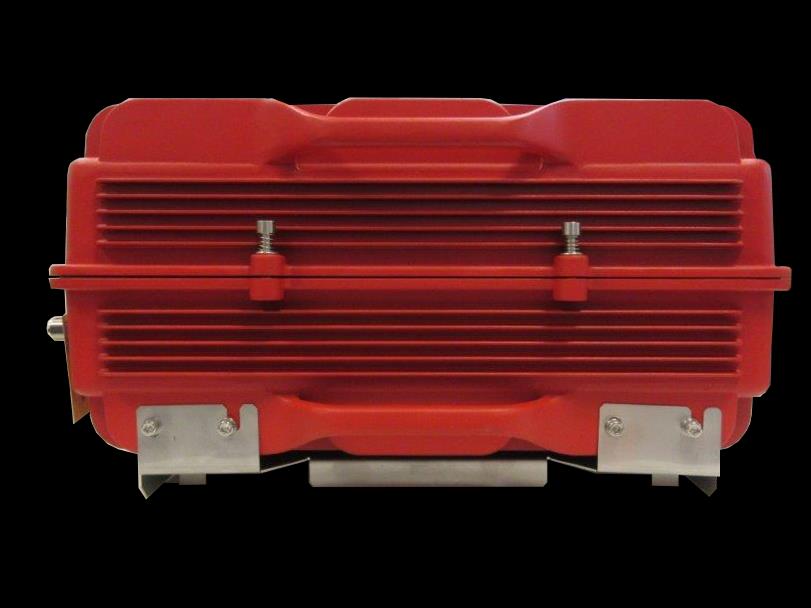

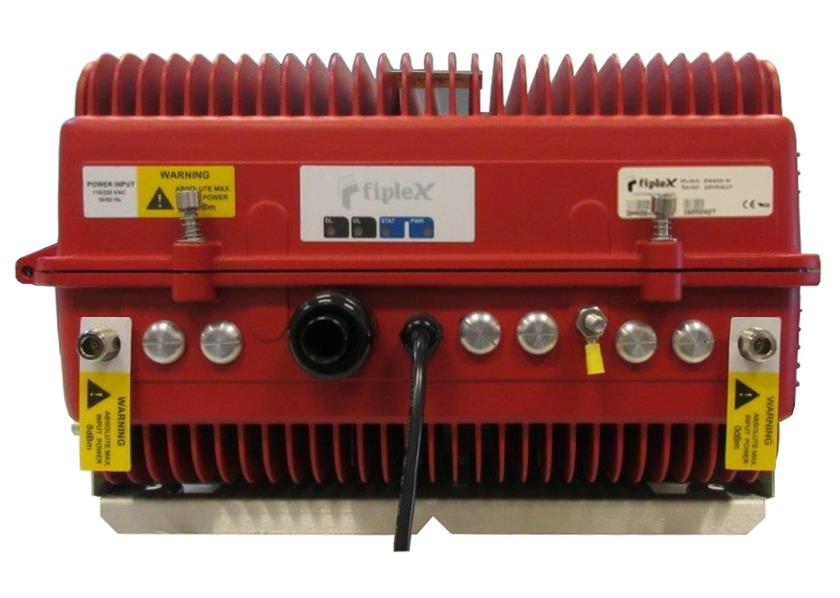

COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems DHS37-R – TOP VIEW COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems DHS37-R – BOTTOM VIEW COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems DHS37-R – FRONT VIEW COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems DHS37-R – REAR VIEW COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems DHS37-R – LEFT SIDE VIEW COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems DHS37-R – RIGHT SIDE VIEW COMMUNICATIONS, INC. Electromagnetic Devices for Radio Communications Systems DHS37-R – PERSPECTIVE

BDA DH7SX SERIES FCC PART 90 LABEL

849 NW STATE ROAD 45 PHONE: 888.472.2424 OR 352.472.5500 NEWBERRY, FL 32669 USA EMAIL: [email protected] WEB: HTTP://WWW.TIMCOENGR.COM An IIA Company RF Exposure Evaluation Report APPLICANT FIPLEX COMMUNICATIONS INC. FCC ID P3TDHS40-RA PRODUCT DESCRIPTION PUBLIC SAFETY 800 MHz DIGITAL SIGNAL BOOSTER DATE SAMPLE RECEIVED 4/10/2020 FINAL TEST DATE 4/24/2020 PREPARED BY Franklin Rose TEST RESULTS PASS FAIL Report Number Report Version Description Issue Date 1008UT20 MPE_TestReport_ Rev1 Initial Issue 04/24/2020 1008UT20 MPE_TestReport_ Rev2 Removed IC Certification Number 05/05/2020 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................ 2 GENERAL INFORMATION ................................................................................................ 3 FCC MPE SEPARATION .................................................................................................... 4 ISED MPE SEPARATION .................................................................................................. 5 Applicant: FIPLEX COMMUNICATIONS INC. FCC ID: P3TDHS40-RA Report: 1008UT20 MPE_TestReport_Rev2 Page 2 of 5 GENERAL REMARKS Summary The device under test does: Fulfill the general approval requirements as identified in this test report and was selected by the customer. Not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Designation #: US1070 Prepared by: Name and Title Franklin Rose, Project Manager / EMC Specialist Date 04/24/2020 Applicant: FIPLEX COMMUNICATIONS INC. FCC ID: P3TDHS40-RA Report: 1008UT20 MPE_TestReport_Rev2 Page 3 of 5 GENERAL INFORMATION EUT Description PUBLIC SAFETY 800 MHz DIGITAL SIGNAL BOOSTER Model Number DHS40-R EUT Power Source ☒110–120Vac, 50– 60Hz ☐ DC Power ☐ Battery Operated Test Item ☐ Engineering Prototype ☒ Pre-Production ☐ Production Type of Equipment ☒ Fixed ☐ Mobile ☐ Portable Antenna Connector N Type Test Conditions The temperature was 26ºC Relative humidity of 50%. Modification to the EUT No Modification to EUT. Applicable Standards FCC CFR 47 Part 2.1091 ISED RSS-102 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Designation #: US1070 Manufacturer Provides Antenna Type Max Gain (dBi) No Unspecified 0 dBi ParameterValueUnit EUT Form Factor Lowest Frequency851.000 MHz Highest Frequency869.000 MHz Maximum Power40.010 Tune Up Tolerance0.000 Duty Cycle100% % Antenna Gain0.000 Coax Loss3.020 EIRP5.000W EUT Parameters Applicant: FIPLEX COMMUNICATIONS INC. FCC ID: P3TDHS40-RA Report: 1008UT20 MPE_TestReport_Rev2 Page 4 of 5 FCC MPE SEPARATION Separation Distance (cm) Pow e r De nsity (mW/cm 2 ) Separation Distance (cm) Pow e r De nsity (mW/cm 2 ) 0.567 mW/cm2 Controlled Occupational RF Exposure/MPE Guideline 20 cm 0.995 mW/cm2 Uncontrolled Public RF Exposure/MPE Guideline 26.48 cm RF Exposure Field Strength Limits Separation Distance Calculation Method Uncontrolled Sep. Distance @ 0.567 mW/cm2 Controlled Sep. Distance @ 2.837 mW/cm2 EUT Power Density at 20 cm Calculation Method EUT Pow er Density @ 20 cm Calculations Public Persons may be exposed up to: Worst-Case RF Field Strength Limit for the General Public (Uncontrolled Environment) 0.567 mW/cm2 2.837 mW/cm2 Distance from Radiating Element (cm) = SQRT (P(mW) / 4π S(mW/cm 2 )) 26.48 cm 11.84 cm Power Density (mW/cm 2 ) = P(mW) / 4π R(cm) 2 Occupational Persons may be exposed up to: Worst-Case RF Field Strength Limit for Controlled Use (Controlled Environment) Mandatory distance from radiating element: 0.995 mW/cm2 Applicant: FIPLEX COMMUNICATIONS INC. FCC ID: P3TDHS40-RA Report: 1008UT20 MPE_TestReport_Rev2 Page 5 of 5 ISED MPE SEPARATION Separation Distance (cm) Pow e r De nsity (W/m 2 ) Separation Distance (cm) Pow e r De nsity (W/m 2 ) 38.87 cm 2.633 W/m2 20 cm 9.95 W/m2 Controlled Occupational RF Exposure/MPE Guideline Uncontrolled Public RF Exposure/MPE Guideline RF Exposure Field Strength Limits Separation Distance Calculation Method Uncontrolled Sep. Distance @ 2.633 W/m2 Controlled Sep. Distance @ 18.83 W/m2 EUT Power Density at 20 cm Calculation Method EUT Pow er Density @ 20 cm Mandatory distance from radiating element: 14.54 cm Power Density (mW/cm 2 ) = P(mW) / 4π R(cm) 2 2.633 W/m2 18.83 W/m2 Calculations Distance from Radiating Element (cm) = SQRT (P(mW) / 4π S(mW/cm 2 )) 38.87 cm Worst-Case RF Field Strength Limit for the General Public (Uncontrolled Environment) Worst-Case RF Field Strength Limit for Controlled Use (Controlled Environment) Public Persons may be exposed up to: Occupational Persons may be exposed up to: 9.95 W/m2

An IIA Company FCC 47 CFR Part 90 700/800 MHz Booster Test Report APPLICANT FIPLEX COMMUNICATIONS INC. FCC ID P3TDHS40-RA MODEL NUMBER DHS40-RA PRODUCT DESCRIPTION PUBLIC SAFETY 800 MHz DIGITAL SIGNAL BOOSTER DATE SAMPLE RECEIVED 4/10/2020 FINAL TEST DATE 4/24/2020 REPORT NUMBER 100UT20_PT90 800 CL ASS A Booster TestReport_ AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION UNDER ISO/IEC 17025, AND ISO/IEC 17065 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 2 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM TABLE OF CONTENTS SIGNATURE PAGE ................................................................................................................................................ 3 TEST LABORATORY INFORMATION ......................................................................................................................... 4 TEST INFORMATION ............................................................................................................................................. 5 EUT INFORMATION ............................................................................................................................................... 6 90.7 DEFINITIONS ............................................................................................................................................... 7 KDB 935210 EQUIPMENT CLASSES ........................................................................................................................ 8 KDB 935210 TEST METHODOLOGIES ...................................................................................................................... 9 2.1033 APPLICATION REQUIREMENTS .................................................................................................................. 10 2.1033 MODULATION CHARACTERISTICS.............................................................................................................. 12 2.1041 MEASUREMENT PROCEDURE ..................................................................................................................... 13 2.1046 – 2.1055 TECHNICAL REQUIREMENTS ....................................................................................................... 13 KDB 935210 TECHNICAL REQUIREMENTS ............................................................................................................. 14 2.1057 FREQUENCY SPECTRUM TO BE INVESTIGATED............................................................................................ 15 KDB 935210 4.1 INPUT SIGNALS ......................................................................................................................... 17 KDB 935210 4.2 AGC THRESHOLD ....................................................................................................................... 18 KDB 935210 4.3 OUT OF BAND REJECTION ........................................................................................................... 19 2.1046 RF POWER OUTPUT.................................................................................................................................. 20 KDB 935210 4.5 RF POWER OUTPUT & GAIN ......................................................................................................... 21 KDB 935210 4.6 NOISE FIGURE ........................................................................................................................... 23 2.1047 AUDIO FREQUENCY RESPONSE ................................................................................................................. 24 2. 1047 LOW PASS FILTER RESPONSE ................................................................................................................... 25 2.1047 MODULATION LIMITING ........................................................................................................................... 26 2.1049 OCCUPIED BANDWIDTH ........................................................................................................................... 27 2.1051 CONDUCTED SPURIOUS EMISSIONS.......................................................................................................... 38 2.1053 FIELD STRENGTH OF SPURIOUS EMISSIONS .............................................................................................. 43 2.1055 FREQUENCY STABILITY ............................................................................................................................ 51 STATEMENT OF MEASUREMENT UNCERTAINTY ...................................................................................................... 55 EMC EQUIPMENT LIST ........................................................................................................................................ 56 ANNEX I – MANUFACTURER-PROVIDED INFORMATION ........................................................................................... 57 ANNEX II – MEASUREMENT DATA ......................................................................................................................... 58 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 3 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM SIGNATURE PAGE Timco Engineering, Inc. attests that: ☒ The EUT tested herein fulfills all approval requirements and/or the customer requirements as identified in this test report. ☐ The EUT tested herein does not fulfill all approval requirements and/or the customer requirements as identified in this test report. This report relates only to the Equipment Under Test (EUT) sample(s) tested. This report shall not be reproduced except in full without the written approval of Timco Engineering, Inc. To the best of my knowledge and belief, this device has been tested in accordance with the standards identified in this test report, and these tests …

Text truncated - open the document above for the full version.

1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 57 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM ANNEX I – MANUFACTURER-PROVIDED INFORMATION Note: The accuracy and precision of the following information provided by the manufacturer of the equipment under test has not been verified using test methods, cannot be verified, or is not necessary to verify. Power at Final Amplifier: 120 V * 0.8 A = 100 W 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 58 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM ANNEX II – MEASUREMENT DATA KDB 935210 4.1 INPUT SIGNALS 4K00F3E (Narrowband Analog FM Voice) Substituted for signals: 4K00F1E (Narrow NXDN Voice) 4K00F1D (Narrow NXDN Data) 4K00F1W (Narrow NXDN Voice & Data) 4K00F2D (Narrow NXDN CW ID) Occupied Bandwidth: 4.04 kHz Ref-54 dBm Att 5 dB* * Offset 1.1 dB 1 PK VIEW A LVL PS 3DB RBW 100 Hz VBW 300 Hz SWT 2.4 s AC Center800 MHzSpan20 kHz2 kHz/ -150 -140 -130 -120 -110 -100 -90 -80 -70 -60 1 Marker 1 [T1 ] -56.18 dBm 800.000000000 MHz OBW 4.038461539 kHz T1 Temp 1 [T1 OBW] -72.84 dBm 799.997980769 MHz T2 Temp 2 [T1 OBW] -72.71 dBm 800.002019231 MHz Date: 30.JAN.2019 13:10:11 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 59 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM KDB 935210 4.1 INPUT SIGNALS 8K10F1E/F1D (P25 Phase I C4FM Voice, Data) Occupied Bandwidth: 7.71 kHz Ref-54 dBm Att 5 dB * * Offset 1.1 dB 1 PK VIEW A LVL PS 3DB RBW 100 Hz VBW 300 Hz SWT 7.6 s AC Center800 MHzSpan62.5 kHz6.25 kHz/ -150 -140 -130 -120 -110 -100 -90 -80 -70 -60 1 Marker 1 [T1 ] -58.36 dBm 800.000600962 MHz OBW 7.712339744 kHz T1 Temp 1 [T1 OBW] -79.52 dBm 799.996193910 MHz T2 Temp 2 [T1 OBW] -80.33 dBm 800.003906250 MHz Date: 30.JAN.2019 14:28:58 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 60 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM KDB 935210 4.1 INPUT SIGNALS 8K10F1W (P25 Phase II H-CPM Voice & Data) Occupied Bandwidth: 7.71 kHz Ref-54 dBmAtt 5 dB* * Offset 1.1 dB 1 PK VIEW A LVL PS 3DB RBW 100 Hz VBW 300 Hz SWT 7.6 s AC Center800 MHzSpan62.5 kHz6.25 kHz/ -150 -140 -130 -120 -110 -100 -90 -80 -70 -60 1 Marker 1 [T1 ] -59.47 dBm 800.001001603 MHz OBW 7.712339744 kHz T1 Temp 1 [T1 OBW] -74.05 dBm 799.996193910 MHz T2 Temp 2 [T1 OBW] -76.08 dBm 800.003906250 MHz Date: 30.JAN.2019 14:30:47 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 61 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM KDB 935210 4.1 INPUT SIGNALS 9K80F1E/F1D (P25 Phase II H-DQPSK Voice, Data) Occupied Bandwidth: 9.92 kHz Ref-54 dBm Att 5 dB * * Offset 1.1 dB 1 PK VIEW A LVL PS 3DB RBW 100 Hz VBW 300 Hz SWT 7.6 s AC Center800 MHzSpan62.5 kHz6.25 kHz/ -150 -140 -130 -120 -110 -100 -90 -80 -70 -60 1 Marker 1 [T1 ] -60.71 dBm 800.000600962 MHz OBW 9.915865385 kHz T1 Temp 1 [T1 OBW] -74.31 dBm 799.994791667 MHz T2 Temp 2 [T1 OBW] -79.46 dBm 800.004707532 MHz Date: 30.JAN.2019 14:32:35 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 62 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM KDB 935210 4.1 INPUT SIGNALS 11K3F3E (Narrowband Analog FM Voice) Substituted for signals: 7K60FXE (2-Slot DMR TDMA Voice) 7K60FXD (2-Slot DMR TDMA Data) 8K30F1E (Wide NXDN Voice) 8K30F1D (Wide NXDN Data) 8K30F1W (Wide NXDN Voice & Data) 8K30F2D (Wide NXDN CW ID) Occupied Bandwidth: 6.21 kHz Ref -54 dBm Att 5 dB* * Offset 1.1 dB 1 PK VIEW A LVL PS 3DB RBW 100 Hz VBW 300 Hz SWT 7.6 s AC Center800 MHzSpan 62.5 kHz6.25 kHz/ -150 -140 -130 -120 -110 -100 -90 -80 -70 -60 1 Marker 1 [T1 ] -59.01 dBm 799.998998397 MHz OBW 6.209935897 kHz T1 Temp 1 [T1 OBW] -73.78 dBm 799.996895032 MHz T2 Temp 2 [T1 OBW] -71.05 dBm 800.003104968 MHz Date: 30.JAN.2019 14:19:45 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 63 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM KDB 935210 4.1 INPUT SIGNALS 16K0F3E (Wideband Analog FM Voice) Occupied Bandwidth: 10.22 kHz Ref-54 dBm Att 5 dB * * Offset 1.1 dB 1 PK VIEW A LVL PS 3DB RBW 100 Hz VBW 300 Hz SWT 7.6 s AC Center800 MHzSpan62.5 kHz6.25 kHz/ -150 -140 -130 -120 -110 -100 -90 -80 -70 -60 1 Marker 1 [T1 ] -61.17 dBm 799.996995192 MHz OBW 10.216346154 kHz T1 Temp 1 [T1 OBW] -76.07 dBm 799.994891827 MHz T2Temp 2 [T1 OBW] -73.36 dBm 800.005108173 MHz Date: 30.JAN.2019 14:23:14 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 64 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM KDB 935210 4.2 AGC THRESHOLD Test Engineer: FR Test Date: 4/22/2020 800 MHz Band, Downlink AGC Input Level = -39.5 dBm INPUT (dBm) CORRECTED INPUT (dBm) CORRECTED OUTPUT (dBm) GA IN (dB) -4 9-49.530.9580.5 -4 8-48.531.9680.5 -4 7-47.532.9580.5 -4 6-46.533.9680.5 -4 5-45.534.8380.3 -4 4-44.535.8180.3 -4 3-43.536.8380.3 -4 2-42.537.8480.3 -4 1-41.538.8180.3 -4 0-40.539.7780.3 -3 9-39.540.0179.5 -3 8-38.540.0178.5 -3 7-37.54077.5 -3 6-36.540.0176.5 34.53439.575.6 30 32 34 36 38 40 42 -5 1-5 0-4 9-4 8-4 7-4 6-4 5-4 4-4 3-4 2-4 1-4 0-3 9-3 8-3 7-3 6-3 5-3 4 Output Level (dBm) Input Level (dBm) 1008UT20_PT90 800 CLASS A Booster TestReport_Rev1 Page 65 of 124 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA | PHONE: 888.472.2424 | EMAIL: [email protected] | WEB: HTTP://WWW.TIMCOENGR.COM KDB 935210 4.3 OUT OF BAND REJECTION Test Engineer: FR Test Date: 4/2//2020 800 MHz Band, Downlink, Class A Ref 46.1 dBm Att 0 dB * * Offset 41.1 dB 1 PK VIEW A LVL 3DB RBW 500 kHz VBW 2 MHz SWT 2.5 ms AC Start815 MHzStop905 MHz9 MHz…

Text truncated - open the document above for the full version.

FCC ID: P3TDHS40-RA Page 1 of 5 TEST SETUP PHOTOGRAPHS A pplicant: FCC ID: FIPLEX COMMUNICATIONS INC. P3TDHS40-RA Conducted Measurements FCC ID: P3TDHS40-RA Page 2 of 5 Field Strength of Spurious Emissions, EUT Table Arrangement FCC ID: P3TDHS40-RA Page 3 of 5 Field Strength of Spurious Emissions, 30 MHz to 200 MHz (Biconical Antenna) FCC ID: P3TDHS40-RA Page 4 of 5 Field Strength of Spurious Emissions, 200 MHz to 1 GHz (Log Periodic Antenna) FCC ID: P3TDHS40-RA Page 5 of 5 Field Strength of Spurious Emissions, 1 – 18 GHz (Dual Ridge Waveguide Antenna)
