P44SLIM-PWR44Soundbar with W-TX

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help

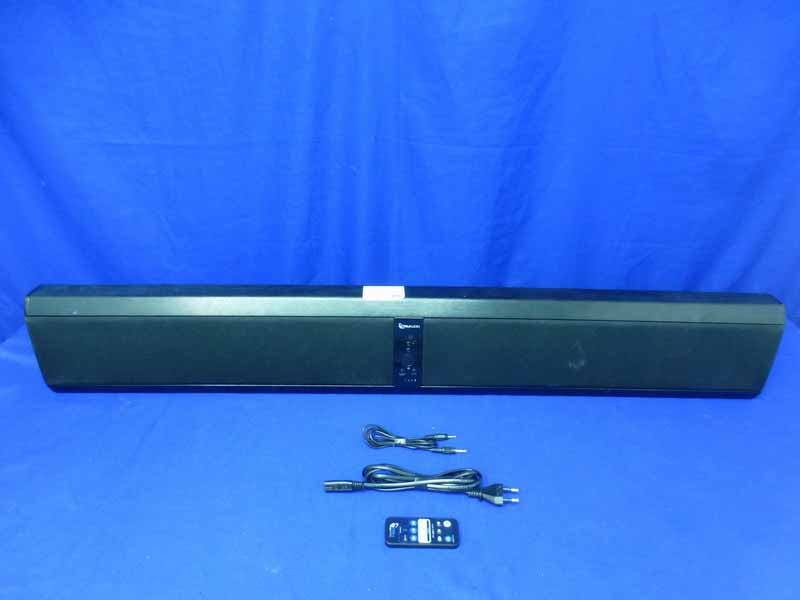

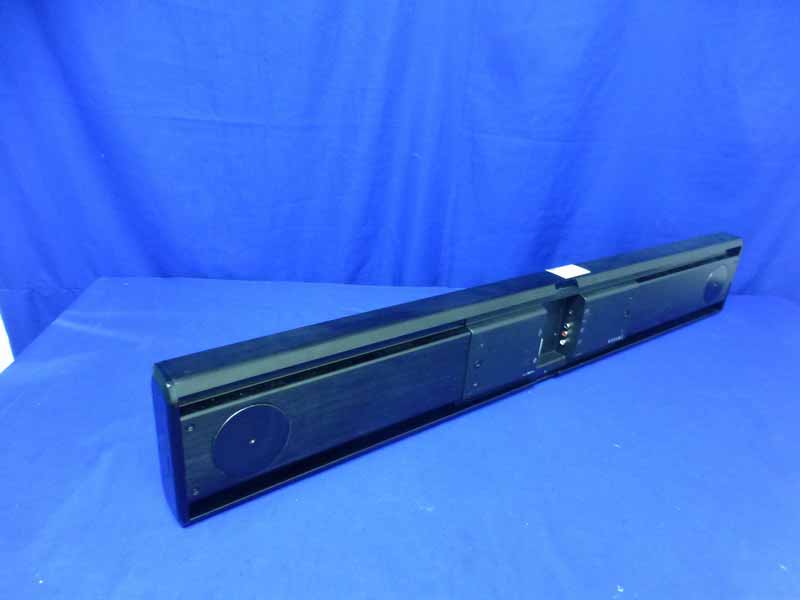

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-4 13. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-5 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-6 Figure 5 Inside of the EUT Figure 6 I/O Port of the EUT

Location

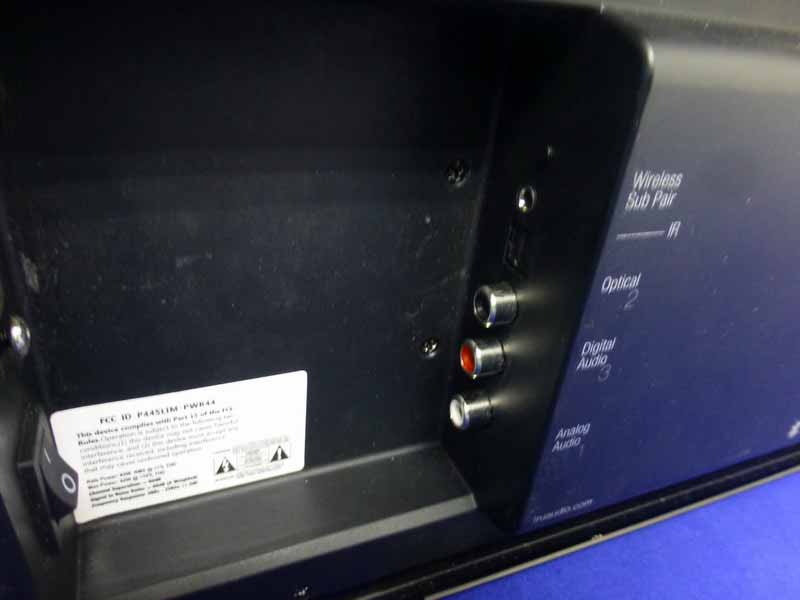

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-7 Figure 7 I/O Port of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-8 Figure 9 Inside of the EUT Figure 10 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-9 Figure 11 Components Side of the PCB Figure 12 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-10 Figure 13 Components Side of the PCB Figure 14 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-11 Figure 15 Speaker of the PCB Figure 16 Speaker of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-12 Figure 17 Audio In Cable of the EUT Figure 18 AC Line of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 13-13 Figure 19 Front side of the Remote Figure 20 Backside of the Remote

Product Name：Soundbar with W‐TX Model Number: SLIM‐PWR‐44 FCCID: P44SLIM‐PWR44 RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : Test Standard : FCC KDB Publication 447498 D01 V05R02 Clause 4.3.1, The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ∙ [√f (GHz) ] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. According to the actual measurement, max. power of channel, including tune‐up tolerance =3.9mW min. test separation distance= 5mm √f (GHz) =2.4 The test result is 1.872≤3.0 for 1‐g SAR≤ 7.5 for 10‐g SAR, hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01: General RF Exposure Guidance V05. Product Name：Soundbar with W‐TX Model Number: SLIM‐PWR‐44 FCCID: P44SLIM‐PWR44 RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : Test Standard : FCC KDB Publication 447498 D01 V05R02 Clause 4.3.1, The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ∙ [√f (GHz) ] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. According to the actual measurement, max. power of channel, including tune‐up tolerance =6.9mW min. test separation distance= 5mm √f (GHz) =1.55 The test result is 2.139≤3.0 for 1‐g SAR≤ 7.5 for 10‐g SAR, hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01: General RF Exposure Guidance V05.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14380 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Yun Tong Electronic(shenzhen) Co.,Ltd Soundbar with W-TX Model No.: SLIM-PWR-44 FCC ID: P44SLIM-PWR44 Prepared for : Yun Tong Electronic(shenzhen) Co.,Ltd #1 HuaXing Road, Shang Heng Lang, Da Lang Street, Bao An District, Shen Zhen City, Guang Dong Province, China. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F14380 Date of Test ： Sep.10~Dec.09, 2014 Date of Report ： Dec.23, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14380 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ..........................................................1-1 1.1. Description of Standards and Results................................................................................... 1-1 2. GENERAL INFORMATION..........................................................................................2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Tested Supporting System Details ....................................................................................... 2-2 2.3. Block Diagram of connection between EUT and simulators ............................................... 2-2 2.4. Test information ................................................................................................................... 2-2 2.5. Test Facility.......................................................................................................................... 2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. POWER LINE CONDUCTED EMISSION MEASUREMENT..................................3-1 3.1. Test Equipment .................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT................................................................................................ 3-2 3.6. Test Procedure...................................................................................................................... 3-2 3.7. Conducted Emission at Mains Terminals Test Results ........................................................ 3-2 4. RADIATED EMISSION MEASUREMENT .................................................................4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit Standard: FCC 15.209 ................................................................. 4-3 4.4. EUT Configuration on Test.................................................................................................. 4-3 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-4 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ......................................................................5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. 6dB BANDWIDTH TEST................................................................................................6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Procedure...................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. MAXIMUM PEAK OUTPUT POWER TEST..............................................................7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure...................................................................................................................... 7-1 7.4. Test Results ...............................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Yun Tong Electronic(shenzhen) Co.,Ltd. Soundbar with W-TX Model Number: SLIM-PWR-44 FCC ID: P44SLIM-PWR44 Prepared for : Yun Tong Electronic(shenzhen) Co.,Ltd. #1 HuaXing Road ,Shang Heng Lang,Da Lang Street, Bao An Distrct, Shen Zhen City, Guang Dong Province, China. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F14277 Date of Test ： Sep.10 ~ Nov.17, 2014 Date of Report ： Nov.27, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ...................................................................................1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Tested Supporting System Details........................................................................................2-2 2.3. Block Diagram of Test Setup ...............................................................................................2-2 2.4. Test Facility ..........................................................................................................................2-2 2.5. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-3 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-2 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-2 4.3. Radiated Emission Limit ......................................................................................................4-3 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-4 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST.......................................................................... 6-13 6.1. Test Equipment...................................................................................................................6-13 6.2. Limit ...................................................................................................................................6-13 6.3. Test Produce .......................................................................................................................6-13 6.4. Test Results ........................................................................................................................6-13 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure ......................................................................................................................7-1 7.4. Test Results ....................................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 5-5 5814MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 5-6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 5-7 ANT 1: 5736MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 5-8 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 5-9 5762MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 5-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 5-11 5814MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 5-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 6-13 6. BAND EDGE COMPLIANCE TEST 6.1. Test Equipment Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Amp HP 8449B 3008A02495Apr. 28,14 1 Year 2. Horn Antenna ETS 3115 9510-4580 Jun. 06, 14 1 Year 3. HF Cable Hubersuhner Sucoflex104274094/4 Apr. 28,14 1 Year 4. RF Cable Hubersuhner Sucoflex10228610/2 Apr. 28,14 1 Year 6.2. Limit All the lower and upper band-edges emissions appearing within 5.35-5.46GHz and 7.25-7.75GHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 5725MHz to 5850MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 6.3. Test Produce 1. The EUT is placed on a turntable, which is 0.8m above the ground plane and worked at highest radiated power. 2. The turntable was rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emission. 4. Set the spectrum analyzer in the following setting in order to capture the lower and upper band-edges of the emission: (a) PEAK: RBW=1MHz; VBW=3MHz; Sweep=AUTO (b) AVERAGE: RBW=1MHz; VBW=10Hz; Sweep=AUTO 6.4. Test Results Pass (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 6-14 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 6-15 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 6-16 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 6-17 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 6-18 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 6-19 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 6-20 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 6-21 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 7-1 7. 6dB Bandwidth Test 7.1. Test Equipment Item Equipment ManufacturerModel No. Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent E4446A US44300459Apr. 28,14 1 Year 2. Spectrum Agilent N9030A MY51380221Oct.29, 14 1Year 3. Attenuator (20dB) Agilent 8491B MY39262165Apr. 28,14 1 Year 4. RF Cable Hubersuhner SUCOFLEX10228620/2 Apr. 28,14 1 Year 7.2. Limit For direct sequence systems, the minimum 6dB bandwidth shall be at least 500kHz 7.3. Test Procedure The transmitter output was connected to a spectrum analyzer, The bandwidth of the fundamental frequency was measured by spectrum analyzer with 300kHz RBW and 1MHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 7.4. Test Results EUT: Soundbar with W-TX M/N: SLIM-PWR-44 Test date:2014-11-15 Test date:2014-11-15 Test date:2014-11-15 Tested by:Kobe_Huang Tested by:Kobe_Huang Tested by:Kobe_Huang Cable loss: 1 dB Attenuator loss: 20 dB 6dB bandwidth （MHz） Test Mode CH （MHz） ANTA ANTB Limit (KHz) 5736 9.852 9.845 >500 5762 9.853 11.10 >500 Tx 5814 9.853 9.560 >500 Conclusion：PASS R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 7-2 ANT 0: 5736MHz 5762MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 7-3 5814MHz ANT 1: 5736MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 7-4 5762MHz 5814MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 8-5 8. OUTPUT POWER TEST 8.1. Test Equipment Ite m Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent E4446A US44300459 Apr. 28,14 1 Year 2. Spectrum Agilent N9030A MY51380221Oct.29, 14 1Year 3. Power meter Anritsu ML2487A 6K00002472 Aug. 20,14 1Year 4. Power sensor Anritsu MA2491A 0033005 Aug. 20,14 1Year 5. Attenuator (20dB) Agilent 8491B MY39262165Apr. 28,14 1 Year 6 RF Cable Hubersuhner SUCOFLEX10228610/2 Apr. 28,14 1 Year 8.2. Limit (FCC Part 15C 15.247 b(3)) For systems using digital modulation in the 2400—2483.5MHz, 5725-5850MHz, The Peak out put Power shall not exceed 1W(3…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 12-1 12. PHOTOGRAPH OF TEST 12.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 12-2 12.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44SLIM-PWR44 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14358 12-3 (Above 1000MHz)
