P44UWT-201XUWSB-System 2.1x-W

Wireless Audio Solution Products Copyright WASP® 2012, All rights reserved UMLF2.1-2012 Rev1 LINK-Family™ 2.1 System UWT-201x AUX PAIRINGSTATUS 3 4 5 6 7 8 1 2 PAIRINGSTATUS 3 4 5 6 7 8 1 2 Universal DC Plate with Sub Out - UDC-101x Designed in USA Manufactured in China DC INPUT + - 24 V 2.5 A SUB OUT Printing is Pantone Mettalic 877C THe word WASP is in tool, others are printed UDC-101x UNIVERSAL DC PLATE WITH SUBWOOFER Revision: 3 Date: 5/27/12 DC Input Label is 45 mm W x 26 mm H with 2 mm radius Printing on Label is in Pantone Metallic 877C Label color is Pantone 419C Universal DC Plate with Sub Out - UDC-101x Designed in USA Manufactured in China PAIRINGSTATUS 3 4 5 6 7 8 1 2 Universal DC Plate with Sub Out - UDC-101x Designed in USA Manufactured in China DC INPUT + - 24 V 2.5 A SUB OUT Printing is Pantone Mettalic 877C THe word WASP is in tool, others are printed UDC-101x UNIVERSAL DC PLATE WITH SUBWOOFER Revision: 3 Date: 5/27/12 DC Input Label is 45 mm W x 26 mm H with 2 mm radius Printing on Label is in Pantone Metallic 877C Label color is Pantone 419C Universal DC Plate with Sub Out - UDC-101x Designed in USA Manufactured in China + PAIRI + PAIRI LINK-Mount™ LINK-Plate™ LINK-InWall™ Thank You for choosing WASP ® - Wireless Audio Solution Products™ Your professional integrator has been chosen for their knowledge in providing custom audio and video solutions and providing only the best in class product’s from leading manufacturers. WASP ® select’s only the best professional custom integrators to offer our products. Our authorized custom integrators have been trained and have complete knowledge of all WASP ® products usage and installation. In order to provide you with the proper service before, during, and after the installation WASP ® has employed a strict “NO INTERNET SALES POLICY”. WASP ® does not endorse the sale or promotion of its products via the internet nor does it tolerate these actions from third parties. Any WASP ® product that is sold via any type of e-commerce transaction automatically voids the manufacturer's warranty. WASP ® products are engineered to be the Best-In-Class and provide the custom integrator with patent pending high performance wireless audio solutions not available anywhere else. All WASP ® products are proudly engineered in the U.S.A and manufactured to give unparalleled performance and reliability by choosing only the best in materials and workmanship. We are so confident with our product’s we are proud to provide you with an outstanding warranty as stated on the attached certificate should you ever need service. In order to provide you with any updates regarding your product or new products as they become available please register it at www.waspaudio.com/product/warranty.registration Rather than spend money on public advertising campaigns, WASP ® re-invests into research and development to continue to provide the custom integrator and you with the most innovative wireless audio solution products. Therefore we ask that if you are happy with the performance of your purchase please tell a friend, if not please tell us. Sincerely, The WASP ® Te a m Wireless Audio Solution Products Copyright WASP® 2012, All rights reserved UMLF2.1-2012 Rev1 READ FIRST! CAUTION: Risk of Electrical Shock - Use in Dry Locations Only CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts – refer servicing to qualified service personnel only. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. Keep these instructions. Heed all Warnings. Follow all instructions. 2. Do not use this apparatus near water. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus. 3. Clean only with a dry cloth. 4.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 6.Only use attachments/accessories specified by the manufacturer. 7.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 8.Do not exceed manufacturers weight capacity of speaker bracket 9. NOT FOR USE WHERE EXPOSED TO THE WEATHER Wireless Audio Solution Products Copyright WASP® 2012, All rights reserved UMLF2.1-2012 Rev1 INSTALLING LINK-Family™ 2.1 System Refer to LINK-Family™ Authorized Dealer Installation Manual WASP ® Products are SOLD and Installed Only by Authorized Dealers! For list of Authorized Dealers please go to www.waspaudio.com/authorized.dealers Or contact us at: WASP Audio Technologies Corporation P.O. Box 746 Webster, MA 01570 508-986-9277 (WASP) Wireless Audio Solution Products Copyright WASP® 2012, All rights reserved UMLF2.1-2012 Rev1 Possible causes of interference with your LINK-Mount™ System A) Metal studs, in fact any metal wall material, can cause the signal to be diminished or lost. This may also be a problem if your wall paper happens to be a foil type or have metal fibers in it. B) Microwave ovens, when operating, may degrade or interrupt the signal from your transmitter. Usually this will only be a problem for those speakers in close proximity to the microwave. For best results, do not locate the transmitter near your microwave. C)Certain portable phones operating in the 2.4 or 5.8 GHz range, wireless computer routers, and other consumer electronics and toys using 2.4 or 5.8 GHz may cause interference when operated too close to either the transmitter or the LINK-Mount™ . THIS DEVICE COMPLIES WITH FCC …

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID:P44UWT-201X Date: NOV-20-2012 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (ShenZhen) Co.,Ltd to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer):Bruce Wu Title of authorized signer:RD Manager Company Name:Yun Tong Electronic(Shen Zhen)Co.,Ltd Tel: 86-755-2814111 Fax: 86-755-28141928 Web site: WWW.UNICORN-SPK.COM E-mail: brucewu@unicorn

Date: NOV-20-2012 Federal Communications Commission Authorization and Evaluation Division FCC ID:P44UWT-201X Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer):Bruce Wu Title of authorized signer: RD Manager Company Name: Yun Tong Electronic(Shen Zhen)Co.,Ltd Tel: 86-755-2814111 Fax: 86-755-28141928 Web site: WWW.UNICORN-SPK.COM E-mail: brucewu@unicorn

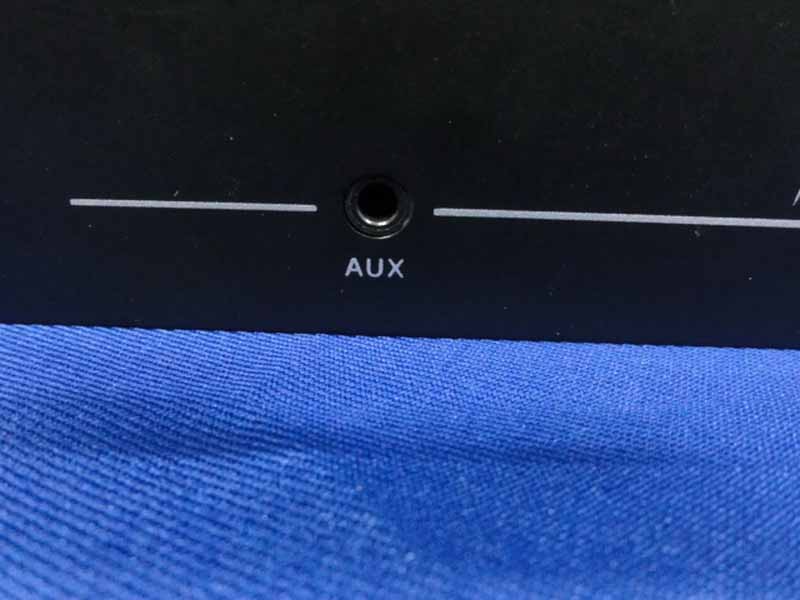

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-4 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT

EST000052 發射器貼紙 98*28mm 特光紙 FCC ID: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. P44UWT-201X

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-6 Figure 11 Component of the PCB Figure 12 Component of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-7 Figure 13 Component of the PCB Figure 14 Component of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-8 Figure 15 Component of the PCB Figure 16 Component of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-9 Figure 17 Component of the PCB Figure 18 Component of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-10 Figure 19 Component of the PCB Figure 20 Component of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-11 Figure 21 Component of the PCB Figure 22 Component of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-12 Figure 23 Component of the PCB Figure 24 Component of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-13 Figure 25 DC Power Cable Figure 26 DC Power Cable R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 14-14 Figure 27 DC Power Cable

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result EUT: UWSB-System 2.1x-W M/N: UWT-201X Test date:2012-11-07 Pressure: 101.2±1.0 kpa Humidity: 52.6±3.0% Tested by: Leo-Li Test site: RF Site Temperature：23.3±0.6°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain:3dBi Antenna Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 2412 7.83 6.07 3 2.00 0.0024 2438 8.05 6.38 3 2.00 0.0025 Antenna A 2464 7.64 5.81 3 2.00 0.0023 2412 17.15 51.88 3 2.00 0.0206 2438 16.34 43.05 3 2.00 0.0171 Antenna B 2464 15.23 33.34 3 2.00 0.0132

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12239 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result EUT: UWSB-System 2.1x-W M/N: UWT-201X Test date:2012-11-07 Pressure: 101.2±1.0 kpa Humidity: 52.6±3.0% Tested by: Leo-Li Test site: RF Site Temperature：23.3±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain:3dBi Antenna Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 5736 3.83 2.42 3 2.00 0.0010 5762 3.52 2.25 3 2.00 0.0009 Antenna A 5814 2.36 1.72 3 2.00 0.0007 5736 9.17 8.26 3 2.00 0.0033 5762 9.95 9.89 3 2.00 0.0039 Antenna B 5814 11.70 14.79 3 2.00 0.0059

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 1-1 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Yun Tong Electionic(ShenZhen)Co., Ltd UWSB-System 2.1x-W Model No.: UWT-201X FCC ID: P44UWT-201X Prepared for : Yun Tong Electionic(ShenZhen)Co., Ltd Building 3, No.2 Industry Zone, ShangHeng Lang HuaXing Road, Da Lang Street, Bao An District, Shen Zhen City, Guang Dong Province, China. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12237 Date of Test ： Oct.31~Nov.07, 2012 Date of Report ： Nov.16, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 1-2 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-5 1.1. Description of Standards and Results ...................................................................................1-5 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Block Diagram of Test Setup ...............................................................................................2-2 2.4. Test Facility ..........................................................................................................................2-2 2.5. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-3 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-1 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-1 4.3. Radiated Emission Limit ......................................................................................................4-2 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-3 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure ......................................................................................................................7-1 7.4. Test Results ....................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12239 1-1 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Yun Tong Electionic(ShenZhen)Co., Ltd UWSB-System 2.1x-W Model No.: UWT-201X FCC ID: P44UWT-201X Prepared for : Yun Tong Electionic(ShenZhen)Co., Ltd Building 3, No.2 Industry Zone, ShangHeng Lang HuaXing Road, Da Lang Street, Bao An District, Shen Zhen City, Guang Dong Province, China. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12239 Date of Test ： Oct.31~Nov.07, 2012 Date of Report ： Nov.16, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12239 1-2 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-5 1.1. Description of Standards and Results ...................................................................................1-5 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Block Diagram of Test Setup ...............................................................................................2-2 2.4. Test Facility ..........................................................................................................................2-2 2.5. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-3 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-1 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-1 4.3. Radiated Emission Limit ......................................................................................................4-2 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-3 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure ......................................................................................................................7-1 7.4. Test Results ....................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:P44UWT-201X page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12237 13-3 (Above 1000MHz)
