P45TD201327Toy RC Savage Car

User Manual RC Savage Car TD2013 Use instruction 1) Turn the power switch of car-body to “ON” position; 2) When the user control the control stick, the LED light will be turn on; When the light is turning dimmer, the batteries are to be replaced; 3) Operate the handle of the controller, the car can move Forward and Backward clockwise. After play, turn the power switches of car-body to “OFF” position. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment such modifications could void the user authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. MerchSource LLC Address: 15 Cushing Ave Irvine CA 92618 Phone, Fax: 949-900-0924, 949-707-2780

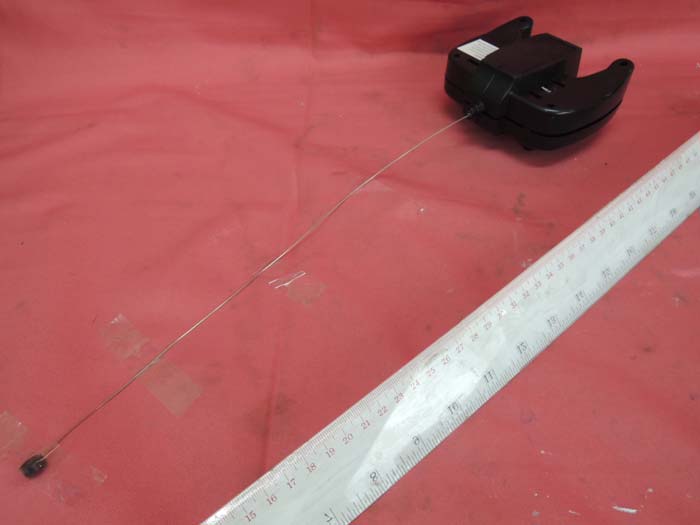

INTERTEK TESTING SERVICE Report No.: 13041371HKG-001 FCC ID: P45TD201327 Equipment Photographs Model: TD2013 (External)

Label Size and Location Label Size: 25mmX30mm FCC ID: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. P45TD201327

INTERTEK TESTING SERVICE Report No.: 13041371HKG-001 FCC ID: P45TD201327 Equipment Photographs Model: TD2013 (Internal) INTERTEK TESTING SERVICE Report No.: 13041371HKG-001 FCC ID: P45TD201327 Equipment Photographs Model: TD2013 (Internal) INTERTEK TESTING SERVICE Report No.: 13041371HKG-001 FCC ID: P45TD201327 Equipment Photographs Model: TD2013 (Internal)

FCC ID: P12TD201327 Model: TD20213 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW1, SW2, SW3, SW4, SW6, IC1 2. A RF Oscillator (27.145MHz) Consisting: XTAL1 3. A Filter Network Consisting: C1, C2, C7, L2 4. A RF Modulator and Amplifier Consisting: Q1, Q2 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) 6. Regulator Consisting: ZD1, EC1, C1 7. Clock frequency Consisting :X1 Antenna Gain: 0dBi Nominal rated field strength: 66.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 13041371HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9V battery). The EUT has two forward or backward control levers to control the left wheels and right wheel of the receiver of the RC Car After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 66.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 69.8dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0029mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0029mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

ANT

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13041371HKG-001R1 FCC ID: P45TD201327 i GENERAL INFORMATION Fujian Teamda Photoelectricity Co., Ltd. BRAND NAME: N/A, MODEL: TD2013 FCC ID: P45TD201327 Grantee: Fujian Teamda Photoelectricity Co., Ltd. Grantee Address: Triangulation Point, Shengqiao Town, Zhaoan, Zhangzhou, Fujian, China. Contact Person: Kelvin Ou Tel: 0596-3301776 Fax: 0596-3301226 e-mail: [email protected] Buyer: MerchSource, LLC Manufacturer: Fujian Teamda Photoelectricity Co., Ltd Manufacturer Address: Triangulation Point, Shengqiao Town, Zhaoan, Zhangzhou Fujian, China Brand Name: N/A Model: TD2013 Manufacturer ID: 29767 Type of EUT: Transmitter Description of EUT: Toy RC Savage Car Serial Number: N/A FCC ID: P45TD201327 Date of Sample Submitted: April 24, 2013 Date of Test: April 24, 2013 to May 21, 2013 Report No.: 13041371HKG-001R1 Report Date: July 16, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13041371HKG-001R1 FCC ID: P45TD201327 ii SUMMARY OF TEST RESULT Fujian Teamda Photoelectricity Co., Ltd. BRAND NAME: N/A, MODEL: TD2013 FCC ID: P45TD201327 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13041371HKG-001R1 FCC ID: P45TD201327 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling ................................................................................................ 6 6.0 Technical Specifications ..................................................................................... 6 7.0 Instruction Manual .............................................................................................. 6 8.0 Miscellaneous Information ................................................................................. 7 8.1 Measured Bandwidth / RF Output Signal............................................................ 7 8.2 Discussion of Pulse Desensitization ................................................................... 8 8.3 Calculation of Average Factor ............................................................................ 8 8.4 Emissions Test Procedures ............................................................................... 8 9.0 Equi…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13041371HKG-001 FCC ID: P45TD201327 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: TD2013 INTERTEK TESTING SERVICE Report No: 13041371HKG-001 FCC ID: P45TD201327 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: TD2013
