P4L00M11201WIRELESS BLUETOOTH SPEAKER

SPECIFICATIONS Amplifier output power: left/right 1.5Wx2, subwoofer 3.5Wx1 Amplifier input sensitivity: ≤400m V Amplifier SNR:≥ 70dB Frequency response:70Hz~20KHz Power voltage: AC100-240V, 50/60Hz Battery: 7.4V 1800mHA Battery time 10hours Battery charging time: 4-6hours Blue tooth range: 7-10M(23-33FT) Bluetooth version: 3.0 2.4G Support A2DP M1 5 6 9. Built-in battery : when using the built-in battery to play music, the unit will manage the battery use automatically, when the power is low, the unit will decrease the volume to ensure the sound quality and longer play time; when the power is not enough to support normal play, the indicator will flash and the unit will be switch to standby, please use the proper power adapter to charge the unit for normal use. 10.Charging:, please use the supplied power adapter to charging, the green indicator on the back of the unit will be flashing during charging. When the battery is fully-charged, the green indicator will stop flashing. AMETHYSTM1 6.Re-pairing: To touch the PAIR button on the control panel for re-pairing, meanwhile the indicator will flash, and there is voice prompt that the unit is ready to be paired. Please follow step 3 to do pairing. 7.AUX input play: Switch the M1 on, touch the INPUT button on the control panel, the indicator will flash once, and the unit will be connected to the AUX channel play. The music in mobiles, MP3, PC, etc can be played through 3.5mm audio cable. Press input again will turn to bluetooth channel and reconnect automatic. PAIR INPUT 8.DC5V Charging output: the unit provide standard USB port charging, with DC5V 1A charging current, which can charge mobiles, MP3, etc through USB cable.。 FLASH 1.The Bluetooth device can't find the speaker, the speaker may still connect with last Blue tooth device or another device are searching and connecting with speaker at same time. Now you need to operate as Step 3 to re-connect it. 2. If you hear intermittent sound or no sound from speaker after connection. Please check if the distance from you and speaker are over 10M(33FT) 3.To avoid echo when using the speaker phone function, do not place your phone near or in front of the M1 speaker. 4.For best results it is recommended that Bluetooth enabled music player that supports Apple iPod, iPhone, Samsung players, and Window media players be used. Other, third party supported media players may not support smooth song change functions, which may cause sound distortion or interruption between song tracks. 5.Please use power adaptor which provide from Lanchiya to avoid damage your speaker. 6.Please connect and disconnect adaptor when the switch is in OFF position 7.if your mobile doesn't support mobile ring transfer, you can only hear the M1 Built in ring voice “ incoming call”, when calling come in. NOTE * AMETHYST INNOVATIONS CORPORATION 14731-J Franklin Avenue Tustin, CA. 92780 Phone: 714-731-2921 Website: www.amethystinnovationscorp.com 5. Speaker Phone operation: When the call comes in during playing music, answer the call by touching the button 【PHONE】on the touching panel and talk facing the top panel; or dial the receiver button on the mobile to use mobile to answer the call. Press and hold on 【PHONE】for 2 seconds to hang up the phone during calling. PHONE 1 1.M1 machine 2.Power adapter 3.Audio cable 4User manual. PACKAGE CONTENTS Brief Operation Introduction PROPERTY RIGHTS INFORMATION: The trademark amethyst lanchiya and all the developed products with this label are registered patents,and belong to Foshan LANCHIYA digitai Technology Co.,Ltd. Our company reservesall rights,and not allow reprinting.Other concerned trademarks all belong to their proprietors.As to the constant update and development of the products,our company reserves the right to change and rework our products without notice. SAFETY INSTRUCTIONS: To ensure your safety and enjoyment, read and follow the safety instructions and use in the directed manner. Keep this manual for future reference. WARING: To prevent any fire or electrical hazards, do not remove or dissemble any parts from this unit. Please ensure that you use a qualified technician to service it. • Do not expose the unit to rain, water or moisture • Do not place liquid on or close to unit • Do not place unit on or near an open fire such as candles or light • Keep away from heat and dust • Place unit on a stable and level platform • Do not place any items on top of unit • Do not use excessive force when pushing the unit buttons • Do not attempt to pull the power cord from a distance to shut the power Children and dispose in appointed place for battery • Secure all cords and connections and do not use pinched or defective one • Unplug the power cord if the unit is left unused for extended periods • Clean with a damp cloth only • Operating temperature 0ºC-55ºC (32ºF~131ºF) (FT) • • Blue tooth device can't be found: probably, the Speaker has been connected by other Blue tooth device. Press Pair button to search it again. If you still cannot find the speaker, please Turn Off the speaker for 5second then turn it on. • Blue tooth signal intermittently: the effective distance between speaker and Device is10M, the signal will be intermittent if the distance more than 10M33. • If there are more than 1 Speaker are switch on, the Bluetooth device will find more than 1 speaker, if you want to connect one of them please turn off the others • If your Bluetooth device on searching and find many other Bluetooth device, please wait for the searching finished and select Speaker to pair. The unit with Lithium Battery in please don't burn,bite,Keep away from 2 3 4 1.Connection: Using built in battery or Plug M1 into an outlet using the include AC adaptor then switch it On Please make sure the switch is on off position when you plug M1 with AC adaptor. 4 2. Power-on Operation: After switching M1 on, the indicator on the front panel is on, and Voice remind [Power ON] then the Bluetooth channel; then starts to searc…

Text truncated - open the document above for the full version.

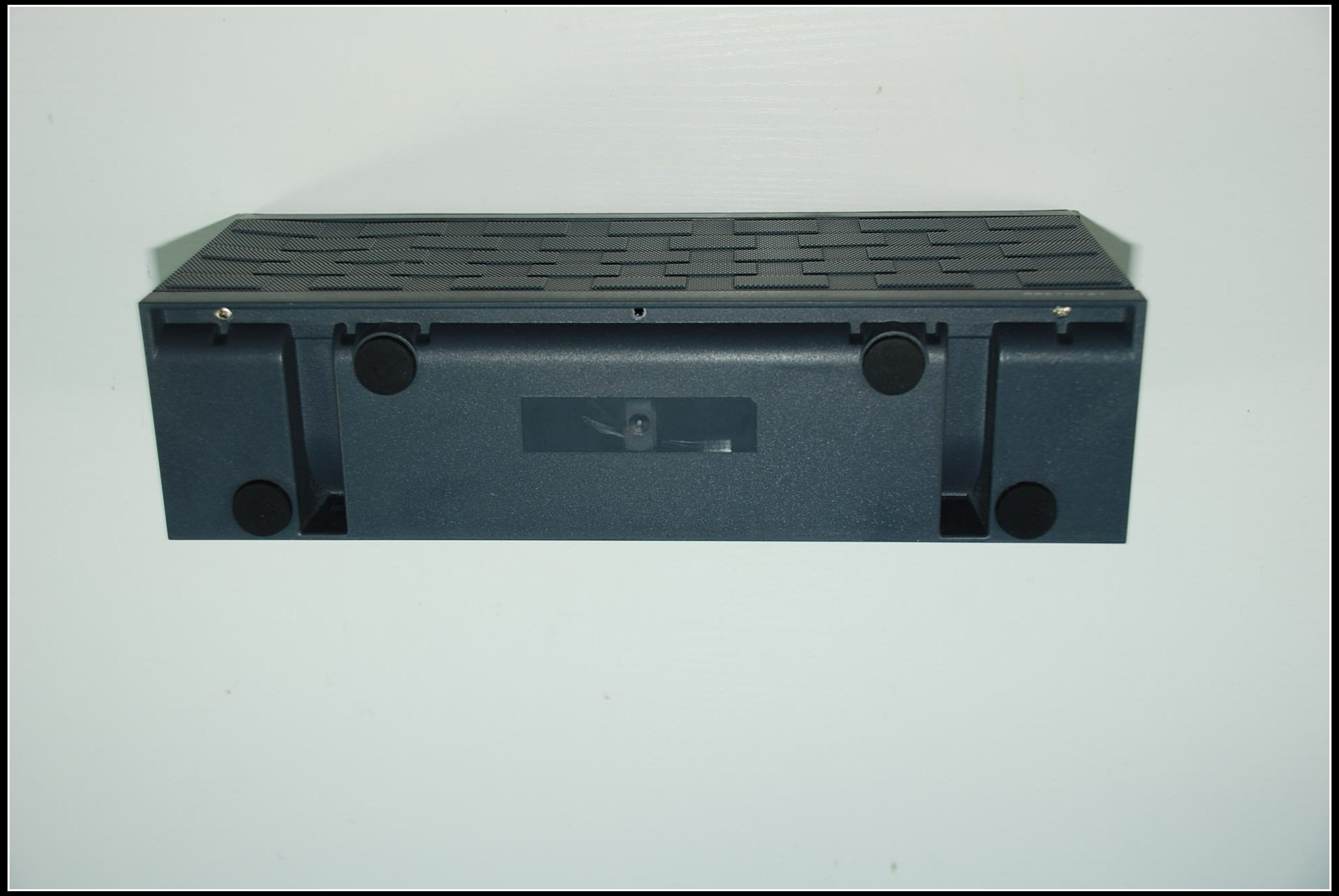

External Photos
