P4LMK700020Bluetooth Speaker

P1 P2 MK70 USER MANUAL Customized Vacuum Tube ® Wireless Bluetooth Streaming for all your digital multi-media devices.& ※Control Panel Instruction 1 ※Package Contents 3 4 5 6 1 2 3 2 4 1.Speaker X1 2. AC Adaptor X1 3.User Manual X1 4.Aux Cable X1 BACK 89 7 10 1.STANDBY 2.MODE 3.PAIR 4.VOLUME- 5.VOLUME+ 6.NFC 7.DC IN 8.PC-USB 9.AUX 10.PHONO PROPERTY RIGHTS INFORMATION: The trademark amethyst lanchiya and all the developed products with this label are registered patents,and belong to Foshan LANCHIYA digitai Technology Co.,Ltd.Our company reservesall rights,and not allow reprinting.Other concerned trademarks all belong to their proprietors.As to the constant u p d ate and development of the products,our company reserves the right to change and rework our products without notice. SAFTY INSTRUCTION To e n s u re yo u r s a fe t y a n d e n j o y m e n t , p l e a s e re a d a n d follow the safety instructions. WARNING: To prevent any fire or electrical hazards, do not disassemble this product. Do not expose the speaker to rain, water, moisture. Do not place liquid on or close to the speaker. Do not expose the speaker under blazing sun for a long time. Do not place the speaker on or near the fire. Keep away from heat and dust. Place the speaker on a stable and level platform. Do not place heavy items on top of the speaker. Do not use excessive force when pressing the buttons on the speaker. D o not attempt to pull the adaptor cable when removing it from power outlet. Do not use damaged or defective cables. Clean with a soft damp cloth only. Adjust the volume to the suitable level in order to avoid harming your hearing sense or damaging the audio system. Turn off the speaker and remove the cable from the power outlet when you don't use the speaker. Location of Label is at the bottom of product. • • • • • • • • • • • • • • • •Use only power supplies listed in user manual. Address : hongtu RD,Songxia lndustry Park,Songgang Nanhai District,Foshan,Guangdong Province,China Manufacturer:Foshan LANCHIYA Digital Technology Co., Ltd China dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.” “CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.” where the MAINS plug or an appliance coupler is used as the disconnectdevice, the disconnect device shall remain readily operable FCC ID: P4LMK700020 (s) used for this transmitter must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with a n y o ther antenna or transmitter.Installers must ensure that 20cm separation distance will be maintained between the device (excluding itshandset) and users. “batteries shall not be exposed to excessive heat such as sunshine, fire or the like.”“the apparatus shall not be exposed to Caution: The user is cautioned that changes or modifications n o t e x p r e s s l y a p p r o v e d b y t h e p a r t y r e s p o n s i b l e f o r co mp lian ce co u ld vo id th e u s er's au th o rity to o p erate th e equipment. ation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC ’s RF radiation exposure limits set forth for an uncontrolled environment. The antenna P3 P4 P5P6 2.Power-on operation Turn on the speaker by touching button [STANDBY] . The vacuum tube and power indicator light will be on, and the speaker starts to work. 3.Mode-choice operation 1). Bluetooth mode(green indicator light) 1.1). Connect Bluetooth by hand. Touch the button [MODE] and select Bluetooth mode.Press [Bluetooth symbol] to enter the pairing status. If there is no audio cable connecting with the speaker, the default mode is Bluetooth. Search the speaker (MK70) with your mobile phone and connect it.Play the music and adjust the volume appropriately to enjoy music. • • • • If your Bluetooth device can search and find many other Bluetooth devices, please choose the speaker MK70 to pair after the Bluetooth device finishes searching. Make sure that your Bluetooth device has NFC function, NFC is on, and the screen of the Bluetooth device is unlocked. If the Bluetooth device can't be connected to NFC, please check whether the speaker is at Bluetooth channel. Press the button PAIR to make it enter pairing status. If the Bluetooth connection has failed several times, turn off the speaker and wait for 3 minutes before restarting it, or restart the mobile and try again. • • • • • Turn on the NFC and Bluetooth function of the mobile phone. Touch the button [Bluetooth symbol] on the speaker panel to make sure that the speaker is in the pairing status. Move the NFC antenna position of the mobile close to the NFC sensor position on the left back of the speaker. The mobile phone detects the speaker, and a confirmation message pops up. Click to confirm and connect. The mobile phone detects that there is a pop-up confirmation matching window for mk70,click to confirm and connect. 2). Aux mode(red indicator light) Select Aux mode by touching the button [MODE] , and connect the audio cable to the 3.5mm audio input port on the backside of the speaker. Play the music , and adjust the volume appropriately to enjoy music. • • 3). PHONO mode(purple indicator light) Select Phono mode by touching the button [MODE], and the purple indicator light will be on. Connect the MM type turntable with the speaker through an audio cable with good shielding performance, one end connec…

Text truncated - open the document above for the full version.

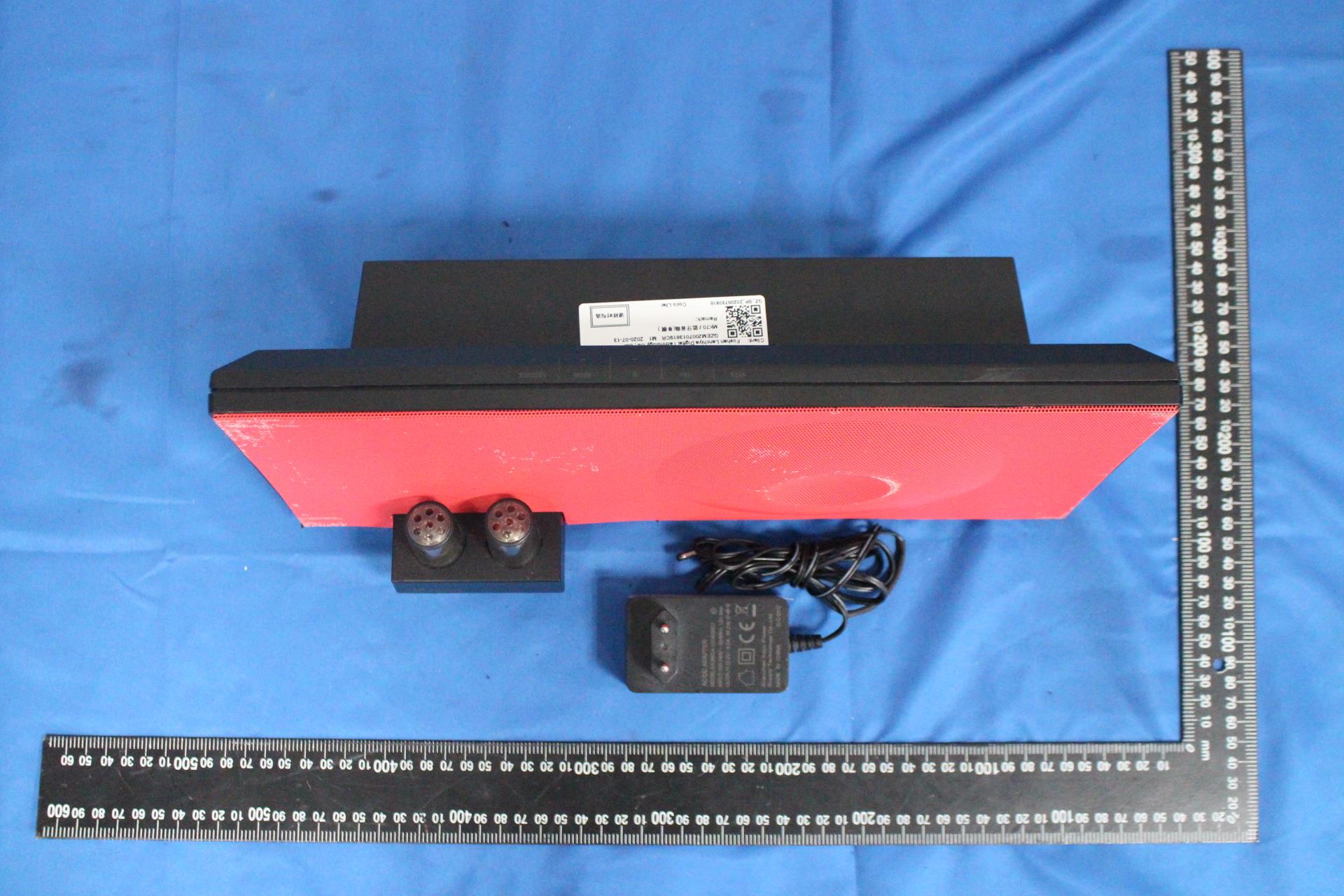

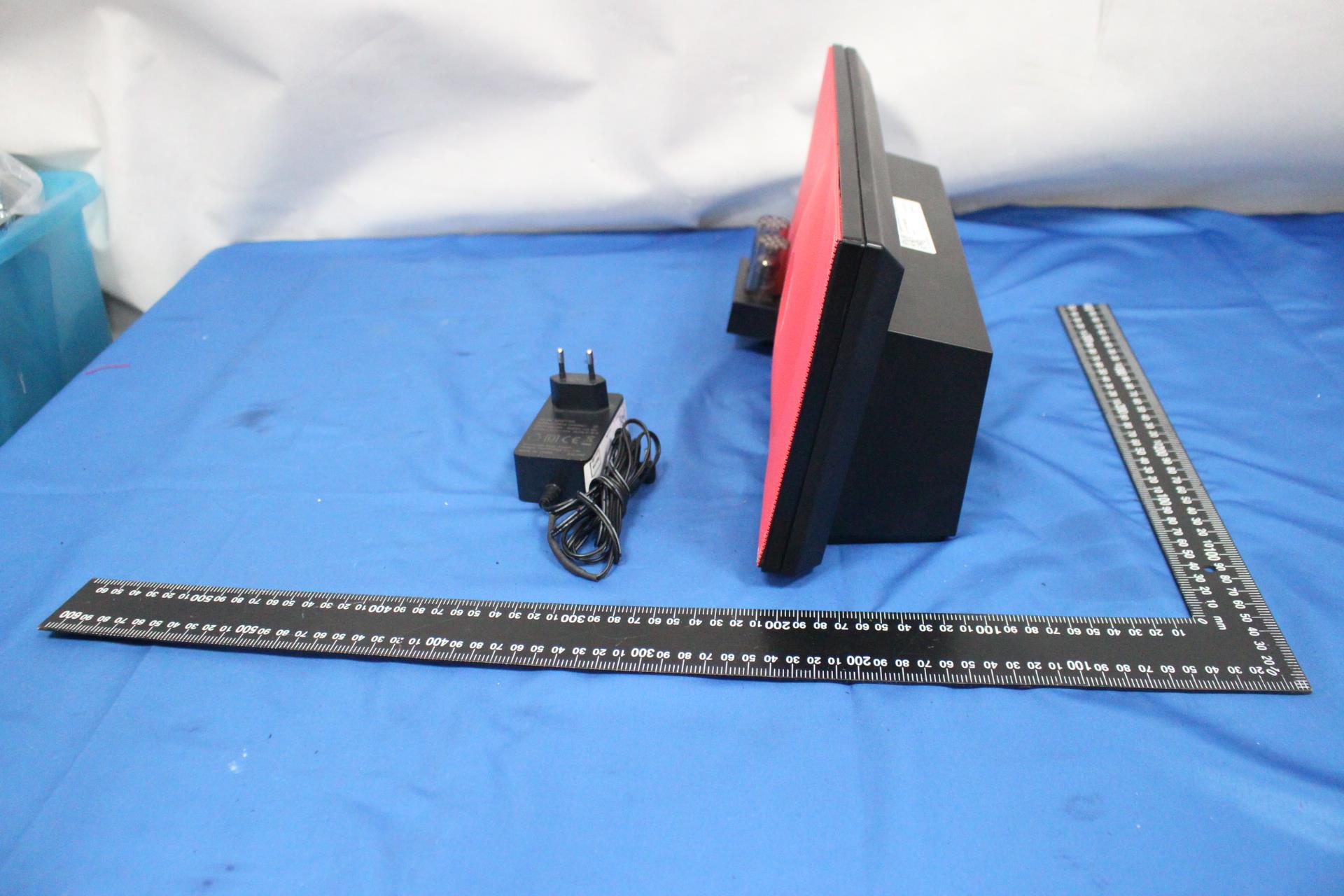

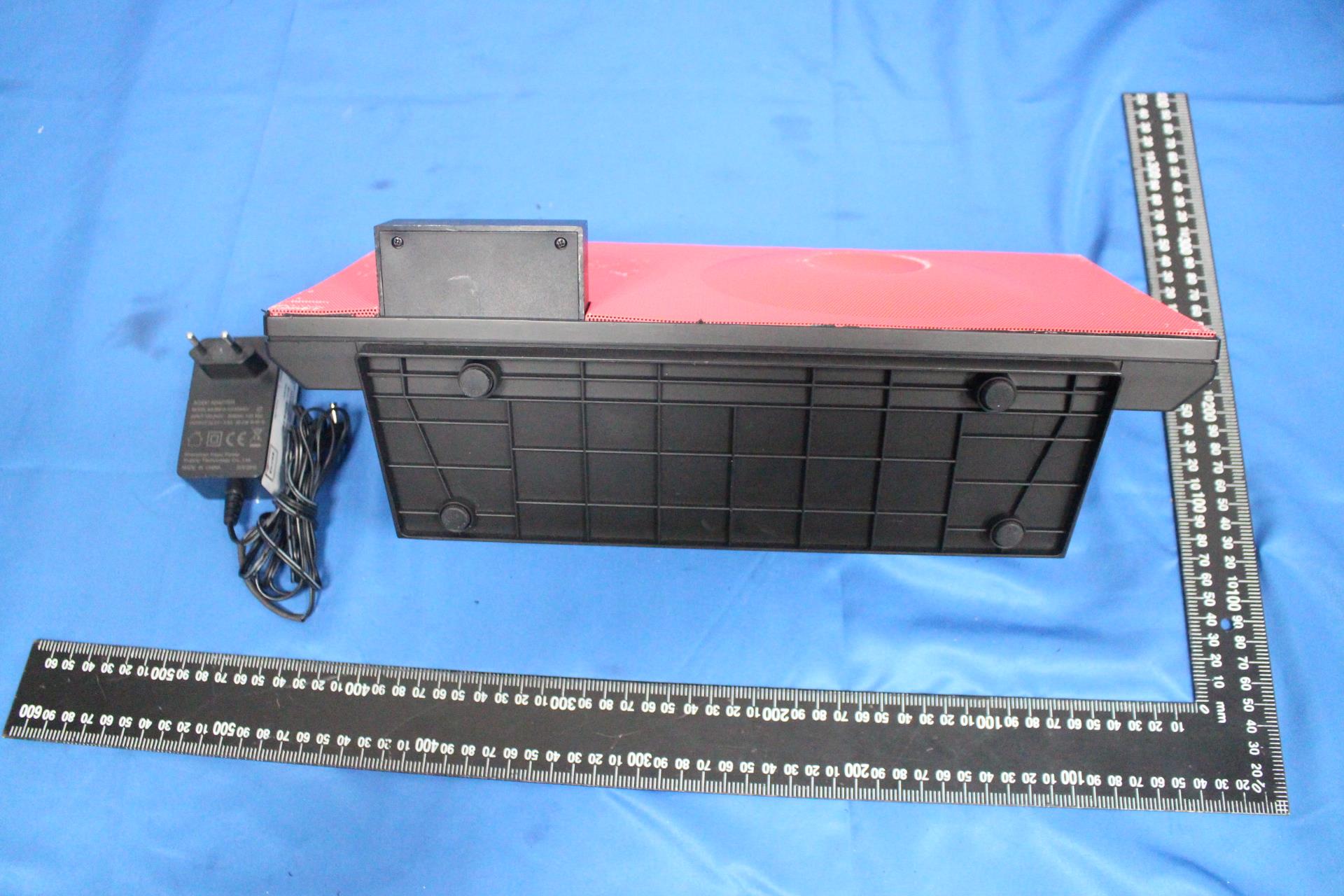

External photo

This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)this device m ust accept any interference received, including interference that may cause undesired operation. FCC ID: P4LMK700020

Internal photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361903 Page: 1 of 10 FCC ID: P4LMK700020 Kobe Jian EMC Laboratory Manager RF Exposure Evaluation Report Application No.: GZEM2007013619CR Applicant: Foshan Lanchiya Digital Technology Co., Ltd Address of Applicant: Hongtu Rd., Songxia Ind. Park, Songgang, Shishan Town, Nanhai Dist., Foshan Manufacturer: The same as applicant Address of Manufacturer: The same as applicant Factory: The same as applicant Address of Factory: The same as applicant Equipment Under Test (EUT): EUT Name: Bluetooth Speaker Model No.: MK70 FCC ID: P4LMK700020 Standard(s): 47 CFR Part 1.1307, Part 1.1310 Date of Receipt: 2020-07-09 Date of Evaluate: 2020-07-14 to 2020-10-26 Date of Issue: 2020-10-27 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361903 Page: 2 of 10 Revision Record Version Chapter Date Modifier Remark 01 2020-10-27 Original Authorized for issue by: Evaluated By 2020-07-14 to 2020-10-26 Kevin_Zhang /Project Engineer Date Checked By 2020-10-27 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361903 Page: 3 of 10 2 Evaluation Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, Part 1.1310 CFR 47 Part 1.1310 CFR 47 Part 1.1310 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361903 Page: 4 of 10 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Evaluation Summary .................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 5 4.1 Details of E.U.T. ..................................................................................................................................... 5 4.2 Description of Support Units .................................................................................................................. 5 4.3 Test Location ......................................................................................................................................... 5 4.4 Test Facility ............................................................................................................................................ 6 4.5 Deviation from Standards ...................................................................................................................... 7 4.6 Abnormalities from Standard Conditions ............................................................................................... 7 5 Radio Spectrum Technical Requirement ................................................................................................... 8 5.1 RF Exposure .......................................................................................................................................... 8 5.1.1 Test Requirement: ............................................................................................................................. 8 5.1.2 Conclusion ......................................................................................................................................... 9 6 Photographs ............................................................................................................................................... 10 6.1 EUT Constructional Details .................................................................................................................. 10 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361903 Page: 5 of 10 4 General Information 4.1 Details of E.U.T. Power Supply: AC 100-240V, 56/60Hz by AC/DC adapter Model: KA3601A-1203000US Input: 100-240V, 50/60Hz Output: 12.0V-3.0A, 36.0W Cable: Adapter output cable (unshielded, 1.5m) Aux in cable (unshielded, 1.5m) DC Jack PC-USB port AUX port Earphone port Antenna Gain: -0.68dBi declared by applicant Antenna Type: Integrated Antenna Channel Spacing: 1MHz Modulation Type: GFSK, π/4DQPSK, 8DPSK Number of Channels: 79 Operation Frequency: 2402MHz to 2480MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) BT Version: V5.0 BT classical only Test Software: MV FrequencyTool v0.2.5 Level Setting: Lv 9 (1dBm) can not be changed by user S/N GZ_SP_20200730916 Hardware Version MK70-V3-20200303 Firmware Version SV01 4.2 Description of Support Units The EUT has been tested as an independent unit. 4.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361903 Page: 6 of 10 4.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations:  NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government.  ACMA SGS-CSTC Standards Technical Services Co., …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 1 of 107 FCC ID: P4LMK700020 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2007013619CR Applicant: Foshan Lanchiya Digital Technology Co., Ltd Address of Applicant: Hongtu Rd., Songxia Ind. Park, Songgang, Shishan Town, Nanhai Dist., Foshan Manufacturer: The same as applicant Address of Manufacturer: The same as applicant Factory: The same as applicant Address of Factory: The same as applicant Equipment Under Test (EUT): EUT Name: Bluetooth Speaker Model No.: MK70 FCC ID: P4LMK700020 Standard(s): 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-07-09 Date of Test: 2020-07-14 to 2020-10-26 Date of Issue: 2020-10-27 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 2 of 107 Revision Record Version Chapter Date Modifier Remark 01 2020-10-27 Original Authorized for issue by: Tested By 2020-07-14 to 2020-10-26 Kevin_Zhang /Project Engineer Date Checked By 2020-10-27 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 3 of 107 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass N/A: Not Applicable Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 4 of 107 3 Contents Page 1 Cover Page ................................................................................................................................................ 1 2 Test Summary .......................................................................................................................................... 3 3 Contents ................................................................................................................................................... 4 4 General Information ................................................................................................................................. 6 4.1 Details of E.U.T. ................................................................................................................................. 6 4.2 Description of Support Units .............................................................................................................. 6 4.3 Measurement Uncertainty .................................................................................................................. 7 4.4 Test Location ..................................................................................................................................... 7 4.5 Test Facility........................................................................................................................................ 8 4.6 Deviation from Standards................................................................................................................... 9 4.7 Abnormalities from Standard Conditions ............................................................................................ 9 5 Equipment List ....................................................................................................................................... 10 6 Radio Spectrum Technical Requirement .............................................................................................. 14 6.1 Antenna Requirement ...................................................................................................................... 14 6.1.1 Test Requirement: ....................................................................................................................... 14 6.1.2 Conclusion................................................................................................................................... 14 6.2 Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence .................. 15 6.2.1 Test Requirement: ....................................................................................................................... 15 6.2.2 Conclusion........................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 61 of 107 Dwell Time_DH3_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 62 of 107 Dwell Time_DH3_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 63 of 107 Dwell Time_DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 64 of 107 Dwell Time_DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 65 of 107 Dwell Time_DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 66 of 107 Dwell Time_2DH1_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 67 of 107 Dwell Time_2DH1_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 68 of 107 Dwell Time_2DH1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 69 of 107 Dwell Time_2DH3_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 70 of 107 Dwell Time_2DH3_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 71 of 107 Dwell Time_2DH3_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 72 of 107 Dwell Time_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 73 of 107 Dwell Time_2DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 74 of 107 Dwell Time_2DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 75 of 107 Dwell Time_3DH1_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 76 of 107 Dwell Time_3DH1_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 77 of 107 Dwell Time_3DH1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 78 of 107 Dwell Time_3DH3_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 79 of 107 Dwell Time_3DH3_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 80 of 107 Dwell Time_3DH3_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 81 of 107 Dwell Time_3DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 82 of 107 Dwell Time_3DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 83 of 107 Dwell Time_3DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 84 of 107 5.Hopping Channel Number Test Mode Number of Hopping Channel[N] Limit[N] Verdict DH5 79 >=15 PASS 2DH5 79 >=15 PASS 3DH5 79 >=15 PASS TEST PLOT Hopping Channel Number_DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 85 of 107 Hopping Channel Number_2DH5_2402 Hopping Channel Number_3DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 86 of 107 6.Band-edge for RF Conducted Emissions Test Mode Test Channel Hopping Carrier Power[dBm] Max. Spurious Level [dBm] Limit[dBm] Verdict DH5 2402 On -0.117 -46.963 <=-20.12 PASS DH5 2402 Off -1.313 -46.909 <=-21.31 PASS DH5 2480 On 0.266 -46.652 <=-19.73 PASS DH5 2480 Off 0.445 -45.892 <=-19.56 PASS 2DH5 2402 On -0.128 -47.992 <=-20.13 PASS 2DH5 2402 Off -1.838 -46.197 <=-21.84 PASS 2DH5 2480 On 0.339 -47.976 <=-19.66 PASS 2DH5 2480 Off 0.015 -44.933 <=-19.99 PASS 3DH5 2402 On -0.242 -47.494 <=-20.24 PASS 3DH5 2402 Off -1.777 -47.780 <=-21.78 PASS 3DH5 2480 On 0.387 -47.415 <=-19.61 PASS 3DH5 2480 Off 0.118 -47.291 <=-19.88 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 87 of 107 TEST PLOT Band-edge for RF Conducted Emissions_DH5_2402_Hopping On Band-edge for RF Conducted Emissions_DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 88 of 107 Band-edge for RF Conducted Emissions_DH5_2480_Hopping On Band-edge for RF Conducted Emissions_DH5_2480_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 89 of 107 Band-edge for RF Conducted Emissions_2DH5_2402_Hopping On Band-edge for RF Conducted Emissions_2DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 90 of 107 Band-edge for RF Conducted Emissions_2DH5_2480_Hopping On Band-edge for RF Conducted Emissions_2DH5_2480_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 91 of 107 Band-edge for RF Conducted Emissions_3DH5_2402_Hopping On Band-edge for RF Conducted Emissions_3DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 92 of 107 Band-edge for RF Conducted Emissions_3DH5_2480_Hopping On Band-edge for RF Conducted Emissions_3DH5_2480_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701361902 Page: 93 of 107 7.RF Conducted Spurious Emissions Test Mode Test Channel StartFre [MHz] StopFre [MHz] RBW [kHz] VBW [kHz] Pref[dBm] Max. Level [dBm] Limit [dBm] Verdict DH5 2402 30 10000 100 300 -1.885 -40.440 <-21.885 PASS DH5 2402 10000 26000 100 300 -1.885 -51.896 <-21.885 PASS DH5 2441 30 10000 100 300 -3.546 -45.820 <…

Text truncated - open the document above for the full version.

Test Setup photo 1.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup 1.2 Conducted Items Test Setup 1.3 Radiated Emissions which fall in the restricted bands Test Setup 1.4 Radiated Spurious Emissions Test Setup
