P4M-ACT210OBD-II Vehicle Tracking Device

Personal GPS Locator Users Manual (ACT210) All Rights Reserved. 1/12 CDMA VEHICLE TRACKER Users Manual Oct, 2012 ACT210, V0.1 AnyDATA AnyTime AnyPlace Any Wireless Data Solutions™ Personal GPS Locator Users Manual (ACT210) All Rights Reserved. 2/12 AnyDATA CDMA ACT210 Copyright © 2009 AnyDATA Corp. All Rights Reserved. Any part of this document may not be distributed, communicated, reproduced or transmitted in any form or by any means, electronic or mechanical or otherwise, for any purpose, without the permission of AnyDATA Corp. This document can be subjected to revision without further notice. Contact Address Headquarter AnyData Corporation 5 Oldfield, Irvine, CA 92618, http://www.anydata.net e-mail: [email protected] Rep:1-949-833-0011 Fax: 1-949-833-0022 AnyData(China) 489 Song Tao Road, Sector B, 1st Fl. Pudong ZhanJiang Hi- Tech Park, Shanghai, 201203, P.R.China http://www.anydata.net.cn e-mail: [email protected] Rep:+86-21-5080-4828 Fax:+86-21-5080-3828 AnyData.Net Inc.(Korea) DaeGo Bldg, 8th., 1591-10 Kwanyang-dong, Dongan_gu, Anyang City, Kyunggi-do Korea. http://www.anydata.co.kr e-mail: [email protected] Rep:+82-31-380-7100 Fax:+82-31-476-6021 Personal GPS Locator Users Manual (ACT210) All Rights Reserved. 3/12 Contents Contents 3 Figures 3 Tables 3 1 Introduction 5 1.1 Purpose ......................................................................................................................... 5 1.2 Technical Detail ...................................................................................................... 5 1.3 Revision History ...................................................................................................... 5 2 Physical Contents 6 3 Description: Vehicle GPS Locator (ACT210) 7 3.1 The Latest Vehicle Tracker in GPS Technology ............................................ 7 3.2 Alerts & Messages .................................................................................................... 7 3.3 Tracking Reports ...................................................................................................... 7 4 handing the Vehicle GPS Locator 9 4.1 Set-up ........................................................................................................................... 9 4.2 Power supply from vehicle (typical 13.5V) .................................................. 9 5 Powering On/Off the Vehicle GPS Locator 10 5.1 Powering On/OFF ...................................................................................................... 10 6 Vehicle GPS Locator Specifications 11 6.1 Form Factor .............................................................................................................. 11 6.2 Hardware Specifications ..................................................................................... 11 6.3 Software Specifications ..................................................................................... 11 6.4 External INTERFACE ................................................................................................ 11 6.5 Environmental .......................................................................................................... 12 7 Limitations of Liability 12 Figures Figure 2.1: Package Contents ............................................................................................... 6 Figure 3.1: External Interface .......................................................................................... 8 Figure 4.1: Installation of ACT210 in vehicle ........................................................... 9 Tables Table 1.1: Revision History .............................................................................................. 5 Personal GPS Locator Users Manual (ACT210) All Rights Reserved. 4/12 ! RF Exposure Warning: The radiated output power of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized. In order to avoid the possibility of exceeding the FCC radio frequency exposure limit, human proximity to the a ntenna should not be less than 20 mm. Information to user (FCC Part 15.21): Changes or modifications not expressive ly approved by the party responsible for compliance could void the user's authority to operate the equipment. Statement according to FCC part15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Information to user (Industry Canada license-exempt RSS standards) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Personal GPS Locator Users Manual (ACT210) All Rights Reserved. 5/12 1 INTRODUCTION 1.1 PURPOSE This manual discusses the purpose and usage of the Vehicle GPS Locator (ACT210). 1.2 TECHNICAL DETAIL Please refer to Technical Manual.pdf for a more detailed description of the ACT210. 1.3 REVISION HISTORY The revision history for this manual is shown in Table 1.1. Table 1.1: Revision History Version Date Description V 0.1 OCT 2012 Initial Release –ACT210 Personal GPS Locator Users Manual (ACT210) All Rights Reserved. 6/12 2 PHYSICAL CONTENTS Figure 2.1: Package Contents The box should contain: • One ACT210 Vehicle GPS Tracker • One User Guide Personal GPS Locator Users Manual (ACT210) All Rights Reserved. 7/12 3 DESCRIPTION: VEHICLE GPS LOCATOR (ACT210) 3.1 THE LATEST VEHICLE TRACKER IN GPS TECHNOLOGY Utilizing both assisted and standalone GPS, ACT210 is able to determine your location via a combination of cell triangulation and …

Text truncated - open the document above for the full version.

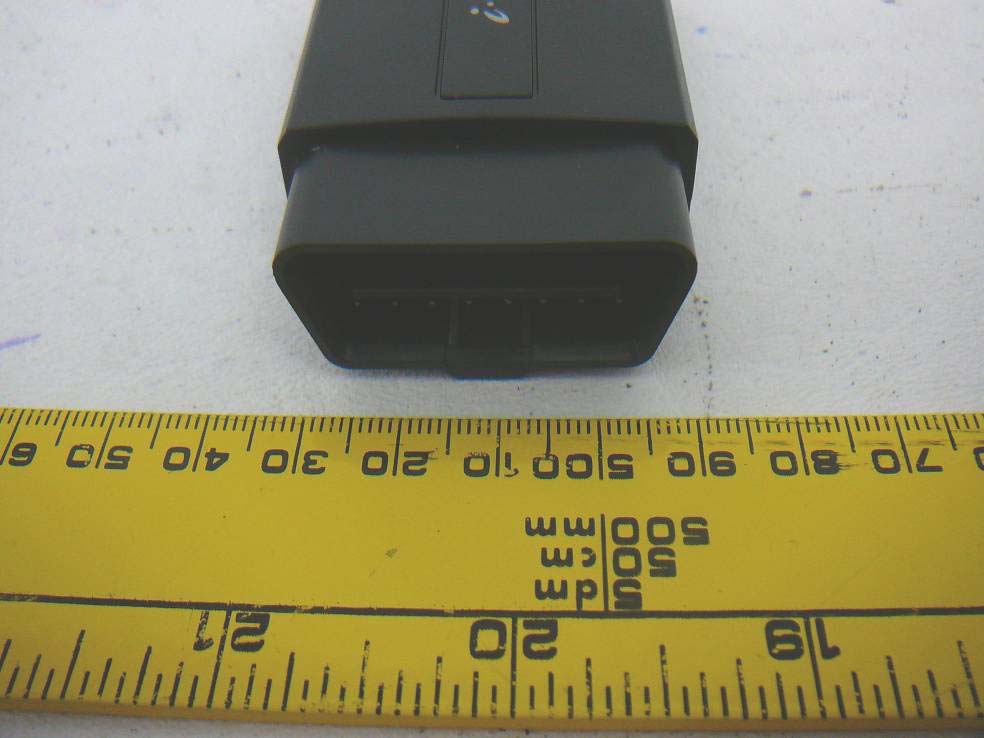

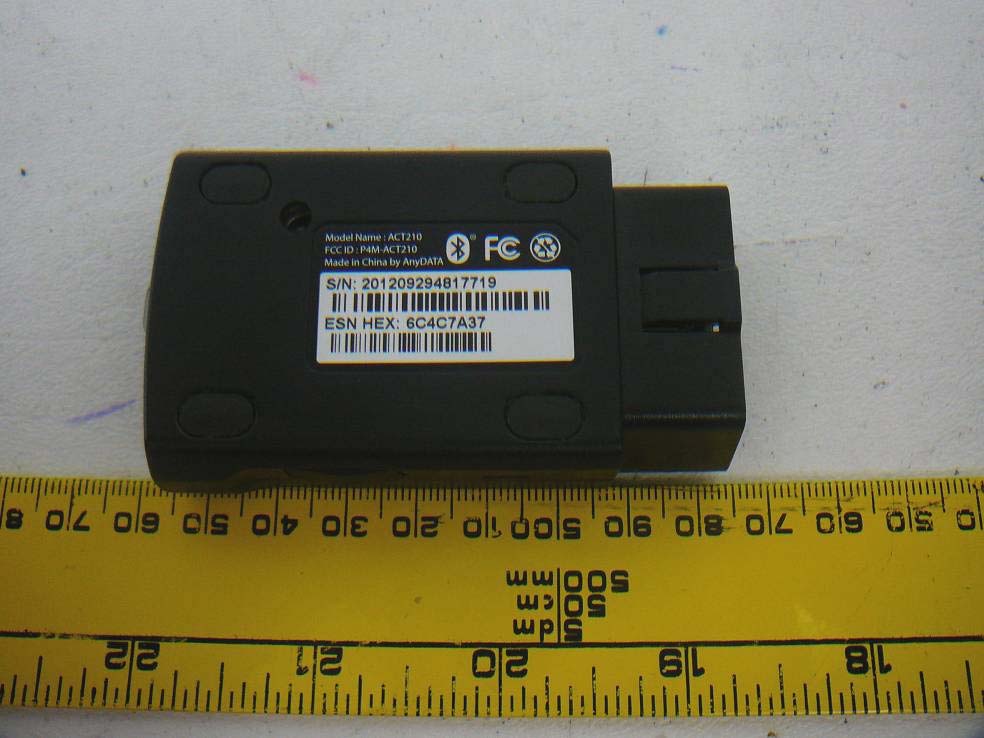

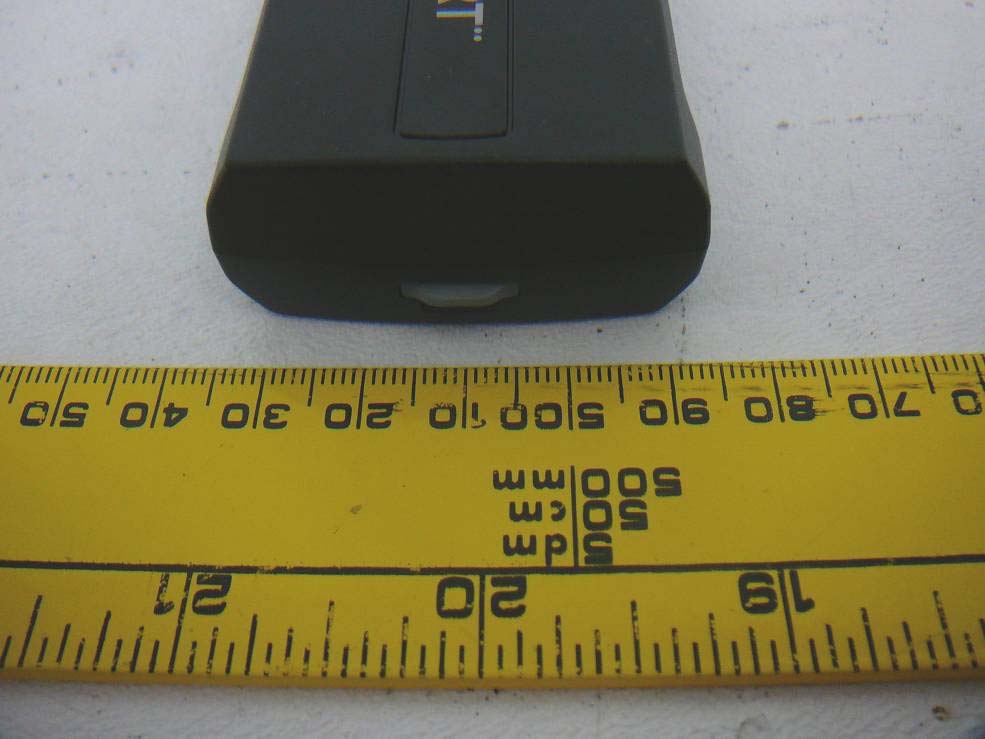

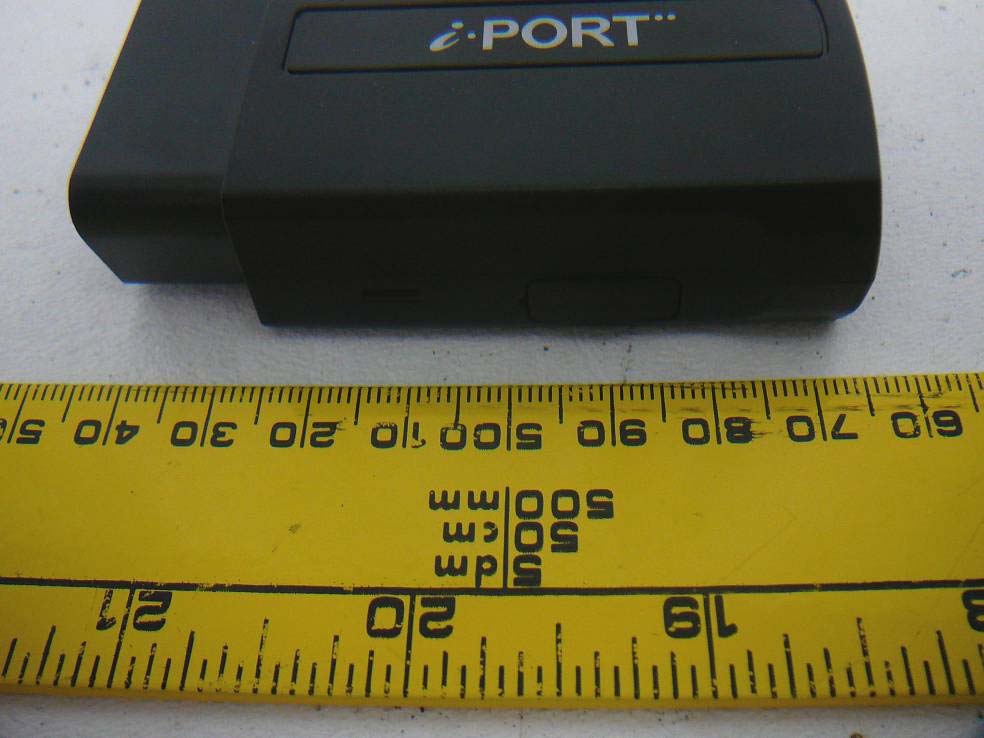

AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 20 of 27 FCC Part 22H/24E Test Report 9 Exhibit C – EUT Photographs 9.1 EUT – Top View 9.2 EUT – Bottom View AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 21 of 27 FCC Part 22H/24E Test Report 9.3 EUT – Front View 9.4 EUT – Rear View AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 22 of 27 FCC Part 22H/24E Test Report 9.5 EUT – Left Side View 9.6 EUT – Right Side View

Technical Regulation and Guide Document No: ACT210 Rev: V1.0 Document Name : Packin g Information for ACT210 Document Name g Applicable Product: ACT210 for USA Approval StatusApproval Status Prepared by Reviewed by Approved by Gilb t Y （ 2012/0 9/29 ） Yangxin （ 2012/09/29 ） Gilb er t Y u （ 2012/0 9/29 ） History Revision Description of Edition Revised by Date V1.0 Draft version Gilbert Yu 2012/09/29 Labels format- Device label 1. Model Name : ACT210 2. FCC ID : P4M ‐ ACT210 3. S/N: Date Code(YYYYMMDD) + S/N number(7digits) ‐ Font Size : Arial 6.0 4 S/N bar code 7digits Serial Number only 4 . S/N bar code : 7digits Serial Number only ‐ Bar code : 128B ‐ Height : 2.5mm 5. ESN HEX : Hex 8 digits S/N Bar Code (S/N Only) S/N : YYYYMMDD1234567 ESN HEX : 6CABCDEF ‐ Font : Arial 6.0 6. ESN bar code : Hex 8 digits ‐ Bar code : 128B ‐ Height : 2 .5 mm ESN Bar Code (Hex 8 digits) ESN HEX : 6CABCDEF Height : 2 .5 mm 2

AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 23 of 27 FCC Part 22H/24E Test Report 9.7 EUT Cover off View 9.8 EUT CDMA and Bluetooth Board Top View AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 24 of 27 FCC Part 22H/24E Test Report 9.9 EUT CDMA and Bluetooth Board Bottom View 9.10 EUT STN (Power) Board Top View AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 25 of 27 FCC Part 22H/24E Test Report 9.11 EUT STN (Power) Board Bottom View 9.12 EUT CDMA Antenna AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 26 of 27 FCC Part 22H/24E Test Report 9.13 EUT AC/DC Adapter

Tune up procedure in ACT210 To set up transmit power before shipping, AnyDATA uses a manufacturing process named “Calibration of RX and TX power”. In calibration process, the rated voltage of 3.5VDC is applied to the module to be calibrated. CDMA band tune up procedure (HDET Feedback Loop Operation) CDMA technical standard requires AnyDATA’s CDMA capable modules to transmit +23~+24.5dBm output power when it is required to transmit its maximum power. AnyDATA sets the maximum power of the module in CDMA bands to +24dBm (+0.5dB, ‐1dB) in calibration bench and verify the maximum power in manufacturing test bench. In CDMA HDET (High Power Detection) calibration process using a base station simulator such as Agilent 8960 or R&S CMU200, the module records and saves HDET value corresponding to maximum transmit power level and use the value in operation to limit the maximum power to +24dBm (+0.5dB, ‐1dB). Bluetooth band tune up procedure (pre‐programming in factory) Bluetooth technical standard requires AnyDATA’s embedded firmware to transmit +5~+10dBm output power when it is required to transmit its maximum power. AnyDATA sets the maximum limitation power of the BT Transmitter to +10dBm (+0.5dB, ‐1dB) in firmware and verify the maximum power in manufacturing test bench.

AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 15 of 27 FCC Part 22H/24E Test Report 6 FCC §1.1307(b)(1) & §2.1091 – RF Exposure Information 6.1 Applicable Standard According to FCC §2.1091, §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 6.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 16 of 27 FCC Part 22H/24E Test Report 6.3 MPE Results Cellular Band Maximum peak output power at antenna input terminal (dBm):24.51 Maximum peak output power at antenna input terminal (mW): 282.49 Prediction distance (cm): 20 Prediction frequency (MHz): 824.7 Maximum Antenna Gain, typical (dBi): -3.0 Maximum Antenna Gain (numeric): 0.5 Power density of prediction frequency at 20 cm (mW/cm 2 ):0.0281 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ):0.5498 PCS Band Maximum peak output power at antenna input terminal (dBm):25.27 Maximum peak output power at antenna input terminal (mW): 336.51 Prediction distance (cm): 20 Prediction frequency (MHz): 1851.25 Maximum Antenna Gain, typical (dBi): -3.0 Maximum Antenna Gain (numeric): 0.5 Power density of prediction frequency at 20 cm (mW/cm 2 ): 0.0335 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 22H, 24E TEST AND MEASUREMENT REPORT For AnyDATA Corporation 5 Oldfield, Irvine, CA 92618, USA FCC ID: P4M-ACT210 Report Type: Original Report Product Type: CDMA Vehicle Tracker with Bluetooth Function Prepared By: Wei Sun Report Number: R1210105-2224 Report Date: 2012-11-27 Reviewed By: Quinn Jiang Test Engineer Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 2 of 27 FCC Part 22H/24E Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION ................................................................................................................................. 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .......................................................................... 5 1.2 MECHANICAL DESCRIPTION OF EUT ................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 EUT TEST CONFIGURATION........................................................................................................................... 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 SPECIAL EQUIPMENT......................................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT............................................................................................................................. 7 2.6 EUT INTERNAL CONFIGURATION DETAILS........................................................................................................ 7 2.7 INTERFACE PORTS AND CABLING...................................................................................................................... 8 2.8 POWER SUPPLY LIST AND DETAILS.................................................................................................................... 8 3 SUMMARY OF TEST RESULTS........................................................................................................................ 9 4 FCC §2.1053, §22.917 & §24.238 - SPURIOUS RADIATED EMISSIONS.................................................... 10 4.1 APPLICABLE STANDARD.................................................................................................................................. 10 4.2 TEST PROCEDURE............................................................................................................................................ 10 4.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 10 4.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 11 4.5 TEST RESULTS................................................................................................................................................. 11 5 FCC §2.1046, §22.913(A) & §24.232 – RF OUTPUT POWER ........................................................................ 12 5.1 APPLICABLE STANDARD.................................................................................................................................. 12 5.2 TEST PROCEDURE............................................................................................................................................ 12 5.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 12 5.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 13 5.5 TEST RESULTS................................................................................................................................................. 13 6 FCC §1.1307(B)(1) & §2.1091 – RF EXPOSURE INFORMATION ............................................................... 15 6.1 APPLICABLE STANDARD.................................................................................................................................. 15 6.2 MPE PREDICTION.................................................…

Text truncated - open the document above for the full version.

AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 18 of 27 FCC Part 22H/24E Test Report 8 Exhibit B - Test Setup Photographs 8.1 Radiated Emissions - Front View (Below 1 GHz) 8.2 Radiated Emissions - Rear View (Below 1 GHz) AnyDATA Corporation FCC ID: P4M-ACT210 Report Number: R1210105-2224 Page 19 of 27 FCC Part 22H/24E Test Report 8.3 Radiated Emissions - Front View (Above 1 GHz) 8.4 Radiated Emissions - Rear View (Above 1 GHz)
